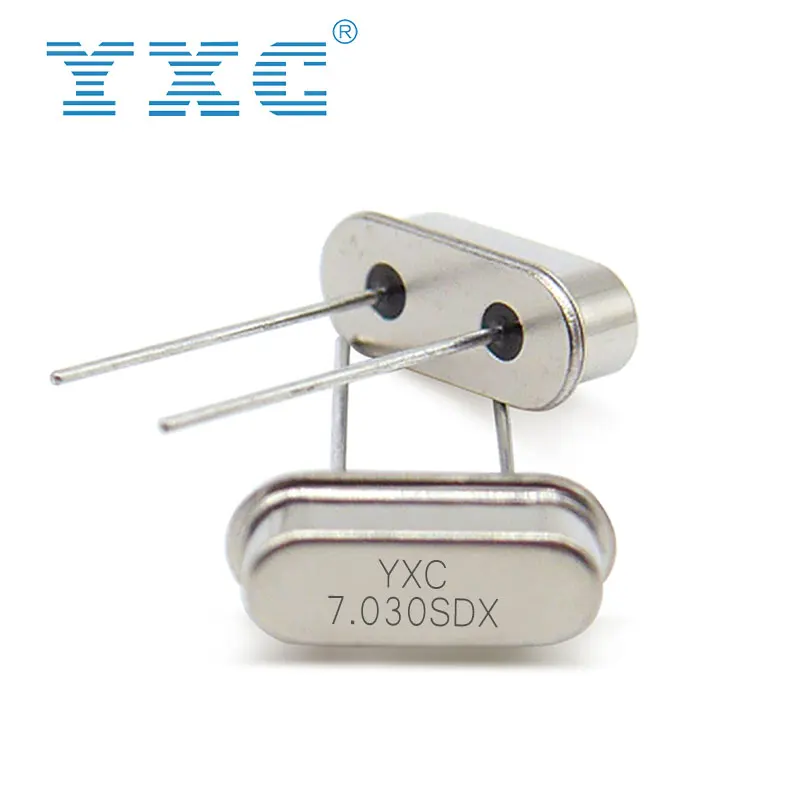

1 шт MOQ 49S DIP 7,030 МГц кварцевый генератор 7,03 МГц 20pF 20ppm
- Category: Oscillators old >>>
- Supplier: Shenzhen,Yangxing,Technology,Co.,Ltd.
Share on:
Product Overview
Description
Specifications

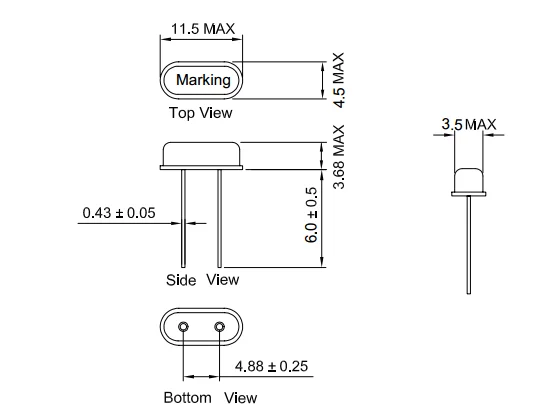

External Dimensions
Electrical Specifications
Item/Type | HC-49US |
Nominal Frequency Range | 3.2768~64MHz |
Vibration Mode | AT Fundamental |
Load Capacitance | 12pF, 20pF, or specify |
Frequency Tolerance (at 25°C): | ±10ppm;±20ppm or specify |
Frequency Versus Temperature Characteristics | ±20ppm or specify |
Operating Temperature | -20°C ~ +70°C -40°C ~ +85°C or specify |
Storage Temperature | -40°C ~ +85°C or specify |
shunt Capacitance | 7pF Max |
Level of Drive | 1~500 μW(100μW typical) |
Frequency Aging (at 25℃) | ±3ppm/year Max |
REMARK:SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE. PLEASE CONFIRM WITH OUR SALES ENGINEER FOR PDF FILE.

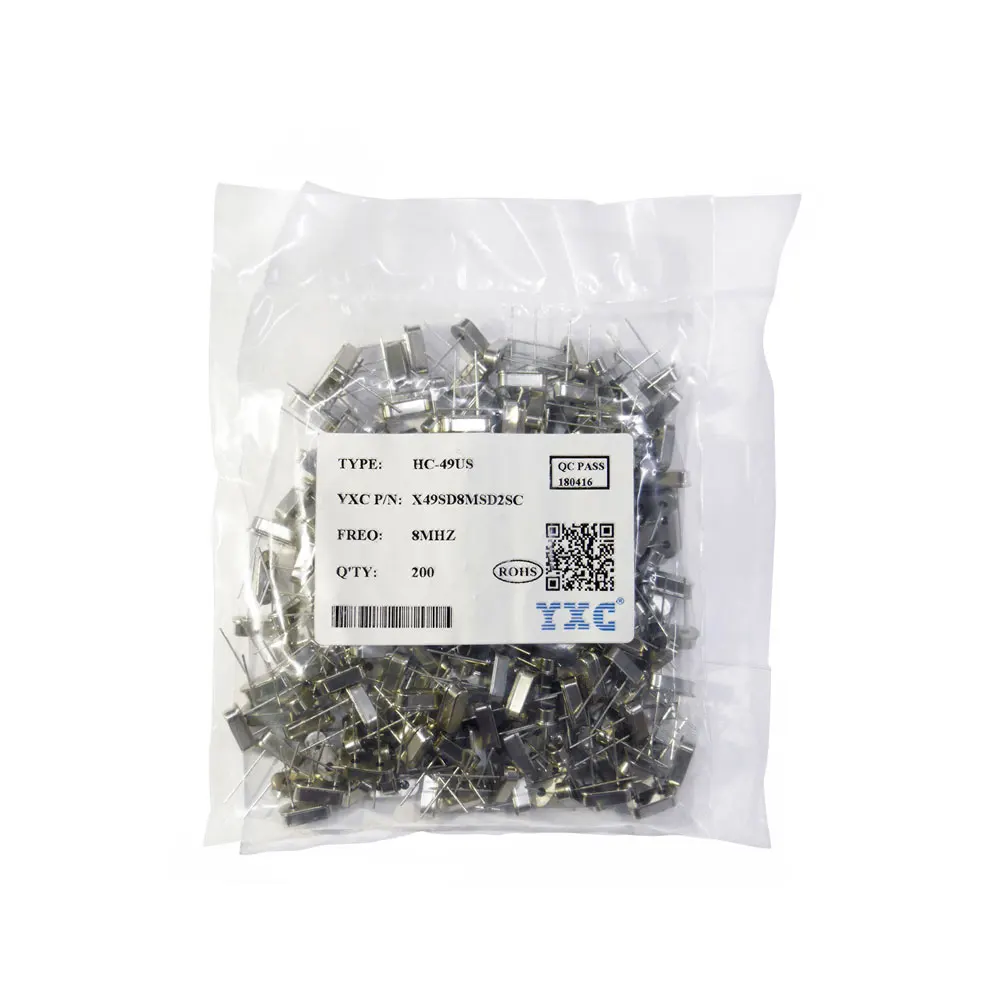

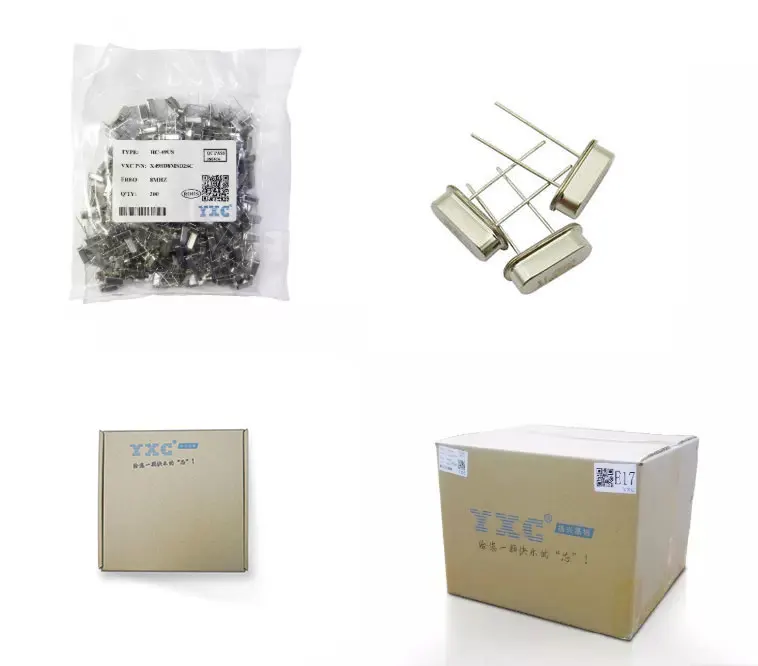

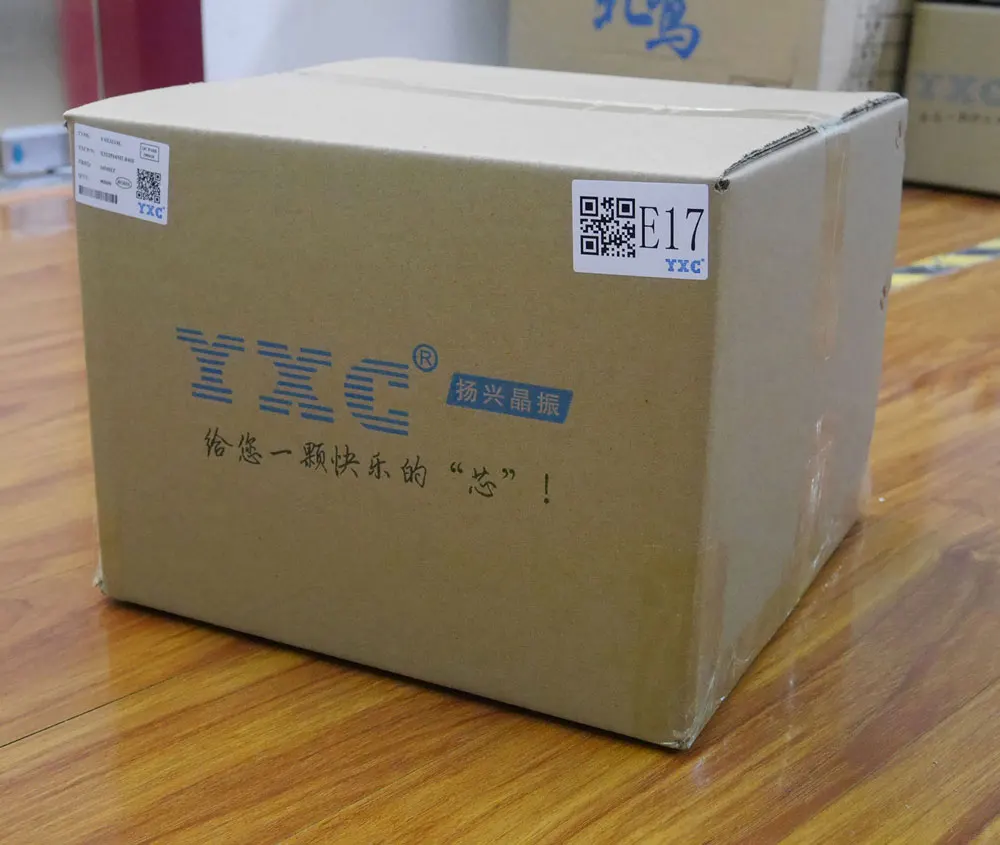

Packaging & Shipping
Shipping:
We have no shipping restrictions, you can specify the shipping method with your freight account, or use our express account.
We supply products to customers all over the world, and also technical support is provided for customers to use our parts more conveniently.
Applications
Company
SHENZHEN YANGXING TECHNOLOGY CO., LTD (short for “YXC”)-founded in July 1986, It is an experienced crystal oscillator supplier and manufacturer which is mainly focus on frequency control products.

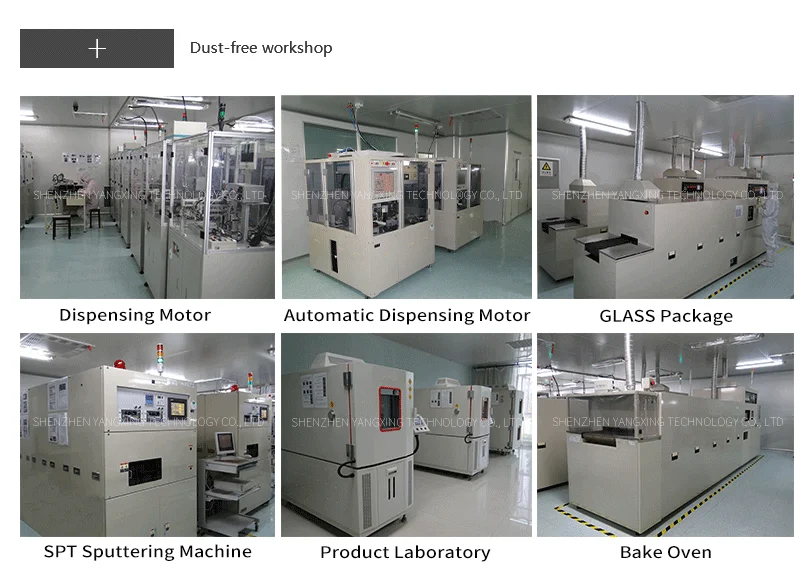

Yangxing has been moving towards automation on the basis of traditional quartz crystal oscillators process, Yangxing also has concentrated on R&D, will release new products from time to time.
As Yangxing’s core product, programmable crystal oscillator has applied for a number of patents and won the National Science and Technology Innovation Award.Yangxing has silicon and quartz, differential and voltage control programming oscillator. Parameters like frequency and voltage can be programmed. Frequency can be programmed up to 1.5GHZ which can meet any requirements of global customers has achieved large-scale production. IC as the core of active crystal oscillators, Yangxing is also actively researching and developing, and has already realized product applications.
Yangxing has been moving towards automation on the basis of traditional quartz crystal oscillators process, Yangxing also has concentrated on R&D, will release new products from time to time.
As Yangxing’s core product, programmable crystal oscillator has applied for a number of patents and won the National Science and Technology Innovation Award.Yangxing has silicon and quartz, differential and voltage control programming oscillator. Parameters like frequency and voltage can be programmed. Frequency can be programmed up to 1.5GHZ which can meet any requirements of global customers has achieved large-scale production. IC as the core of active crystal oscillators, Yangxing is also actively researching and developing, and has already realized product applications.
Exhibitions
Services
FAQs
1. Are you trading company or manufacturer ?
YXC is manufacturer of crystal oscillators, factory located in Zhejiang province, China. Welcome visited.
2. How long is your delivery time ?
24 hours ship out if in stock. Lead time for customized orders will be 2-4 weeks.
3. Do you provide samples? is it free or extra?
Free samples is offered and shipping cost wil be around 5-10 dolars globally .
4. What basic information to provide when ordering a crystals ?
(1) Basicaly standard frequency, load capacitance, size, DIP or SMD. These are key points.
(2) More demands like temperature range, frequency tolerance could be noted .
(3) Would be better if datasheet is available, Technical suggestion is supportive .
YXC is manufacturer of crystal oscillators, factory located in Zhejiang province, China. Welcome visited.
2. How long is your delivery time ?
24 hours ship out if in stock. Lead time for customized orders will be 2-4 weeks.
3. Do you provide samples? is it free or extra?
Free samples is offered and shipping cost wil be around 5-10 dolars globally .
4. What basic information to provide when ordering a crystals ?
(1) Basicaly standard frequency, load capacitance, size, DIP or SMD. These are key points.
(2) More demands like temperature range, frequency tolerance could be noted .
(3) Would be better if datasheet is available, Technical suggestion is supportive .
