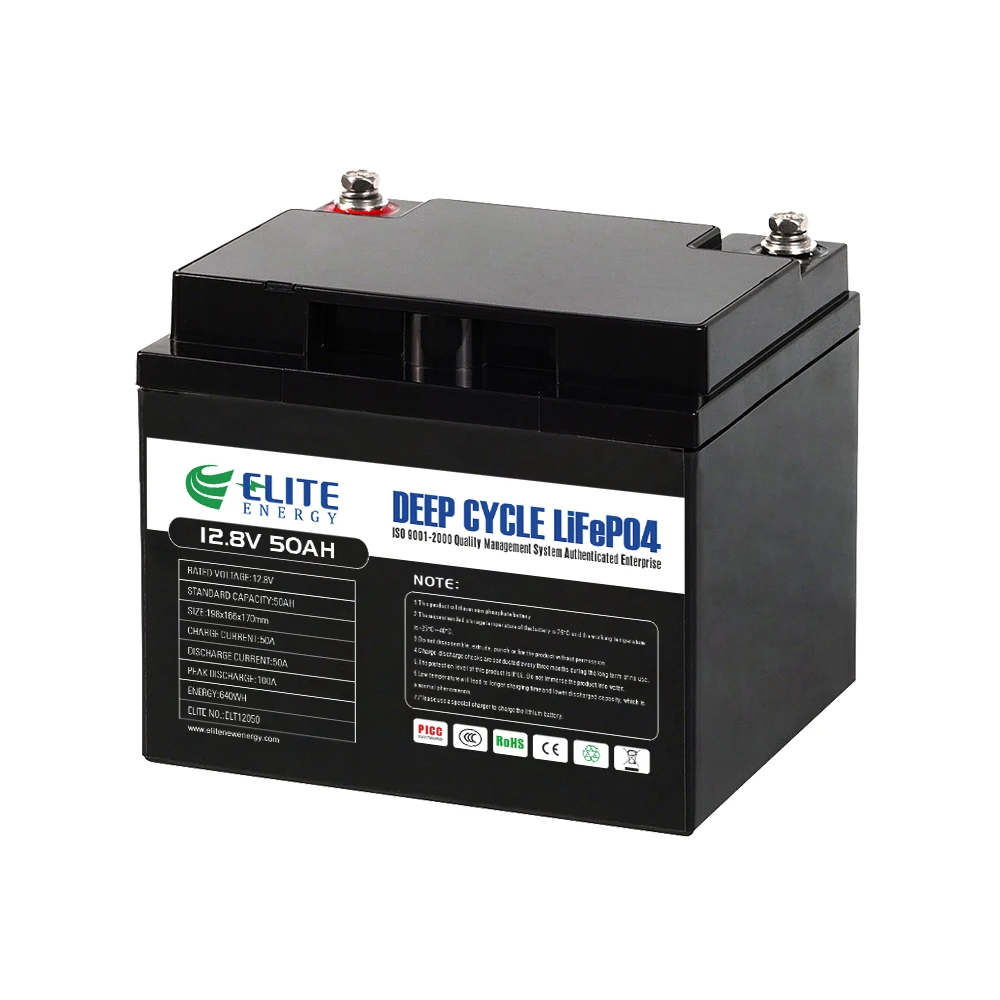

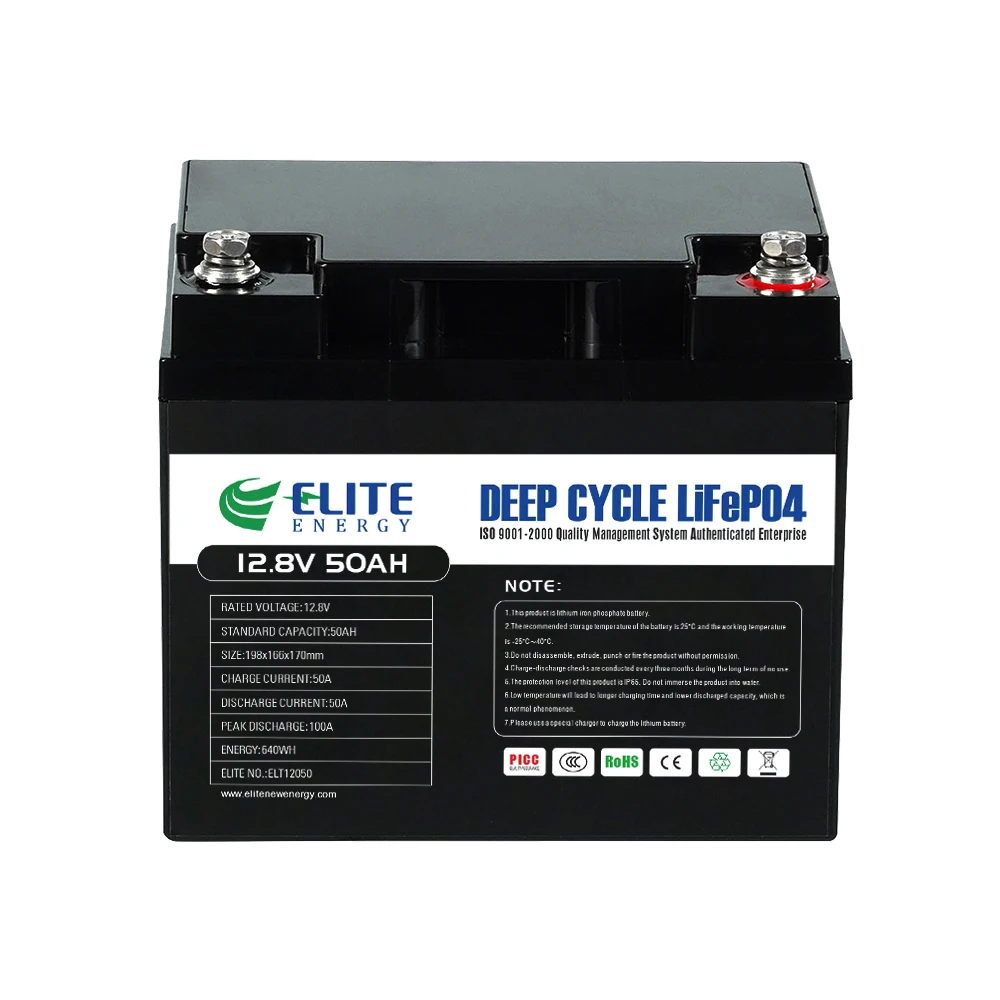

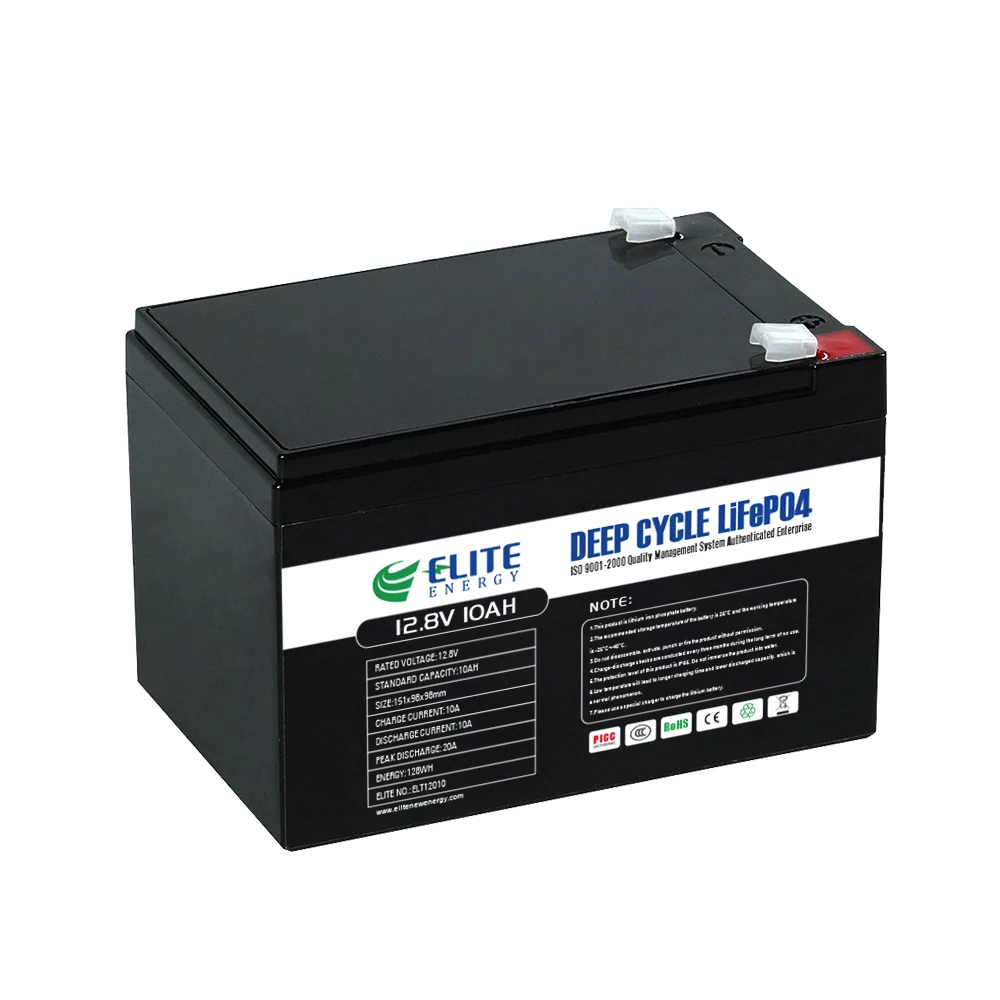

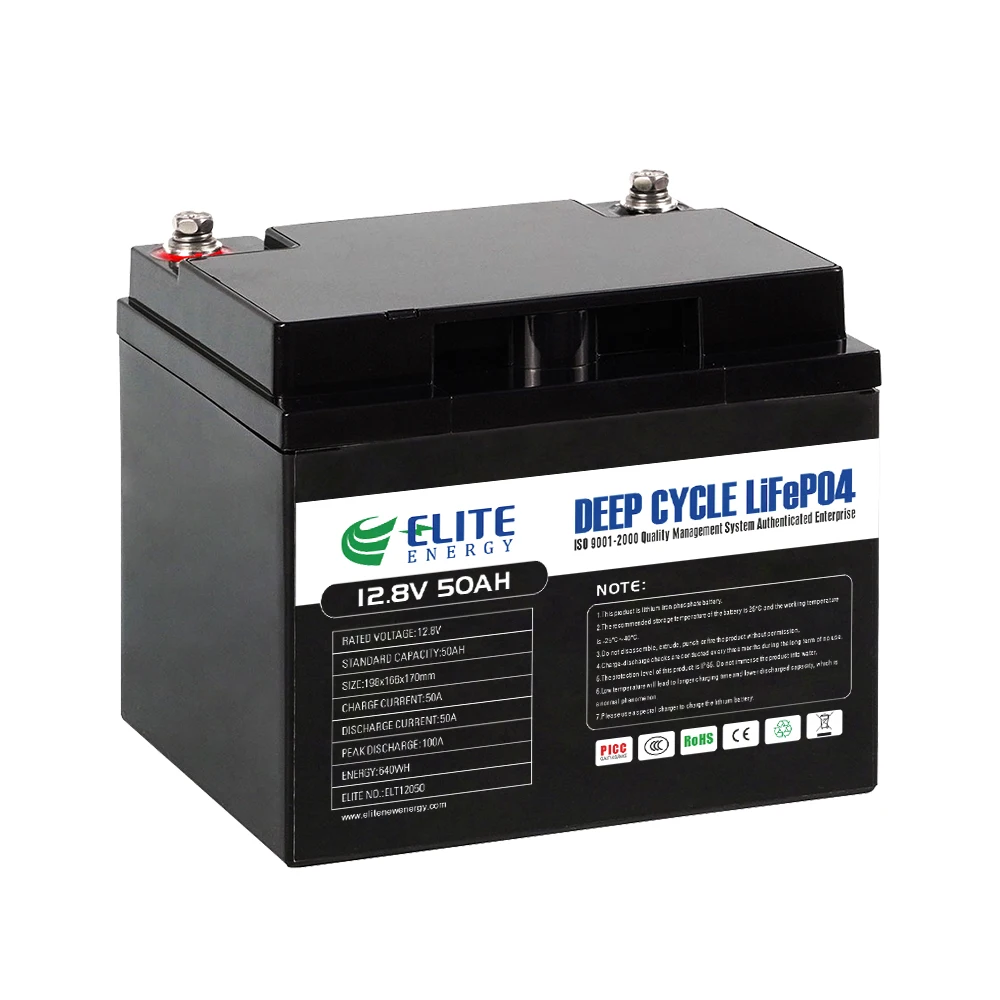

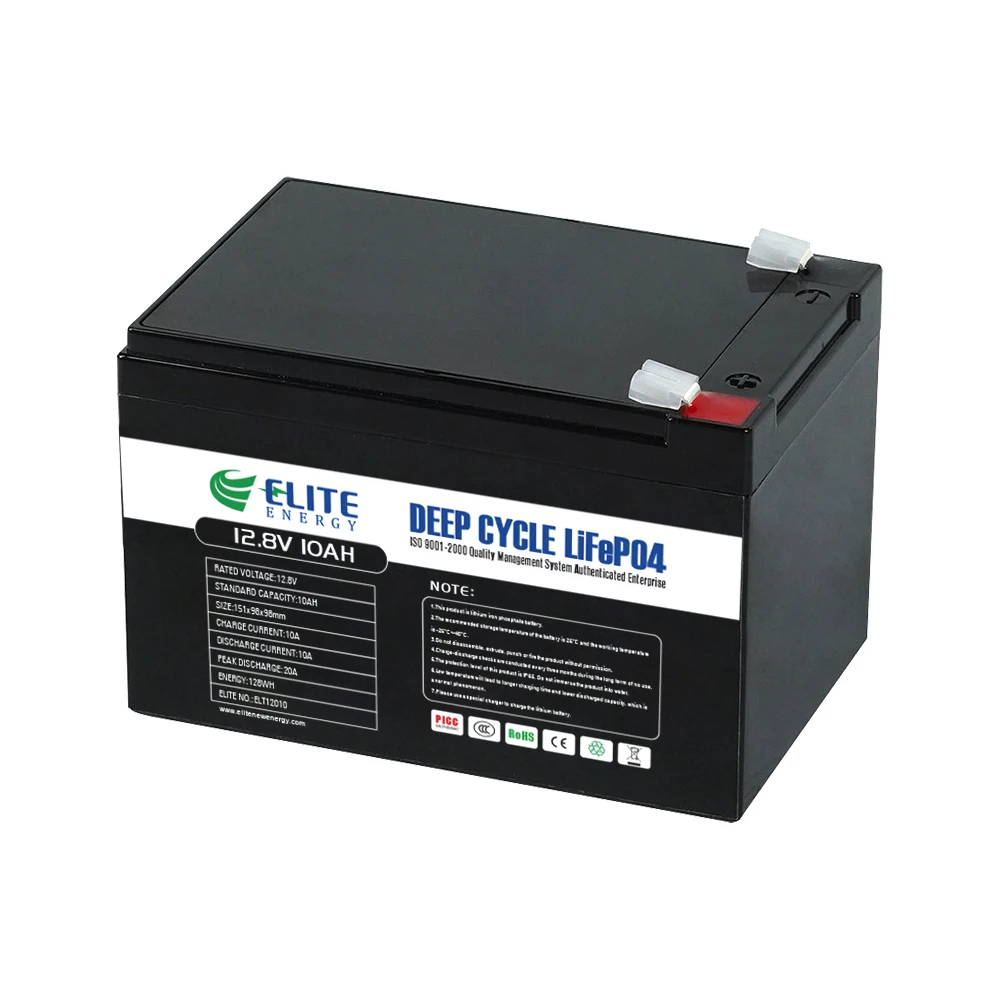

OEM 12V 10Ah 20Ah 50Ah LiFePO4 Deep Cycle Energy Storage Battery Pack 12 Volt Lithium Ion Batteries For RV Marine Solar System
- Category: >>>
- Supplier: Dongguan Elite New Energy Co. Ltd.
Share on (62241494592):
Product Overview
Description
12V 24V 36V 48V 100Ah 200Ah 300Ah 400Ah Lithium Rechargeable LiFePO4 Battery
Product Features
1. Safety Performance: safest Lithium Iron Phosphate battery, CE IEC UN38.3 approved, built-in BMS
2. Long Cycle Life: > 6000 times, 6-8 times life cycle compare to lead acid battery
3. Deep cycle, no memory effect, highly efficient
4. Compact size and light weight: 1/2 size & weight of lead acid battery
5. Good performance at high temperature
6. Low self-discharge rate: < 3% per month
2. Long Cycle Life: > 6000 times, 6-8 times life cycle compare to lead acid battery
3. Deep cycle, no memory effect, highly efficient
4. Compact size and light weight: 1/2 size & weight of lead acid battery
5. Good performance at high temperature
6. Low self-discharge rate: < 3% per month
Product Paramenters
Model | ELT12100 | ELT12200 | ELT12300 | ||
Norminal Voltage | 12.8V | ||||
Norminal Capacity | 100Ah | 200Ah | 300Ah | ||
Energy | 1280Wh | 2560Wh | 3840Wh | ||
Internal Resistance | ≤10mΩ | ||||
Cycle Life | >6000 cycles | ||||
Monthly Self Discharge Rate | <3% | ||||
Efficiency of Charge | 100% @ 0.5C | ||||
Efficiency of Discharge | 96-99% @1C | ||||
Charge Cut-off Voltage | 14.6±0.2V | ||||
Charge Mode | 0.2C to 14.6V, then 14.6V charge current to 0.02C(CC/CV) | ||||
Recommend Charge Current | 20-50A | 20-50A | 20-50A | ||
Max. Charge Current | 100A | ||||
Max. Continuous Discharge Current | 100A | ||||
Max. Pulse Current | 250A(5S) | 250A(5S) | |||
Discharge Cut-off Voltage | 10V | ||||
Charge Temperature | 0ºC to 45ºC(32F to 113F)@60±25% Relative Humidity | ||||
Discharge Temperature | -20ºC to 60ºC(-4F to 140F)@60±25% Relative Humidity | ||||
Storage Temperature | 0ºC to 40ºC(32F to 104F)@60±25% Relative Humidity | ||||
Water Dust Resistance | IP54 | ||||
Casing | ABS plastic case | ||||
Dimension(L*W*H) | 329*172*214mm | 525*220*240mm | 525*220*269mm | ||
Weight | 14.7kg | 28kg | 38kg | ||
Display screen | Optional | ||||
Bluetooth | Optional | ||||
Terminal | M8 | ||||
Certification | CE, MSDS, UN38.3 | ||||
Customization | Yes | ||||
Applications
1:RV, Camper, Trailer, Caravan, Camping Truck, Bus, etc.
2:Solar System+ Wind Power System
3:Home Energy System
4:Boat & Fishing
5:Wireless Lawn Movers, Vacuum Cleaners & Washing Machine
6:Portable Video Camera & Portable Personal Computer
7:Car Audio System
8:Light Equipment
9:Emergency Lighting Equipment
10:Fire Alarm & Security Systems
11:Electric Equipment & Telemeter Equipment Portable
12:Toys & Consumer Electronics
2:Solar System+ Wind Power System
3:Home Energy System
4:Boat & Fishing
5:Wireless Lawn Movers, Vacuum Cleaners & Washing Machine
6:Portable Video Camera & Portable Personal Computer
7:Car Audio System
8:Light Equipment
9:Emergency Lighting Equipment
10:Fire Alarm & Security Systems
11:Electric Equipment & Telemeter Equipment Portable
12:Toys & Consumer Electronics
Product Details
Certifications
Products with CE, UKCA, MSDS, UN38.3 Certifications
Factory with ISO9001, ISO14001 and ISO45001 Certifications
Company Profile
Founded in 2017, Elite New Energy Co., Ltd. is a high-tech enterprise specializing in the R&D and production of LiFePO4 battery systems for EV, ESS, lead acid battery replacement and many other different applications.
Equipped with state-of-art facilities and equipment, certified with Quality System ISO9001, Environmental Management System ISO14001, and Occupation Health and Management System ISO45001, complied with up- to-date certifications: CE, BIS, MSDS, UN38.3, Elite New Energy’s products perfectly meet international standards with most excellent performance and safety Compliance, and fully qualified for high end OEM/ODM markets.
Elite New Energy now have strong R&D centers for developing leading technologies and applying them to the product design, so as to providing high quality and excellent performance LiFePO4 battery solution.
Product packaging
FAQ
Q1. Do you have MOQ (Minimum Order Quantity) limit?
A: No, Elite do not have MOQ limit, sample order or small volume is available.
Q2. What about the lead time?
A: Standard product lead time: Samples: 3-5 days, Bulk order: 3-4 weeks.
Customized product lead time: 3-4 weeks both for sample or bulk order.
Q3. How do you ship the goods? How about the shipping time?
A: By air door to door (6-12 days): FEDEX, UPS or DHL, suitable for urgent small order.
By sea door to door (25-50 days): suitable for bulk order.
By sea to delivery port (20-35 days): Suitable for bulk order.
By Air to airport (3-5 days): Suitable for urgent heavy package.
Q4. How to proceed with an order?
A: Firstly, providing your requirements or applications, then we will provide battery solution and quote accordingly. Secondly, confirming the order and do the deposit for it, then we will arrange the production.
Q5. Is it available to print my logo on the product?
A: Yes. Just send us you logo and we will make a label for the product. For product with metal/aluminum case, logo silk-print on the case is available.
Q6.Which Certificates do you have?
A: Factory with ISO9001, ISO14001 and ISO45001 approved;
Products with CE/UKCA/UN38.3/MSDS/etc..
Q7.How about the product warranty?
A: 3 years warranty + product lifetime technical support.
Q8: How can I pay for the order?
A: T/T, Paypal, L/C, etc..
Other payment options please contact us before order confirmation.
A: No, Elite do not have MOQ limit, sample order or small volume is available.
Q2. What about the lead time?
A: Standard product lead time: Samples: 3-5 days, Bulk order: 3-4 weeks.
Customized product lead time: 3-4 weeks both for sample or bulk order.
Q3. How do you ship the goods? How about the shipping time?
A: By air door to door (6-12 days): FEDEX, UPS or DHL, suitable for urgent small order.
By sea door to door (25-50 days): suitable for bulk order.
By sea to delivery port (20-35 days): Suitable for bulk order.
By Air to airport (3-5 days): Suitable for urgent heavy package.
Q4. How to proceed with an order?
A: Firstly, providing your requirements or applications, then we will provide battery solution and quote accordingly. Secondly, confirming the order and do the deposit for it, then we will arrange the production.
Q5. Is it available to print my logo on the product?
A: Yes. Just send us you logo and we will make a label for the product. For product with metal/aluminum case, logo silk-print on the case is available.
Q6.Which Certificates do you have?
A: Factory with ISO9001, ISO14001 and ISO45001 approved;
Products with CE/UKCA/UN38.3/MSDS/etc..
Q7.How about the product warranty?
A: 3 years warranty + product lifetime technical support.
Q8: How can I pay for the order?
A: T/T, Paypal, L/C, etc..
Other payment options please contact us before order confirmation.
