AS IRBD Fire Alarm Reflective Infrared Beam Smoke Detector
- Category: >>>
- Supplier: Shenzhen Ansorl Technology Co. Ltd.
Share on (62241732386):
Product Overview
Description
Description
AS-IRBD Fire Alarm Reflective Infrared Beam Smoke Detector
AS-IRBD Donventional Reflective Beam Detector has built in Laser beam pointing and Digital guide display for real user friendly alignment method. The Laser beam pointing accurately point the exact location where to mount mirror and with additional digital guide display allows to monitor and guide on the actual light intensity between the mirror and detector which cannot be seen by our naked eye making it more easy and convenient in alignment commissioning.
The AS-IRBD has four adjustable operational ranges of between 8 to 20, 20 to 40, 40 to 70 and 70 to 100 meters beside with three adjustable sensitivity setting ranges from 2.6dB, 3.8dB and 5.8dB to meet the specific environmental requirement.
The AS-IRBD works on the principle of reflective infrared beam obscuration. Used in conjunction with a reflector, it will notify the fire alarm panel when the infrared beam is obscured by smoke.
The AS-IRBD is ideal for use high ceiling and wide areas such as warehouses, large storages, shopping malls, leisure centres, exhibition halls, hotel lobbies, printing houses, garment factories, museums and prisons, as well as places where slight smoke particles or corrosive gas exist.
Pictures
Features
1. EN54-12 Compliance.
2. Hassle free alignment, built with digital guide display and laser beam pointing.
3. Employ single-ended design through reflective mirror.
4. Four ranges wide monitoring from 8-100 meters via encoder.
5. Three users programing sensitivity adjustment.
6. Built-in microprocessor.
7. Self-diagnosis function can monitor for internal faults.
8. Automatic compensation for factors weakening received signals,
9. Fire and Fault interfacing relays.
10. Attractive and pleasing appearance.
11. Real User friendly alignment method
2. Hassle free alignment, built with digital guide display and laser beam pointing.
3. Employ single-ended design through reflective mirror.
4. Four ranges wide monitoring from 8-100 meters via encoder.
5. Three users programing sensitivity adjustment.
6. Built-in microprocessor.
7. Self-diagnosis function can monitor for internal faults.
8. Automatic compensation for factors weakening received signals,
such as dust contamination, positional movement and ageing of the transmitter.
9. Fire and Fault interfacing relays.
10. Attractive and pleasing appearance.
11. Real User friendly alignment method
Parameters
Product Name | AS-IRBD Fire Alarm Reflective Infrared Beam Smoke Detector | ||||
Model No. | AS-IRBD | ||||
Type | Conventional | ||||
Operating Voltage | 20 V to 28 V DC | ||||
Standby Current | 23 mA | ||||
Commission Current | 56 mA | ||||
Alarm Current | 33 mA | ||||
Beam Pathway Length | 8-100 meters | ||||
Beam Path Angle | ±0.4º Directional | ||||
LED Indicator Guide | Red: Fire ; Yellow: Fault ; Green: Alignment | ||||
Relay Capacity [Fire & Fault] | Normally Open & Close/ 2.0 A; 30 VDC | ||||
Standards | EN54-12:2002 | ||||
Application | Warehouse,Shopping mall,Exhibition hall,Hotel lobbie,airport terminals etc. | ||||

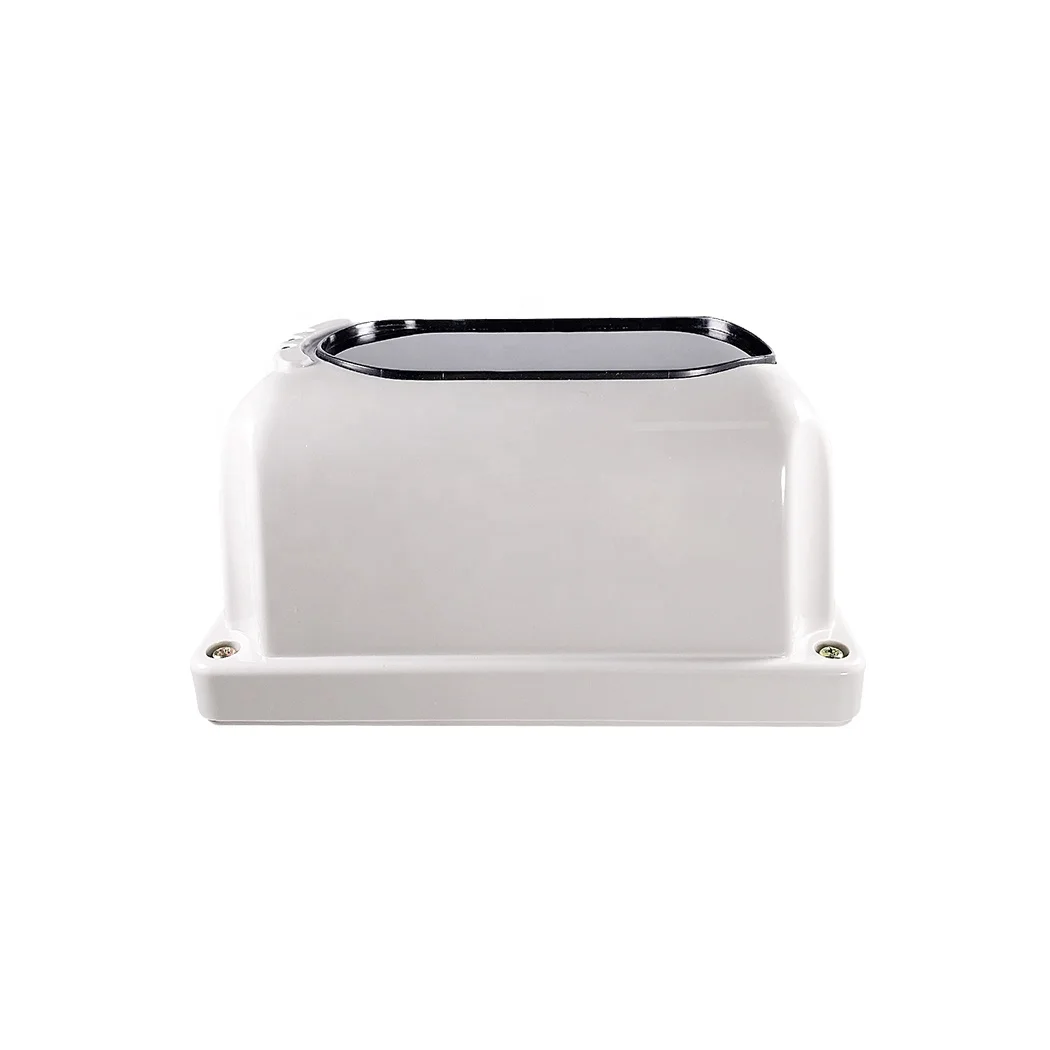

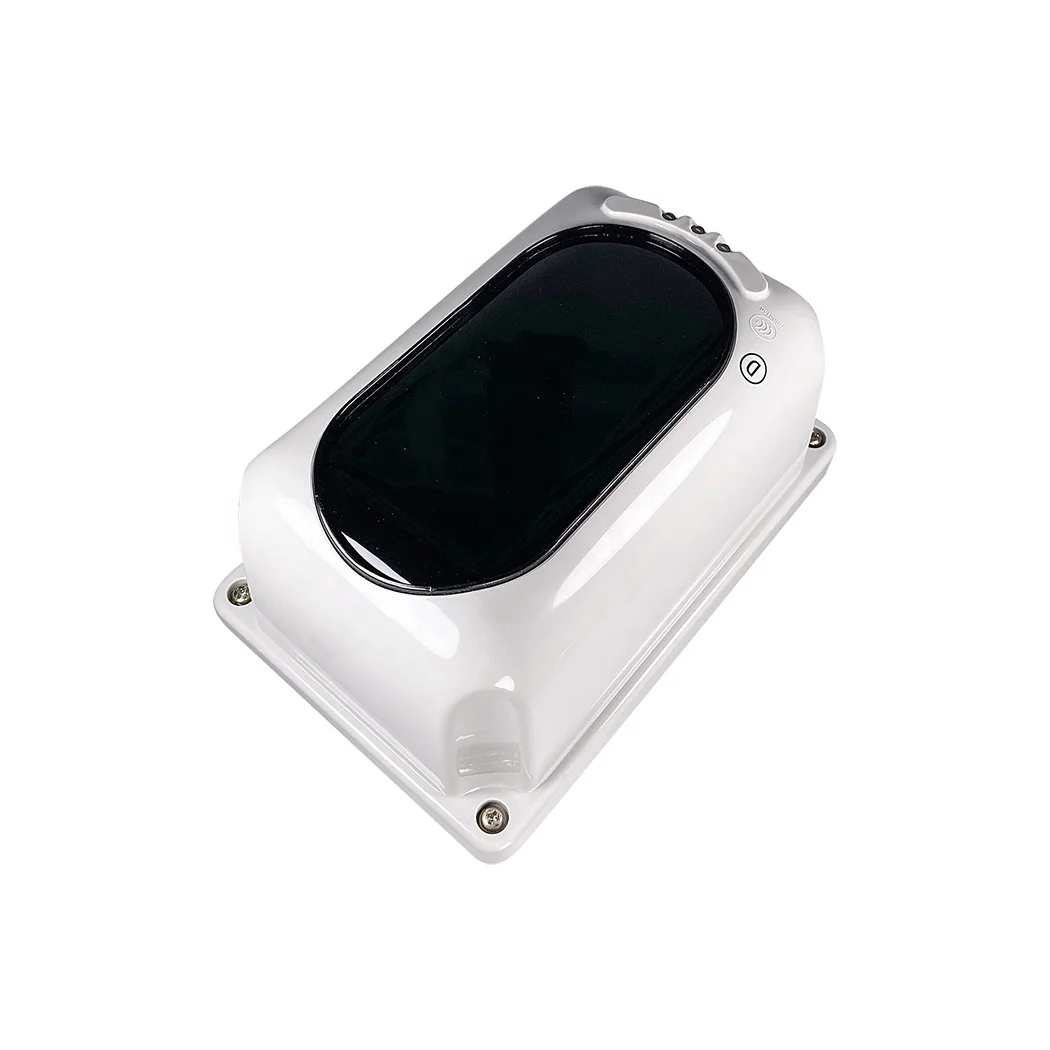

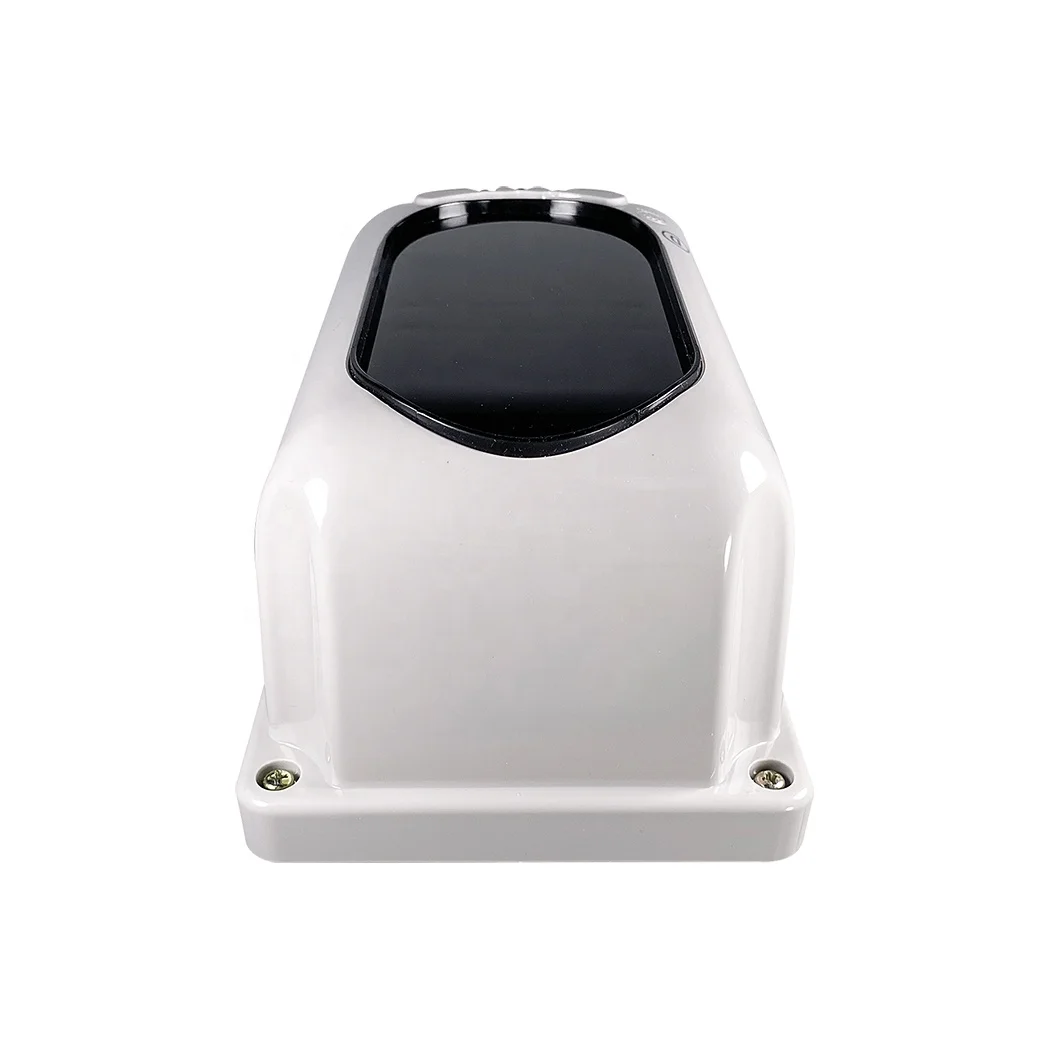

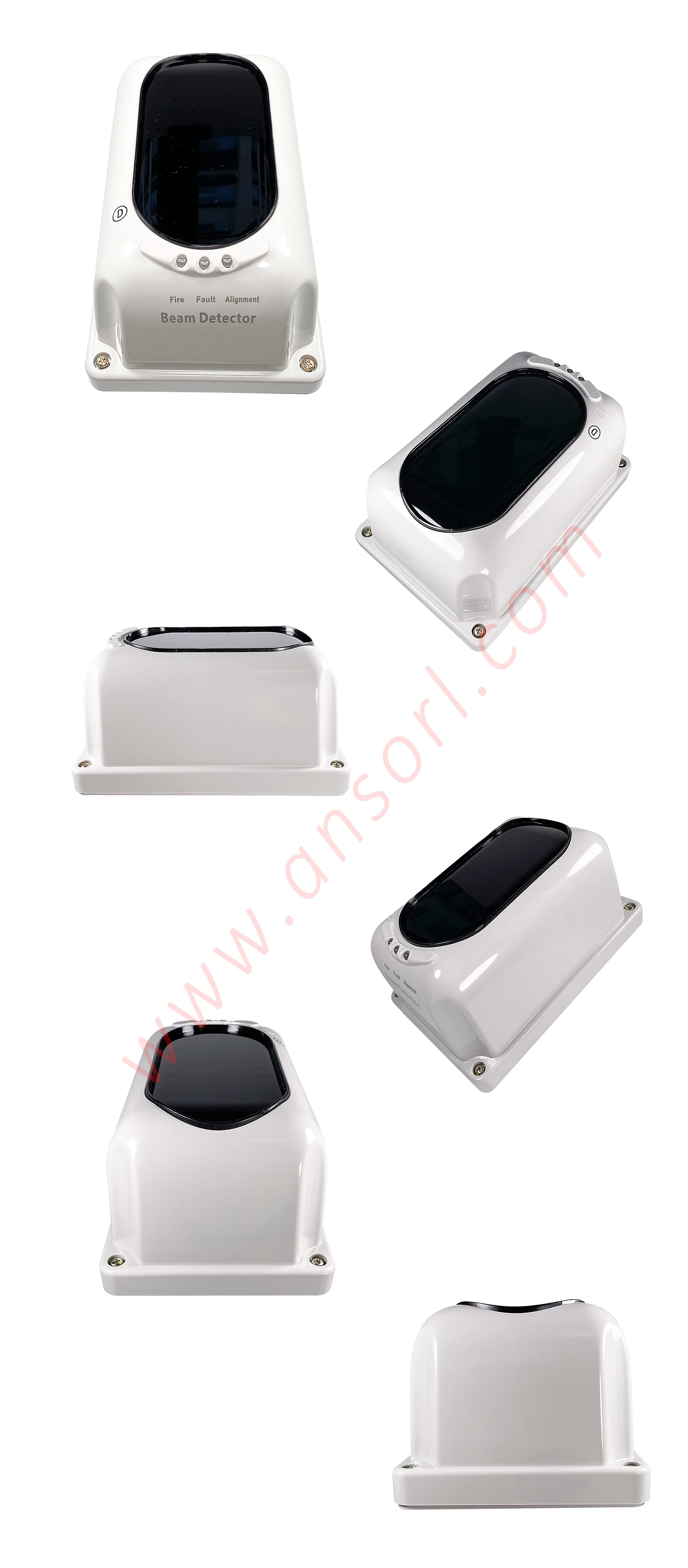

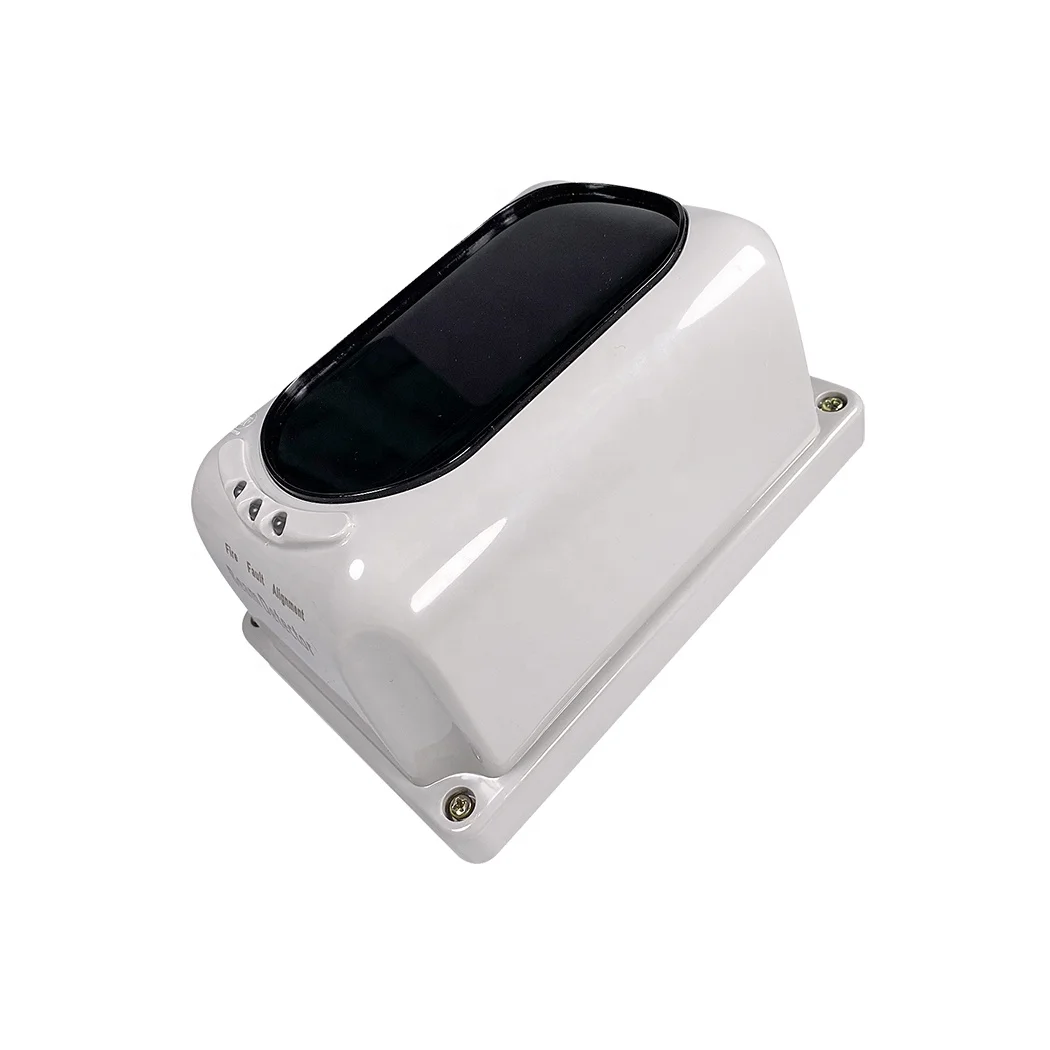

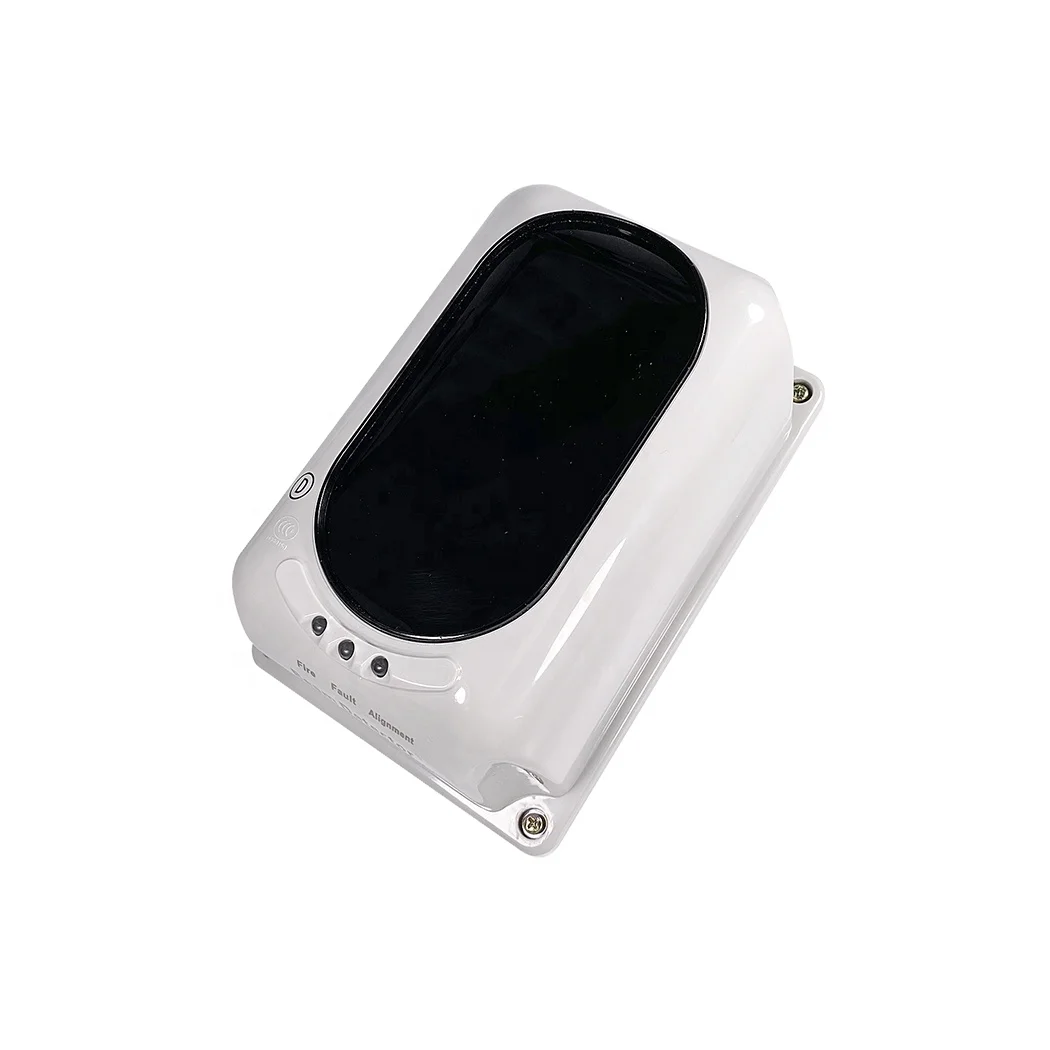

Beam Smoke Detector Appearance

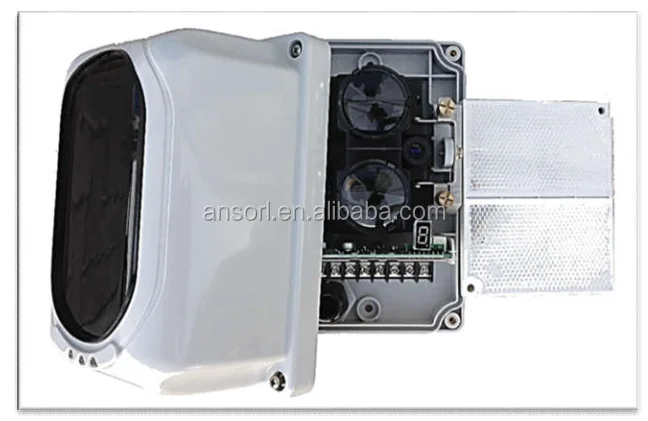

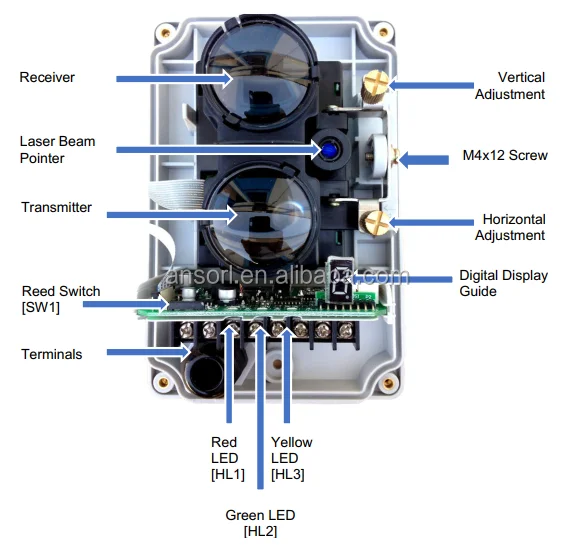

Beam Smoke Detector Components

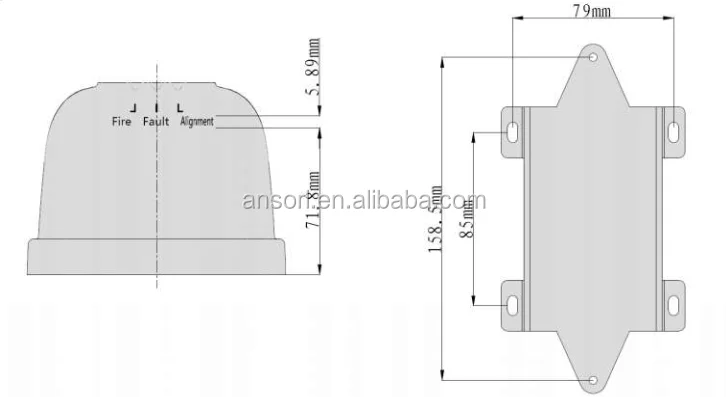

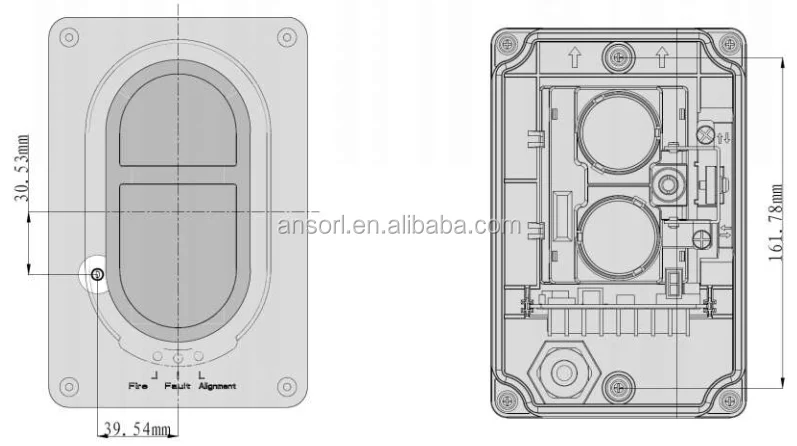

Beam Smoke Detector Diagram

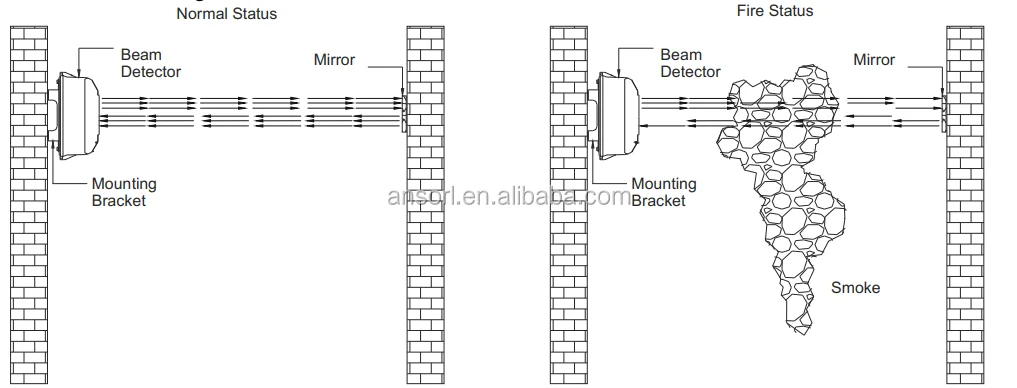

Beam Smoke Detector Principle

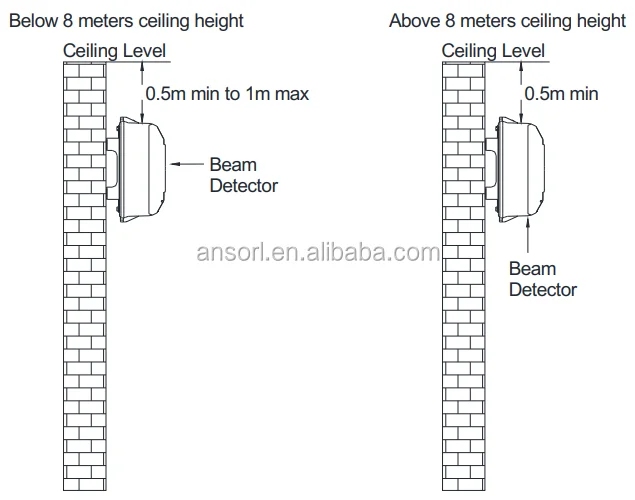

Beam Smoke Detector Installation

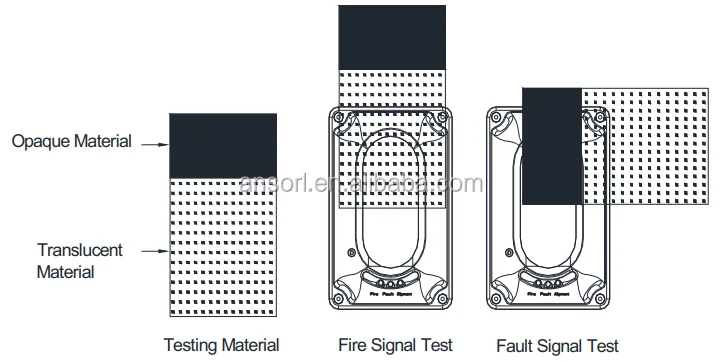

Beam Smoke Detector Testing
