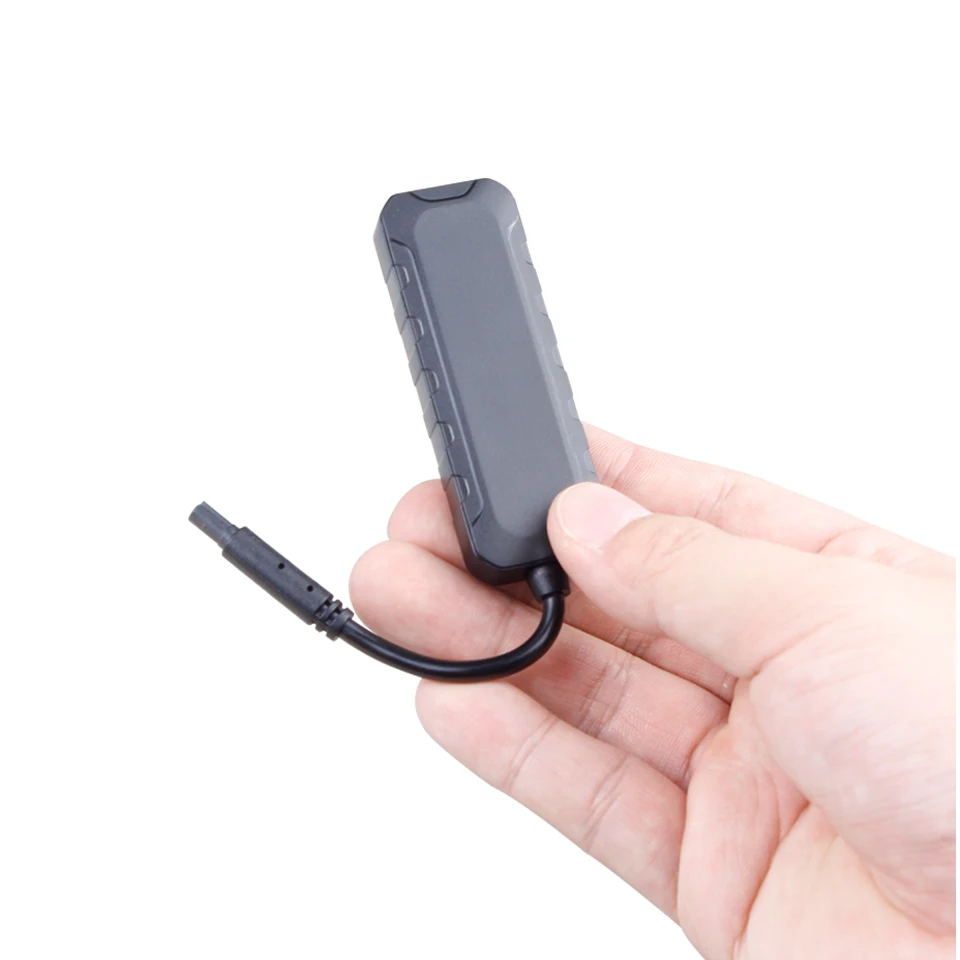

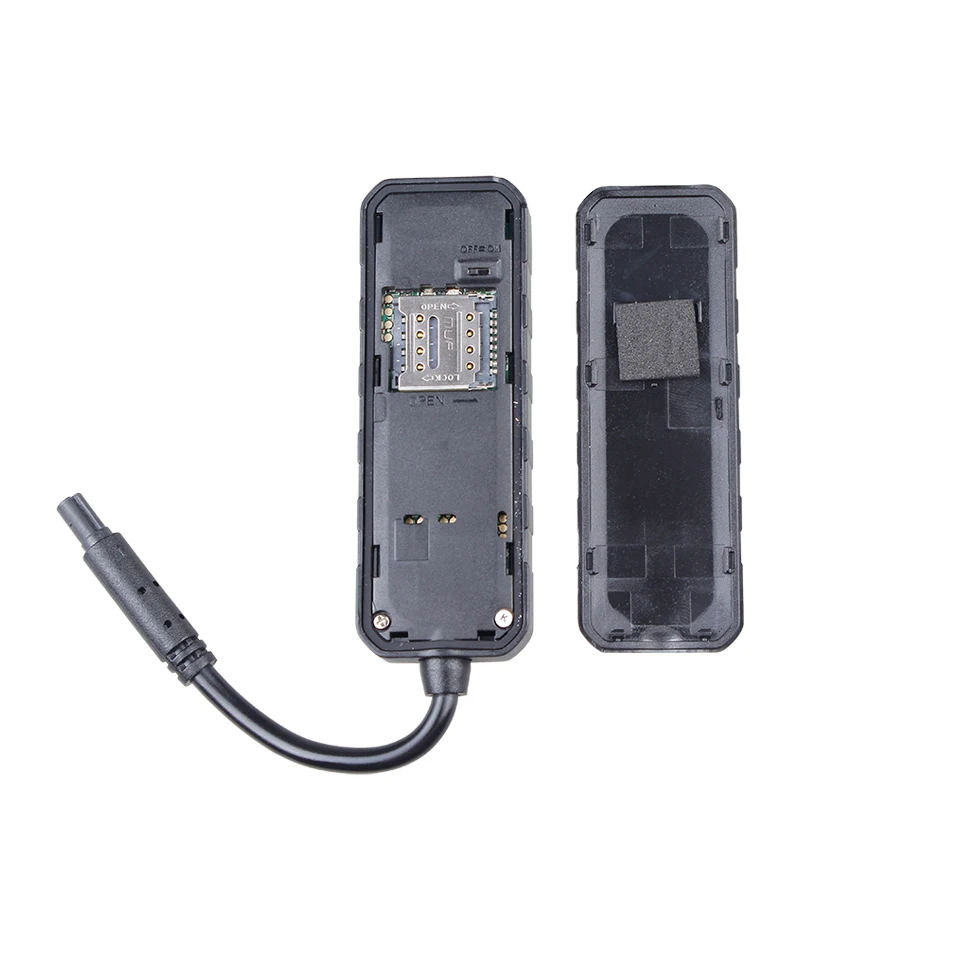

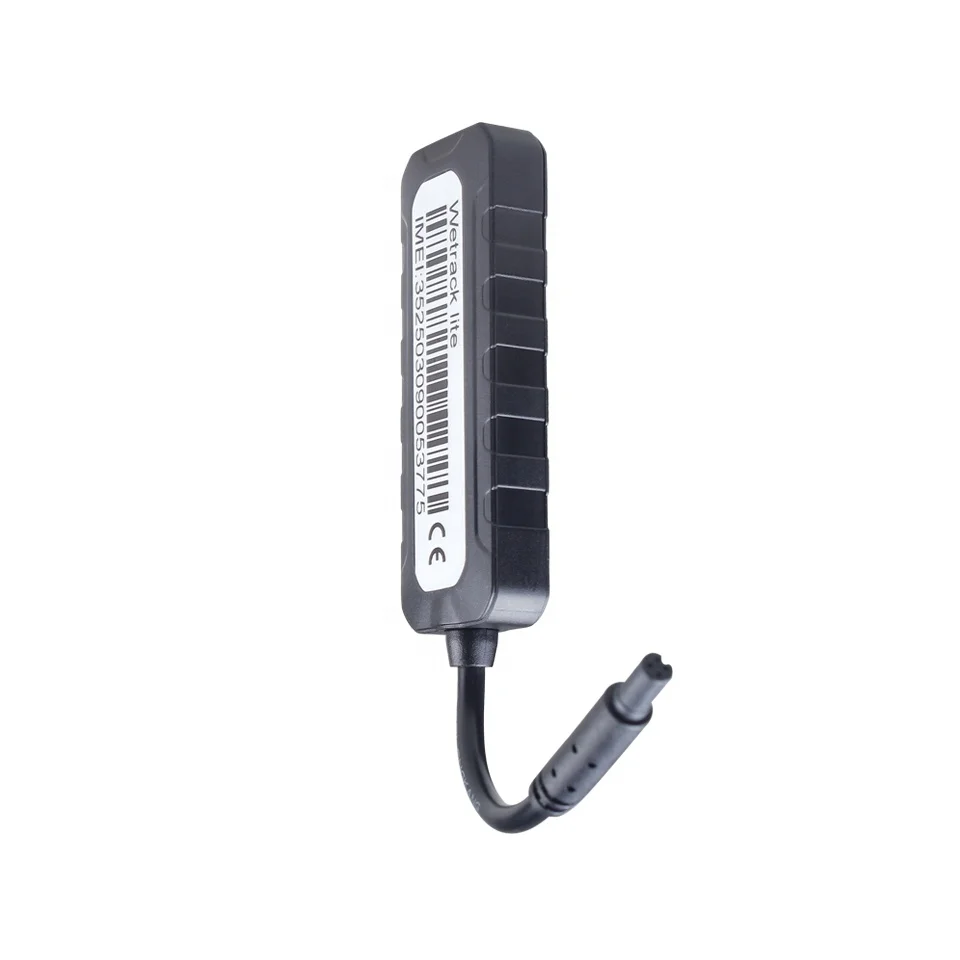

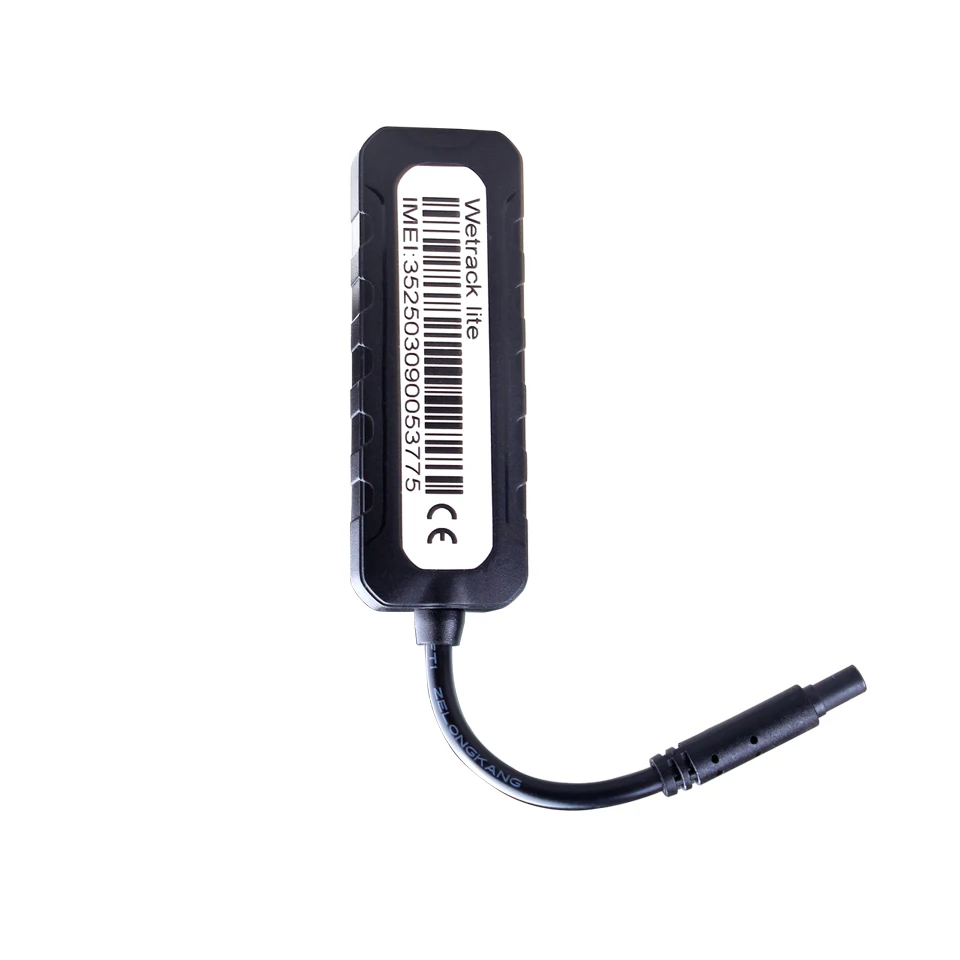

JIMI Wetrack lite sim card accurate vehicle tracker manual gps gt06,IP65,low battery protection,ACC detection, cloud server
- Category: >>>
- Supplier: Shenzhen Jimi IOT Co. Ltd.
Share on (62242270392):
Product Overview
Description
JIMI Fleet Management Solutions
Optimize your fleet and keep costs down
Dynamic growth of automotive branch enables greater access to means of transport. Most companies have, smaller or larger, vehicle fleet to carry out various tasks. Understanding costs related to the vehicle maintenance, fuel consumption, driver performance, insurance and service is an important function for any business.
HARDWARE

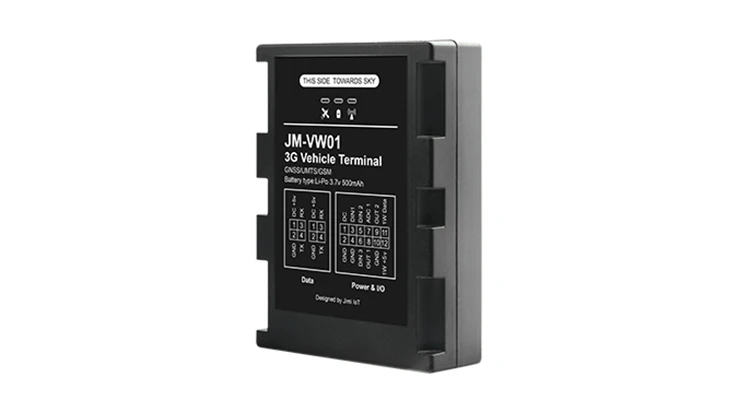

JM-VW01 fleet management Vehicle GPS Tracker
JM-VW01 is versatile in fulfilling fleet management and logistics monitoring requirements for both current and future markets. Designed with comprehensive I/O system, 1-Wire® and RS232 interfaces, JM-VW01 supports wide range of functions like fuel level and temperature monitoring, door status detection, driver ID, etc.
Features:
● GPS & LBS Positioning
● RS232*2 & 1-Wire®
● Multiple I/Os for accessories
● Remote Cut-Off (Fuel/Power)
● SOS Emergency Call
● RS232*2 & 1-Wire®
● Multiple I/Os for accessories
● Remote Cut-Off (Fuel/Power)
● SOS Emergency Call
● Towing Alert
Specifications:
GSM Specification | ||
Communication system | UMTS/GSM | |
Frequency band | GSM: 850/900/1800/1900 MHz UMTS: 850/900/1900/2100 MHz | |
GPRS | Class 12, TCP/IP | |
Memory | 32+32Mb | |
Phase error | RMSPE<5,PPE<20 | |
Max output | GSM850/GSM900:33±3dBm GSM1800/GSM1900:30±3dBm | |
Max frequency error | ±0.1ppm | |
GNSS Specification | ||
GNSS type | U-blox all-in-one GNSS receiver | |
GPS Specification | ||
GPS chipset | MTK high sensitivity chip | |
Frequency | L1,1575.42MHz C/A code | |
GPS channel | 66 | |
Accurancy | 2.5m CEP | |
Tracking sensitivity | -165dBm | |
Acquisition sensitivity | -148dBm | |
TTFF (open sky) | Cold start: <45s; Warm start: <35s; Hot start: <1s | |
Others | ||
Battery | Li-Polymer, 500 mAh | |
Operating voltage | 11-36V DC | |
Operating temperature | –20℃ to +70℃ | |
Transmit protocol | TCP, SMS | |
Device weight | 92g | |
Device dimension | 85x 65x 20 mm | |
SOFTWARE
Tracksolid
COMPANY PROFILE
JIMI IOT
As a leading provider of IoT Solutions, Jimi is passionate about the design, intelligent manufacture, sales and operation of Intelligent Security Products & Solutions. Over the past 20 years, our solutions and products have been widely praised by the customers from 150+ countries and regions to help customers add value in intelligent security industry.
Our Team
We have 6 R&D Centers，600+ experienced engenieers，260+ invention patents，totally 2000+ employees.
Our Smart Factory
Automated factory is at the heart of Jimi's product manufacturing. Jimi is determined to provide ever more valuable support to the partners worldwide through the optimization and refinement of all aspects of our own business.
SMT Error Avoidance System
MES
Unattended Warehouse
You name it, we make it!
Provide customized services to achieve customers’ requests from ideas to reality.
Customers & Partners
We has expanded our business to 150+ countries and worked with exclusive/vip distributor in 20+ countries.
