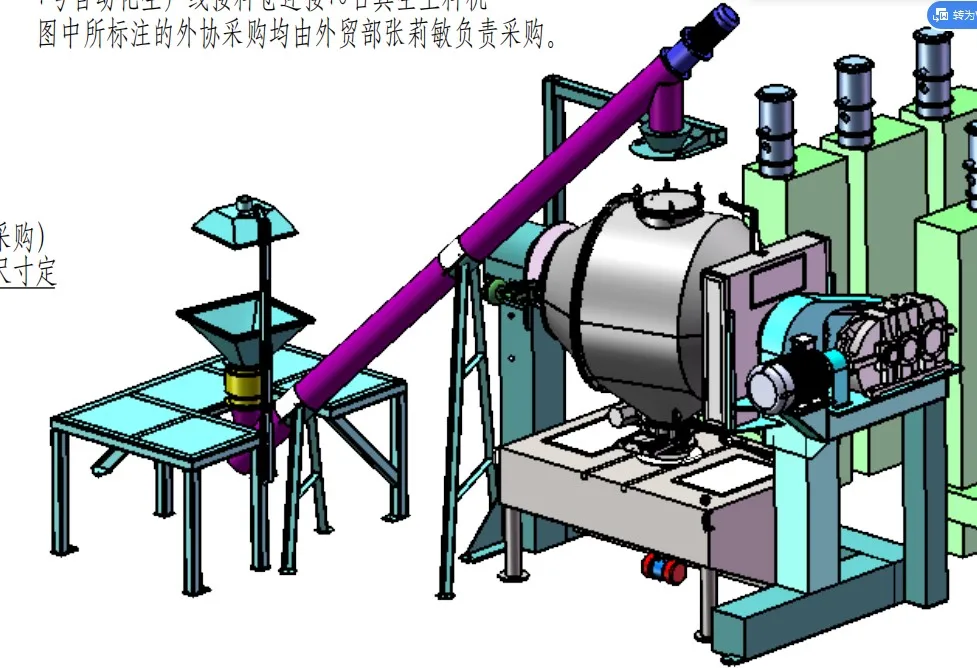

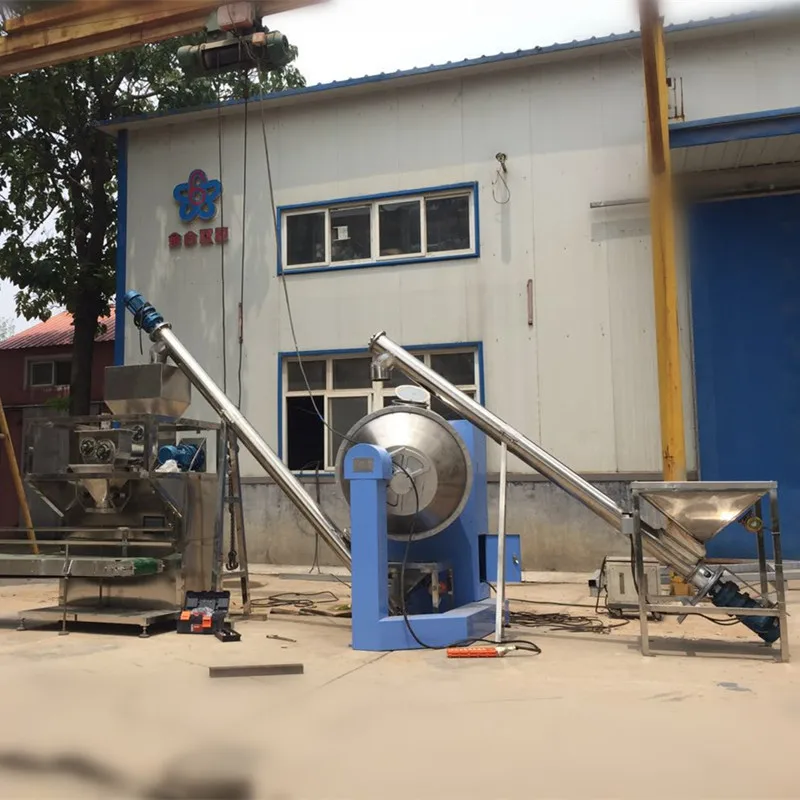

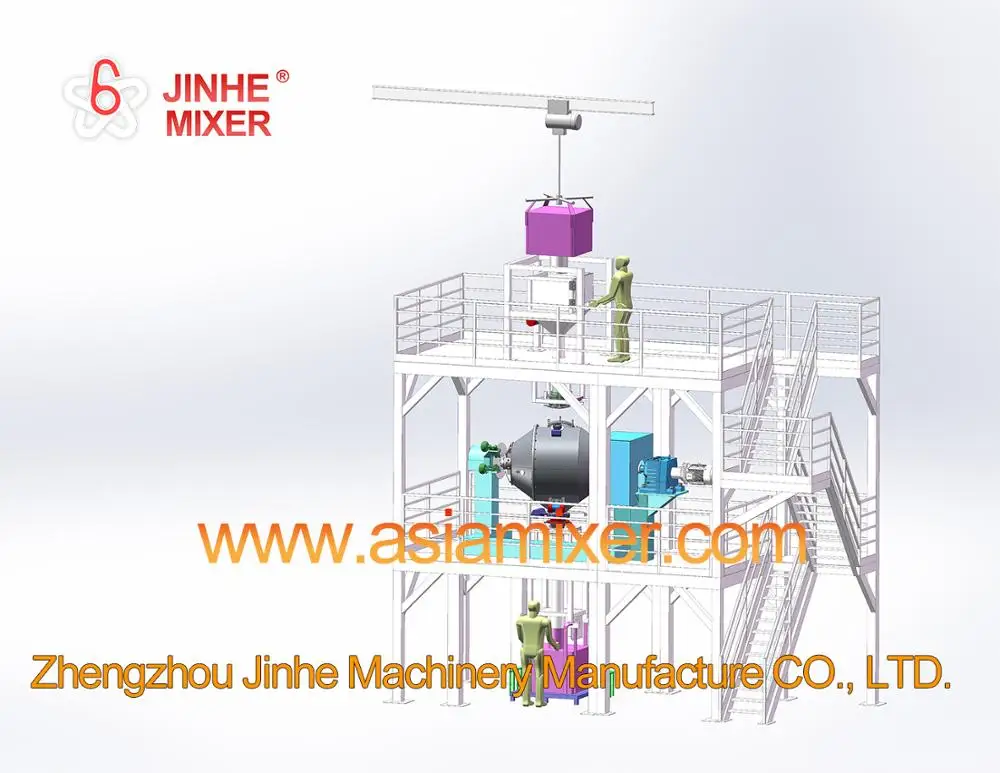

JHL-3000 automatic super fine powders processing line is based on double motion JHX3000 liters mixer. This line is designed for 3M Chinese company by JINHE company. It include automatic feeding, automatic mixture, automatic discharging and auto packing.

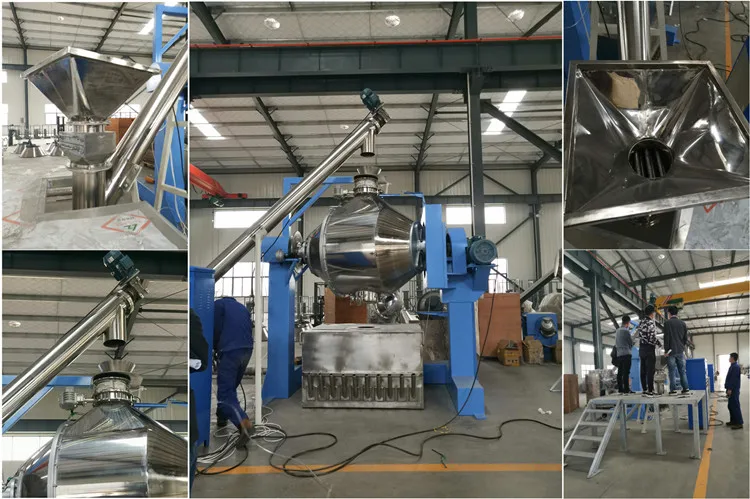

1. Dust-free feeding system with dust collector
      - Dust of powder  which the worker put in  can be avoided during the unpacking process with the help of the dust collecting fan.

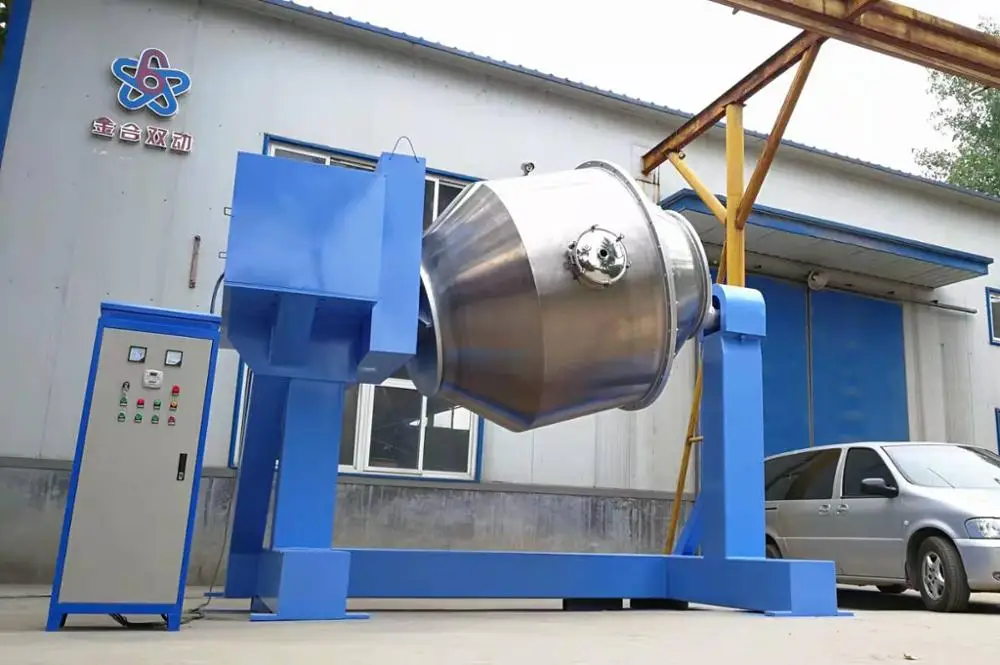

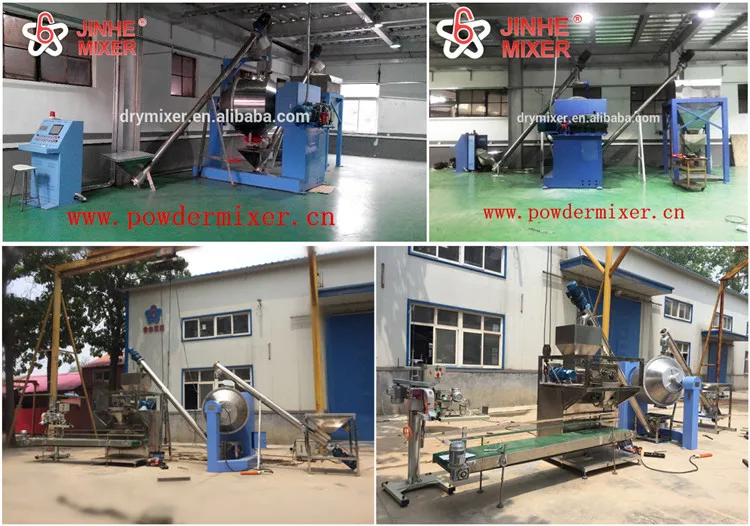

2. JHX3000 double motion mixer machine(Note the attached pictures)
     - material : SS304
     - The 1000liters ribbon double motion mixer has discharge rotary valve with size of 10 inch
     - Each batch capacity should be 1600Kg
     - Powder Density 0.4Kg/L
     - working capacity for the 2000liters ribbon mixer not less than 3000L .
     - The JHX double motion powder mixer should be come with Liquid spray feeding system (3Nozzles, and 600L/h dosing pump, and 250L SS304 liquid tank)
     - The mixer should has a (plat form) to Allow the workers to observe the mixing and sometimes put the material in the blender

3. Storage tank for final product.(out of the pictures)
     - The storage tank should be come with 6 inch rotary valve to transfer the finish product to the filling machine
     - The storage tank should has a legs to reach to screw loading

     - The storage tank working capacity should be the same with ribbon mixer

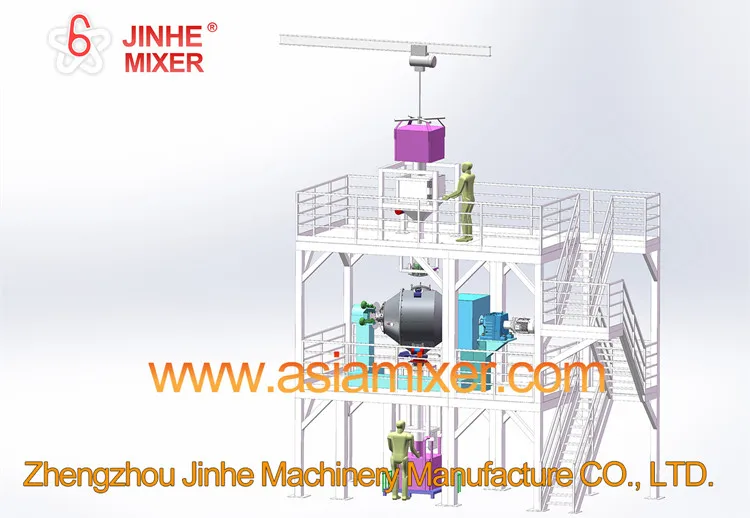

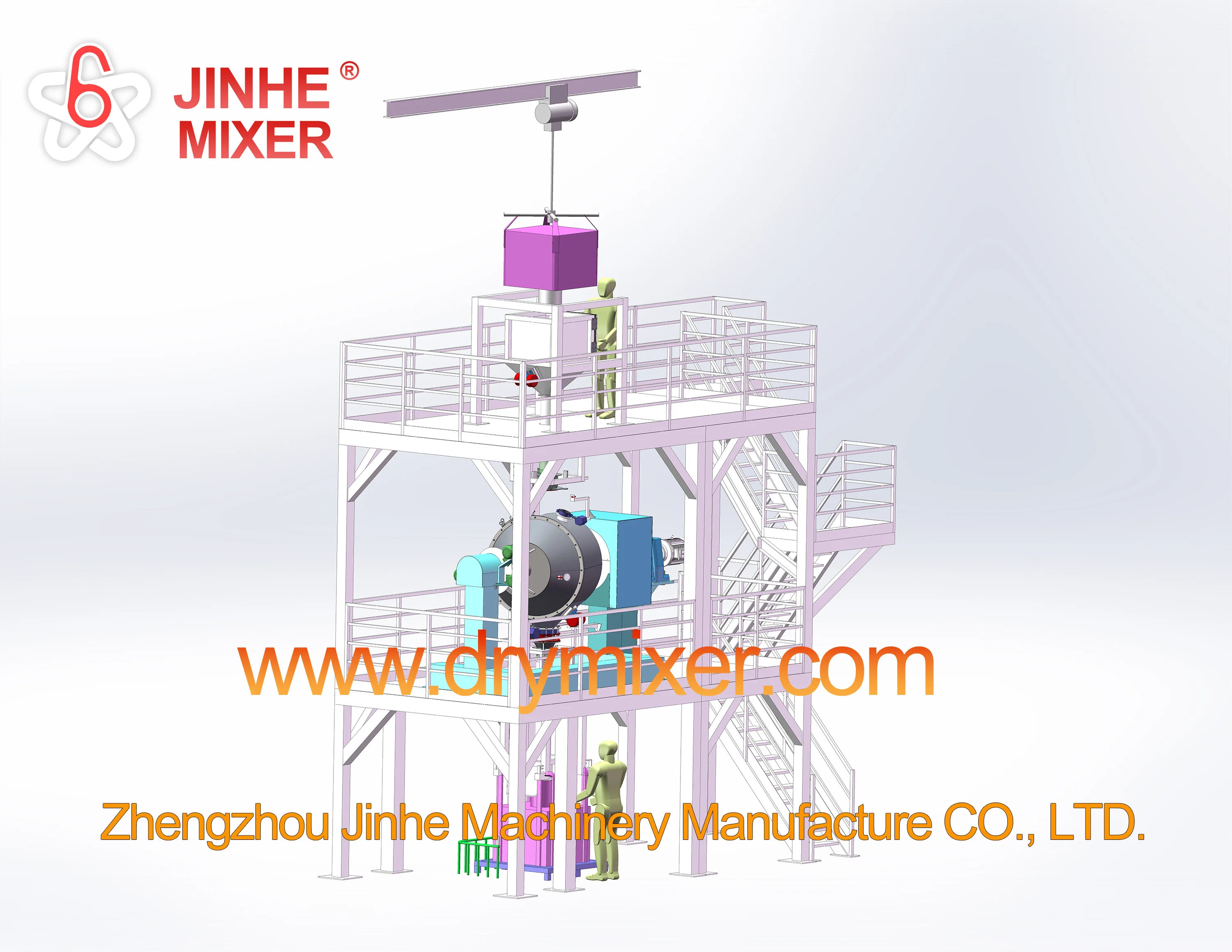

4.Ton packing loading system (Note the attached pictures)
    one ton one time feeding with metal separator


Note that All part should be made from SS304

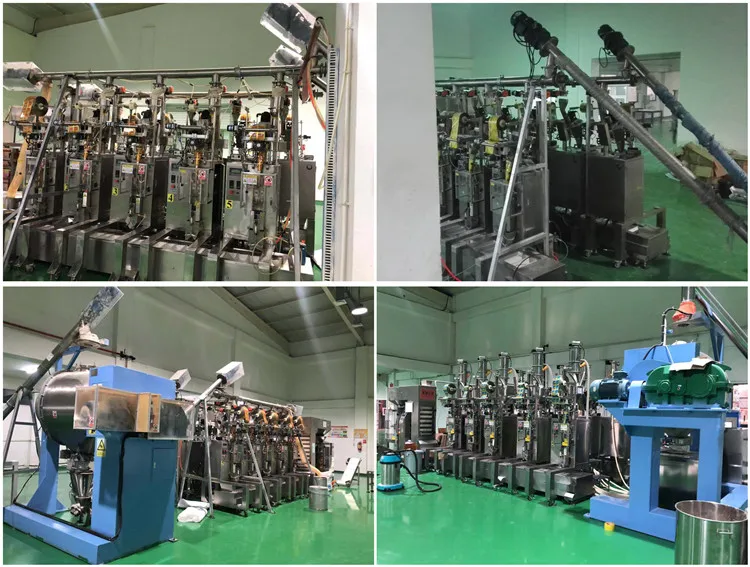

Packaging: the mixed materials are conveyed to a packaging machine on a packaging machine through a conveyor to start packaging.

Any questions?Click here for more information>>

The dry powder mixing machine will be packaged by Wooden box, also can be packaged according to your requirement.dry coffee powder mixer

Zhengzhou JinHe Machinery Manufacture Co., Ltd. is a professional manufacturer for mixing machine. We are an ambitious company with personality and strong ability in R&D. The double movement mixing principle that we proposed has greatly improved efficiency and save more energy. At present 3 series mixing machines that we have created all have independent intellectual property rights and national patent rights. Our innovative mixing principle is considered at the forefront of mixing technology!

Here is our official websit ://www.asiamixer.com/, can check to get more importance information in there. dry coffee powder mixer

  An experienced and well mannered sales and marketing team is committed to bringing you 100% customer satisfaction. In order to succeed in the rapidly changing podwer mixer market, our company has instituted a development policy that emphasizes "Serving the customer, improving products, providing best service,sureness and steadiness, devotion and dedication".Please feel free to contact us at any time.

Read it before leaving this page for it is helpful for you to make the right choice

1. Q: Do you have a small capacity mixer/blender of 3 liter?
A:Yes, we have small capacity mixer from 3L to 110L for lab use.

2. Q: Is it easy to clean so that we can mix/blend different powder one batch after another?
A: Yes, our lab series mixer's inside blades and barrel are all dismountable. You can clean it thoroughly by yourself.

3.Q: Is it possible to mix/blend 3 liters or 15 liters with one machine only?
A:Yes, There is 6 size barrel for 1 mixer from 3L to 18L. You can choose what you need.

4. Q: If I want to mix different powders particle size in 200mesh(74um), how long would be ok?
A:10 minutes or less upon the fluxility of the powder

5. Q: If I want to mix powder size smaller than 800 mesh(19um), would it also capable?
A:Yes

6. Q: If I want to mix light powder and heavy powder, like Mgnesita powder and Cromo powder, the light powder is easily floating on the surface of heavy powder, then the light powder can not well- dispersed. Does your mixer can slove this problem?

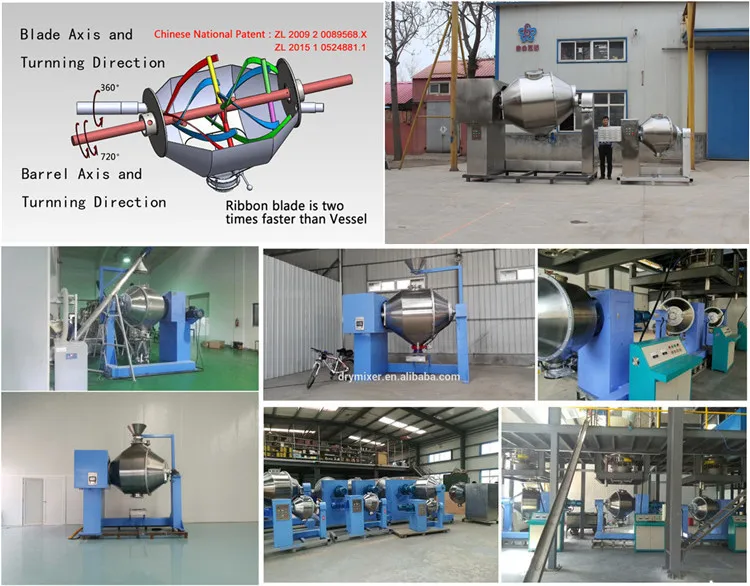

A:Yes, absolutely. Our double movement series mixer have unique structure over the world. The barrel rotating while the inside 8 full size helical blades rotating also. The barrel rotating like a 3D mixer. The inside helical blades can do cutting, dividing,pressing job. If our machine used to mix normal powders like milk powder,detergent powder,protein powder, etc.....it will need less time than other mixer.

7. Q: I am in food industrial, what kind of mixer/blender is better for me?
A: All parts connect to food mixture need better quality stainless steel 304/316 to prevent contaminate.
