Solid transfer pump 5hp centrifugal sand pump gravel sand pump
- Category: >>>
- Supplier: Dongying Sino Petroleum Machinery Co. Ltd.
Share on (62242514510):
Product Overview
Description
Product Description

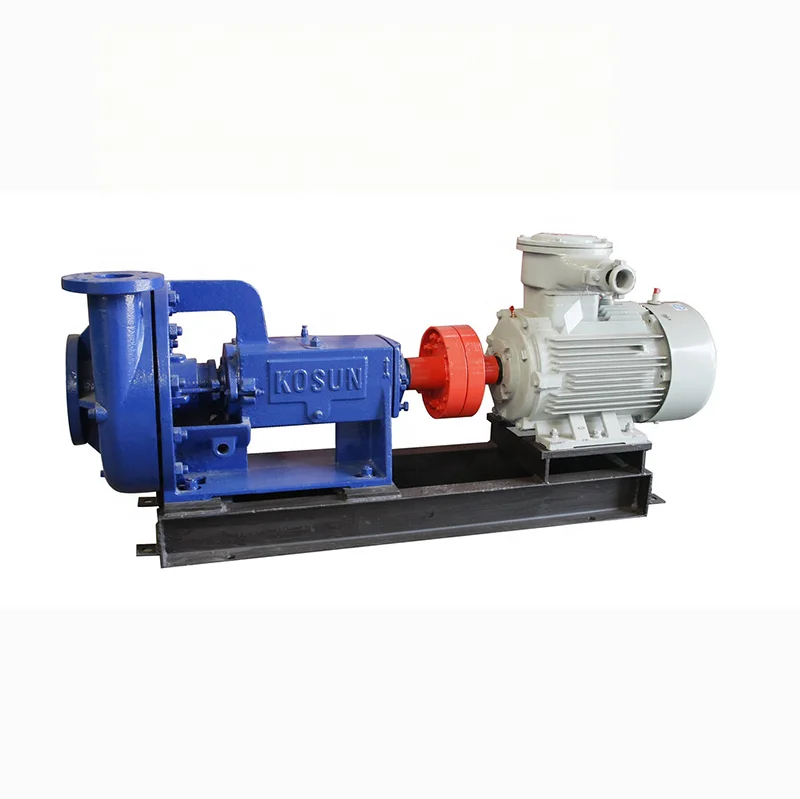

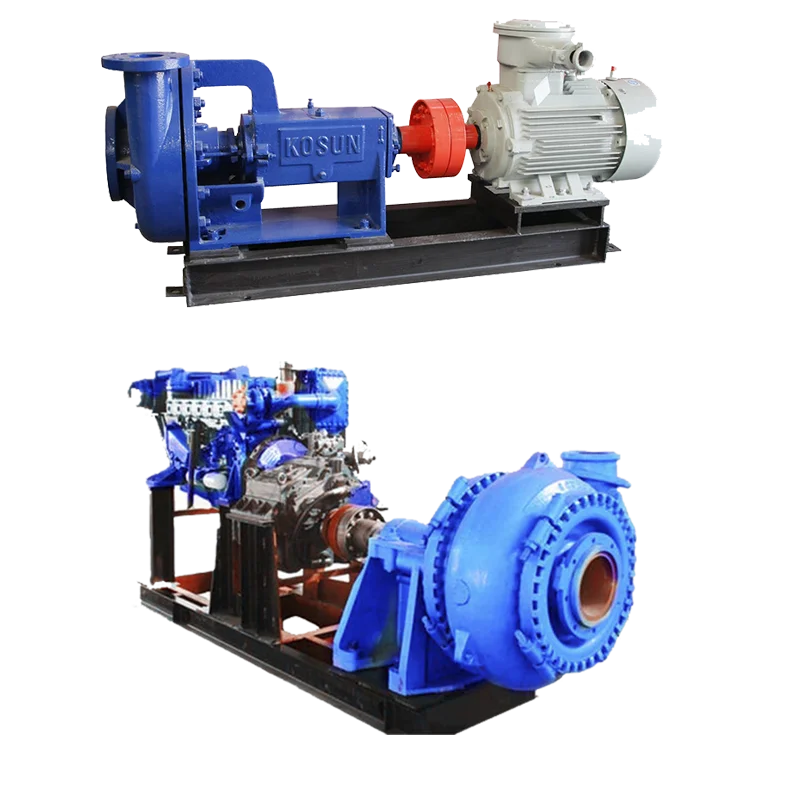

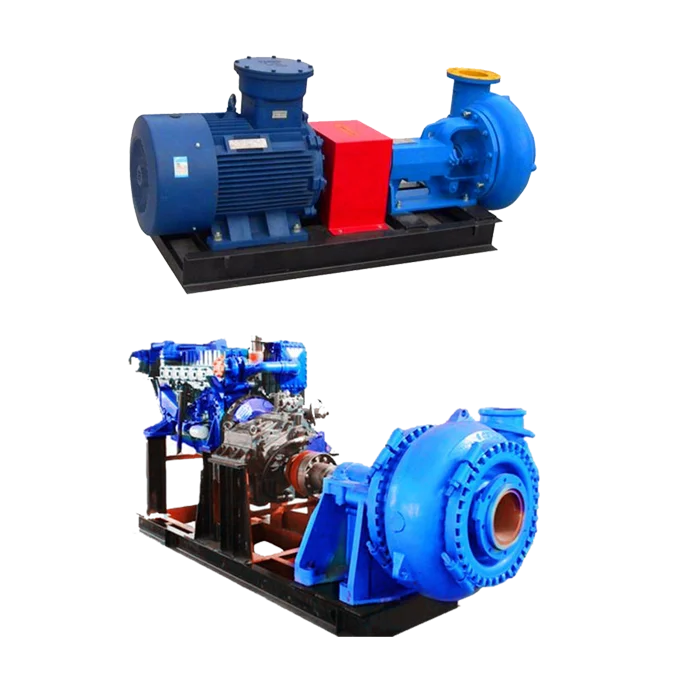

Solid transfer pump 5hp centrifugal sand pump gravel sand pump
Summary
The SB family of pumps is designed and engineered to handle abrasive, viscous and corrosive fluids in drilling fluid or industrial slurry applications. The pump performance is matched by exceptional performance, high volume, high temperature capabilities, long service life, ease to maintenance, overall economy and greater savings. SB centrifugal pumps are currently in operation on land-based and offshore drilling rigs around the world. We will offer the best choice for the intended application, taking into consideration fluid conditions.
Applications:
Mud mixing and shearing operations, desanding and desilting, degassing, supercharging, centrifugal feed, mud cooling towers, wash down. Others Chemical, refinery, industrial, construction and agricultural applications.
Working conditions:
(Outlet):DN=2″~6″ (Flow):Q=20~400m3/h (Head):H=12~62m (Working temperature):T=-40°C~60°C Please contact with us to meet you various demands.
Explanation of model:
SB 6 × 5 –11 Impeller Dia(inches) Pump outlet Dia(inches) Pump inlet Dia(inches) Sand pump
Parameter
ZS series Drilling Fluids Shale Shaker Display
| Model | Flow | Lift | Power | Speed | Efficiency |
| SB8×6-14J | 320m³/h | 40m | 75Kw | 1450r/min | 65% |
| SB8×6-12J | 335m³/h | 43m | 75Kw | 1750r/min | 66% |
| SB8×6-13J | 290m³/h | 33m | 55Kw | 1450r/min | 64% |
| SB6×5-12J | 196m³/h | 48m | 55Kw | 1750r/min | 61% |
| SB6×5-13J | 180m³/h | 34m | 45Kw | 1450r/min | 60% |
| SB5×4-14J | 149m³/h | 61m | 45Kw | 1750r/min | 58% |
| SB6×5-12J | 160m³/h | 30m | 37Kw | 1450r/min | 60% |
| SB5×4-12J | 120m³/h | 40m | 37Kw | 1750r/min | 56% |
| SB5×5-11J | 200m³/h | 21m | 30Kw | 1750r/min | 62% |
| SB5×4-11J | 112m³/h | 45m | 30Kw | 1750r/min | 58% |
| SB5×4-12J | 90m³/h | 30m | 22Kw | 1450r/min | 56% |
| SB5×4-10J | 105m³/h | 30m | 22Kw | 1750r/min | 57% |
| SB5×4-11J | 90m³/h | 24m | 18.5Kw | 1450r/min | 56% |
| SB4×3-12J | 55m³/h | 46m | 18.5Kw | 1750r/min | 48% |
| SB4×3-13J | 50m³/h | 40m | 15Kw | 1450r/min | 48% |
| SB4×3-11J | 54m³/h | 45m | 15Kw | 1750r/min | 37% |
| SB4×3-12J | 45m³/h | 30m | 11Kw | 1450r/min | 47% |
| SB3×2-12J | 28m³/h | 45m | 11Kw | 1750r/min | 40% |
| SB3×2-12J | 23m³/h | 29m | 7.5Kw | 1450r/min | 39% |
| SB3×2-11J | 25m³/h | 35m | 7.5Kw | 1750r/min | 41% |
| SB3×2-11J | 20m³/h | 23m | 5.5Kw | 1450r/min | 39% |

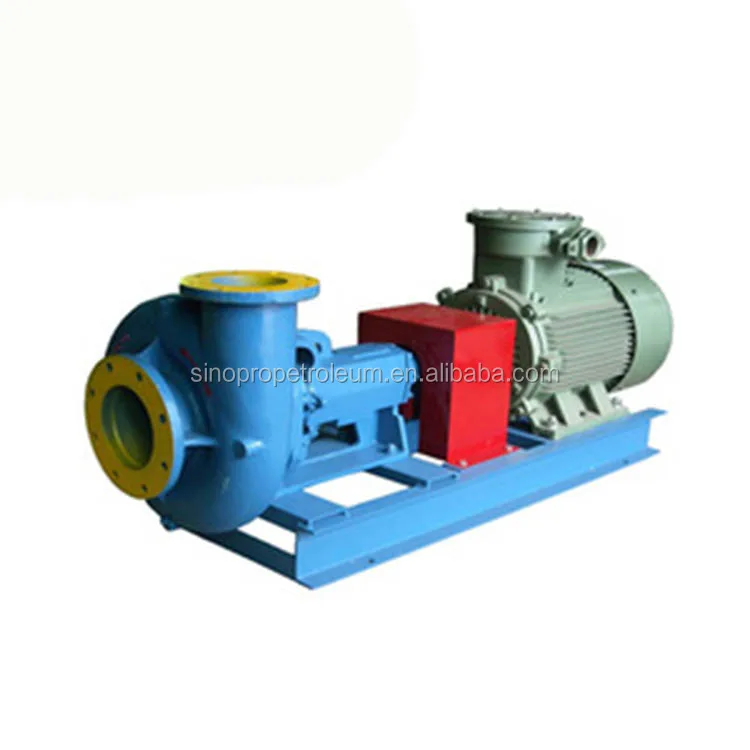

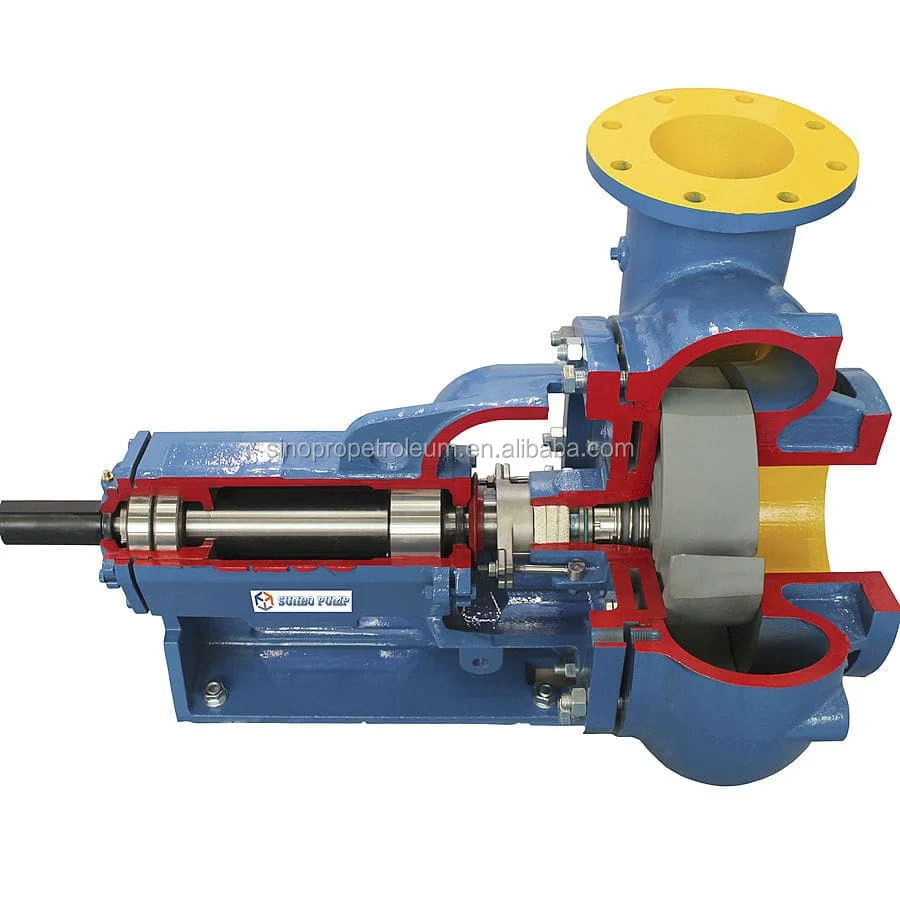

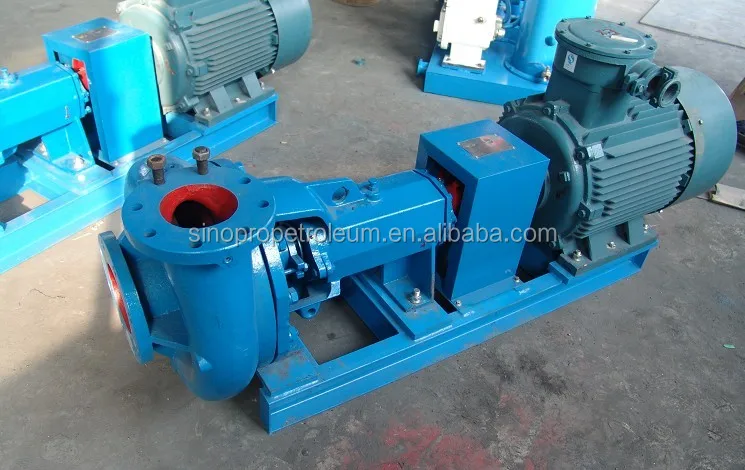

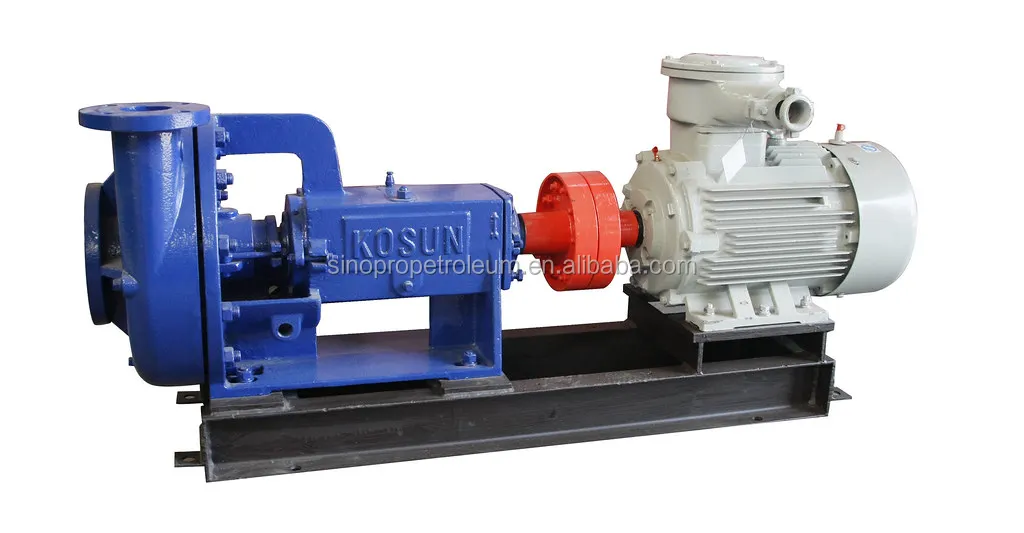

Product Details

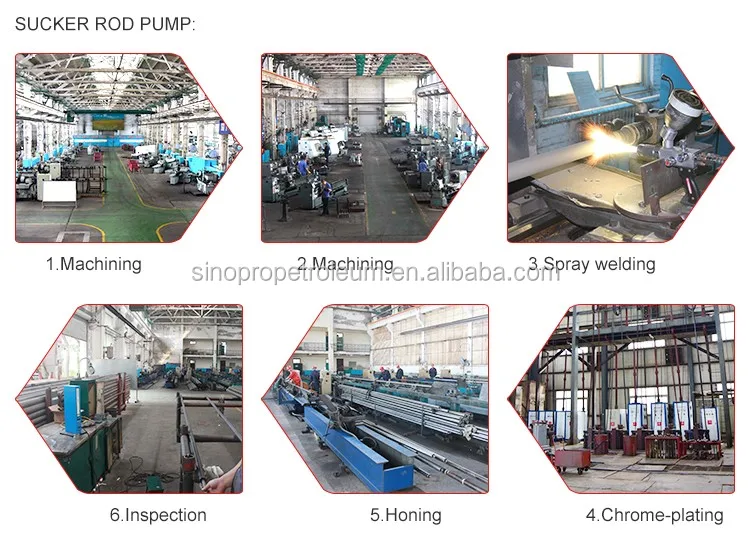

Product Process
Certifications
Our Services
Pre-Sales Service After-Sales Service
* Transaction Level Five Stars * Supplier Service Service Five Stars
* Response Rate 86.5% * On-time Shipment Five Stars
* Response Time<12h * Product Quality Five Stars
Packaging
Packaging Details:Bundling and container packaging, we will put moisture-proof and rust-proof materials in the container to resist the harsh environment during transportation.
FAQ
Q1,Could you do OEM Service?
A: Some items accept this service, pls contact us for details.
Q2: What's your Delivery Time?
A: In generally , the delivery time is about 3-7 days for sample order. We will make the delivery asap with the guaranteed quality.
Q3:What's the convenient way to pay?
A: Trade Assurance, L/C,T/T,Western Union and Escrow are accepted , and if you have a better idea, please feel free to share with us.
Q4:Which mode of transport would be better?
A: In general , we advice to make delivery by sea for large order, and for small order,Courier,By Air both ok,Also we respect your views of other transportation as well.
