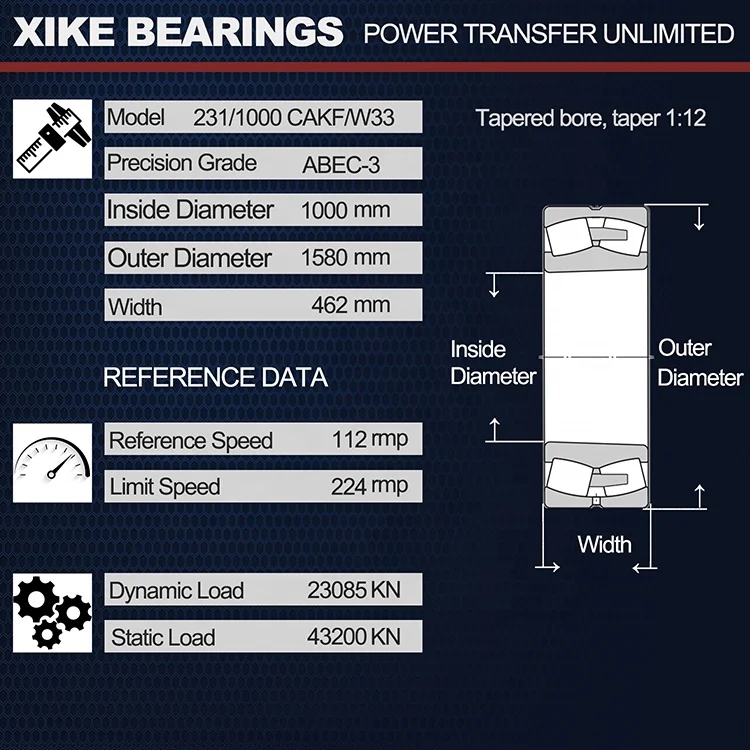

Excellent Quality 231/1000 CAKF/W33 Spherical Roller Bearings 1000*1580*462mm
- Category: >>>
- Supplier: Hannov (changzhou) Turning Machiner Co. Ltd.
Share on (62242560334):
Product Overview
Description
Spherical roller bearings
Spherical roller bearings have two rows of symmetrical rollers, a common sphered outer ring raceway and two inner ring raceways inclined at an angle to the bearing axis. The centre point of the sphere in the outer ring raceway is at the bearing axis.
Other Designs and Variants Type
Double row spherical roller bearings
*Most widely used.Single row spherical roller bearings
*Radial load and compensation misalignment
Split spherical roller bearings
*Carrying out replacement work quickly and easily
Sealed spherical roller bearings
*Harsh environment applications
Spherical roller bearings for vibratory machinery
*Vibration machinery application
Extended Inner Ring spherical roller bearings
*Special application
*Special application
Exterior Designs
W33 | Annular groove and three lubrication holes in the outer ring | ■ | ||||
K | Tapered bore, taper 1:12 | ■ | ||||
K30 | Tapered bore, taper 1:30 | ■ | ||||
W20 | Three lubrication holes in the outer ring | ■ | ||||
W26 | Six lubrication holes in the inner ring | ■ | ||||
W | Without annular groove and lubrication holes | ■ | ||||
SH | Outer ring screw holes (can be customized) | ■ | ||||
2RS | Contact seal, NBR, on one or both sides | ■ | ||||
Cage Type
CA | Overall machined brass cage | ■ |
CC | Two stamped steel cages | ■ |
E, E1 | Two stamped steel cages | ■ |
MB | Two machined brass cages | ■ |
FA | One or two machined steel cages | ■ |
ER, ER | One or two reinforced nylon and resin cages | ■ |
Interior Design, Precision Grade and Other
Clearance | C2 C3 C4 C5 | ■ |
Precision grade | P0 P6 P5 P4 or ABEC-1 ABEC-3 ABEC-5 ABEC-7 | ■ |
Personalise | Stand by custom made | ■ |
Grease | Low temperature, High temperature, Universal and no | ■ |
The above data and information are for reference only, we have the right to change without notice.
