Full Hydraulic Wet Concrete Shotcrete Machine for Sale
- Category: Shotcrete Machine >>>
- Supplier: Henan Coal Science Research Institute Keming Mechanical And Electrical Equipment Co. Ltd.
Share on (62242783303):
Product Overview
Description
KBS-8A Shotcrete Machine

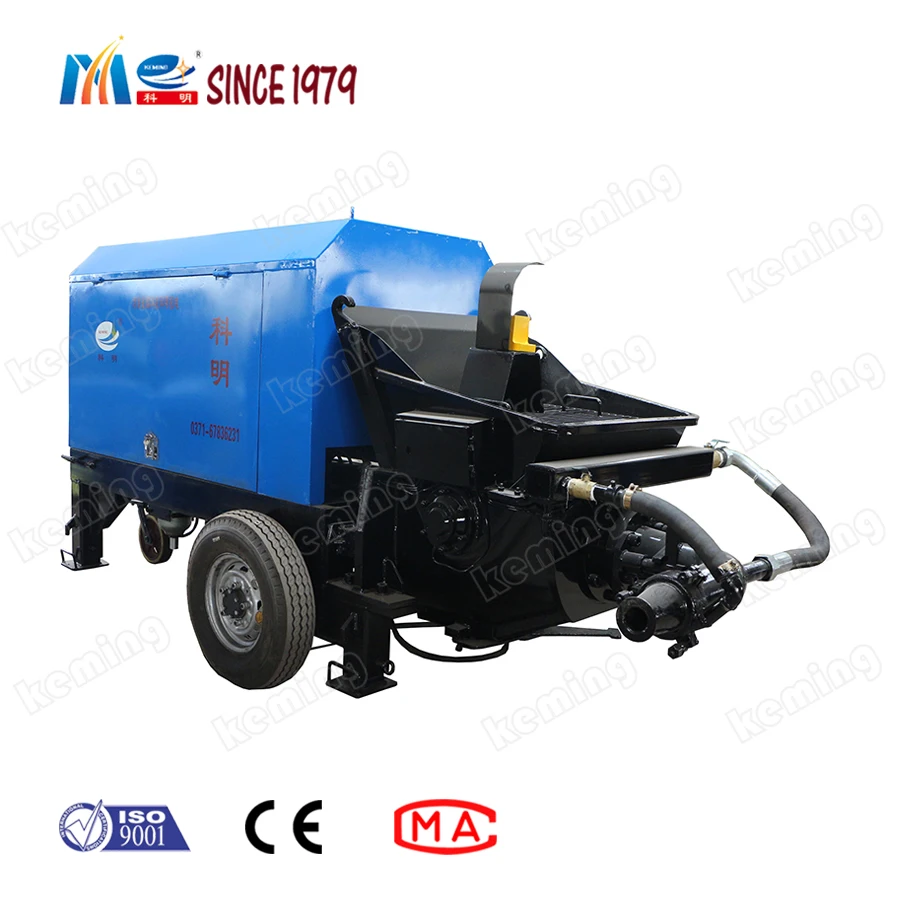

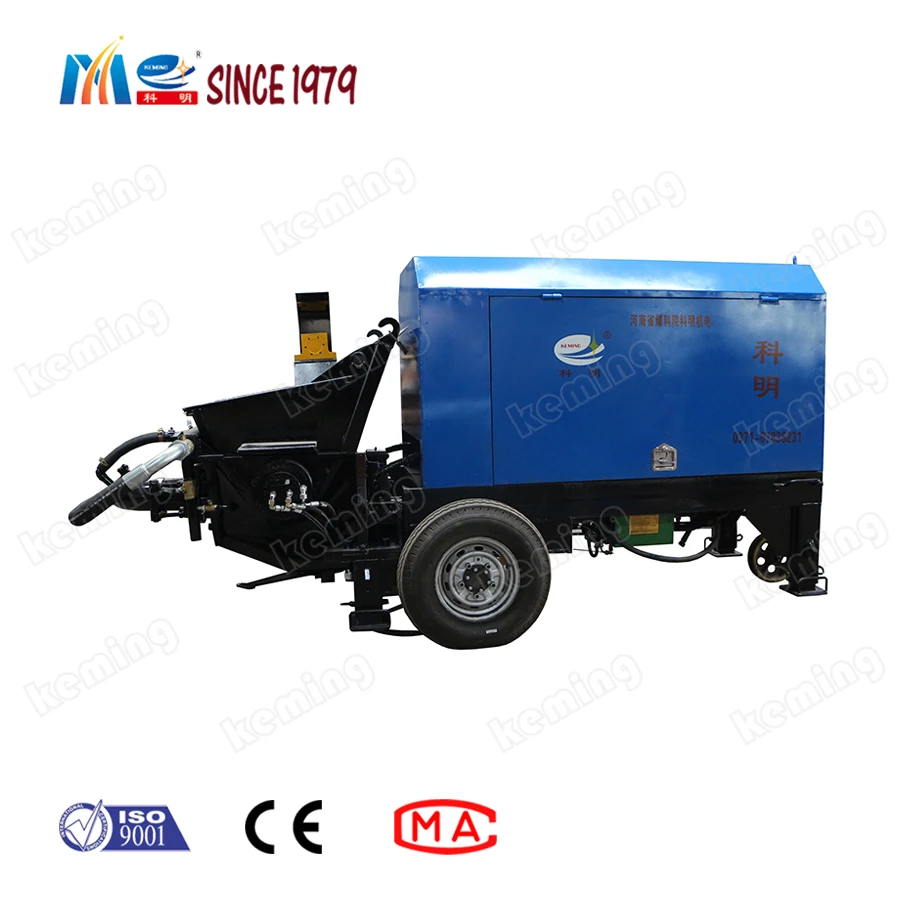

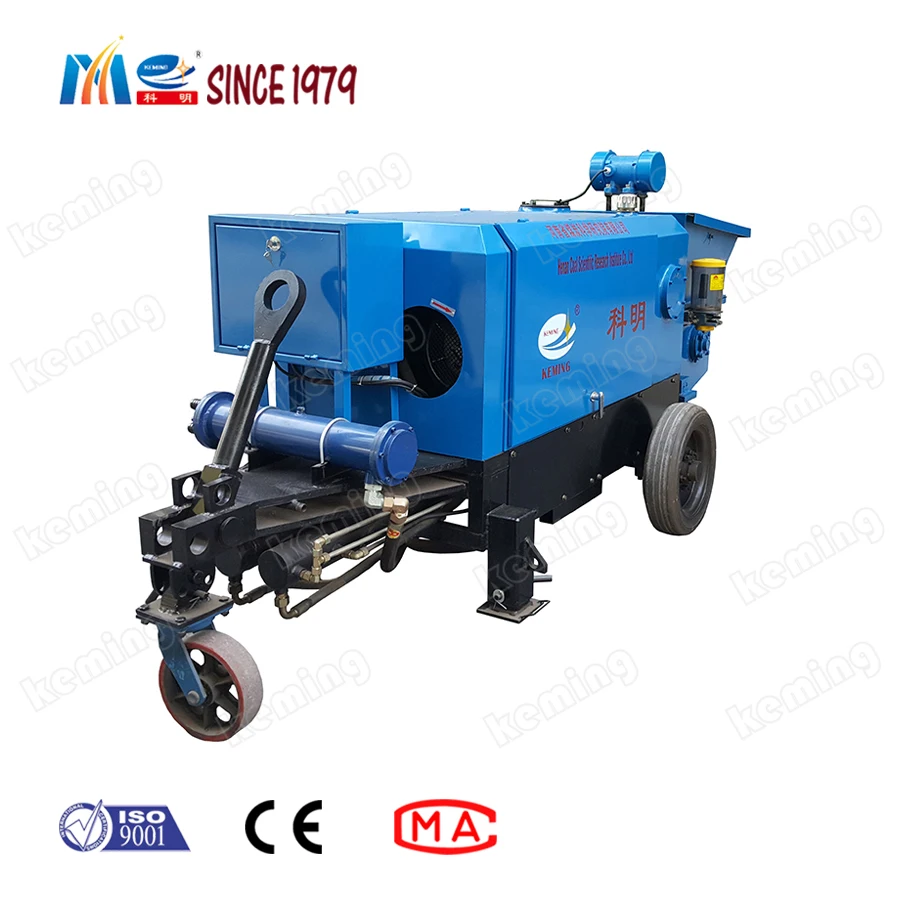

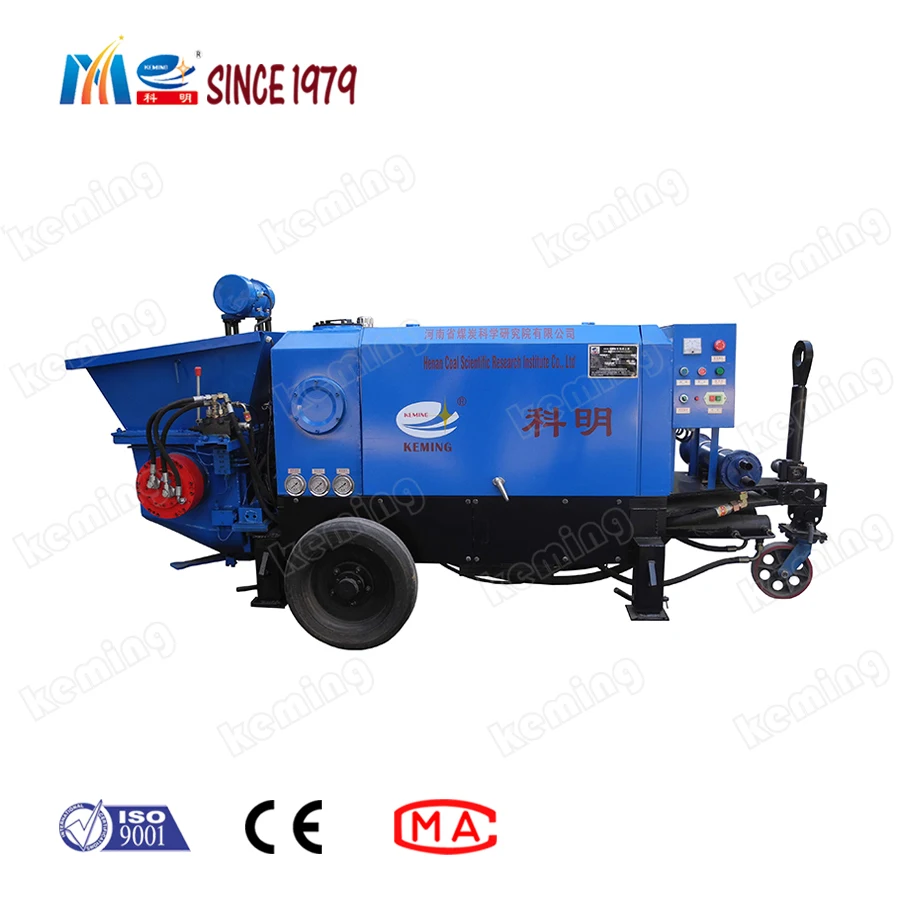

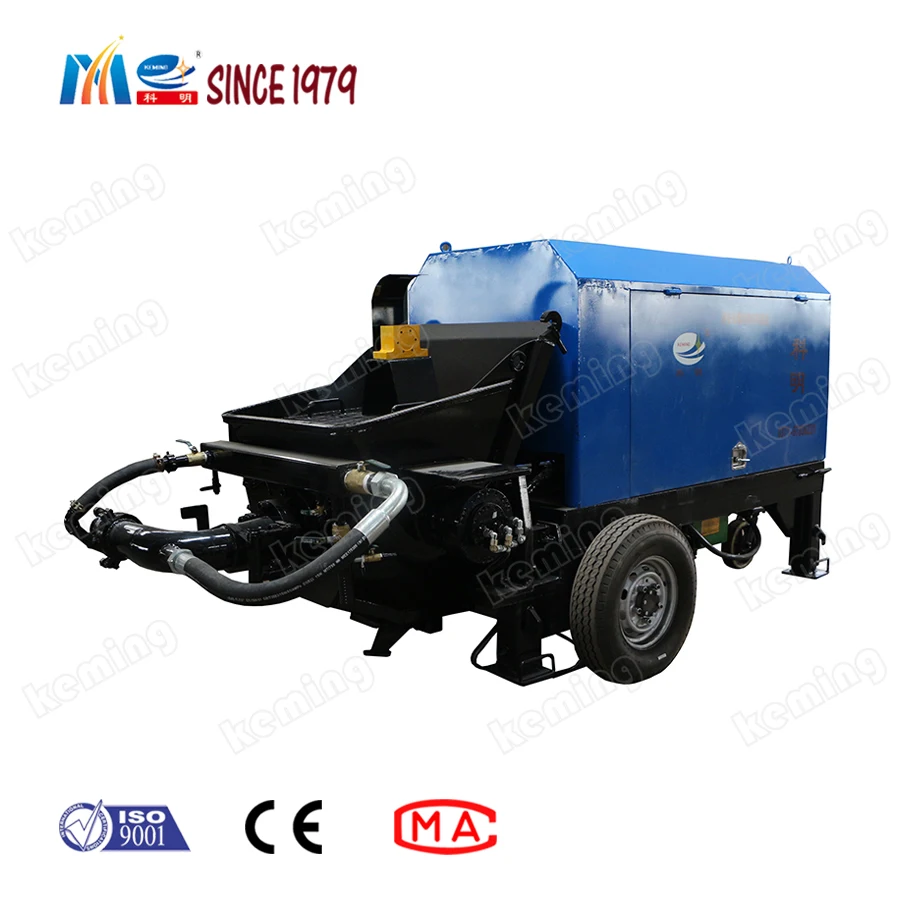

Full Hydraulic Wet Concrete Shotcrete Machine for Sale
Product Description
Shotcrete Machine Features:
1. This machine has advanced technology, complete functions, large internal space and convenient maintenance.
2. The hydraulic system adopts the mature hydraulic valve block with sensitive and reliable valves; The main oil pump adopts a manual variable pump, which can be manually adjusted to achieve continuous adjustment of injection volume.
3. The electrical part sets a variety of automatic protection modes in the control program, which replaces the complicated relay circuit, featuring the simplest operation, lowest failure rate and highest reliability.
4. Glasses plate and cutting ring (with automatic compensation device) adopts hard alloy with imported wear-resistant electrode, featuring anti-wear, small resistance, better material suction performance.
5. Large-capacity oil tank and forced air cooling with large flow rate can control the oil temperature of the system within a reasonable range, maximizing the service life of the system.
6. As for mixing system, the seal and bearing adopt a dual independent sealing structure, which can eliminate slurry leakage and reduce the possibility of damage of hydraulic motor.
7. Main lubrication points are automatically or manually lubricated, which effectively extends the service life of vulnerable parts.
Shotcrete Machine Application:
1. convey fine aggregate concrete and mortar for high buildings.
2. grout heat-insulated lightweight foamed cement, mortar floor heating, and self leveling for ground architecture.
3. spray plain concrete and fiber concrete in engineering construction.
4. convey and spray refractory and thermal insulation material.
5. spray afforestation soil in ecological environment construction.
6. pressure perfussion for foundation piles, backfill in overbroken tunnels, railway slope supporting, and disaster management.
Shotcrete Machine Technical Parameters:
Model |
| KBS-8A hydraulic shotcrete machine |
Max. theoretical capacity | m³/h | 12 |
Working capacity | m³/h | 3-8 |
Max. system pressure | Mpa | 16 |
Working air pressure | Mpa | 0.4-0.6 |
Max. aggregate diameter | mm | 15 |
Max. theoretical vertical delivery dist | mm | 150 |
Max. theoretical horizontal delivery dist. | mm | 400 |
Total weight | Kg | 2600 |
Dimensions | mm | 3800*1400*1730 |
Main motor power | KW | 22 |
Hopper volume | m³ | 0.4 |
Concrete slump | cm | 12-18 |
Dust concentration around | mg/m³ | <6 |
Feeding height | mm | 1150 |
Oil tank capacity | L | 180 |
Rebound rate | % | ≤10 |

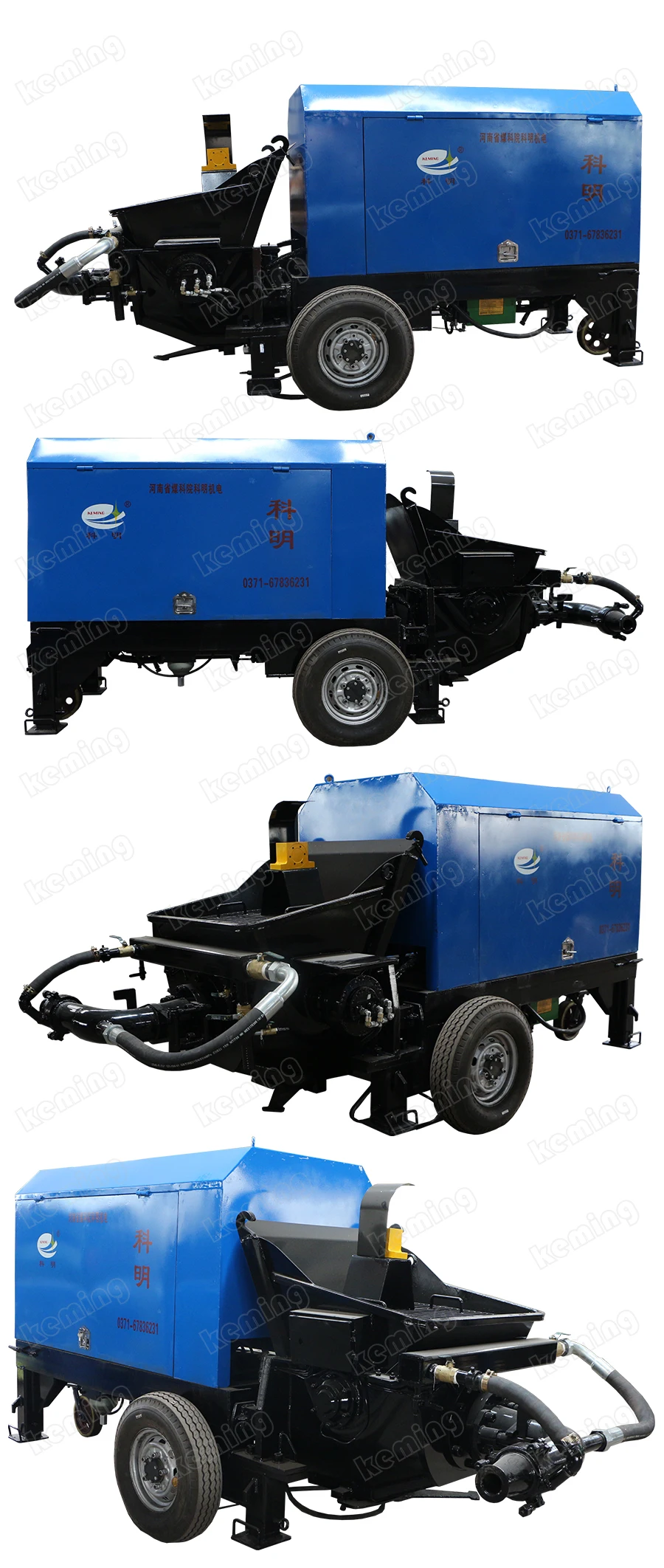

Shotcrete Machine Detailed Pictures:
Company Information
Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. (the former Keming Mechanical and Electrical Department of Henan Coal Scientific Research Institute) is a holding subsidiary of Henan Coal Scientific Research Institute Co., Ltd. Our company is dedicated to the research and development, production and sales of shotcrete machine, grouting pump, and complementary products. Up to now, we have developed more than 50 kinds of products, covering spraying machines, pumps and other series of products.
Achievements:
Our company has obtained more than 20 national invention patents and utility model patents, more than 10 scientific and technological achievements appraisal awards, 8 awards from China National Coal Association and Department of science and technology of Henan province, and the second prize of Henan Provincial S&T Progress Award.
In 2014, the brand “KEMING” was awarded the “Henan Provincial Famous Trademark”. In 2018, our company was awarded ISO9001 Quality Management System Certification, OHSAS 18001 Occupational Health and Safety Management System Certification, ISO14001 Environmental Management System Certification and CE Certification.
Business Scope:
As a comprehensive high-tech enterprise, our company is engaged in the research and production of mining machinery, engineering machinery and supporting equipment for underground engineering, as well as environment protection, chemical industry, inspection and testing of mining equipment, research and production of mechanical and electrical products, technology and finance, management and technology consulting service, and other industries.
Application:
Our products are mainly applied in water conservancy and hydropower engineering, subway engineering, air-raid shelter construction, municipal construction, environmental greening projects, tunnel and bridge maintenance, slope maintenance, blast-furnace refractories spraying operations, mining concrete spraying operations, etc.
Main Products:
wet/dry shotcrete machine, plastering machine, concrete/shotcrete pump, grouting pump, cement pump, mortar pump, slurry pump, hose pump, cement/concrete mixer, concrete foaming machine etc.
Certifications
Related Product - S
 |
|
KCPZ series Dedusting Shotcrete Machine * Dust Removal * Electric Motor * KCPZ-5; KCPZ-6; KCPZ-7
| KPZ series Dry Shotcrete Machine * Electric Motor * KPZ-3; KPZ-4; KPZ-5; KPZ-7; KPZ-9 |
 |
|
KPZ-A series Dry Shotcrete Machine * Air Motor * KPZ-3A; KPZ-4A; KPZ-5A; KPZ-7A; KPZ-9A | KPZ-D series Dry Shotcrete Machine * Diesel Engine * KPZ-3D; KPZ-4D; KPZ-5D; KPZ-7D; KPZ-9D |
 |
|
KSP series Wet Shotcrete Machine * Electric Motor * KSP-5; KSP-7; KSP-9 | KSP-D series Wet Shotcrete Machine * Diesel Engine * KSP-5D; KSP-7D; KSP-9D |
|
|
Dry Shotcrete Machine Truck * Four-wheel drive or crawler drive * Electric Motor * KZL-6; KZL-7*2 | Shotcrete Machine Robot * Four-wheel drive or crawler drive * Electric Motor * KPC-8
|
FAQ
---Shotcrete Machine, Gunite Machine, Concrete Spraying Machine
1. Q: Which shotcrete machine should we choose?
A: To recommend the most suitable model, please tell us:
- Material: dry / damp mixture, or ready mixed wet mixture
- Capacity: 3m3/h, 4m3/h, 5m3/h, 6m3/h, 7m3/h, 9m3/h
- Delivery distance (horizontally / vertically):
- Driven type: electric motor, pneumatic motor, diesel engine
2. Q: What is the vulnerable part? How many spares should we prepare?
A: After long-time running, the rubber plate, steel plate, rubber cavity, spraying nozzle, delivery hose may get worn. We will offer some spares for free.
Referring to the service life of each part, we will put a rough estimate of requested spares according to your project scale -how many cubic meters you will spray.
3. Q: Can we have customized model?
A: Yes. Customized production and OEM production are available according to your actual requirements.
4. Q: Do i need technical skills to operate this machine?
A: Yes. Please read the Operation Instruction for some basic technical skills before operating this machine, and contact us if any operation procedure is unclear.
5. Q: What should we do if there are some problems with the machine?
A: The Operate Instruction will help with routine maintenance and common problems.
Also, you can contact us for technical instruction by email, instant messenger or live video etc.
6. Q: What is the lead time?
A: 1 week for sample model, 2~3 weeks for customized model. It depends for mass production.
7. Q: How about the package?
A: The machine will be wrapped by plastic film and packed by fumigation-free wooden case along with spare parts.
8. Q: How to place an order?
A: Both online order and offline order are acceptable.
It is suggested to place online order with a Trade Assurance to get full protection for first order.
9. Q :How to pay for this order?
A: Generally, TT, 30% deposit 70% before shipment;
L/C at sight (high bank charge, not suggest, but acceptable);
100% TT in advance (especially for small amount and spare parts etc.)
