36mm low rpm high torque 12v 24v dc planetary gearbox motor gear motor
- Category: >>>
- Supplier: Shenzhen Shunli Motor Co. Ltd.
Share on (62242792872):
Product Overview
Description
Product Description
36mm low rpm high torque 12v 24v dc planetary gearbox motor gear motor
Product Details
Motor Customized Specification, Please Contact Us.
Reference Drawing

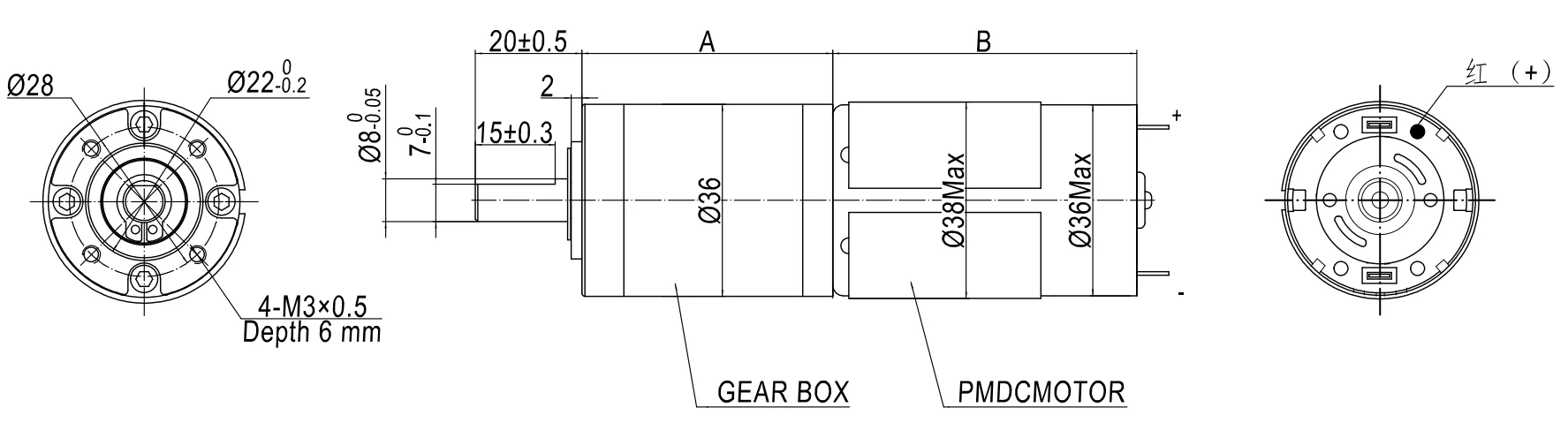

GMP36M545/555/575 ( Planetary Gearbox With Brush Motor)

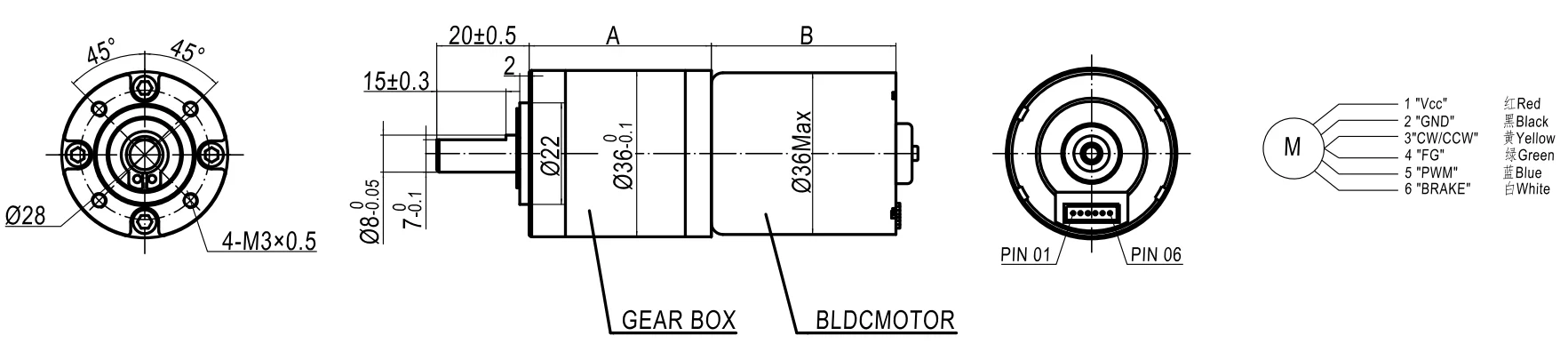

GMP36MBL3626/3630/3640/3650/3657 ( Planetary Gearbox With Brushless Motor)

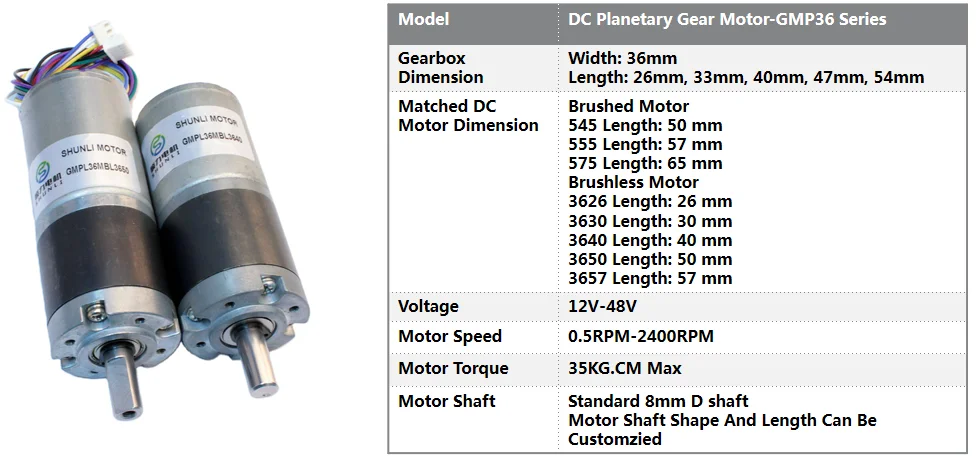

Reference Datasheet
| Gearbox Technical Date | |||||
| Number of stages | 1 | 2 | 3 | 4 | 5 |
| Ratio | 3.7K / 5.2K | 13.7K / 19.2K / 27K | 51K / 71K / 100K / 139K | 189K / 264K / 369K / 516K / 721K | 699K / 977K / 1367K / 1911K / 2672K / 3736K |
| Gearbox Length “L”(mm) | 26 | 33 | 40 | 47 | 54 |
| Max. Rated Torque | 5.0 Kgf.cm | 10.0 Kgf.cm | 20.0 Kgf.cm | 25.0 Kgf.cm | 30.0 Kgf.cm |
| Max. Gear Breaked Torque | 15.0 Kgf.cm | 30.0 Kgf.cm | 60.0 Kgf.cm | 75.0 Kgf.cm | 90.0 Kgf.cm |
| Gearbox Efficiency | 80%~92% | 70%~80% | 60%~70% | 50%~60% | 40%~50% |
| Gearmotor Technical Date | |||||||||
| Gearmotor Model | Ratio | Rated Voltage (V) | No-Load | Rated | Stall | ||||
| Speed | Current | Speed | Current | Torque | Current | Torque | |||
| RPM | mA | RPM | mA | N.m / Kgf.cm | mA | N.m / Kgf.cm | |||
| GMP36M545-139K | 1 : 139 | 24 VDC | 75 | ≤ 450 | 65 | ≤ 2200 | 2.5 / 25 | ≤ 15500 | 12.5 / 125 |
| GMP36M555-27K | 1 : 27 | 24 VDC | 250 | ≤ 250 | 220 | ≤ 1250 | 0.45 / 4.5 | ≤ 8500 | 3.0 / 30 |
| GMP36M575-264K | 1 : 264 | 12 VDC | 13 | ≤ 280 | 11.5 | ≤ 1250 | 3.0 / 30 | ≤ 7850 | 9.0 / 90 |
| Gearmotor Technical Date | |||||||||
| Gearmotor Model | Ratio | Rated Voltage (V) | No-Load | Rated | Stall | ||||
| Speed | Current | Speed | Current | Torque | Current | Torque | |||
| RPM | mA | RPM | mA | N.m / Kgf.cm | mA | N.m / Kgf.cm | |||
| GMP36MBL3626-139K | 1 : 139 | 24 VDC | 34 | ≤ 180 | 27 | ≤ 400 | 1.0 / 10 | ≤ 1400 | 5.5 / 55 |
| GMP36MBL3640-27K | 1 : 27 | 24 VDC | 185 | ≤ 300 | 150 | ≤ 750 | 0.45 / 4.5 | ≤ 3000 | 2.25 / 22.5 |
| GMP36MBL3650-264K | 1 : 264 | 24 VDC | 22.5 | ≤ 400 | 18.5 | ≤ 1400 | 3.0 / 30 | ≤ 7000 | 10 / 100 |
Application
Certification
Our Company
Shenzhen Shunli Motor Co. Ltd has been established in 2005. It's a high-tech enterprise integrating the research, development, production and sales of various kinds of micro DC motor, geared motor, planetary geared motor, shade pole geared motor and special gearbox motor. Products are widely used in automobiles, communications equipment, smart home, medical equipment, intelligent security, household appliances, western kitchen equipment, machinery and electronics and other high-end transmission structures, products are exported to more than 50 countries and regions at home and abroad.
Our service
We are gold seller and in possession of high credibility.
100%on-time delivery rate confirm your product arrives timely.
Samples will be produced within 2 weeks.Customized samples will be prouced within 3 weeks.
Timely reply,your message will be replied within 2 hours.
FAQ
1.Q: Are you trading company or manufacturer?
A: We're factory. We specialize in micro dc motor and dc gear motor for more than 14 years.
2.Q: What is the payment term for a new customer?
A: We can draw up an Ali Assurance Order Online for our new customer, which can pay online with Master Card, Visa, etc. Customer also can pay with PayPal or TT etc.
3.Q: I can't find a suitable motor on your website, can you customize the motor for me?
A: Yes, we can customize a suitable motor according to our customer's requirements.
4.Q: Do you have certificates for the motors?
A: Yes, we have CE, FCC, ISO, etc. If you have the other certificates requirement, we can apply it for you.
5.Q: How is your Quality Control?
A: We have professional checking staff on every production line process. After finishing the whole motor, we have the entire quality machine to test the motor. Such as Hardness Tester, 2.5D Image Tester, Salt Spray Chamber, Life Tester, Temperature Test Machine, and Noise tester etc.
Contact Us
Bob
Shenzhen Shunli Motor Co., Ltd
Mobile:+86 13534295368
Tel: 0755-29124182
Fax: 0755-29124162
E-mail: Bob@ szslmotor.com
