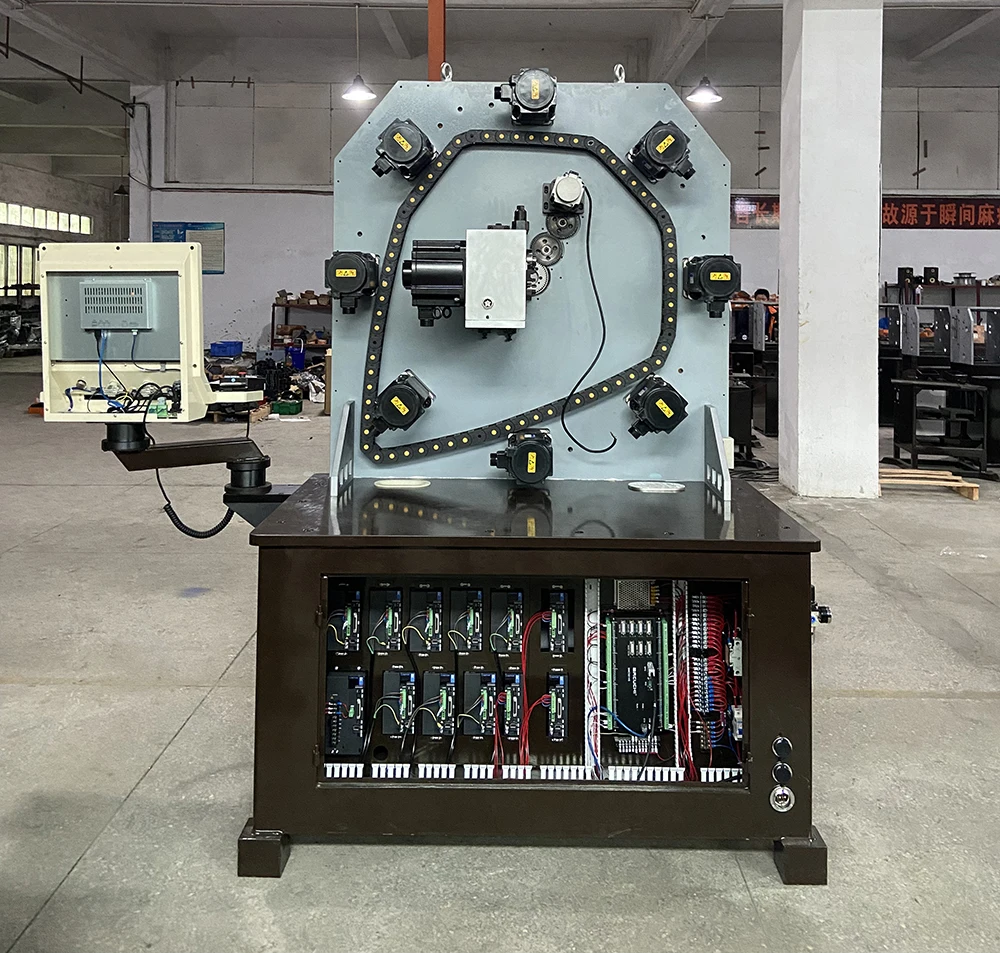

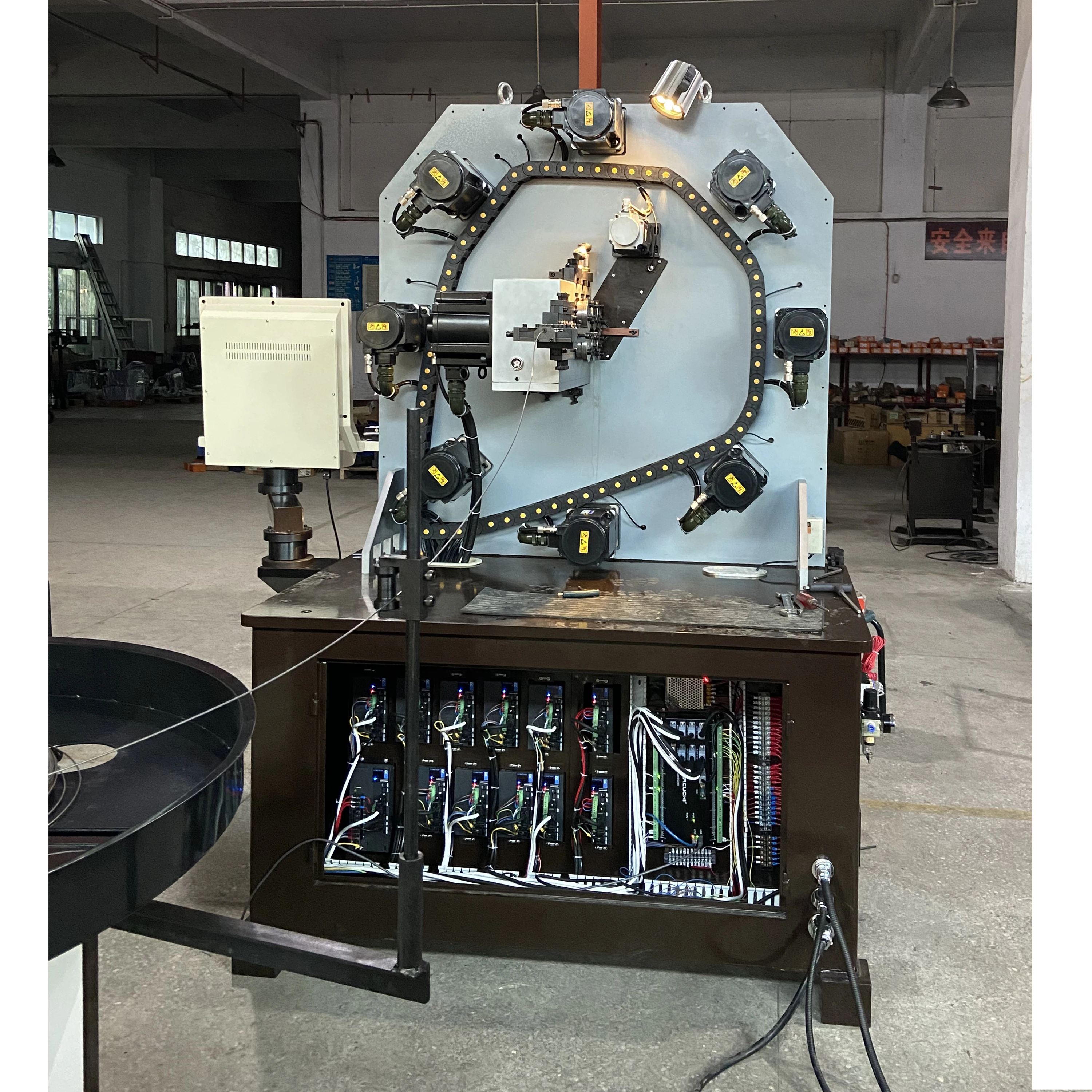

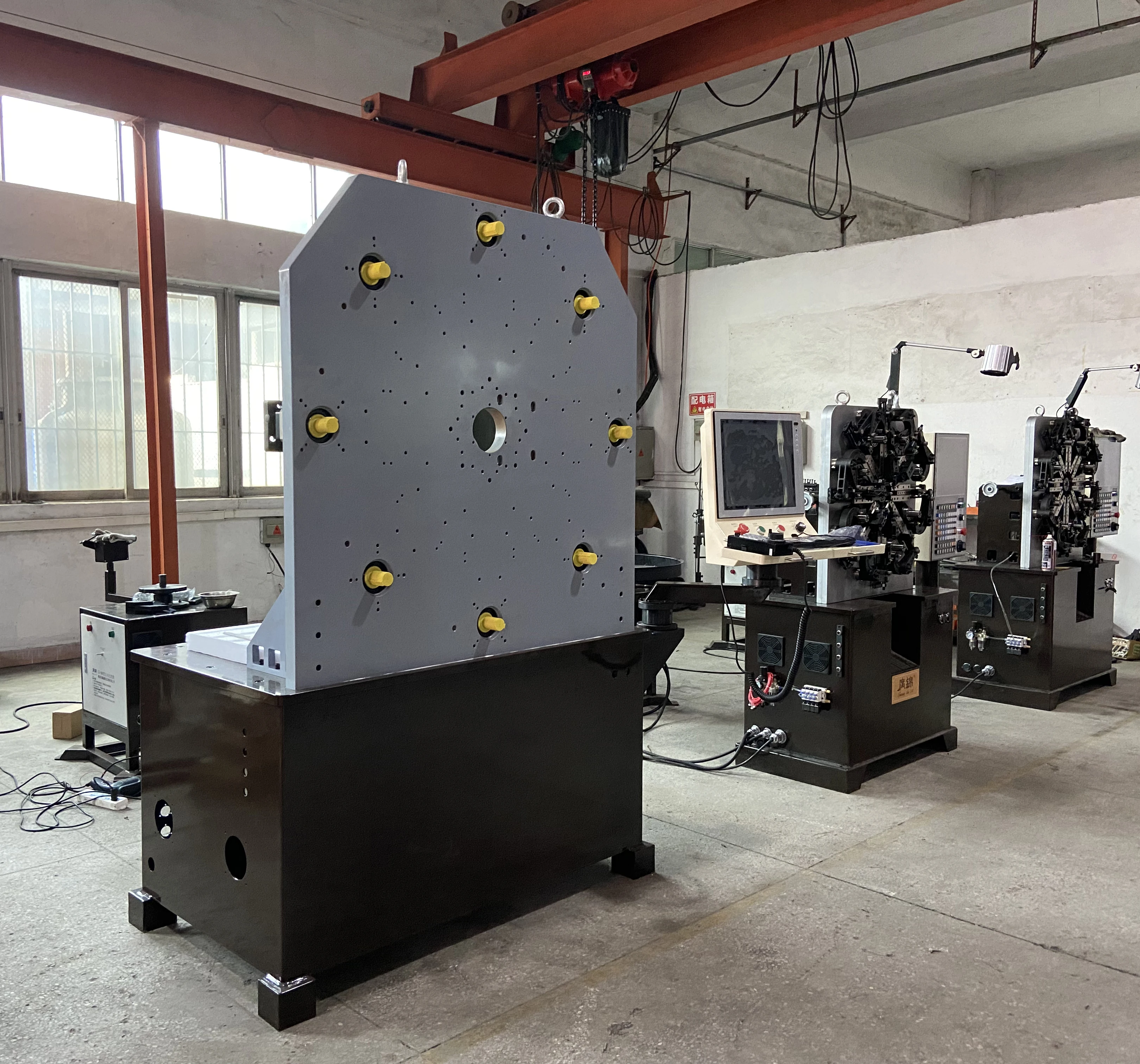

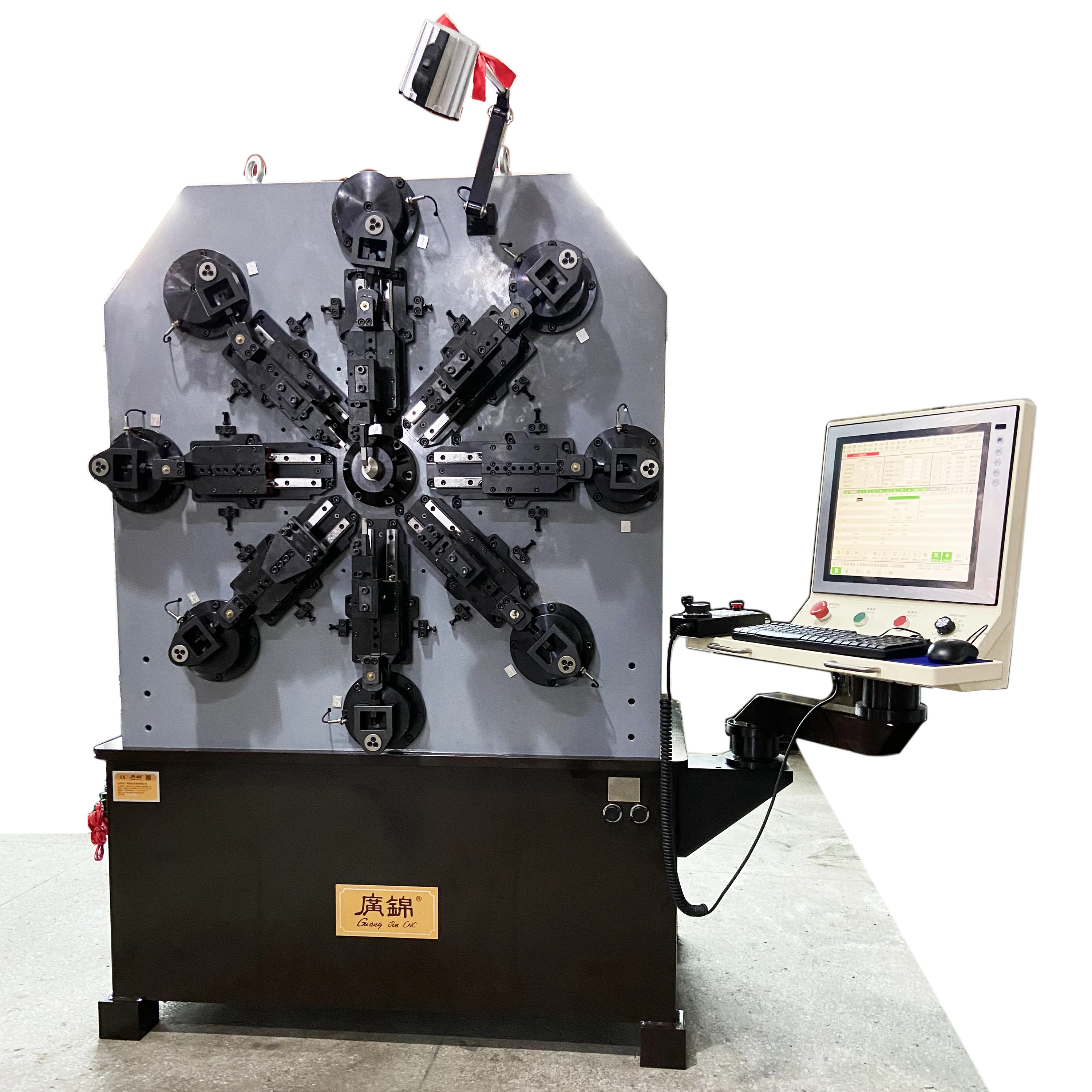

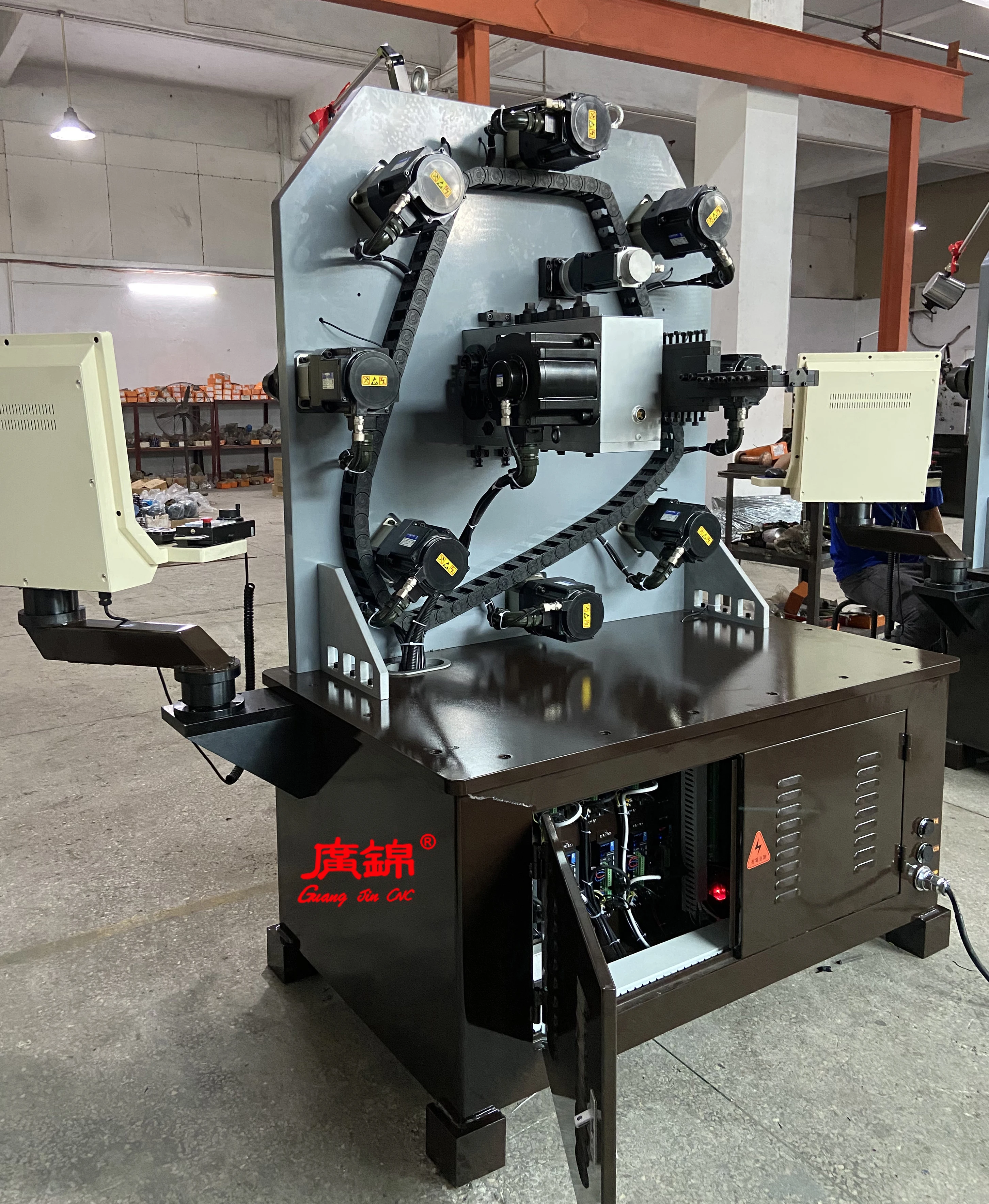

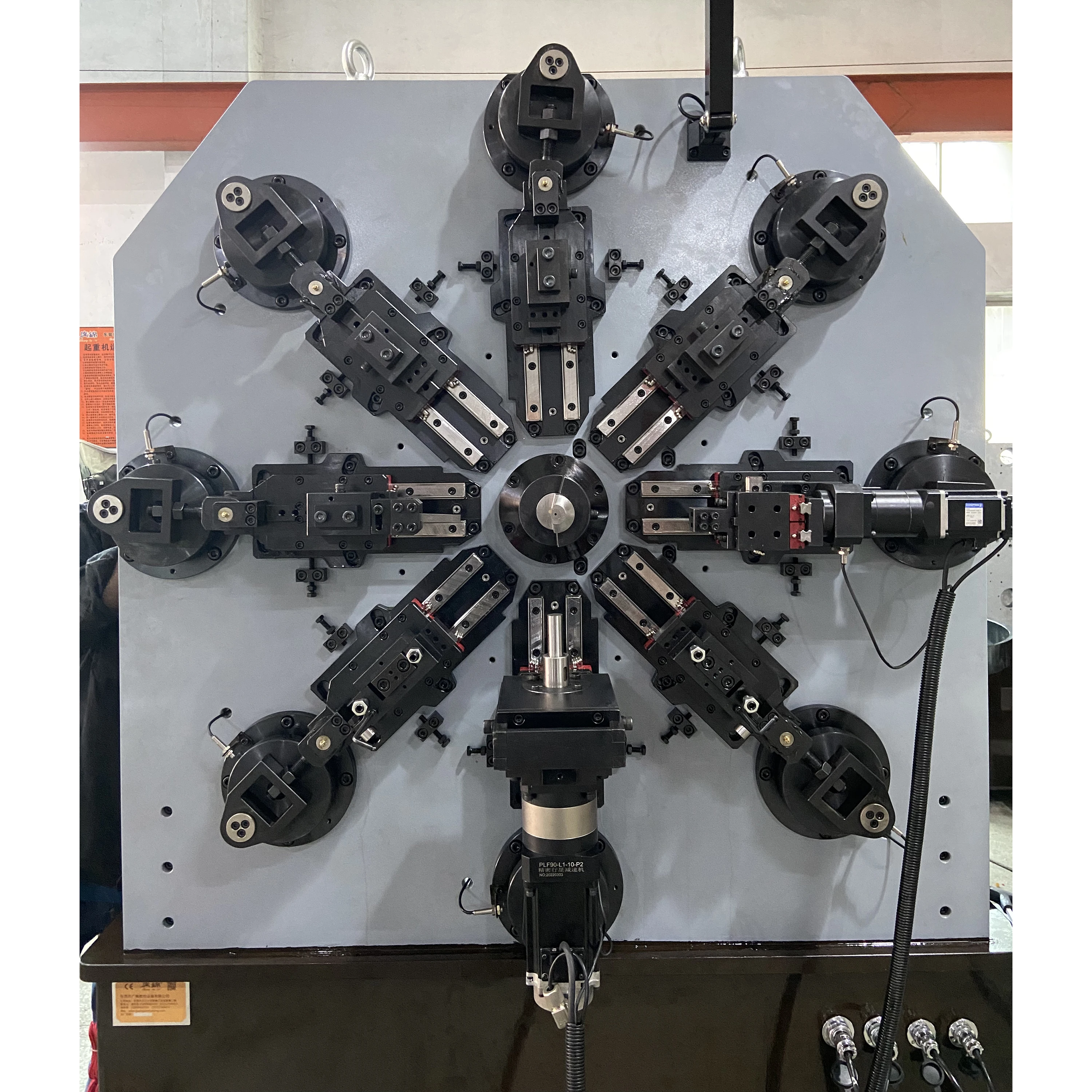

1.2 4.5 mm CNC Camless automatic wire forming machine double torsion spring forming machine
- Category: >>>
- Supplier: Dongguan Guangjin Cnc Equipment Co. ltd.
Share on (62242860722):
Product Overview
Description
4.5 mm CNC wire forming machine double torsion spring making machine camless no wire rotary.
Product Description
Technical Parameters
Producing: vary types of springs,wire forming of customized shapes. | |
Wire Size | Φ 1.2-Φ4.5 mm ( max 4.5mm for soft wire) |
Number of Axis | 11 axis (servo motors) |
Max Feeding Length | Unlimited |
Predict Max Speed | 36~50pcs per minute |
Cam Setting Value | ±0.1° ~ ±359.9° |
Wire Feeding | 0.01mm / 1000.00mm |
Servo Motors and their Powers | Total 18.5KW l Wire Feeding: 1x4.5KW l Handle: 8x1.5KW ( with 8x reducer ) l Quill: 1x1KW l Spin: 1x1KW |
Power / Input | 380v±10%, 50Hz, AC, 3 phase |

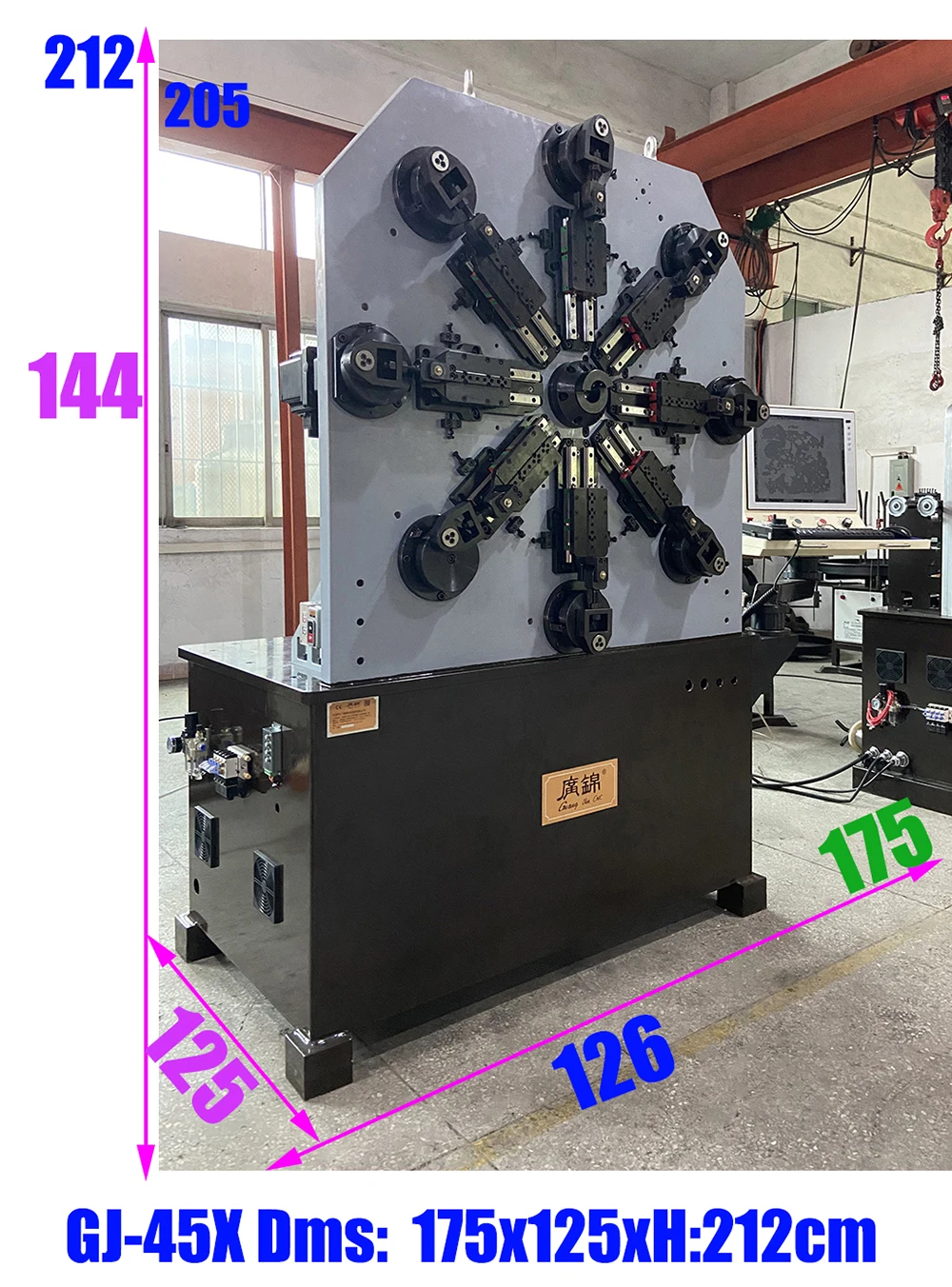

Machine Size / Weight | WxDxH: 174*115*212 cm Wiring Height: 144cm Mainbody N.W.: 1.78MT |
Wire feeding / Decoiler | Max 300kg |
Package and Loading | 1. film wrapped, belt and packing buckled tightened, wood carton. 2. 2 Carton/Set, Total: 5.64CBM |

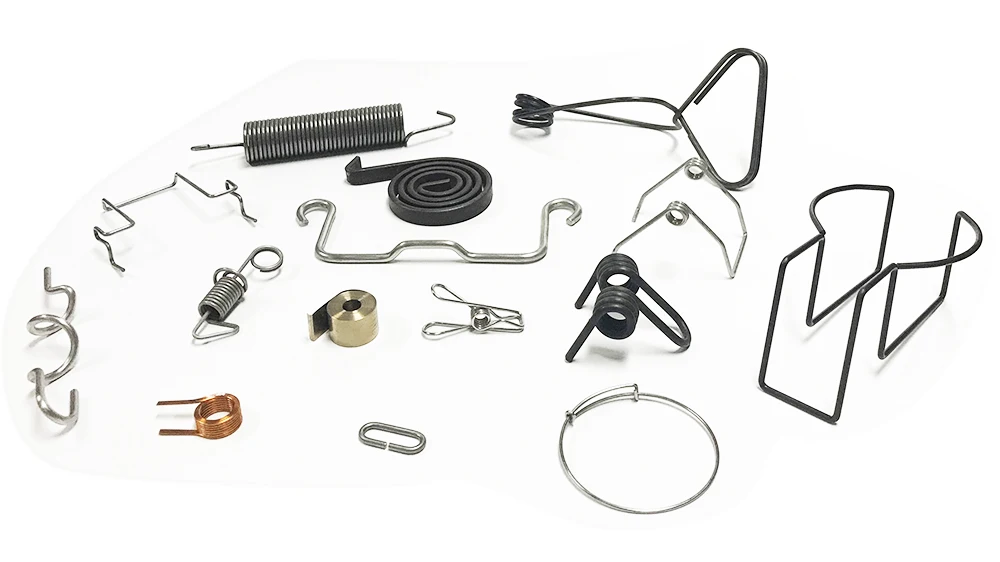

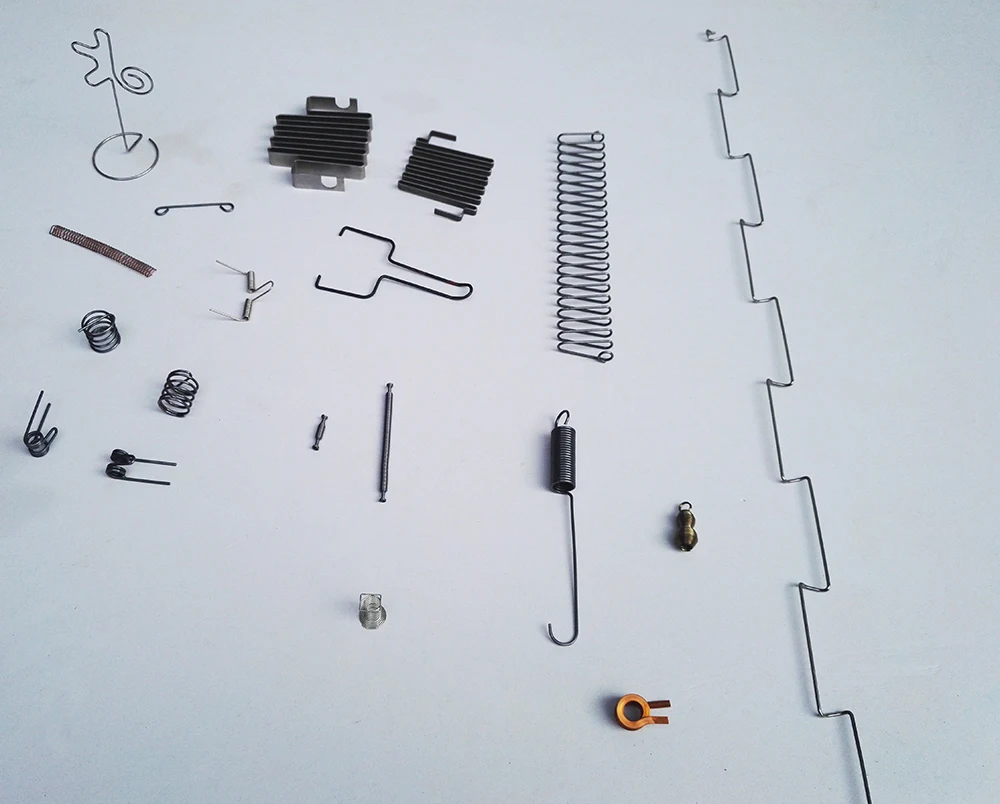

Spring and wire forming samples made by GJ-45X
Certificates and business activities.
FAQ:
Q: Are you manufacturer?
A: Yes, Our company specializes in researching,manufacturing and selling precision machines. Welcome to visit us!
Q: What is your payment term?
A: We are flexible on payment terms, please contact us for details!
Q: Why choose you? What is the difference between you and other Chinese supplier?
A: We have specialized in this area for over 18 years. You can get higher quality product & better professional service from us.
Q: What is the lead time?
A: Within 12 days.
Q: Is the machine tested before shipment?
A: Yes, We will do the tests before the shipment.
Q: How is the machine packed?
A: We will wrap the machine with a protective film, and then put the machine in a wooden box.
Q: What should I do if there is a problem during the use of the machine?
A: 1. After-sales service, warranty is 2 years.
2. There will be professional video guidance to solve the problem
3. Assign professionals to debug (the cost needs to be borne by the customer)
Q: How do I get in contact with you?
Attn: Jenny Yang
Wechat/Whatsapp: +8613423161776
Skype: Jennyyang2006
Telephone: +86-13423161776
