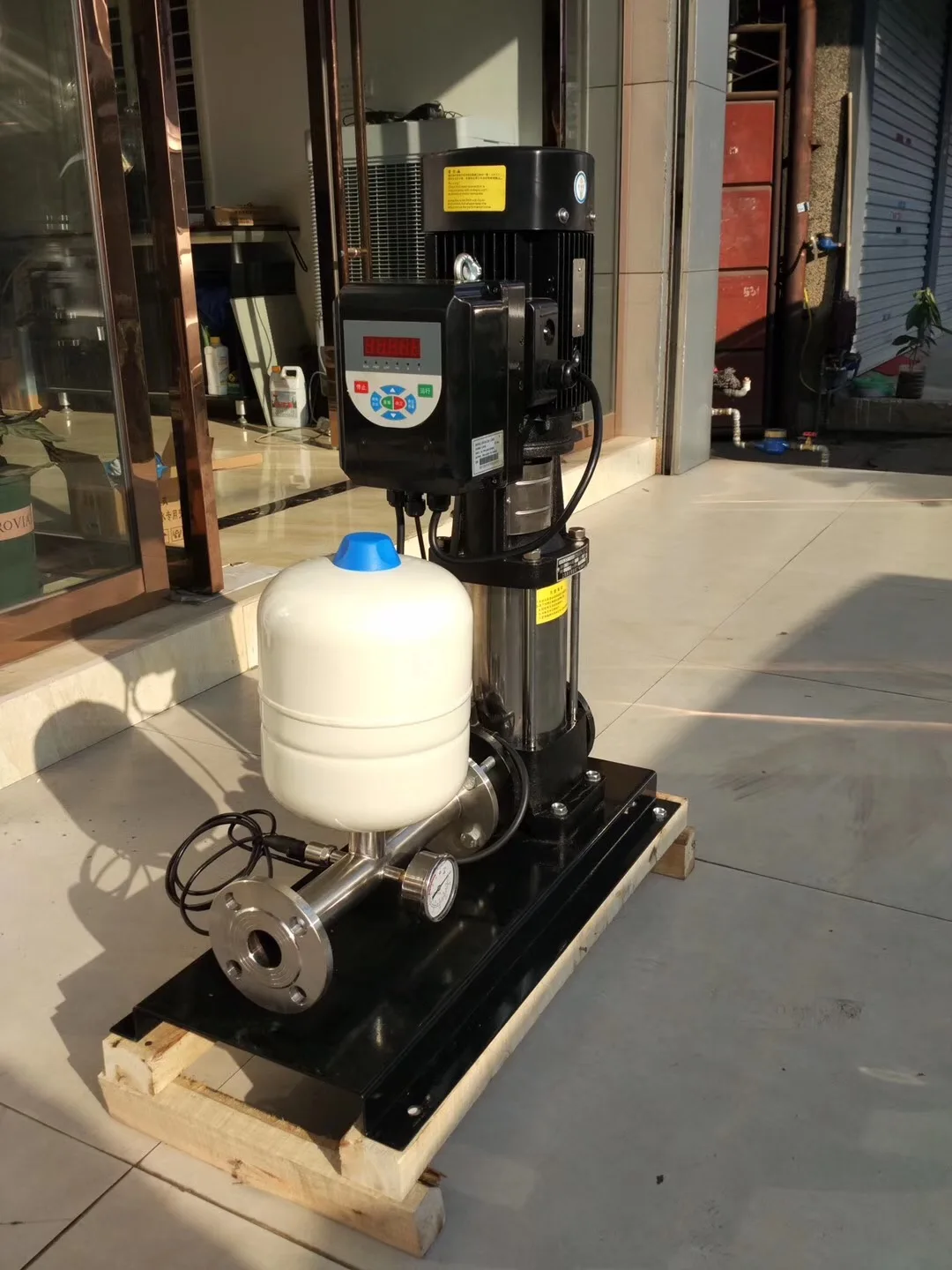

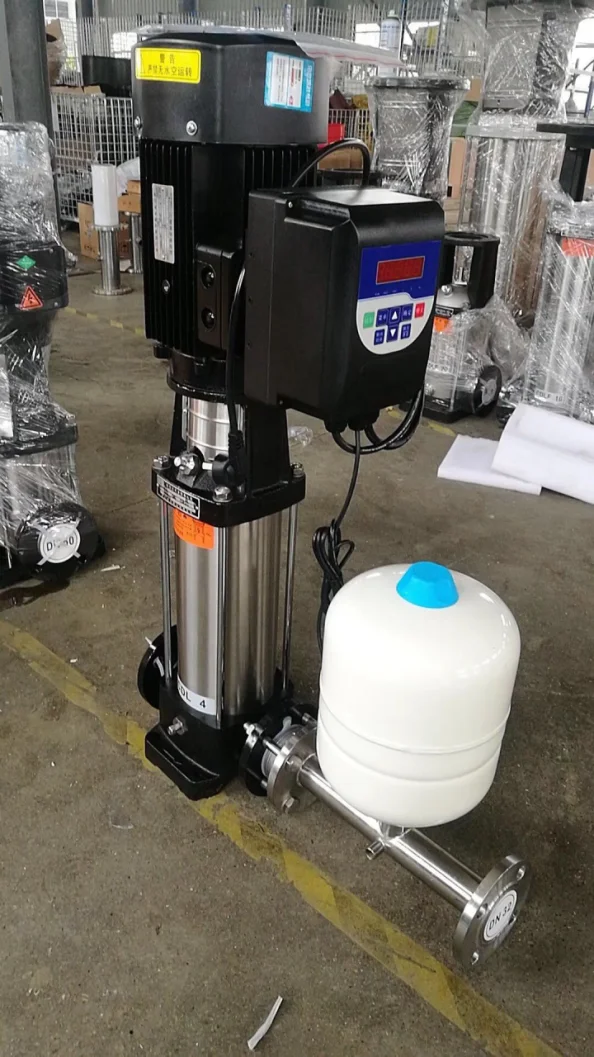

Constant Pressure Water Supply Vertical All in one Machine Household Variable Frequency Pump
Constant Pressure Water Supply Vertical All-in-one Machine Household Variable Frequency Pump
Constant Pressure Water Supply Vertical All-in-one Machine Household Variable Frequency Pump
Constant Pressure Water Supply Vertical All-in-one Machine Household Variable Frequency Pump
Constant Pressure Water Supply Vertical All-in-one Machine Household Variable Frequency Pump
Constant Pressure Water Supply Vertical All-in-one Machine Household Variable Frequency Pump
Constant Pressure Water Supply Vertical All-in-one Machine Household Variable Frequency Pump

Constant Pressure Water Supply Vertical All in one Machine Household Variable Frequency Pump

Share on (62243069103):


Price:$780.00 - $789.00

Quantity:


Product Overview

Description





Product Description


Customized Intelligent Constant Pressure Home Water Supply Equipment

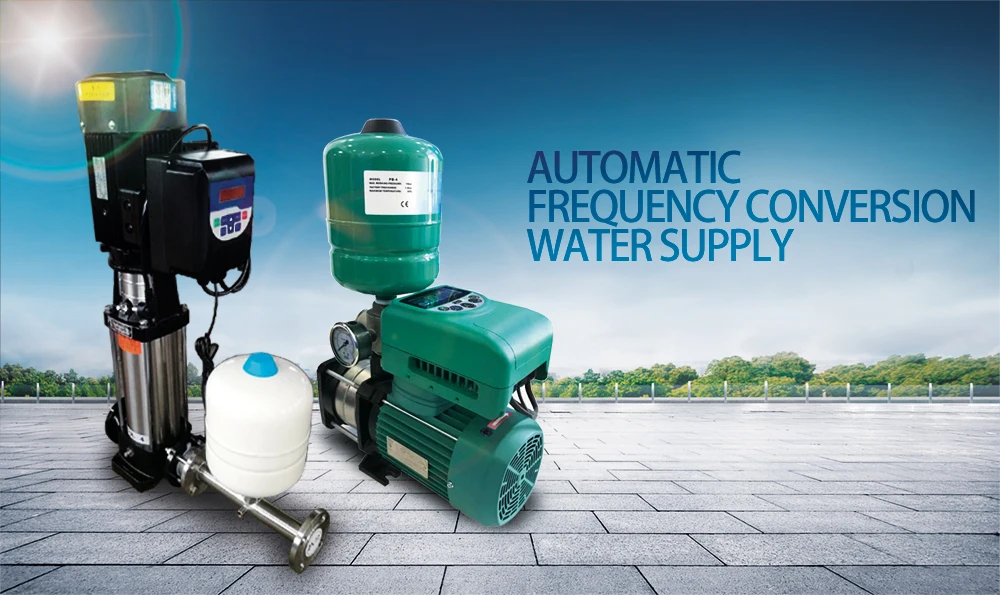

Automatic frequency conversion water supply
The automatic frequency conversion water supply equipment is a new generation of products with advanced foreign technology combined with fire, life and production water. It adopts microcomputer programmable control technology, according to various conditions of water supply pipe network and water source, by micro Computer control regulates all kinds of complicated work and realizes intelligent water supply.


Features

1. High efficiency and energy saving.The automatic frequency conversion constant pressure water supply equipment can automatically detect according to the actual water consumption and the use pressure of the user, and adjust the rotation speed (power consumption) of the motor, so that the equipment is always in a high efficiency working state.
Voltage (AC) 380V ± 15%
2. Water supply pipe network pressure is stable.
50Hz
3. Small footprint, low investment, short installation period.
Squirrel-cage three-phase asynchronous motor
4. Full protection function, safe and reliable operation, easy to operate.
Recommended no more than 20 times per hour depending on load conditions
5. Water supply function is complete, insurance factor is high.
IP (available)


Product name:


Items
Description

Information
Product Name
Constant Pressure Water Supply Vertical All-in-one Machine Household Variable Frequency Pump

Model
CDLF8-004G-82

Power
4KW

Flow
8m³/h

Head
82m

Rated Frequency
50Hz~60Hz
 Basic Function
Advantage
Energy saving, speed regulation, protection

OEM&ODM
Acceptable

Certificate
CE;ISO9001

Warranty period
12 months


System function and description

1. Pressure adjustment: freely adjustable within the performance curve of the pump

2. Automatic shutdown: the system can automatically stop after 20 seconds without water, and the pressure will not deviate from the set value by 1% after shutdown.

3. Normal water consumption: When the system pressure is lower than 85% of the set pressure, the pump starts up automatically and maintains constant pressure water supply.

4. Water shortage protection: When the pump's full-speed running pressure still cannot reach 65% of the set value, the pump will automatically stop running after 30 seconds.

5. Other protection: overload, over current, high and low voltage protection, etc.



Installation environment and instructions
1. Ambient temperature: 0-45 degrees Celsius cuts the communication is good, below zero, please do a good job of heat preservation of the pump pipeline.
2. No water droplets, steam, no floating dust, metal particles.
3. No sunlight, high temperature and serious dust.
4. Locations without corrosion, flammable gases and liquids.
5. Locations without vibration and electromagnetic noise interference.
6. Maintenance, check the location of the capacity.




Automatic constant pressure water supply system integrated model
There are two types of constant pressure water supply integrated machines: Horizontal automatic constant pressure water supply system and vertical Horizontal automatic constant pressure water supply system.

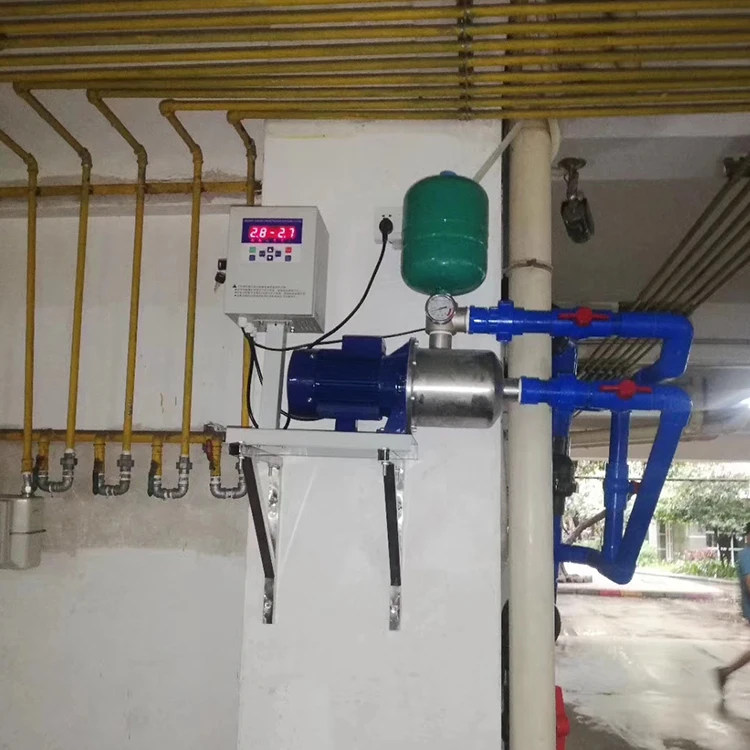

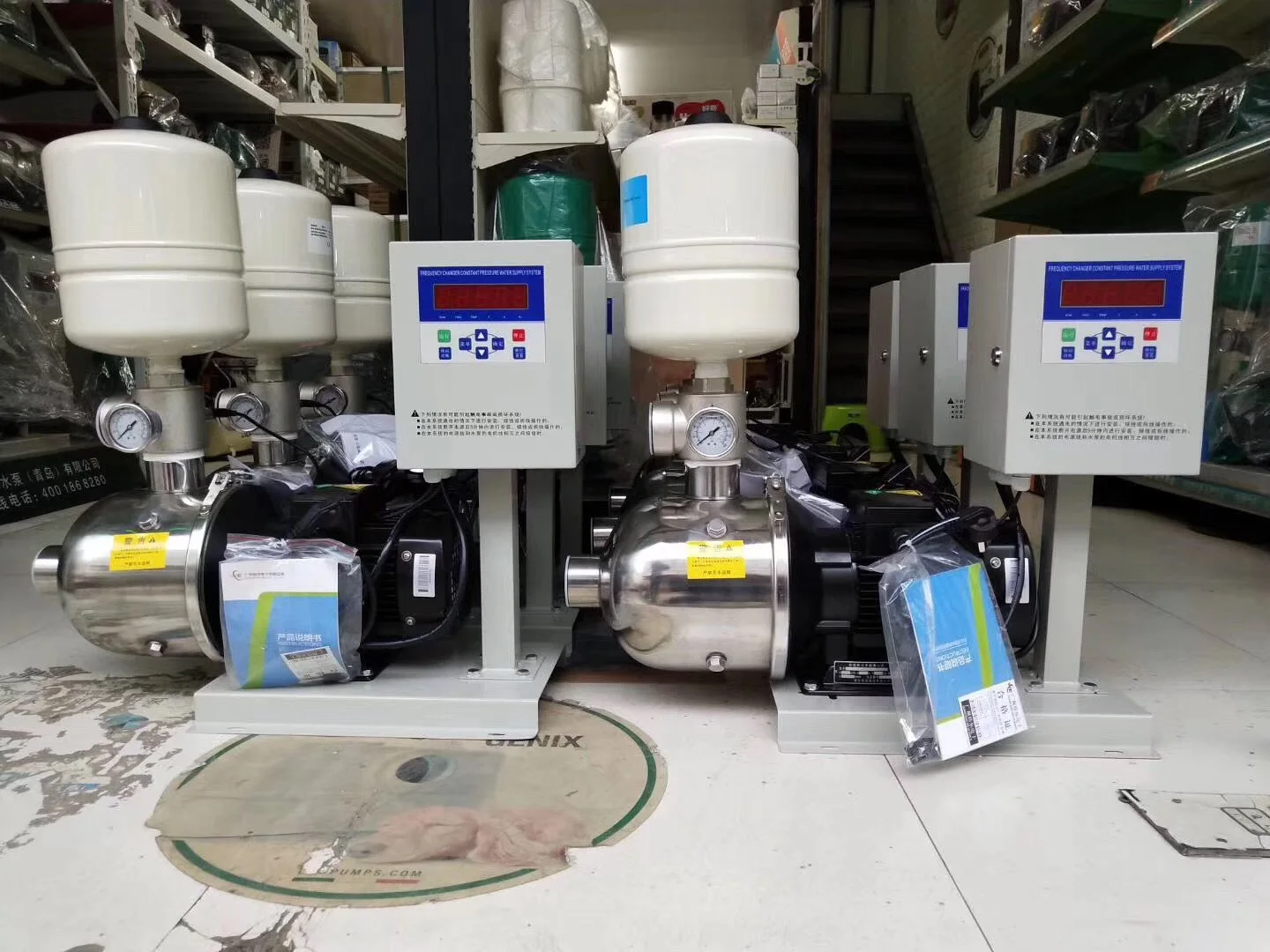

Horizontal automatic constant pressure water supply system
Vertical Horizontal automatic constant pressure water supply system

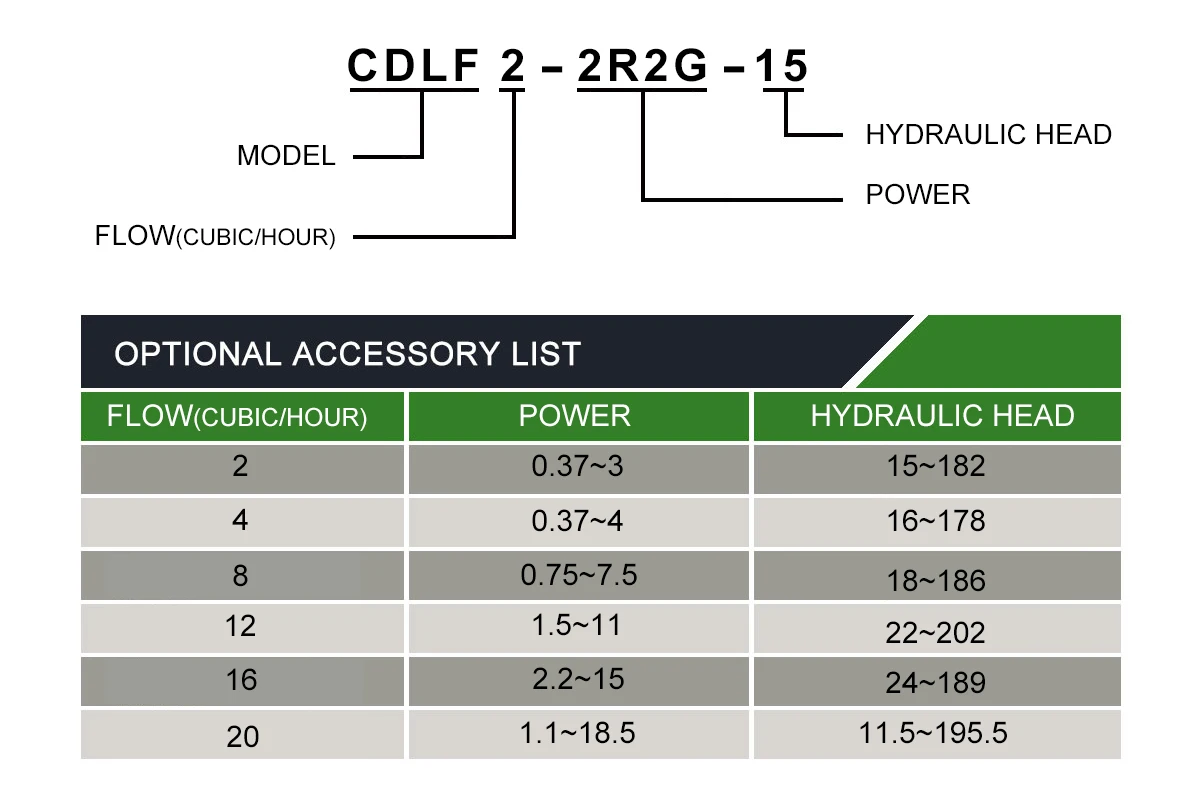

Vertical Horizontal automatic constant pressure water supply system model parameters




Horizontal automatic constant pressure water supply systemmodel parameters


E3200S pressurized return water control system
Model
Power
Flow
Head
Import
Export
Battery valve
Spare senso
E320S-0.55KW-2-50
0.55KW
2
44
DN25
DN25
4
1.0MPA
E320S-0.75KW-4-40
0.75KW
4
31
DN32
DN25
4
1.0MPA
E832S frequency conversion boost control system
Model
Power
Flow
Head
Import
Export
Battery valve
Spare senso
E832S-0.75KW-4-40
0.75KW
4
40
DN32
DN25
0
1.0MPA
E832S-1.5KW-8-40
1.5KW
8
40
DN40
DN40
0
1.0MPA
E832S-2.2KW-8-50
2.2KW
8
50
DN40
DN40
0
1.0MPA

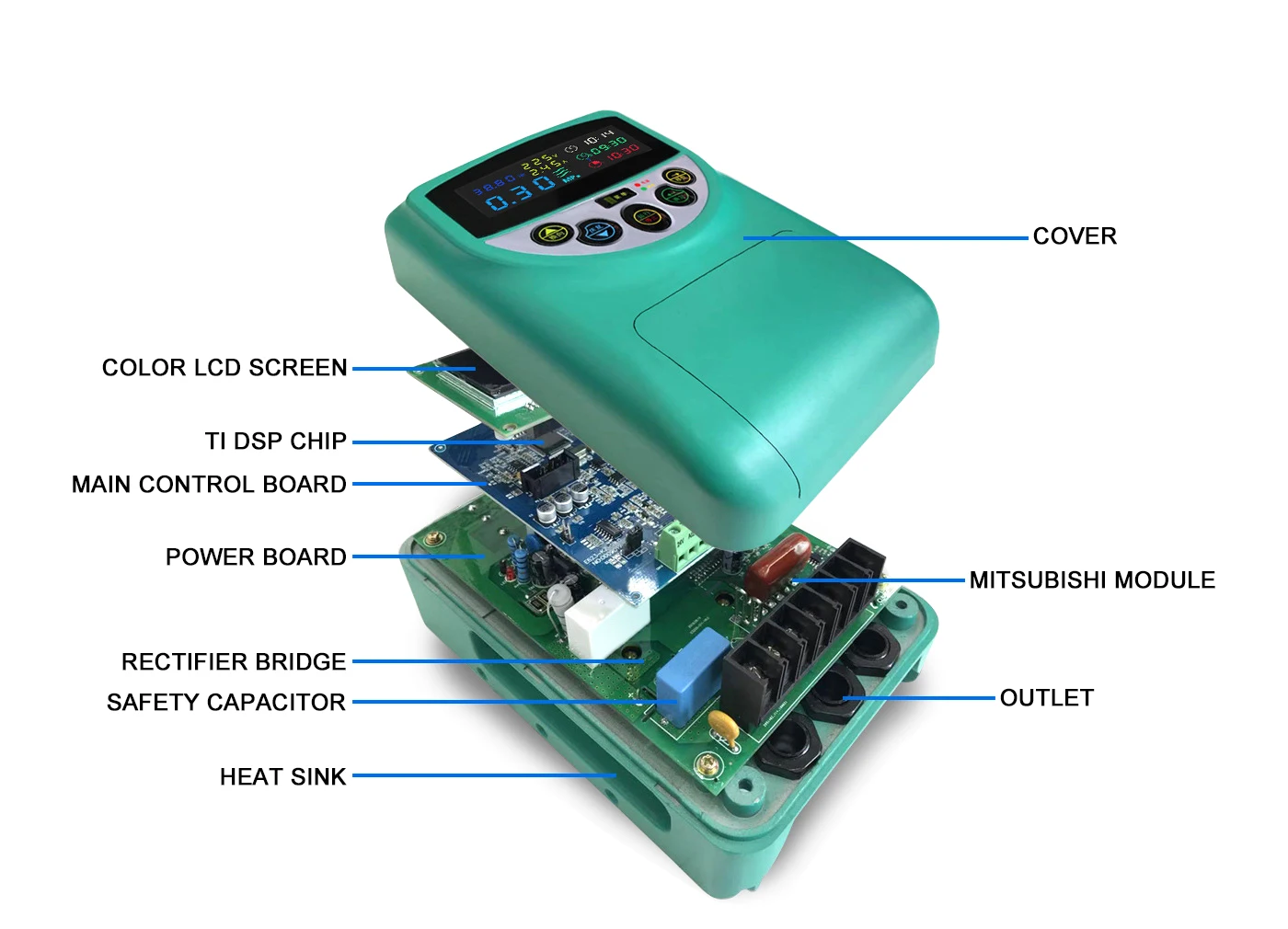

Automatic constant pressure water supply system machine structure
1.The inverter is free of parameters, can be used when power is on, one-key reversing,
2.The motor wiring is not divided into phase sequence, one key recovery, quick recovery to factory setting,
3.external 200 m remote operation keyboard.

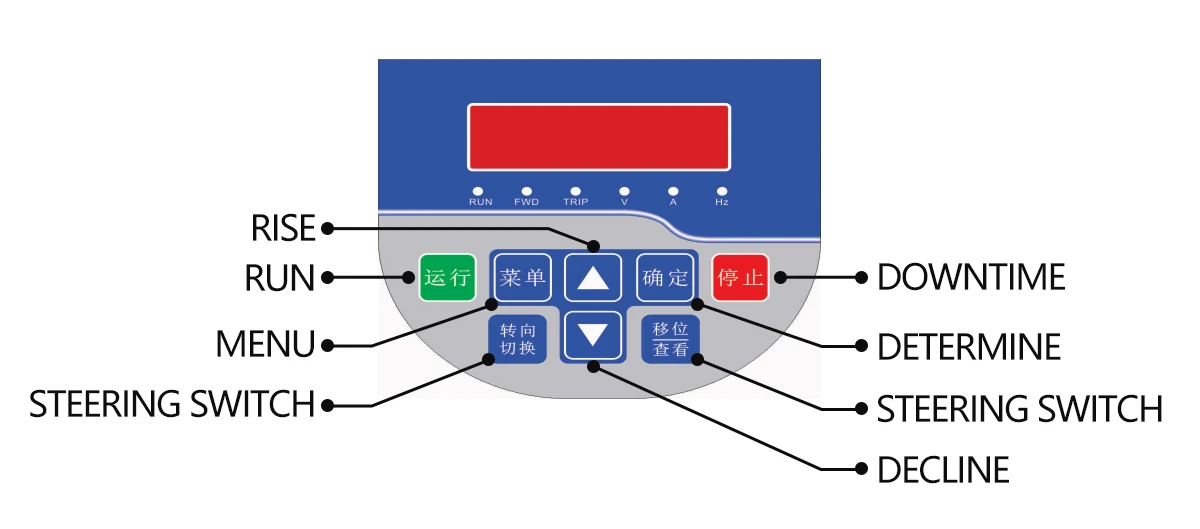

BUTTON NAME
DESCRIPTION
RUN
Press this button to run immediately
DOWNTIME
Press this button to stop immediately, you can also reset the fault code
STEERING SWITCH
Press and hold for 3 to 5 seconds to switch the direction of motor rotation
DETERMINE
In the function code editing state, press the set button to enter the parameter editing state, and then press the set button to save the adjusted parameters and return to the function code editing state
MENU
Press the menu button to enter the function code editing state, press the programming button again to return to the last state
RISE
In the parameter and function code editing, it is used to increment the selected bit data, during the running process, in the display frequency state, for the frequency increment
DECLINE
In the parameter and function code editing, the decrement of the selected bit data is used for the frequency decrement in the display frequency state during the running process
SHIFT/VIEW
Used to select data bits during parameter and function code editing, and to cycle through the status during the run

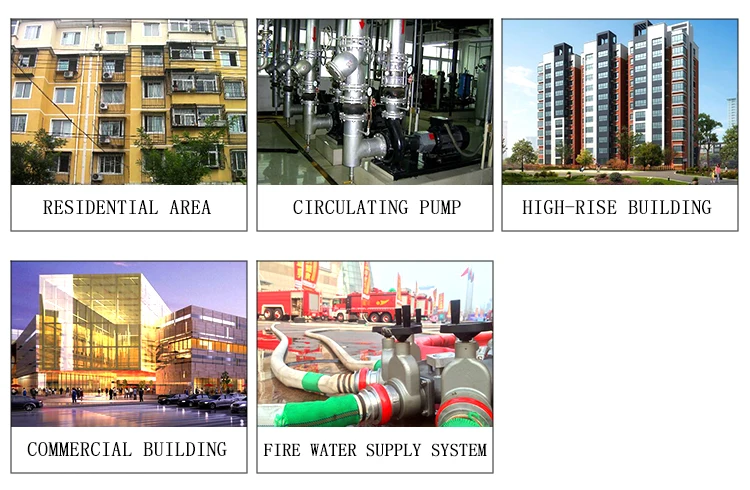

Application scenario


Customized Intelligent Constant Pressure Hotel Water Supply Equipment application scenario:
1. Residential areas, residential buildings and townships centralized living water supply system.
2. Various central air conditioning circulating pumps and cooling water supply systems.
3. Living water supply system for high-rise buildings, hotels, restaurants, etc.
4. Integrated market, office building, commercial building and living water supply system.
5. High-rise building hot water supply and hot water heating system and fire water supply system.






Products Recommended

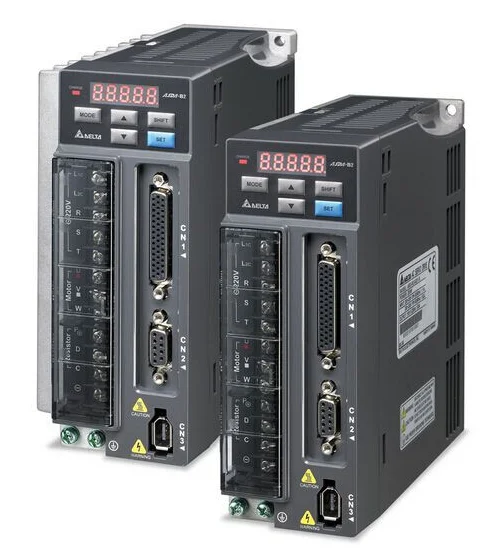

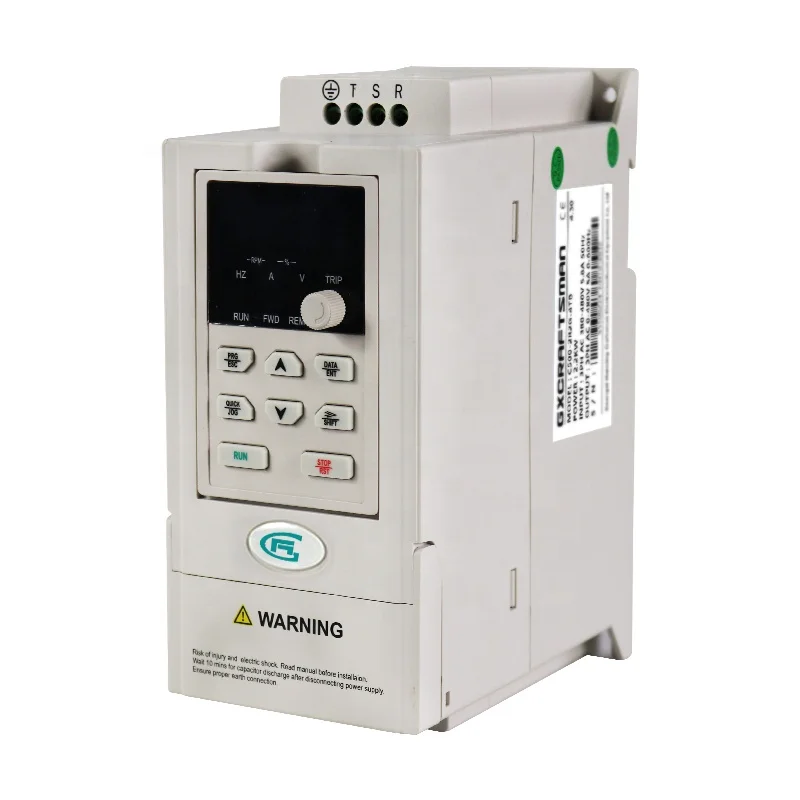

We have inverters, soft starters, PLCs, photovoltaic pump inverters,Constant pressure water supply integrated machine, elevator inverter etc. We can customize constant pressure water supply control cabinets, energy-saving retrofit control cabinets, soft start cabinets, etc.






Packing & Delivery


* Low-power inverters are packed in cardboard boxes, others are packed in plywood boxes.
* Provide a large number of transportable transportation services on a global scale based on customer needs or expertise.




FAQ


Q1: Are you a manufacturer or trading company?

A: We are a frequency inverter manufacturer.



Q2: Can you accept to use our logo?

A: we accept OEM production.


Q3:How can i get the after-service?

A:We' have more than 10 years experience in this field. If there's any problem, please feel free to contact us, we'll provide suggestion from our engineer to help you solve the problem.


Q4: What is your terms of payment ?

A:We accept T/T, L/C,paypal, western union,etc.The details you can discuss with us.


Q5:Do you provide warranty for the goods?

A: Yes, we provide 18 months of warranty for all the goods from us.


Q6: How about your products quality inspection?

A: We have professional QA and QC teams, 100% quality inspection is performed before goods out of factory.


Q7.Is your company certified?

A: We have CE,ISO9001, CQC, Patent Certificate.
