Серия фрезерных станков с индексным креплением Bs0 Bs1semi universal разделительная головка

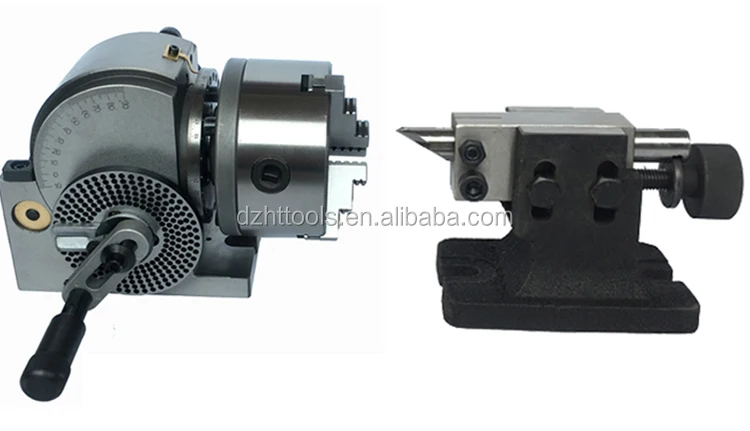

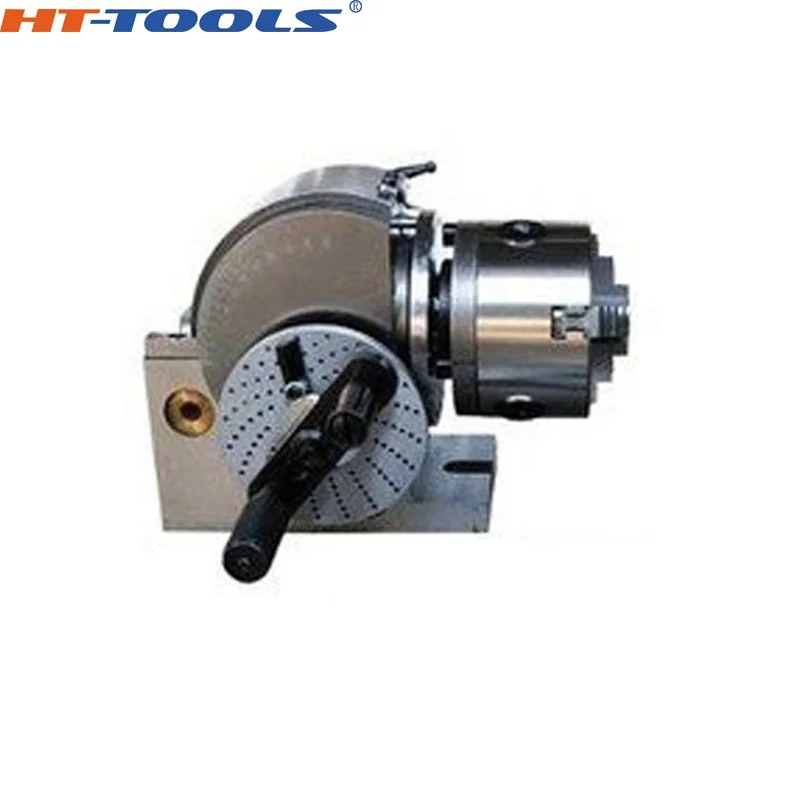

BS series semi-universal dividing head

Features:

Semi-Universal dividing head is a simple Index Center and can be used for direct and indirect dividing ,Complete the gear,face,flute processing and no need accessories,but the whole construction is the same as universal type ,The 24 quick-dividing holes can complete 2,3,4,6,8,12,24 division indexding,Attaches 3dividing plat along with the dividing head indirect dividing in any division indexding 2-50.51-380.

Stabdard accessories

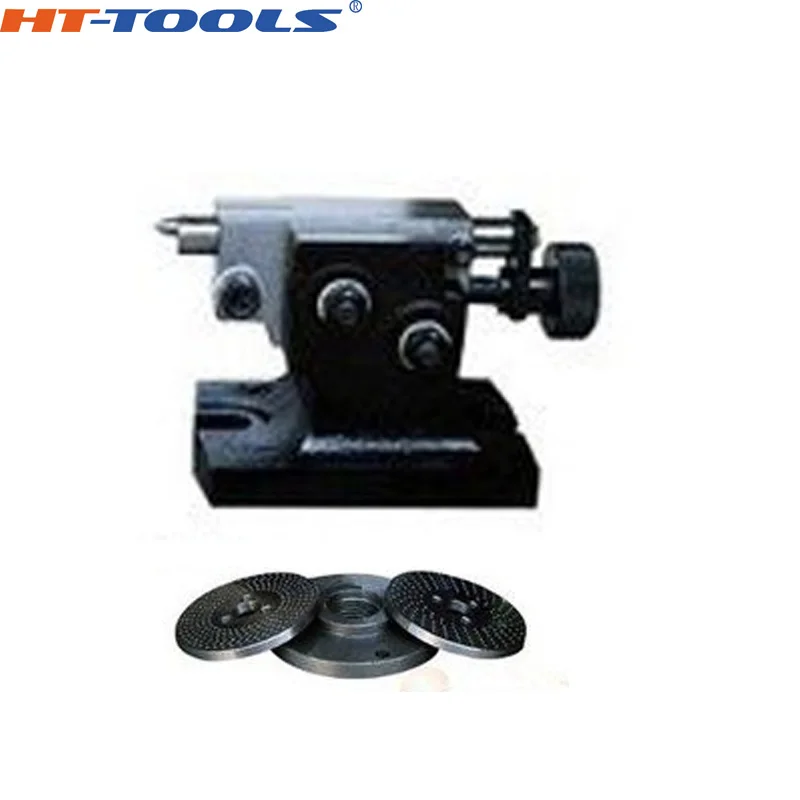

Dividing plat A.B.C.

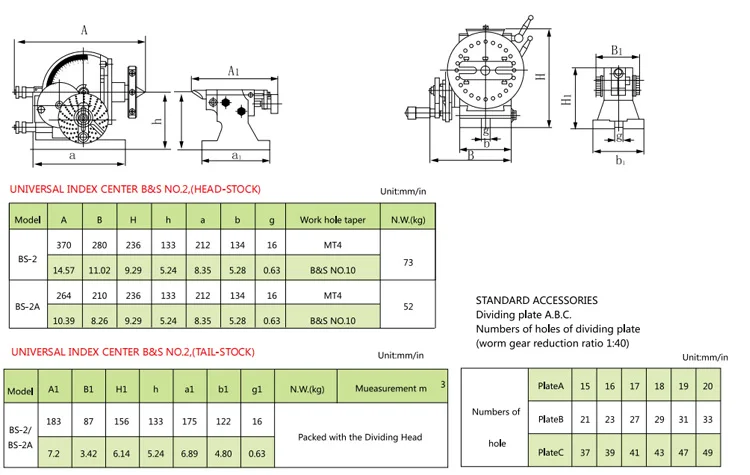

Numbers of holes of dividing plate (worm gear reduction ratio 1:40)

OPTIONAL ACCESSORY

3-jaw chuck

4’’ or 5’’ 3jaw chuck for BS-0

5’’ or 6’’ 3jaw chuck for BS-1

6’’ or 7’’ 8’’ 3jaw chuck for BS-2

Machine too Accessories, please check below to know our main items.

Tool Holder Shanks:  BT Tool Holders, DIN69871 SK Tool Holders, NT Tooling, CAT30 CAT40 CAT50 Tool Holders, HSK Tool Holders, DIN 69880 VDI Tool Holders, Morse Taper, Straight Shank Tool Holders, etc.

Tool Holders: Collet Chucks, Milling Chucks, Face Mill Holders, Weldon End Mill Holders,  Morse Taper Adapters, Drill Chucks, Tapping Chucks, Shrink Chucks, Thread End Mill Tool Holders, Screw in Milling Cutter Holders, etc.

Collet: ER Collets, ERC Collets, ERG Collets,Milling Chuck set ,Straight Collets, OZ Collets, etc.

Accessories: Tool Holder Bushing, Nut and Spanner, Pull Stud, Tool Holder Locking Device,Machine Vise,Live Center etc.

Welcome to the link to learn more.

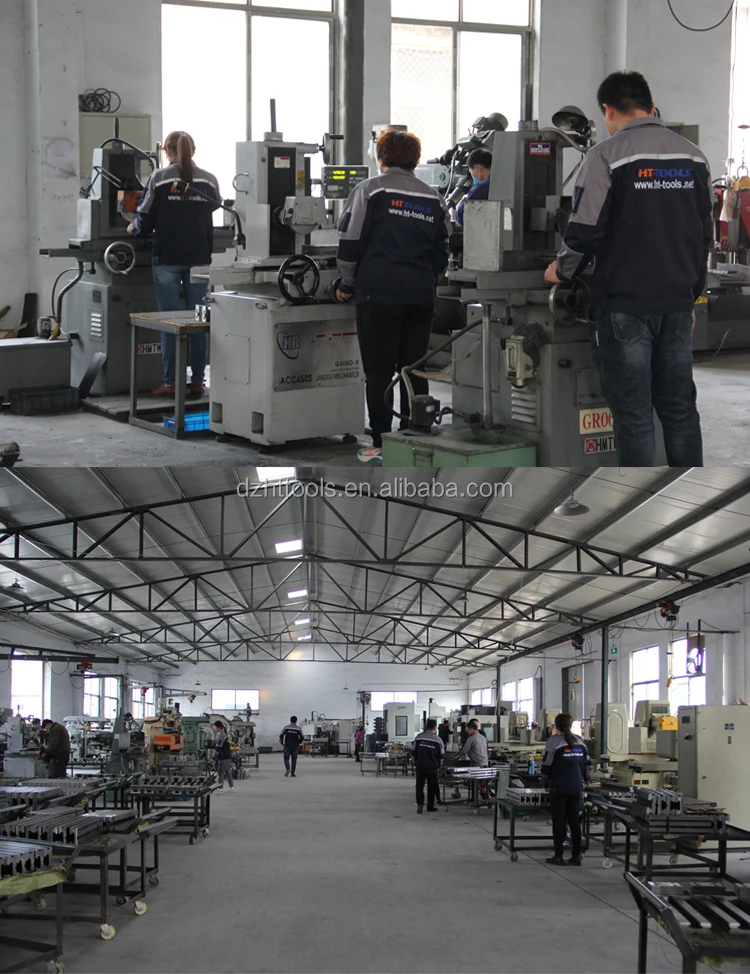

Dezhou Haotian Imp&Exp Co.,Ltd locate in the largest production base of machine tool accessories in China.we are specialized in researching,producing and developing many kinds of collets,CNC tool holders, ER nuts,ER spanners,machine vises,fasteners etc. With high quality and full varieties.all of our products are deeply trusted by customers both at home and abroad.welcome to inquiry and visit us!
