richauto b51 Embedded Handheld DSP controller

Product Overview

Description



RichAuto  F1X series model

AutoNow  F1X  motion  control system	Model	Name
	F131	3 axis  carving   motion  control system
	F135	3 axis  cylinder+ Multiple Spindlemotion  control system
	F141	4 axis 3D carving control system
	F1410E	stone specialized Motion Control System



Product features:

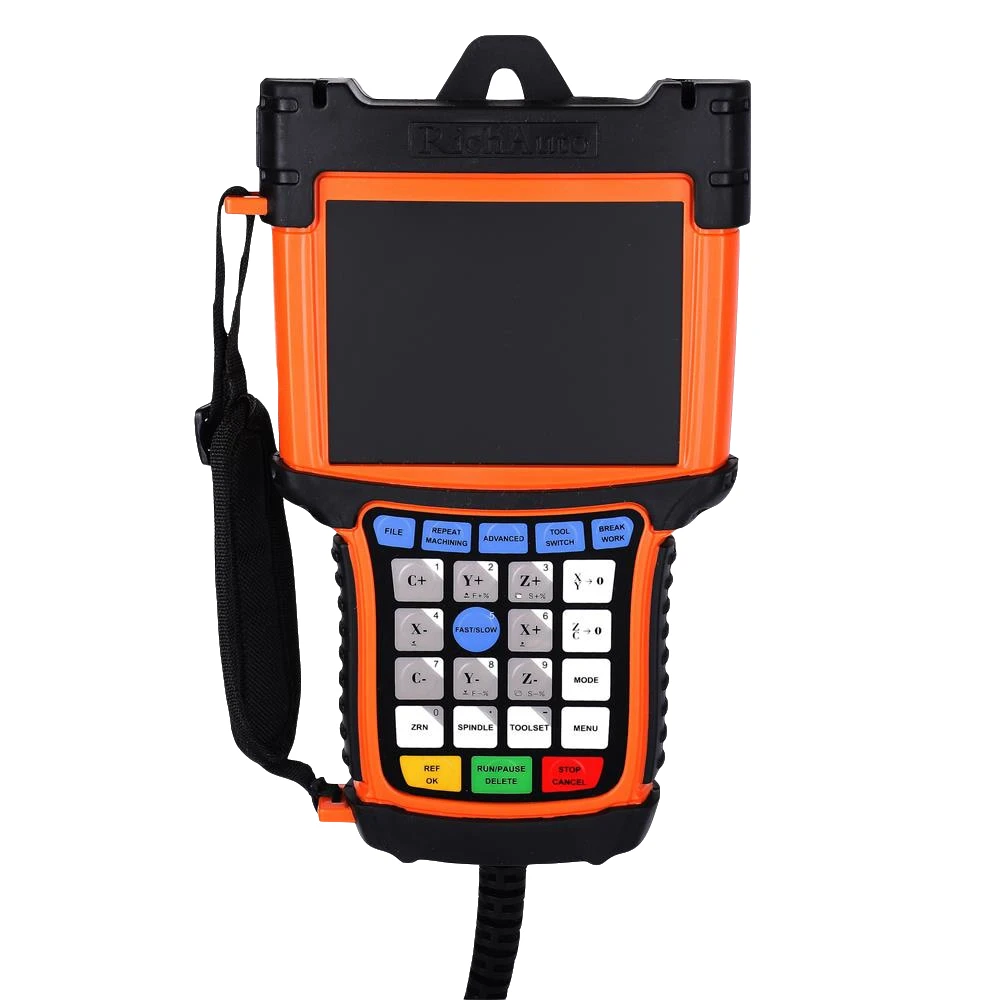

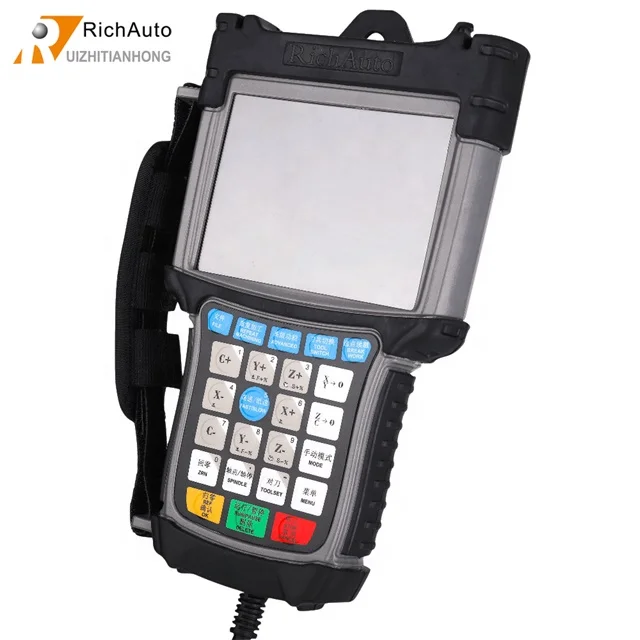

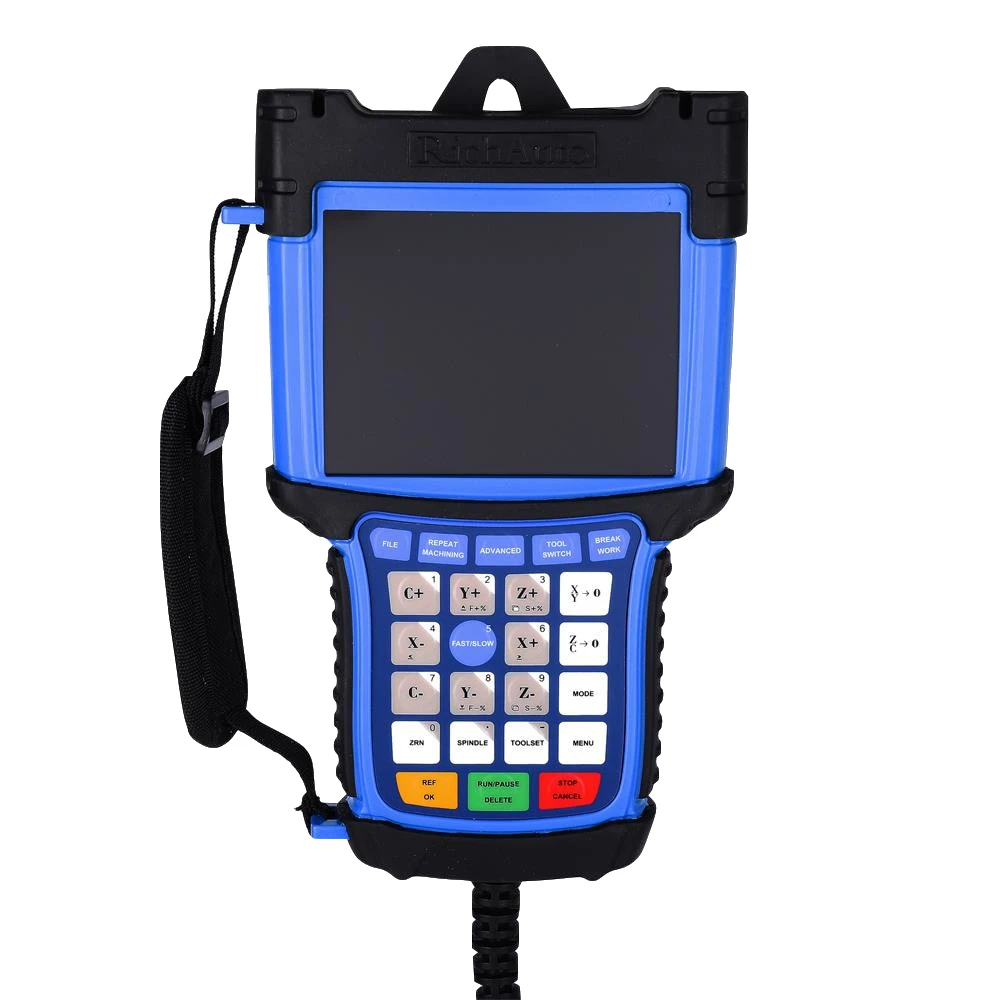

1. 5-inch color screen, supports simulation processing and G code viewing


2. Industrial shell design, solid and reliable, dust-proof, anti-interference

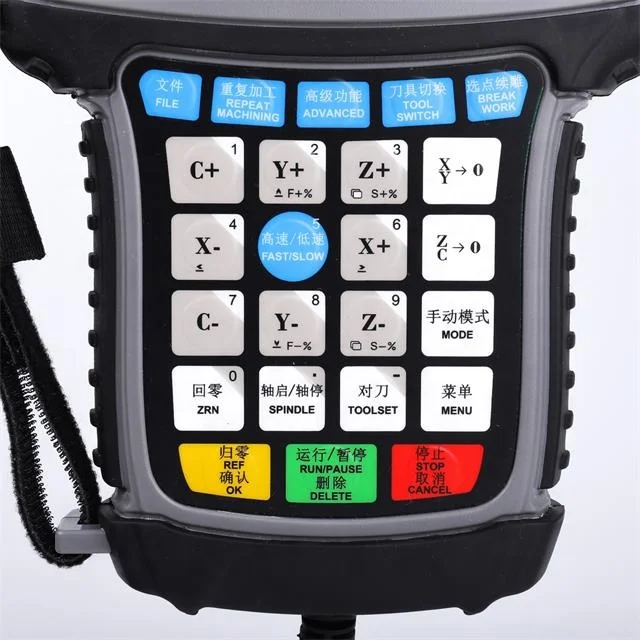

3. Button-type operation, easy to learn and operation


4. Powerful hardware platform foundation, support secondary development


5. Definable I/O ports, easy to achieve the process requirements such as automatic material delivery and work piece turnover


6. Support file protection, parameter encryption and trial encryption, protect the rights and interests of users


7. Complete function such as tool broken continue carving, array work, part work, find break no, power failure protect


8. Meet special processing requirements, such as mirror work, auto center and scale work


9. Various manual mode, both fine adjusting and efficiency


10. File preview and work path real time browsing


11. Viewable I/O ports status, can be controlled to check abnormal conditions


12. System self-check function such as screen self-test, buttons test


13. Support system parameters backup and recovery

Model No	B51E	CPU	DSP
Display	5″ color screen	Build-in Memory	512MB
No. of Linkages axis	1 to 3 axes	Input accuracy	0.001mm
Power failure Protection	Supported	Breakpoint processing function	Supported
Controllable I/O	Max 64	Power Supply	24V DC/3A
Running Speed	Adjustable	Drive System	Stepper/servo
Signal type	Differential	Data Transmission	U disk, network
Max. pulse frequency	10MHz	Spindle Control	Multiple step speed, Analog
Hand wheel operation	Optional	Interpolation methods	Line, arc, spline curve
File reading	nc/u00/plt/DXF/mmg
Code Support	Standard G codes, M codes and other customize codes
Languages	Chinese, English, other languages can be customized

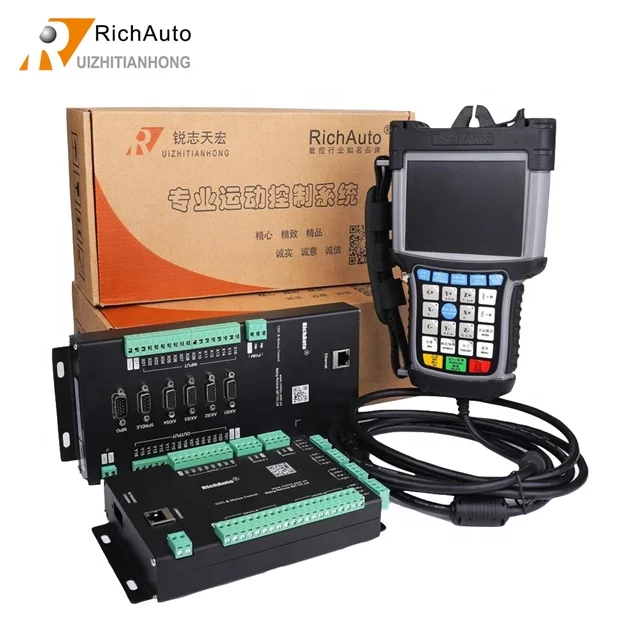

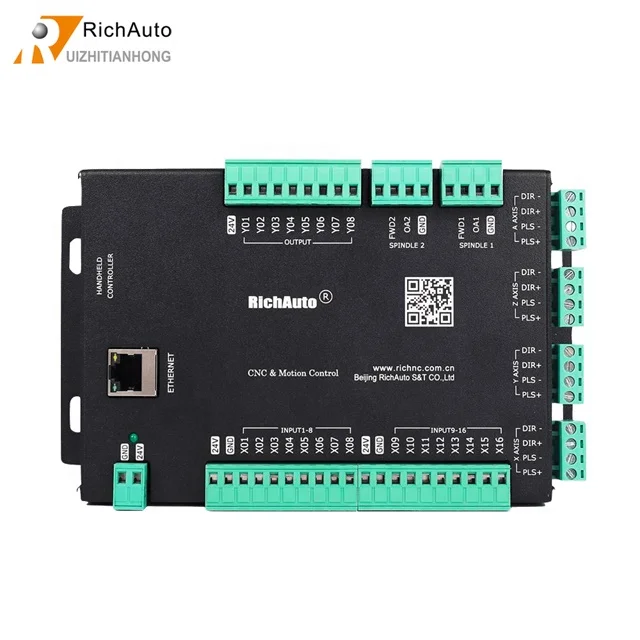

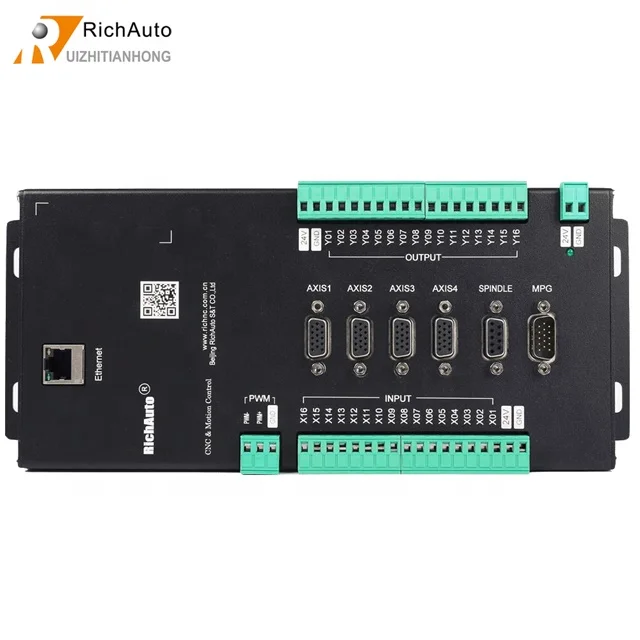

Standard Configuration	Handheld controller 1 piece, 19-pin HDMI cable 1 piece, I/O board 1 piece
