6m 18ft 8m 24ft 10m 30ft 12m 36ft mobile telecommunication tower mast
- Category: >>>
- Supplier: Nanjing Xuedian Lighting Co. Ltd. [Jiangsu China]Nanjing
Share on (62243597410):
Product Overview
Description
Product Description

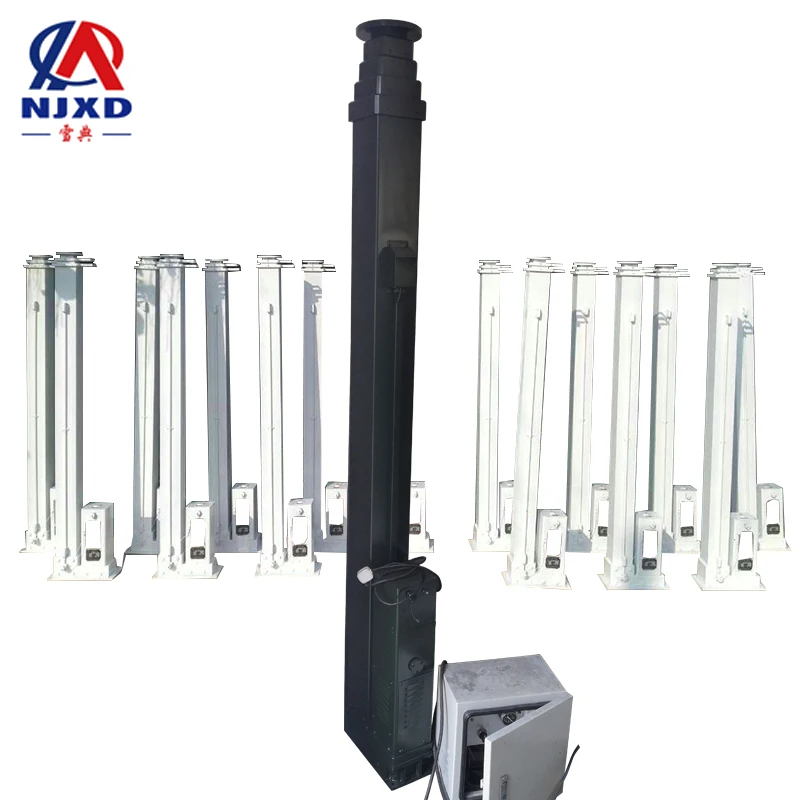

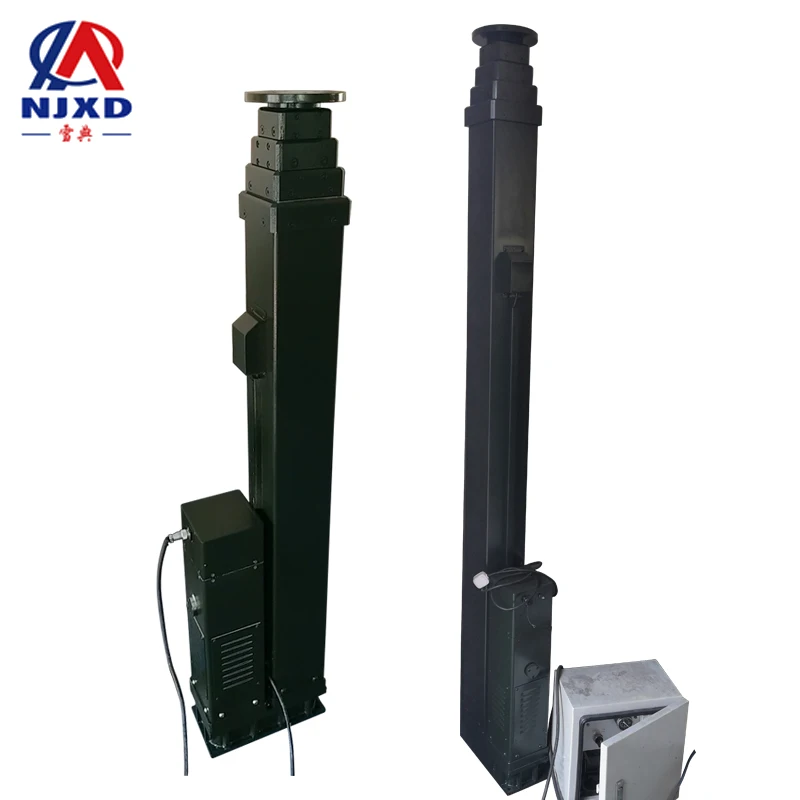

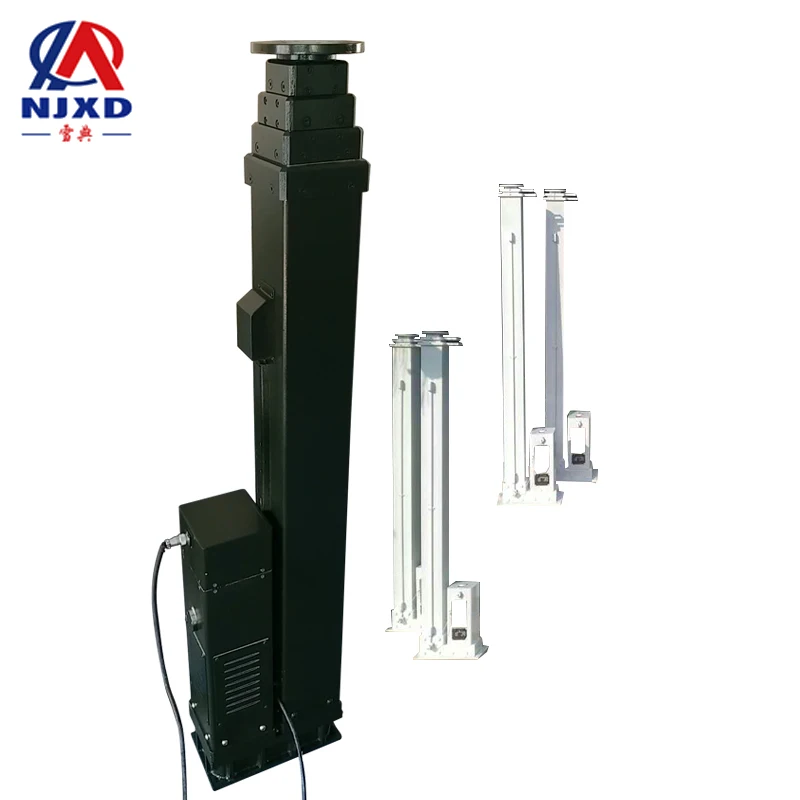

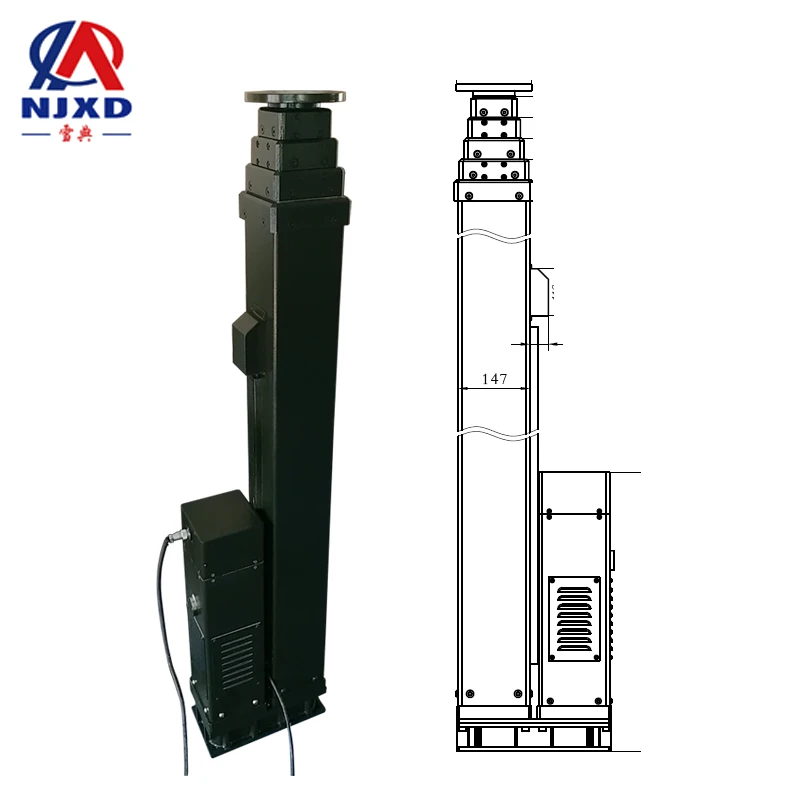

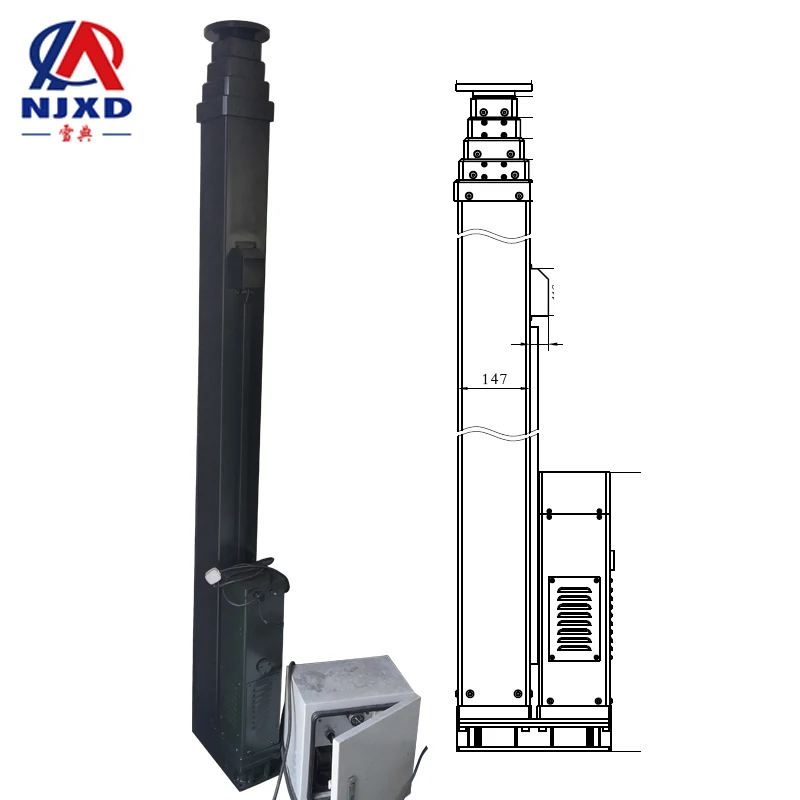

Xuedian mobile telecommunication tower mast 6m 18ft 8m 24ft 10m 30ft 12m 36ft
About Xuedian Telescopic Mast
Telescopic masts ideal for fast deployment of telecommunication / surveillance / lighting devices to a certain height in the air (range from 2m to 30m), which offer an elevation solution with different payload capacity (range from 2kg -300kg).
The lightweight and reliable telescoping masts can be mounted by tripod, trailer or on a vehicle. Telescopic masts with locking collars can keep the equipments at a fixed height for a long time even without air pressure.
The working power the telescopic mast can be manual winch, compressed air or electric motor.
Telescopic masts designed for multitude of purposes and that is capable of been deployed in a range of Activities including:
1. Events Wi-Fi
2. Temporary communications.
3. Emergency services (Lighting/surveillance)
4. Radio installation Surveying
5. Semi-permanent Installations for outdoor Events
Related Products
Besides
Xuedian mobile telecommunication tower mast 6m 18ft 8m 24ft 10m 30ft 12m 36ft
you may also interested to know other related models below:
|
Model Number
|
T3-110-1600-4000
|
T4-110-1900-6000
|
T5-110-2000-8000
|
T5-110-2350-10000
|
T7-150-2600-12000
|
T7-215-3100-15000
|
T8-215-3300-18000
|
T8-270-3500-20000
|
|
Extended Height (m)
|
4
|
6
|
8
|
10
|
12
|
15
|
18
|
20
|
|
Closed height (m)
|
1.6
|
1.9
|
2
|
2.35
|
2.6
|
3.1
|
3.3
|
3.5
|
|
Max. OD(mm)
|
118
|
118
|
118
|
118
|
160
|
229
|
229
|
284
|
|
Min. OD(mm)
|
82
|
66
|
51
|
51
|
51
|
98
|
82
|
118
|
|
Section
|
3
|
4
|
5
|
5
|
7
|
7
|
8
|
8
|
|
Base Dia.(mm)
|
180
|
180
|
180
|
180
|
250
|
340
|
340
|
430
|
|
Max. Payload (kg)
|
100
|
70
|
30
|
30
|
30
|
100
|
100
|
200
|
|
Lift Speed (m/min)
|
2
|
2
|
2
|
2
|
2
|
2
|
2
|
2
|
|
Self-Weight (kg)
|
14
|
22
|
28
|
39
|
66
|
155
|
260
|
280
|
Note: Customers' specific needs can be addressed.
Certifications
Xuedian mobile telecommunication tower mast 6m 18ft 8m 24ft 10m 30ft 12m 36ft
Packaging & Shipping
Xuedian mobile telecommunication tower mast 6m 18ft 8m 24ft 10m 30ft 12m 36ft
Products are packed with foam to protect mast and in wooden cases.
Our Services
Our Services
Xuedian mobile telecommunication tower mast 6m 18ft 8m 24ft 10m 30ft 12m 36ft
-
Professional technical team to address customer's specific needs faster and more effectively.OEM/ODM service available.Complete quality control before delivery.Short lead time.One year warranty after delivery.FAQHow to install a telescopic mast?The telescopic mast can be mounted on the ground or mounted on the vehicle. Regardless of where it is installed, ensure that the mast is perpendicular to the ground when in use. if the mast if titled, it will affect the rise and fall of the mast; if the mast if severely tilted or tilted for a long time, it will also cause damage and danger the mast.The telescopic mast should be mounted on a fixed object, such as a wall, a car body, a foundation pile, and so on. There must be at least two mounting points, one of which is at the bottoms of hte telescopic mast, and the distance between the two points is greater than 2/3 of the initial height of the mast. the connection should be firm and reliable.
Why we should buy from Xuedian ?-
Xuedian is manufactuer of telescopic mast instead of a trading company.Xuedian has 10 years manufacturing and exporting experience of telescopic mast products.Xuedian always use materials from famous material suppliers.Xuedian provide OEM/ODM services with low MOQ.
