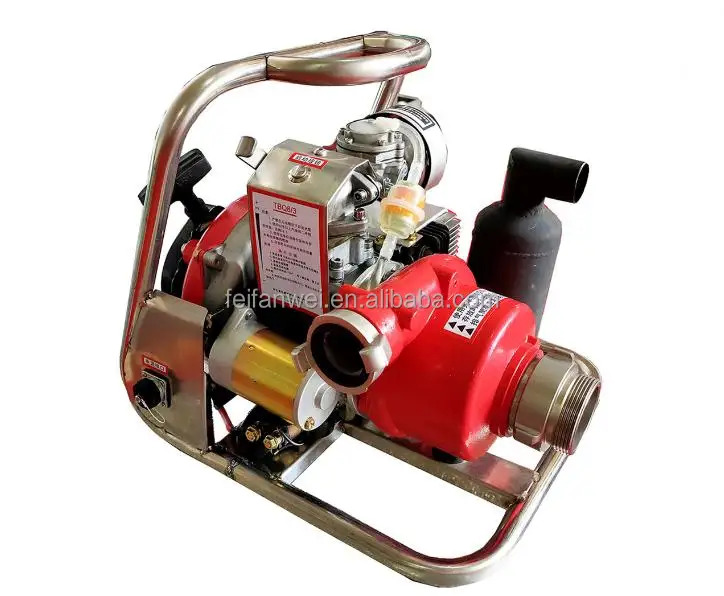

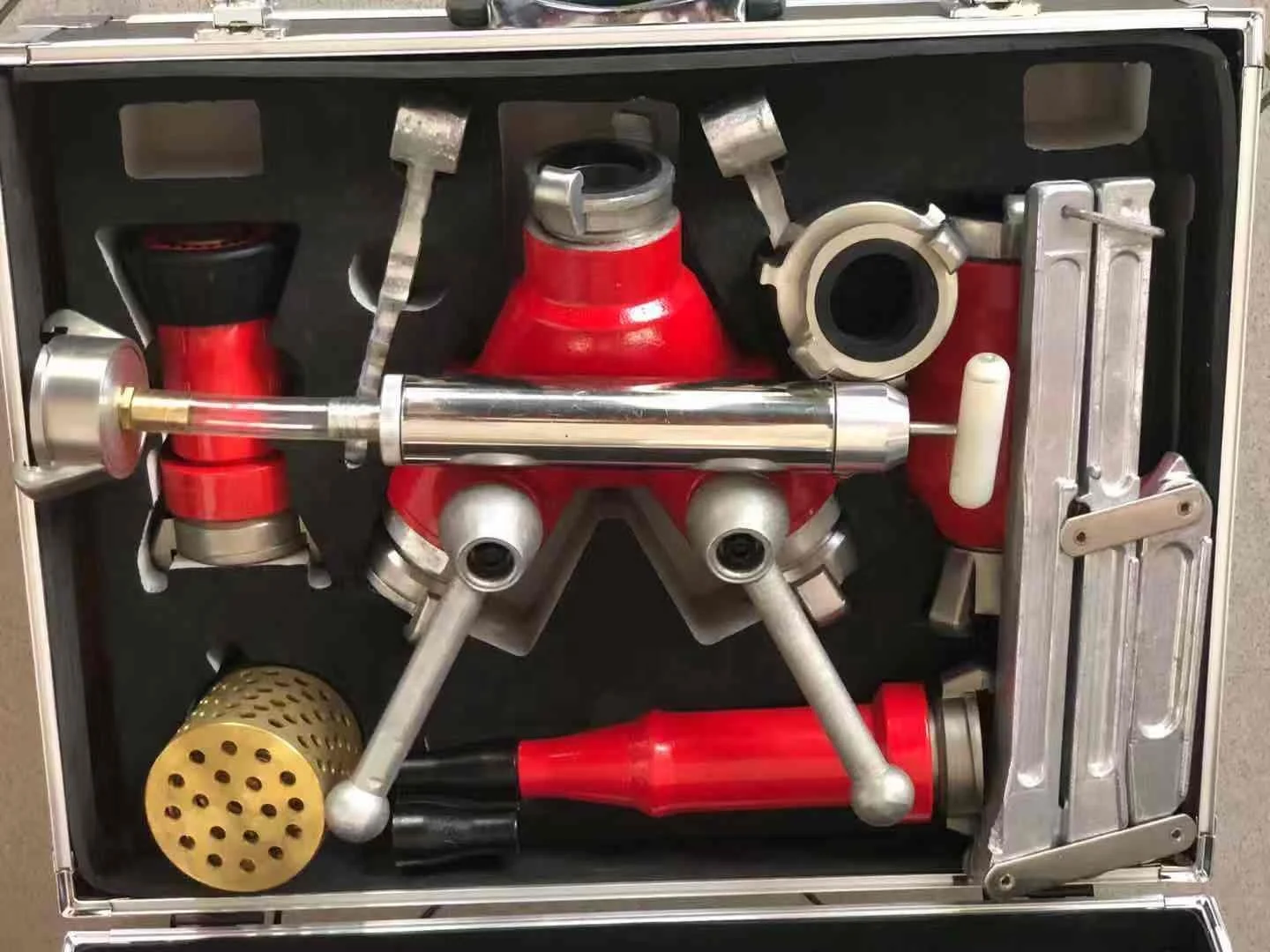

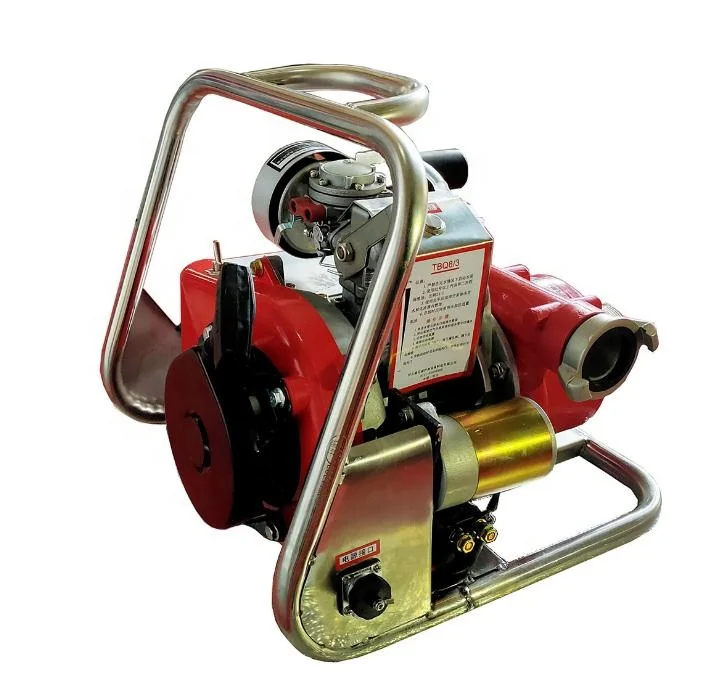

l The complete set of equipment includes engine, water pump, spray gun, water inlet pipe, high pressure hose and accessories.
l Using two-stroke engine and three-stage impeller design, the pump head is made of ultra-light and high strength corrosion-resistant aluminum alloy, which has the characteristics of compact structure, stable performance, long transportation distance, light weight and so on.
l L stainless steel support, easy to carry, equipped with back frame (belt), can be carried.
l Pumps can be connected in parallel or in series to carry out relay work, with overspeed automatic protection function, safe and reliable.
l It has two starting modes: Recoil (hand start) and electric start, and has the function of one key start. Different startup modes can be selected according to the actual situation.
Model
TBQ 8/3
Engine type
Air-cooled two-stroke gasoline engine
Engine Power
≥ 8HP
Maximumflow
≥ 20m³/h (≥ 335 L/min)
Extreme range
≥ 27 m
Maximum lift
≥ 165 m
Suction depth
≥ 7 m
Fuel tank volume (external)
≥ 25L
Continuous working time
> 6h
Pump N.W.
<15 kg
Starting mode
Recoil (hand start) and electric start
Application
More Products
Company Information
Packaging & Shipping
FAQ
1. How to buy:
2.How about ODM?
Our company have an R&D team, they can learned how to make the pump according to the drawing you offer.
3.How about sample policy?
We can give you a competitive price for the sample, the shipping fee will be at the client’s side.
4.What’s the guarantee period?
One year after the shipping date. But except the wearing parts(shaft, impeller, seal), meanwhile we will send some wearing parts for your convenience.
5. Common Failures and methods?
Failure: Pumps have abnormal vibration and noise
Methods: A: Repair water piping
B: Increasing the water piping
C: Irrigation fluid, to exclude air
D: Improve the system or re-section
E: Maintenance pump(the user will be allowed to overall
6. After-sale Service:
supplied professional technical guide free of charge at anytime.
