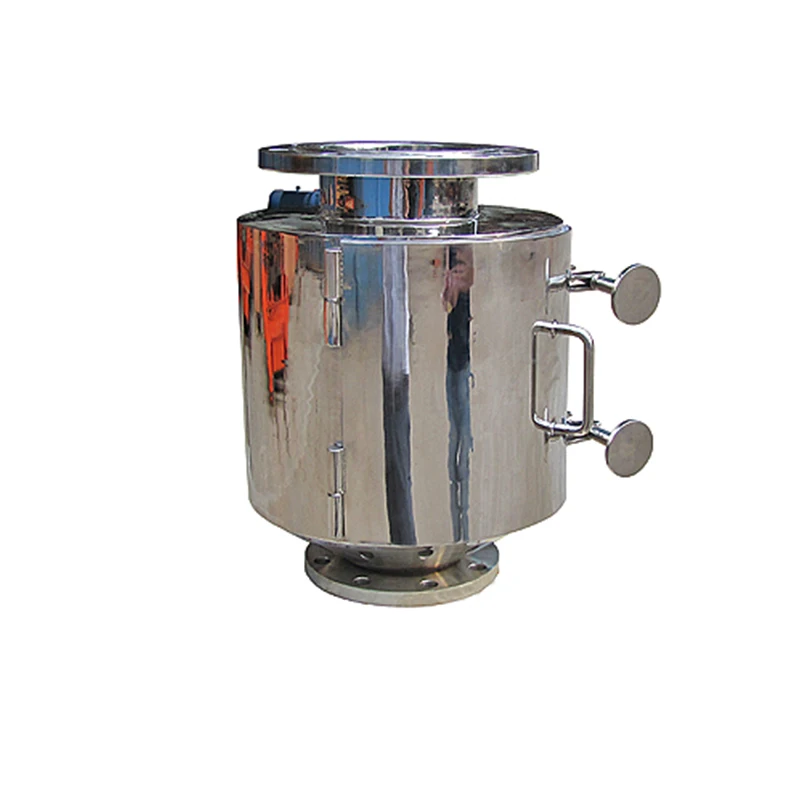

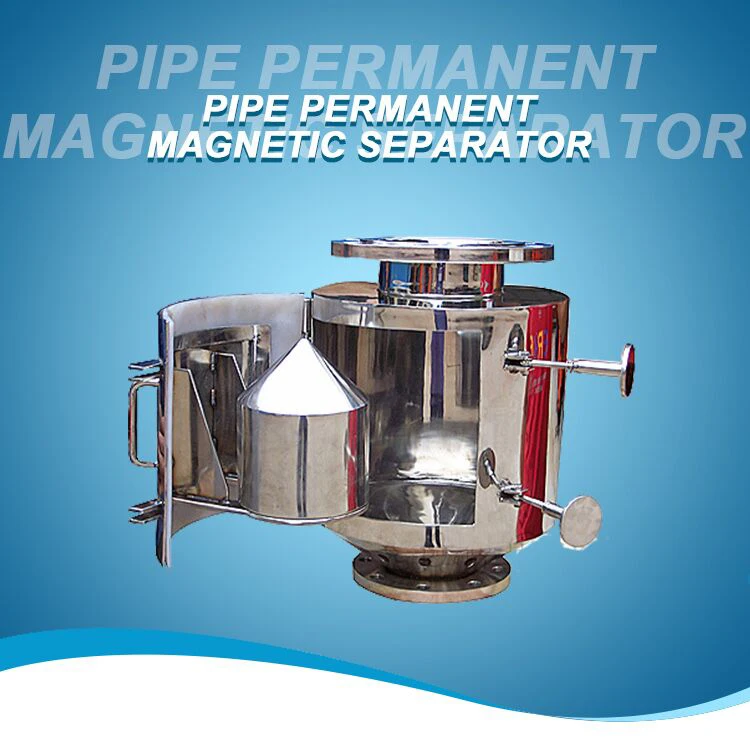

RCYZ vertical pipe permanent magnet iron remover is a kind of energy-saving equipment which produces strong magnetic field attraction with permanent magnet material. It is composed of ND-Fe-B annular magnetic system, conical shape, reasonable structure and high magnetic field strength. It can be connected with solid raw material transportation equipment, movable door buckle, easy to remove iron, suitable for removing iron from all kinds of solid small particles and powder materials in food, flour, ceramics, chemical, cement, building materials, quartz sand and other industries.
Main technical param
model
Adaptive yield
magnetic field intensity
Feed Particles

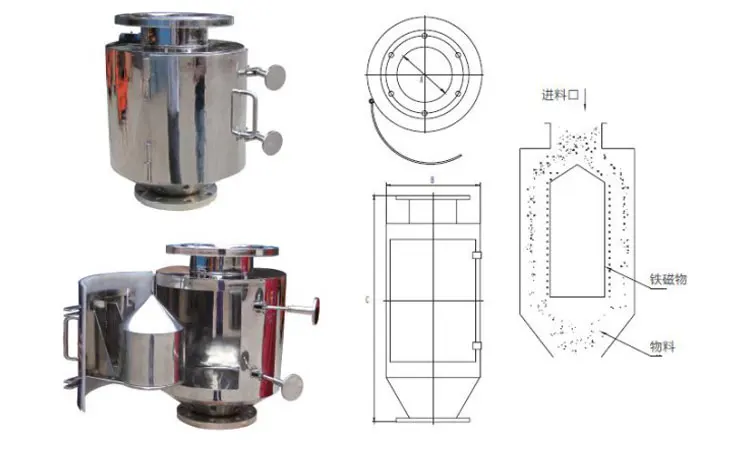

outline dimension
T/h
GS
<mm
mm
A
B
C
RCYZ-5
5
2000-16000
3
219
300
600
RCYZ-10
10
2000-16000
3
245
330
800
RCYZ-20
20
2000-16000
4
273
360
900
RCYZ-30
30
2000-16000
4
325
415
1000
RCYZ-50
50
2000-16000
5
377
470
1100
RCYZ-60
60
2000-16000
6
450
540
1300
RCYZ-100
100
2000-16000
8
530
630
1500
