Automatic big spiral paper tube core making machine CE certificate
- Category: >>>
- Supplier: Zhejiang Jinshen Machinery Manufacture Co. Ltd.
Share on (62243956889):
Product Overview
Description
FEATURES AT A GLANCE
1. High torque output,
2. high speed saw blade cutting device, and dust removing device.
3. Main structure made by thicker steels
4. adopt gear reductor, low-noise, low-heating, high revolution
5. hydraumatic device adjusting belt tension, with belt tension sensor and belt angle sensor,
6. synchronous cutting system
7. With pulse length fixation control,
8. Adopt double PLC control system, IO output control and functional operation separate control
9. With new control panel and big size colorful main machine touching interface .
10. machine stop once paper break.

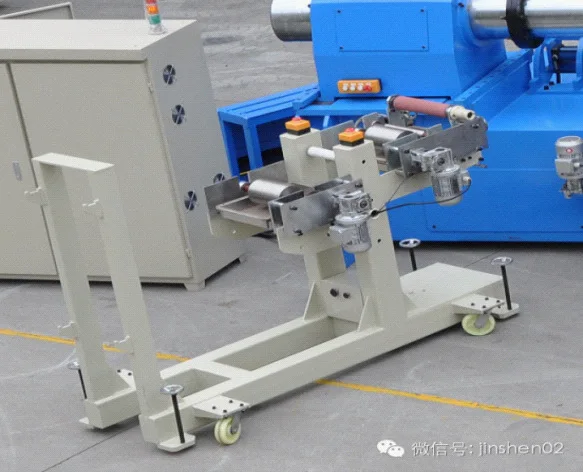

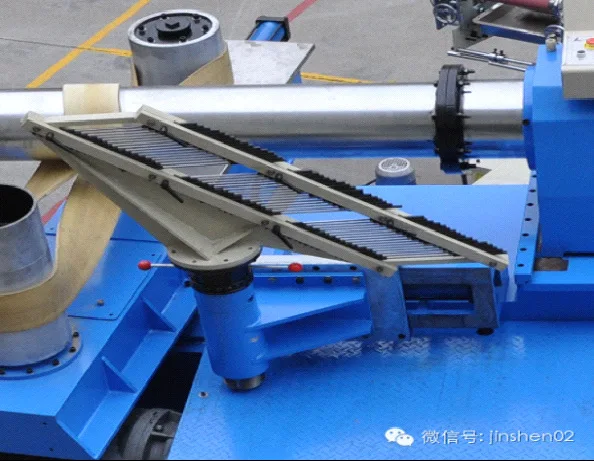

11. integral paper reel stand, glue stand, paper feeding assembly
12. With mold assistant installing device.
13. Network module is optional ,for network connection to many equipment and assembly line, also for remote monitoring and
maintaining, MODBUS TCP agreement.
2. high speed saw blade cutting device, and dust removing device.
3. Main structure made by thicker steels
4. adopt gear reductor, low-noise, low-heating, high revolution
5. hydraumatic device adjusting belt tension, with belt tension sensor and belt angle sensor,
6. synchronous cutting system
7. With pulse length fixation control,
8. Adopt double PLC control system, IO output control and functional operation separate control
9. With new control panel and big size colorful main machine touching interface .
10. machine stop once paper break.
11. integral paper reel stand, glue stand, paper feeding assembly
12. With mold assistant installing device.
13. Network module is optional ,for network connection to many equipment and assembly line, also for remote monitoring and
maintaining, MODBUS TCP agreement.

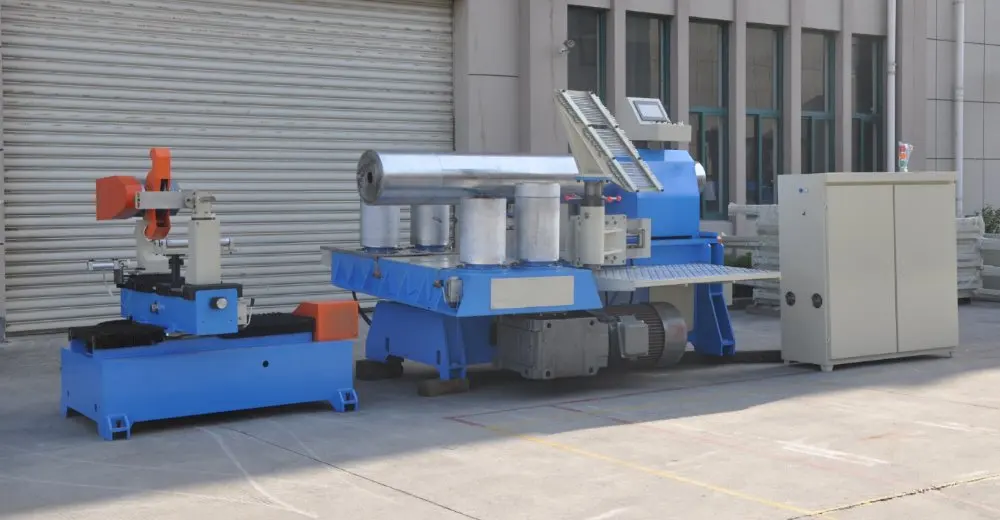

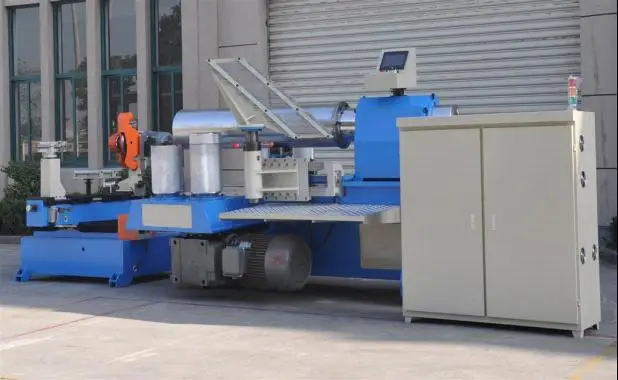

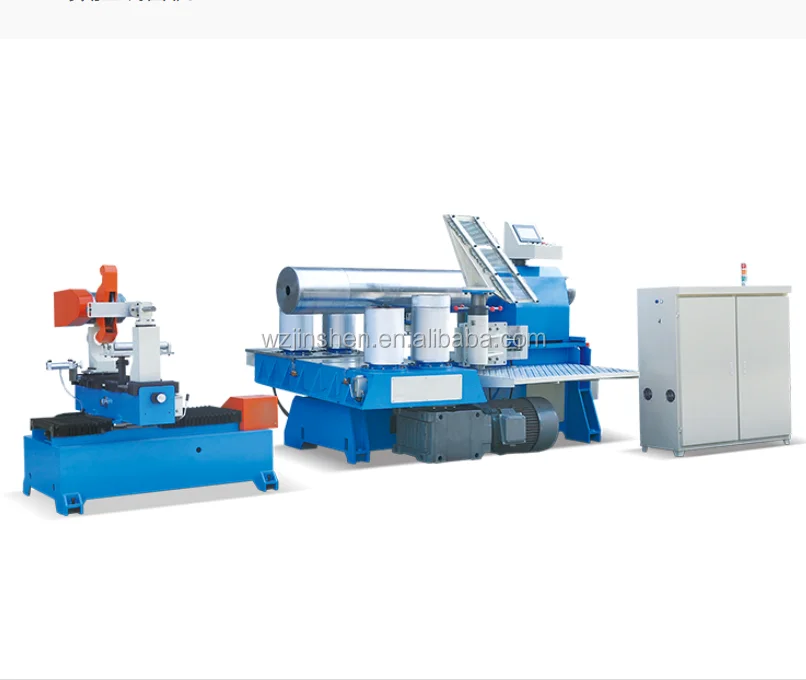

"E" series of paper tube machine, high torque, heavy duty, stable. Standardly for making tube 24’’(ID 605 MM), max wall thick under 30 mm,and others tube 32’’(ID 812 mm) and tube 48’’(ID 1605 MM) for chosen, max up to 48 piles specially used for making big size and thicker wall industrial heavy duty paper tube. Model can make spiral paper tube with gluing, winding, cutting together on.
Number of layer | 48layers (24layers and 32layers can custom) | PLC Control | DELTA |
Diameter | 200-600mm | Man machine interface | Weinview 6070T colorful touching screen |
Thickness | 3-30mm(48 layers blow) | Program edition | JS-PTM4.2 |
Mandrel fixing way | Flange | Inverter | YASKAWA 55KW |
Rewind nose | Four noses two belts | Actuation(contactor…) | CHNT |
Cutting way | Blade cutting high speed | Signal component | YASKAWA |
Gluing way | Double faces | Pneumatic component | AIRTAC |
Fixing length way | Infrared, encoder | Synchronism control | X axis servo screw/Z axis step screw |
operator | 3-6 person | Synchronism following cutting system | Servo tracking system |
Production speed | 7.4m/min(min-diameter) 2.6m/min(max-diameter) | Mainframe power | 37 kw |
Speed control | Inverter | Max rotating speed of wheel hub | 30 R/MIN |
Input power | custom | Wheel hub output torque | 10070N.M |
Drive of wheel hub | 4 Wheels | Chain type | 16A*2 |
Cutter motor | Stepping motor/YASKAWA servo | Auto falling tube holder | Have |
Bearing | HRB | Belt adjust | hydraulic |
Mainframe(L*W*H) | 5350*2500*3500mm | Stop when paper run out | Bottom ply stop automatically |
Area | 35000*10000mm(48 layers) | Auto glue giving | Screw pump 4kw |
Wheel hub diameter | 320mm | Auto lubrication giving | auto |
Wheel hub height | 450mm | Tension adjust | Mechanical(pneumatic tension control can choose) |
Min tread | 1425mm | Type of paper stand | Integral |
Max tread | 1675mm | Belt | Canvas |
Total weight | 11600 kgs | Paper loading way | Lift by power-driven |
FAQ
Zhejiang Jinshen Machinery Manufacture Co. Ltd. is an innovative paper tubes and paper cores machines manufacturing company based in Zhejiang Province, China, famous with this kind of industry in mainland China. Our company is started his business at 1995 and quickly became a major exporter to all around of world his economic and reliable paper tubes and cores manufacturing machines.
We have various kind of solutions for textile industry, for construction industry, for motor parts industry, for electrical parts
industry, for logistics company, for food packaging industry, for luxury packaging industry by our different type of machines such as paper slitter & rewinder, spiral paper tube winder, paper tube re-cutter, paper reel stand, glue unit, paper tube slitter,paper tube trimmer, paper tube polisher, and paper tube ends rolling machine.
We main focus is always your satisfaction and your confidence that you give us feedback, we know that the main keyword is always our support after sales who makes you always unworried about your future business days. No matter where you located we are flexible to send you our technicians as quickly as possible where and when you need an on-site help.
We have various kind of solutions for textile industry, for construction industry, for motor parts industry, for electrical parts
industry, for logistics company, for food packaging industry, for luxury packaging industry by our different type of machines such as paper slitter & rewinder, spiral paper tube winder, paper tube re-cutter, paper reel stand, glue unit, paper tube slitter,paper tube trimmer, paper tube polisher, and paper tube ends rolling machine.
We main focus is always your satisfaction and your confidence that you give us feedback, we know that the main keyword is always our support after sales who makes you always unworried about your future business days. No matter where you located we are flexible to send you our technicians as quickly as possible where and when you need an on-site help.
