Product Overview

Description

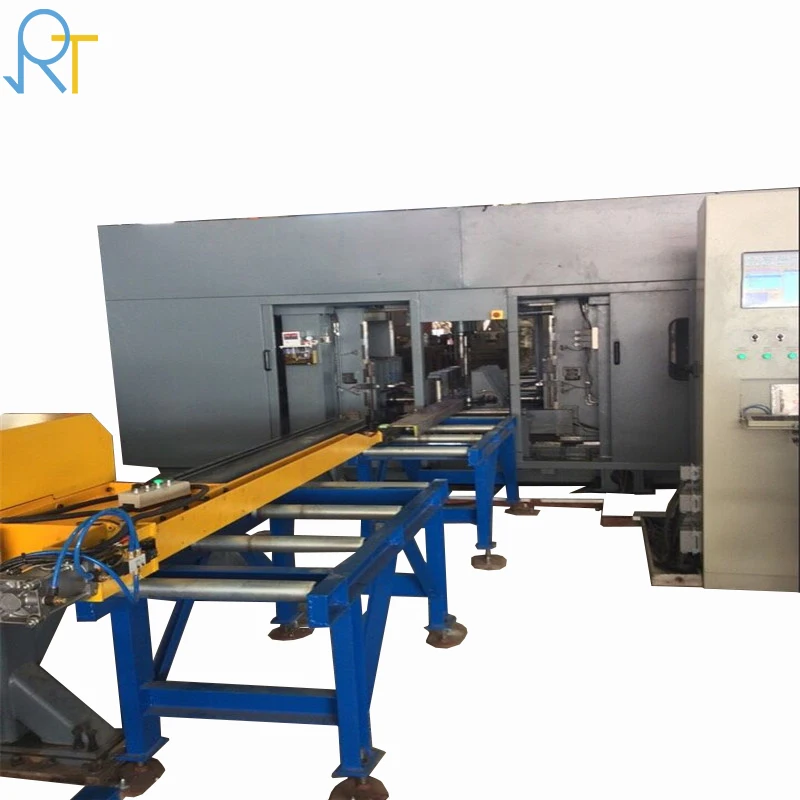

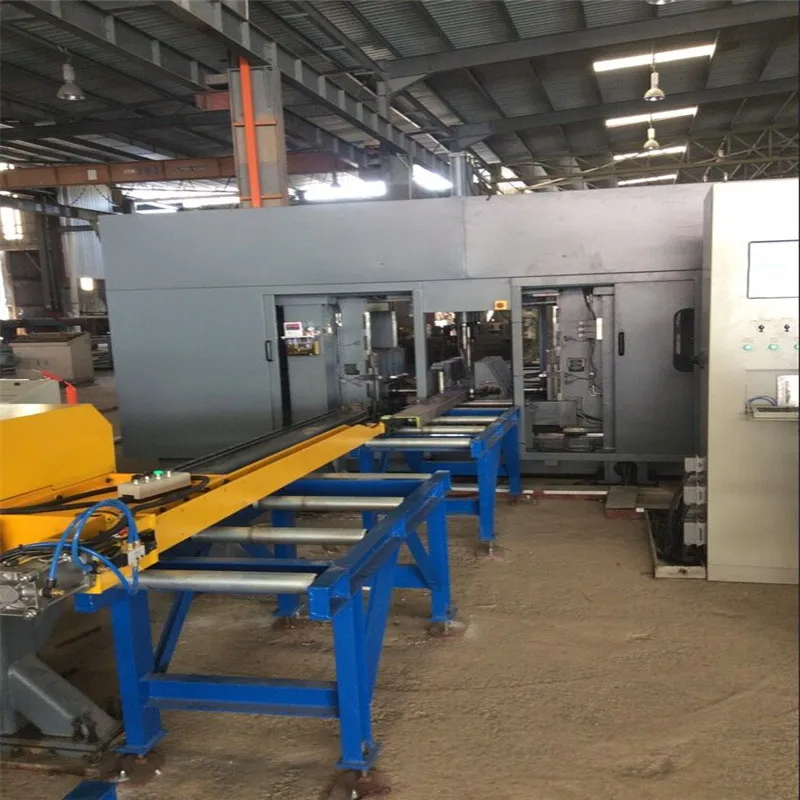

High speed drilling machine h-beam horizontal and vertical directional drilling machine

Product Application

This machine is mainly used for drilling holes on H-beam, channel beam , which widely used in construction, bridge industry etc.



Main Feature:

1. High stability with high speed:  The whole machine is optimized integrated design, with high quality casting machine body and drilling units, which ensure high stability and high rigidity when high speed drilling.
2. Adopts high-speed precision spindle from Taiwan’s well-known brand, model BT, which can meet the using demand of both hard alloy and high-speed steel drill. Every CNC axes are guided by the heavy loading roller linear guide, driven by the servo motor and roller screw which ensure the rigidity and positional accuracy.
3. With the trolley conveyor system and surface detector which realize the accurate positioning, ensure the processing precision.
4. Installed 3 inline type tool magazine, which realize the automatic tool change, also meet the demand of drilling multiple diameter’s hole. Oil spray and air spray cooling, has inner cooling and outer cooling efficacy.
5. The CNC control system is the FAGOR or SIMENS. Strong anti-interference, high precision, because of the digital communication, thus overcome the defect of easy be interference in traditional pulse analog transmission.
6. In order to ensure the accuracy, reliability and stability of transmission system, electrical system, hydraulic system, all the key components are from international famous brand.



Main Features

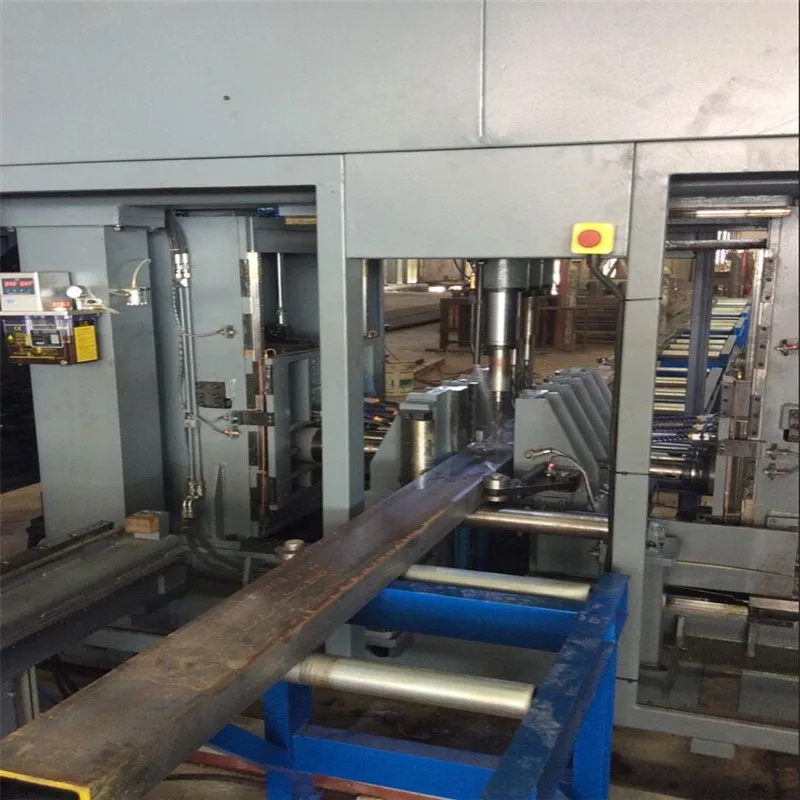

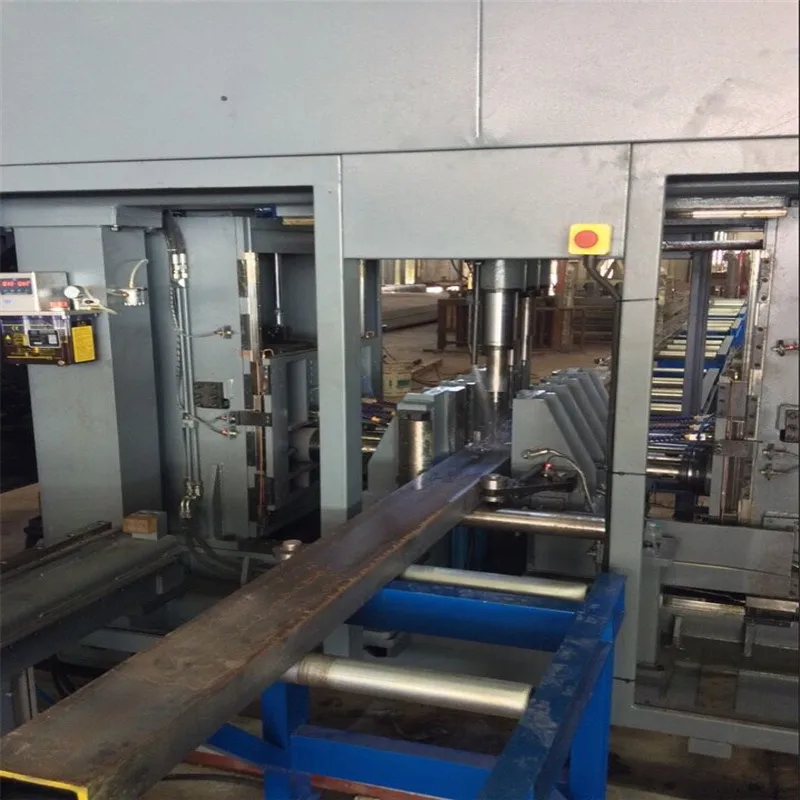

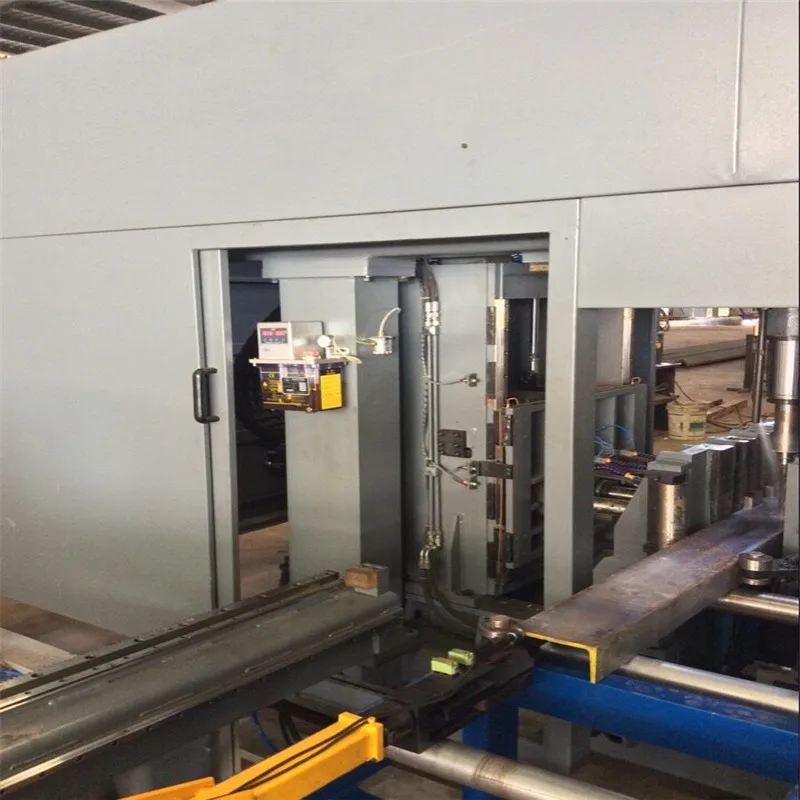

1. Equipped with three drilling units, three drilling units can drill holes simultaneously and adopt self-controlled stroke drilling head.
2. No need to set thickness of work piece and length of drill bits, it will do fact-feeding or feeding automatically by sensor signal, and with high efficiency.
3. Frame made of sturdy electro-welded and normalized Plates and Square Beams. The structure with roller guides on which the sliders supporting the three spindles guarantees the total moving stability, and ensures the working precision;
4. This machine can read AUTOCAD drawings and lofting software files automatically, such as DXF, NC1.
5. Equipped with automatic lubrication system and air conditioner for electric cabinet.
6. Equipped with automatic feeding systems, which will clamp and feed material into machine automatically.
7. PLC systems, programming based on WINDOWS, fast and convenient programming, and visual previewing.
8. Drilling units equip with famous brand spindle motor.
9. The key mechanical, hydraulic and electric parts are all famous brands.



 Specifications

Model			SWZ700
Workpiece Size	H- beam (web width x flange height)	Max.	700 x 400
		Min.	150 x 75
	Length(mm)		≥2000
	Max. Thickness(mm)		80
	Drilling Diameter	Vertical Drilling	Ø12-Ø33.5
		Horizontal Drilling	Ø12-Ø26.5
Spindle Units	Qty. Of Spindle		One spindle on each side( top, left,right) Total 3 spindles
	Rotation Speed (rpm)		120-560
	Spindle Motor Power (kw)		3 x 4kw
	Max. Feeding Stroke(mm)		Left & Right 140	Vertical:325
	Feeding Speed(mm/min)		20-300
	Movement of left/right spindle(mm)		In the direction of workpiece length:520
			Above the vertical base-level:30-470	Above the vertical base-level:30-570
	Movement of top spindle(mm)		In the direction of workpiece length:520
			Beyond horizontal base-level:45-910	Beyond horizontal base-level:45-1160
Marking	Character Qty.		36
	Character Size		Ø10
Overall Dimension(L x W x H) mm			Aprox.4550 x 3050x 3520	Aprox.4800 x 3050 x3520
Total Power(KW)			34kw
Machine Weight(Kg)			7000Kg	8000Kg
