Product Description

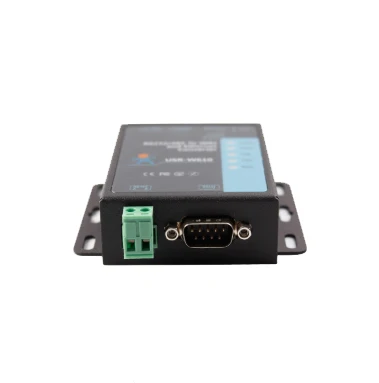

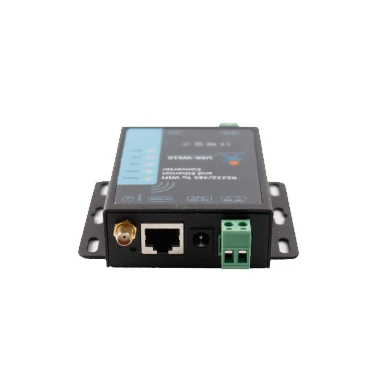

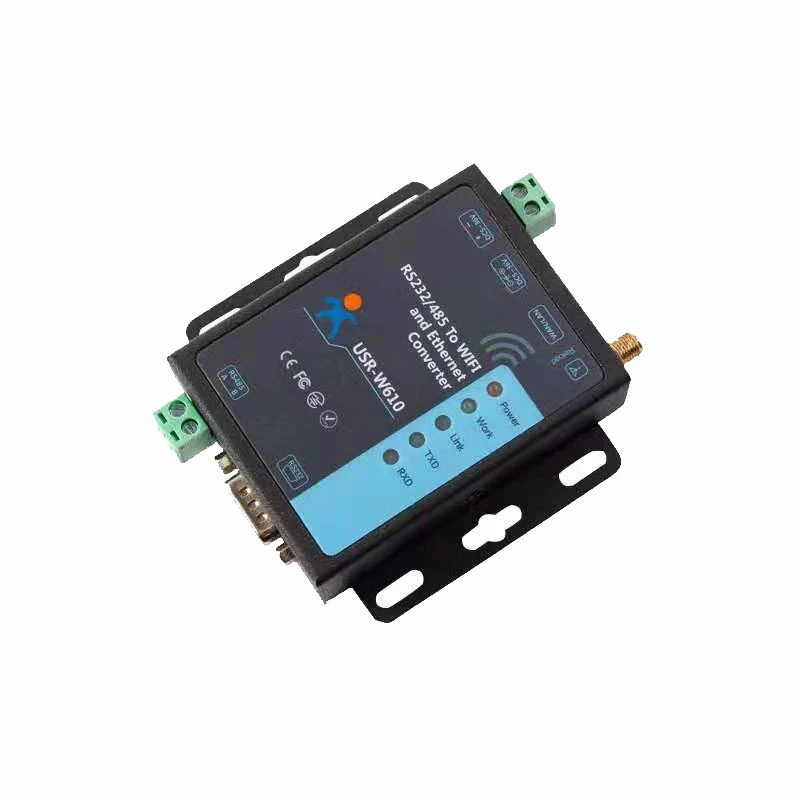

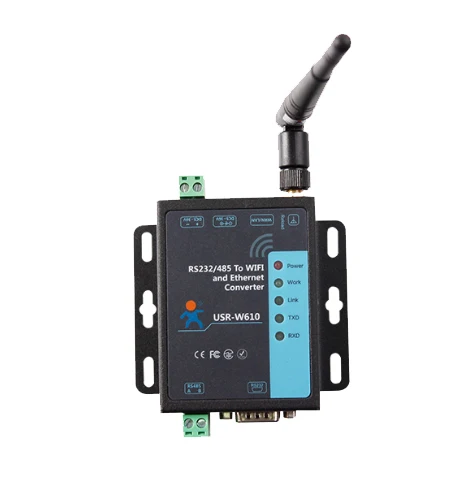

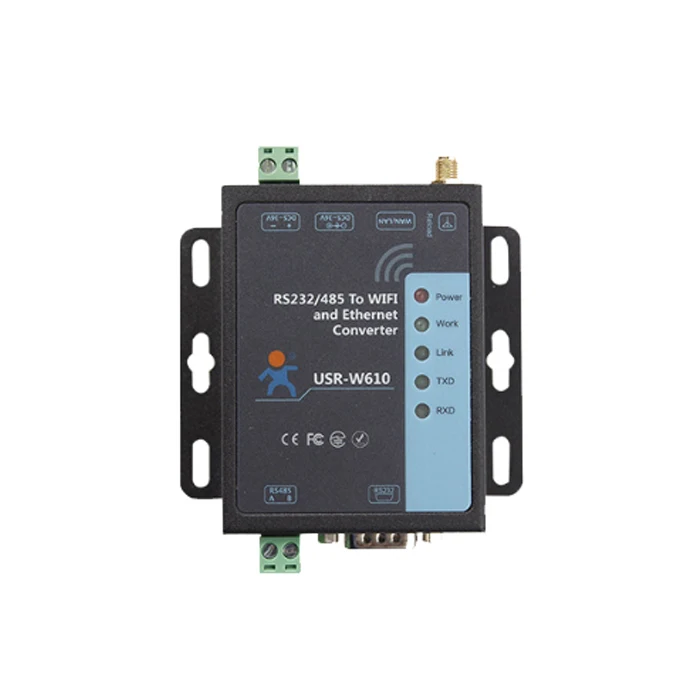

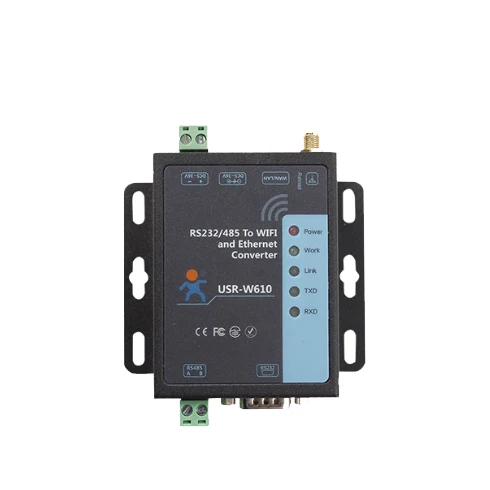

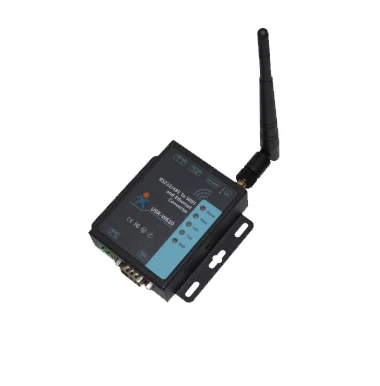

 WiFi Serial Server, Serial To Wifi /Ethernet Converter Support Modbus Gateway Serial To WiFi and Ethernet Converter USR-W610, which can realize bidirectional transparent transmission between RS232/RS485 and Ethernet/WiFi. Through simple configuration via Web Server or setup software can assign working details, realize serial data and TCP/IP data package transparent transmission by converter.













Wireless parameters
Standard certification
FCC/CE
Wireless standards
802.11 b/g/n
frequency range
2.412 GHz-2.484 GHHz



Emission power
802.11b: +19dBm(Max.@11Mbps)
802.11g: +18dBm(Max.@54Mbps)
802.11n:+17dBm(Max.@HT20,MCS7)
                +17dBm(Max.@HT40,MCS7)
Users can configure power


  Receiving sensitivity
802.11b: -89dBm（@11Mbps）
802.11g: -81dBm（@54Mbps）
802.11n: -73dBm（@HT20,MCS7）
                 -71dBm（@HT40,MCS7）







Hardware parameters



data interface
RS232：300～460.8Kbps
RS485：300～230.4Kbps
485 interface (surge protection, lightning protection, overcurrent protection)
Ethernet: 10Mbps/100Mbps
working voltage
DC5-36V
working temperature
-40℃～ 85℃
Storage temperature
-40℃～ 125℃
size
86*82.5*25mm(L*W*H)









Software parameters
Types of Wireless Networks
Station/AP/AP+Station mode
Security mechanism
WEP/WPA-PSK/WPA2-PSK
Encryption type
WEP64/WEP128/TKIP/AES
Working mode
Transparent transmission, serial instructions, HTTPD Client, Modbus TCP<=>Modbus RTU
set command
AT+Command Structure
Network Protocol
TCP/UDP/ARP/ICMP/DHCP/DNS/HTTP
Maximum number of TCP connections
24
User Configuration
Configuration of Web Server+AT Command
Customer application software
Supporting Customized Application Software
