AUTOMATIC MONOBLOCK CAN PRODUCTION LINE FOR SPRAY ALUMINUM CAN BY ALUMINUM BOTTOM MACHINE

Aluminum can line are a set of machines to produce mono block aerosol cans and bottles. Mono block cans and bottles are used for perfume, deodorant, hair sprays, shaving creams, pesticide bottles, aluminum tubes, hair sprays, conditioners, medicines, fire extinguishers, oil and paints.

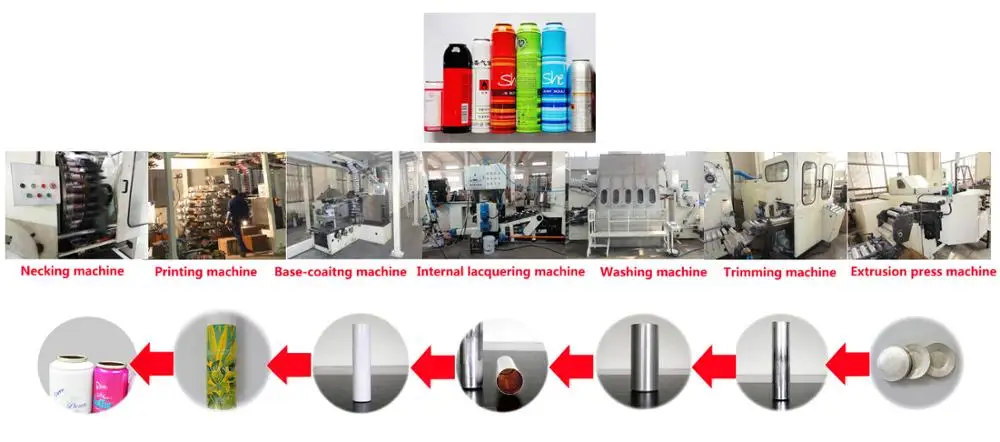

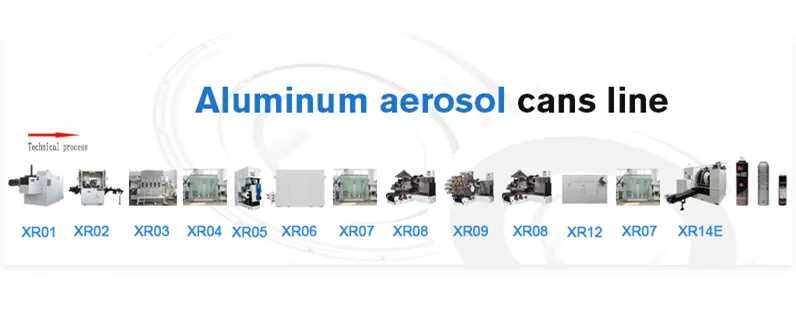

The XR series aluminum can lines produced by us are fully automatic. Each equipment of this series can work alone or form partial production lines according to client's needs. The main machines include XR01 Extrusion press machine, XR02 Trimmer cum brushing machine, XR03 can washer or degreasing Spray washing machine,XR04 Accumulator, XR05 Internal lacquering machine, XR06 Lacquer curing oven, XR08 Base-coating machine, XR09 6-color or 8-color printing machine, XR12 Drying oven, XR14 and XR14E Necking machine, etc.

All the equipment of the series are properly aligned in structure, having advance design, highly automated for fast production. All machines are controlled with SIEMENS PLC to ensure stability. To save energy consumption, all lacquer curing machine and drying oven adopt gas heating. Main units and controlling components all adopt branded products to ensure reliable and stable performance. All the products can be passed automatically through the production line. The color touch screen can display the instant information of speed and production, making it convenient for management.

TECHNICAL PARAMETERS
PRODUCTION SPEED		≤120 PIECE/MIN
DIAMETER		φ22 MM- φ35 MM,φ35 MM-φ53 MMorφ45 MM- φ66 MM
MOTOR POWER		230 KW
DIMENSIONS		69000×4500×6300 MM

CONFIGURATION LIST
PLC		SIEMENS
TOUCH SCREEN		PRO-FACE
PNEUMATIC ELEMENT		FESTO
TERMINAL DISPLAY		SIEMENS
BEARING		NSK OR NTN
PHOTO SWITCH		TURCK
DRIVER		TANTZU
ELECTRICAL COMPONENT		SCHNEIDER OR OMRON

Certifications

Detailed Images

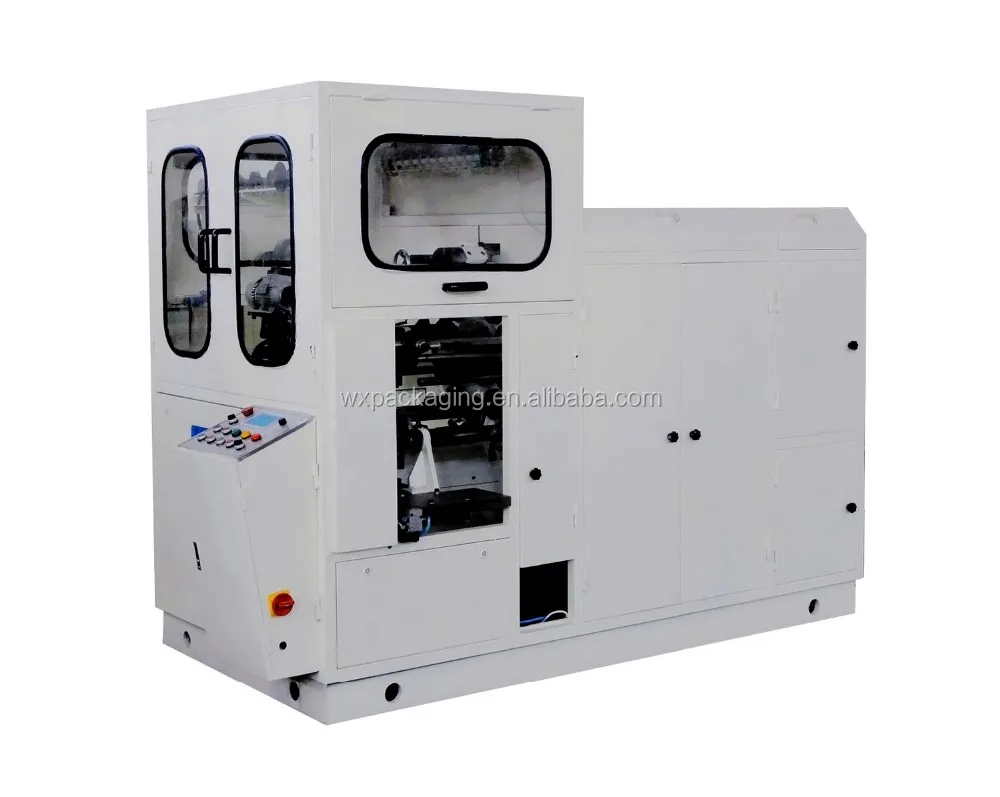

EXTRUSOPN

EXTRUDES ALUMINUM AND OTHER NON-FERROUS SLUG INTO GERM TUBES AND CANS OR CYLINDRICAL OBJECTS(LIKE BEER BOTTLES,CAPACITOR CASE) AND OTHER SHAPES

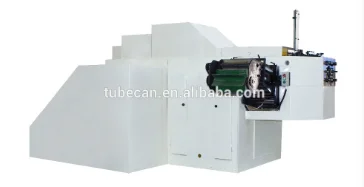

TRIMMING AND THREADING MACHINE

TRIMIMING AND BRUSHING THE CANS

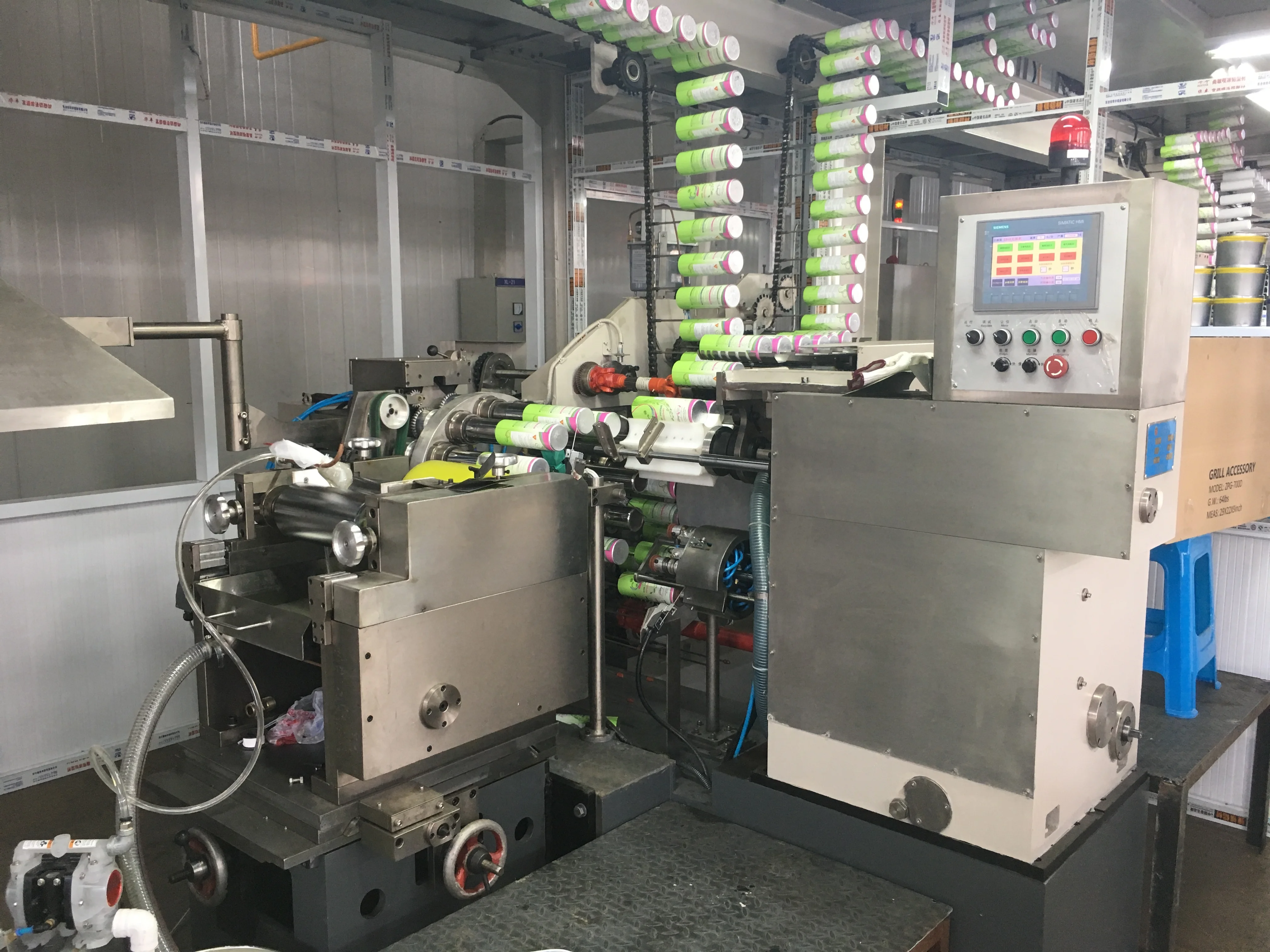

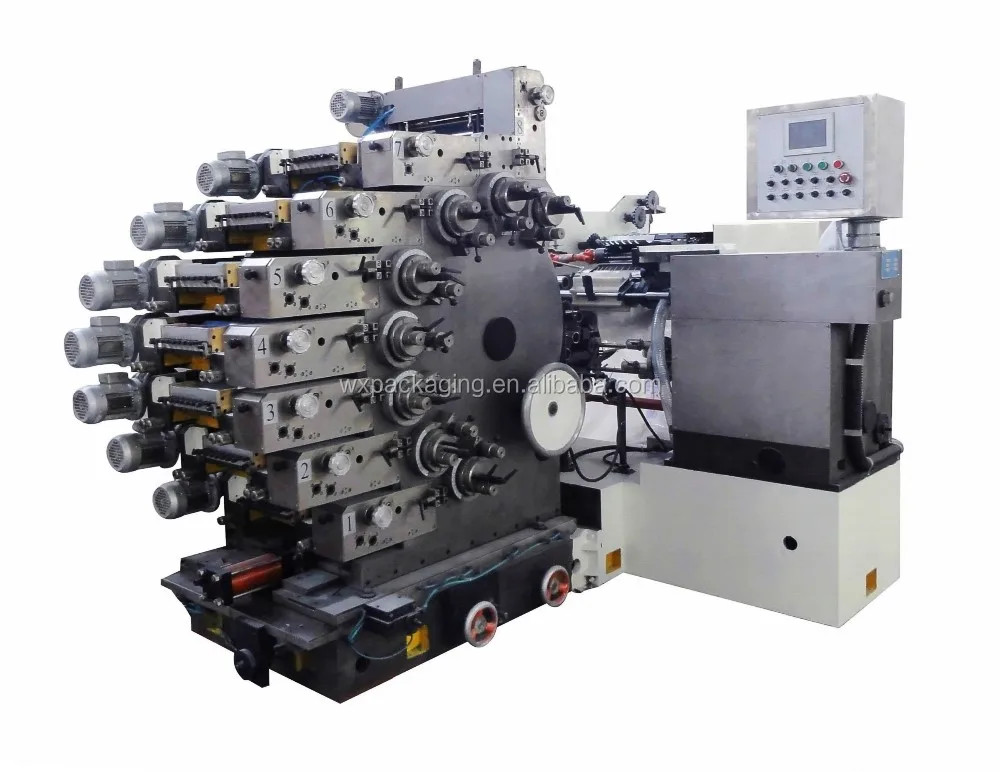

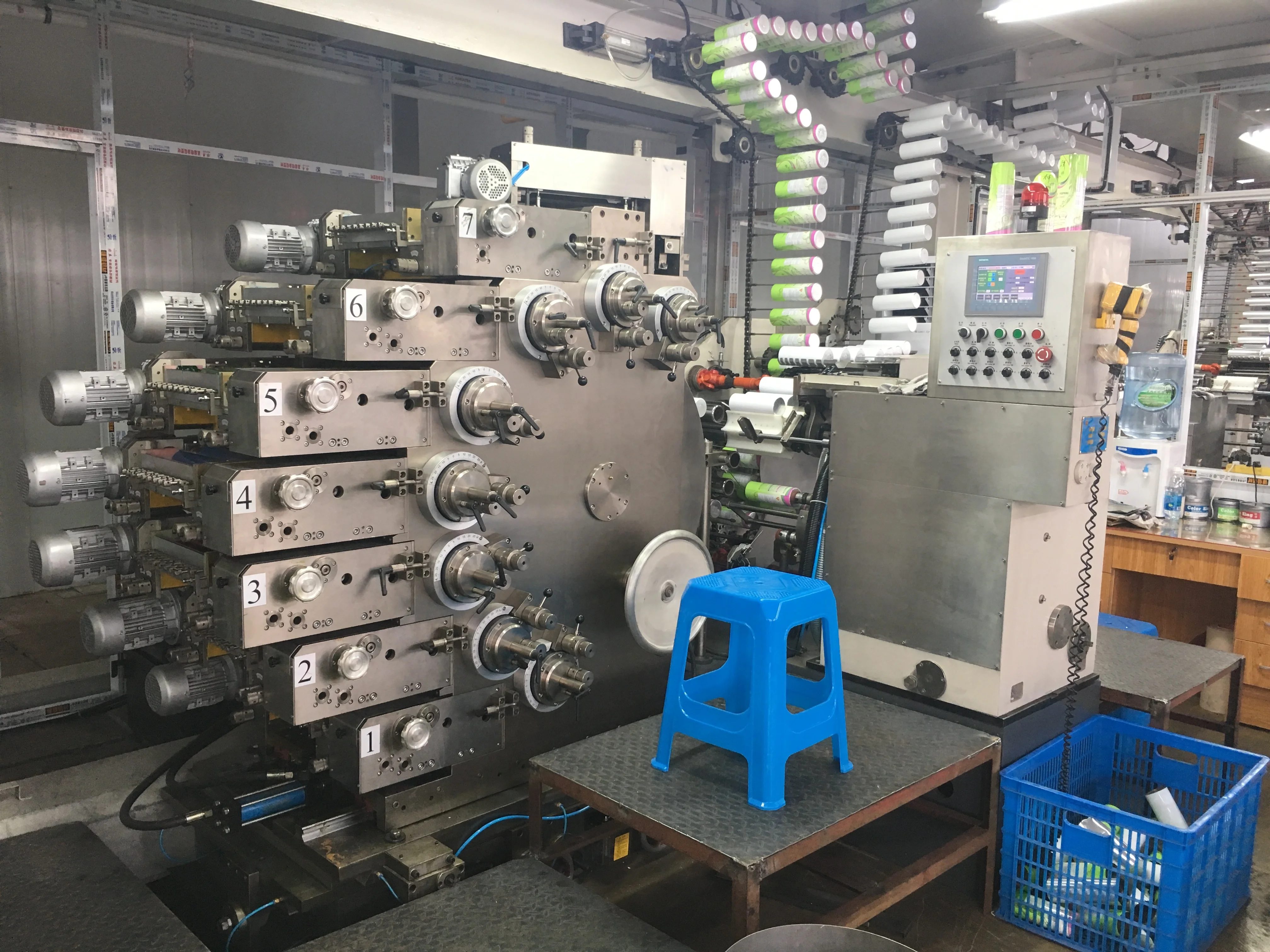

PRINTING MACHINE

PRINTING THE SURFACE OF METAL CANS LIKE ALUMINUM TUBES AND CANS

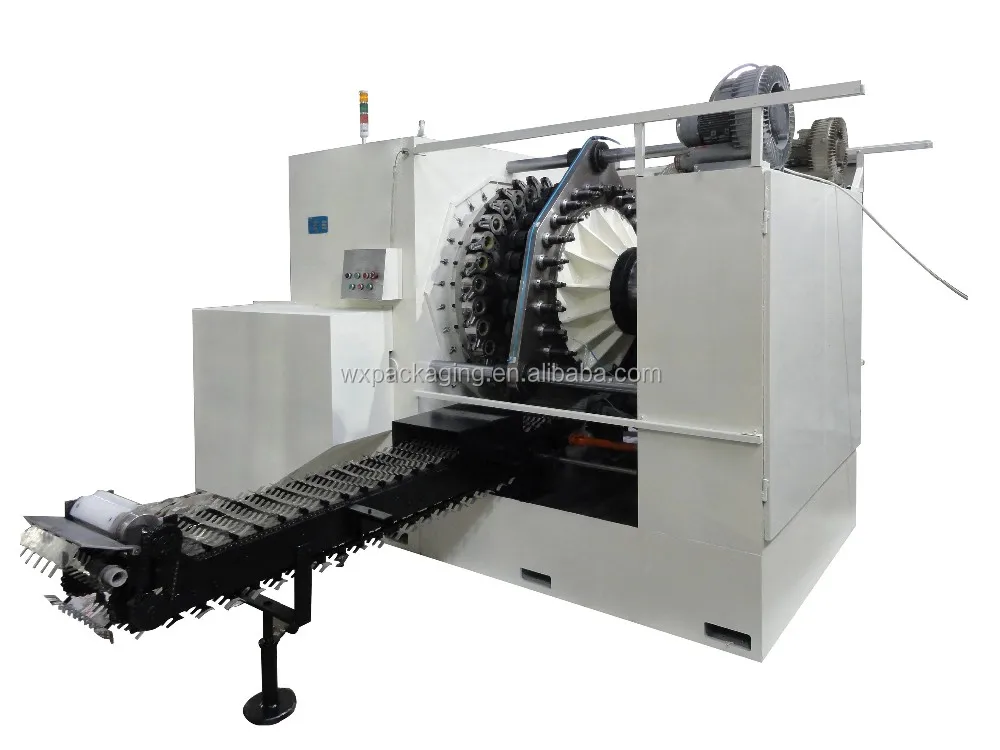

NECKING MACHINE

FORM THE SHOULDER AND CURL

Our Company

Our Service

Packing & Delivery

FAQ

Q1:WHAT'S YOUR COMPANY'S MAIN P RODUCTS?

A: WE ARE PROFESSINAL PRODUCE THE ALUMINUM CAN MAKING LINE,ALUMINUM TUB EMAKING LINE,TOOTHPASTE LINE,LAMINATED TUBE MAKING LINE AND PLASTIC TUBE MAKING LINE.

Q2:ARE YOU MANUFACTURE OR TRADING COMPANY?

A: BOTH WE ARE.WE HAVE OUR OWM MACHINERY MANUFACTURE.WE ALSO SOLD THE RELATION GOODS OF OUR MACHINE

Q3:WHERE ARE YOU OCATED?IS IT CONVENIENT TO VISIT YOU.

A:WE ARE LOCATED IN WUXI.IT IS NEAR TO SHANGHAI.YOU CAN FLY TO WUXI OR SHANGHAI.WE CAN PICK YOU UP AT THE AIRPORT.WELCOME TO VISIT US.

Q4: HOW CAN YOU GUARANTEE QUALITY?

A:1.WE HAVE COMPLETED WORKING SYSTEM AND PROCEDURES AND WE FOLLOE THEM VERY STRICYLY.

2.WE WILL DO STRICT TEST RUNNING BEFORE THE SHIPPMENT.

3.THE ELECTRICAL PART WITH ALL WORLD FAMOUS BRAND.

4.ALL OF OUR MACHINE WITH CERTIFICATE.

Q5:CAN YOU OFFER OVERSEAS TECHNICAL SUPPORT.

A:YES.WE CAN SEND OUR ENGINEER TO YOUR COMPANY TO SET THE MACHINE AND TRAIN YOUR STAFF.
