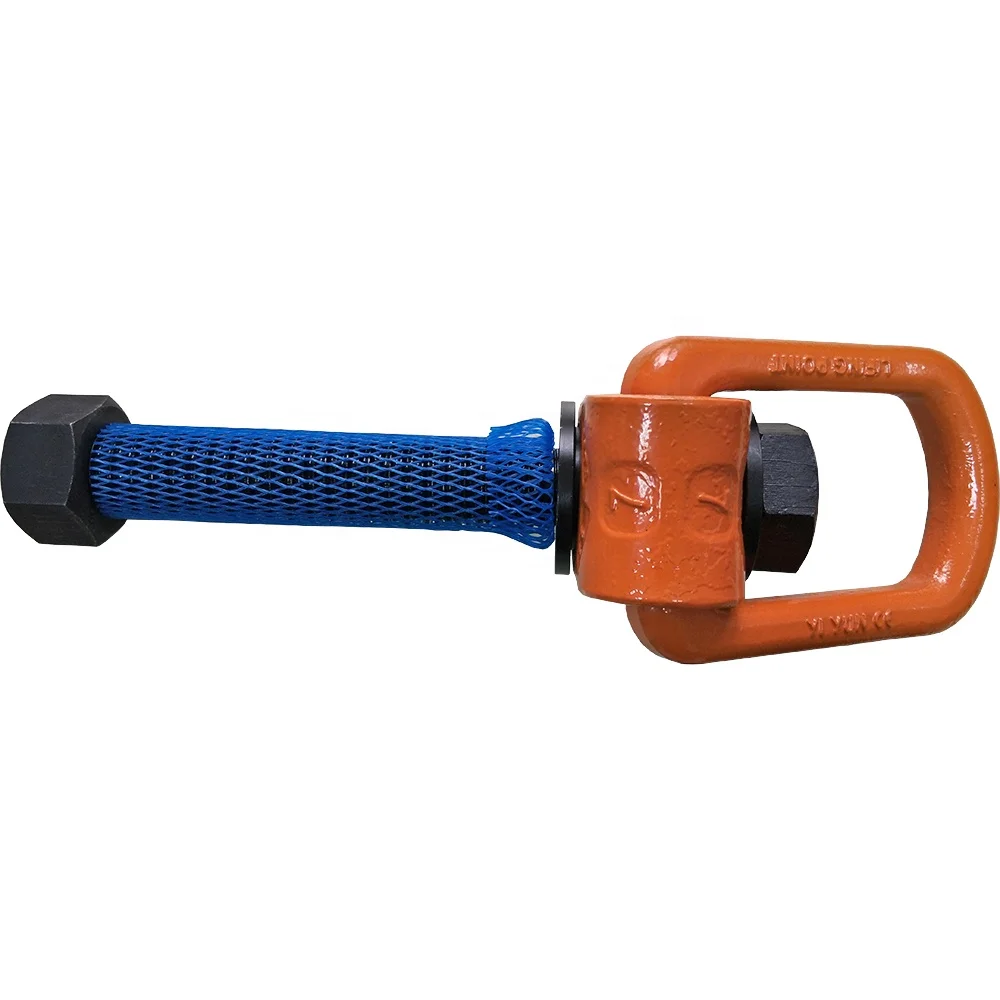

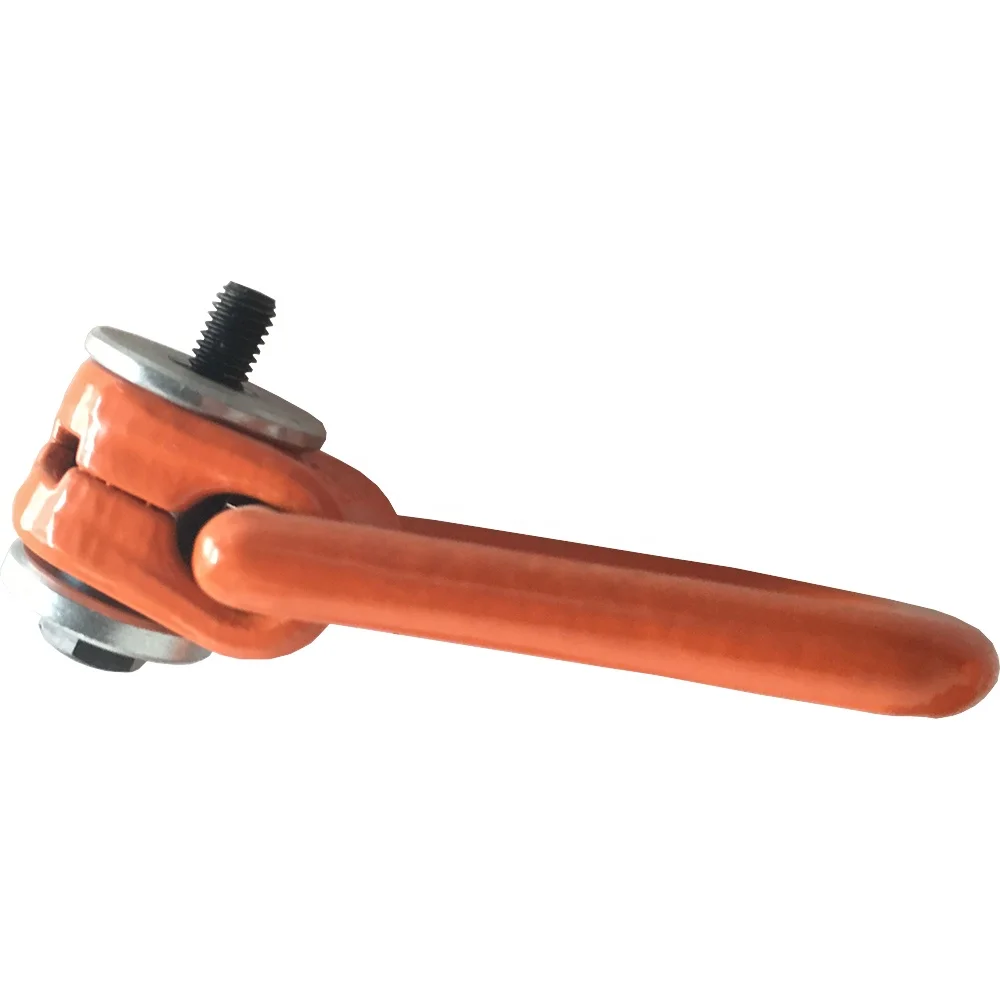

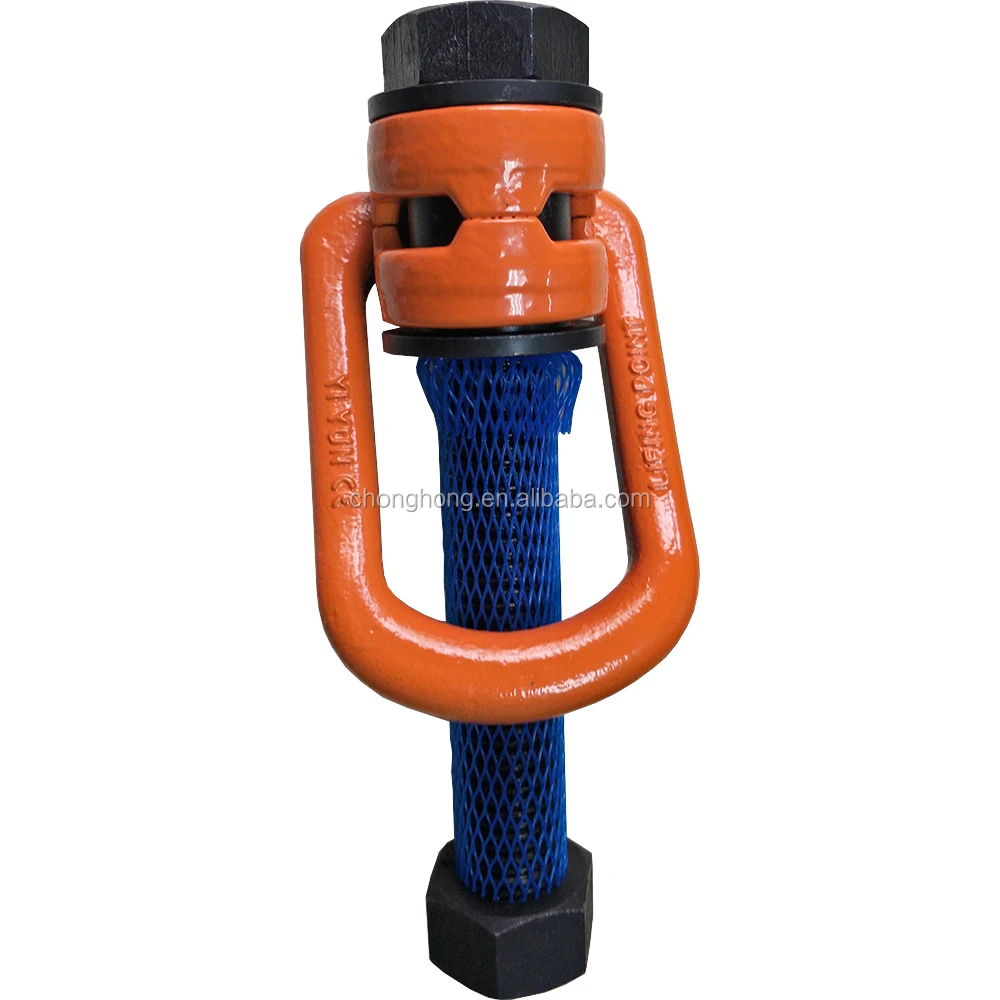

360 Degree Side Pull Rotation Hoist Ring,Lifting Ring for Swivel Shackle
- Category: >>>
- Supplier: Chonghong Industries Ltd.Chonghong Ltd.
Share on (62244609790):
Product Overview
Description
Product Description

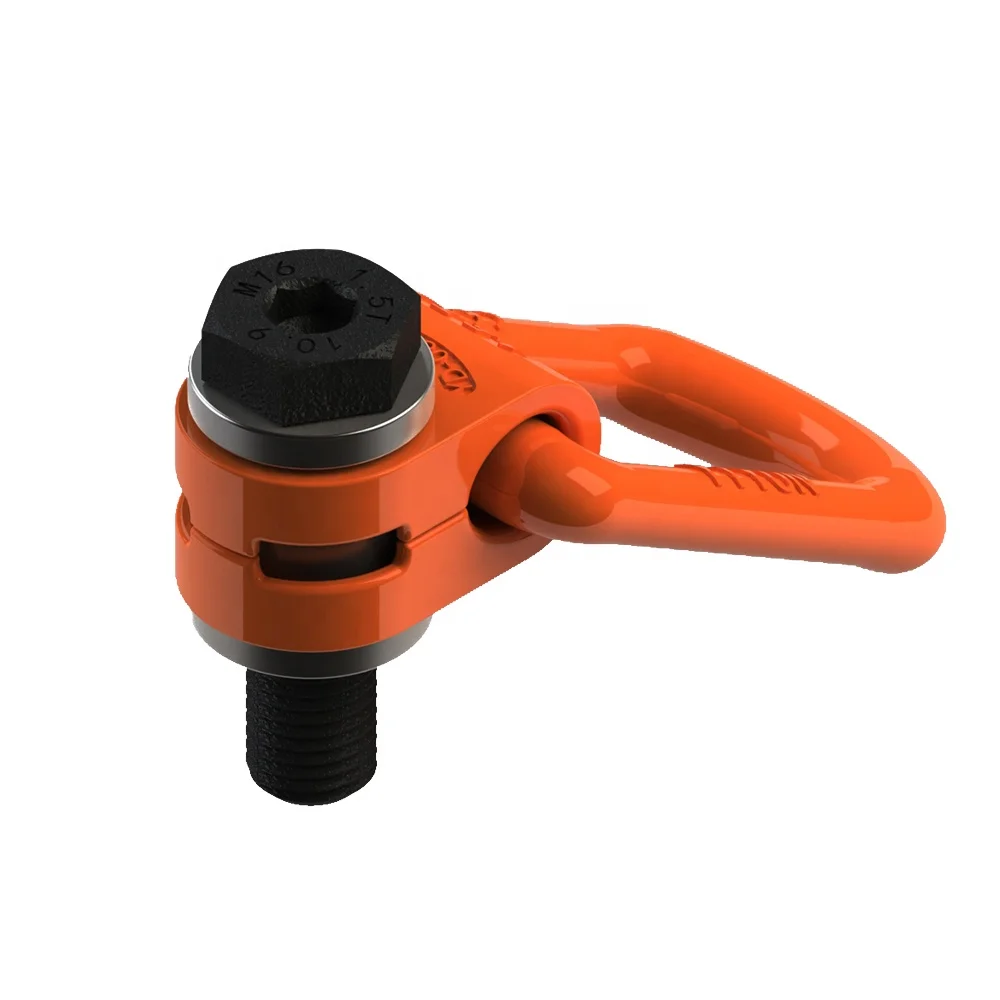

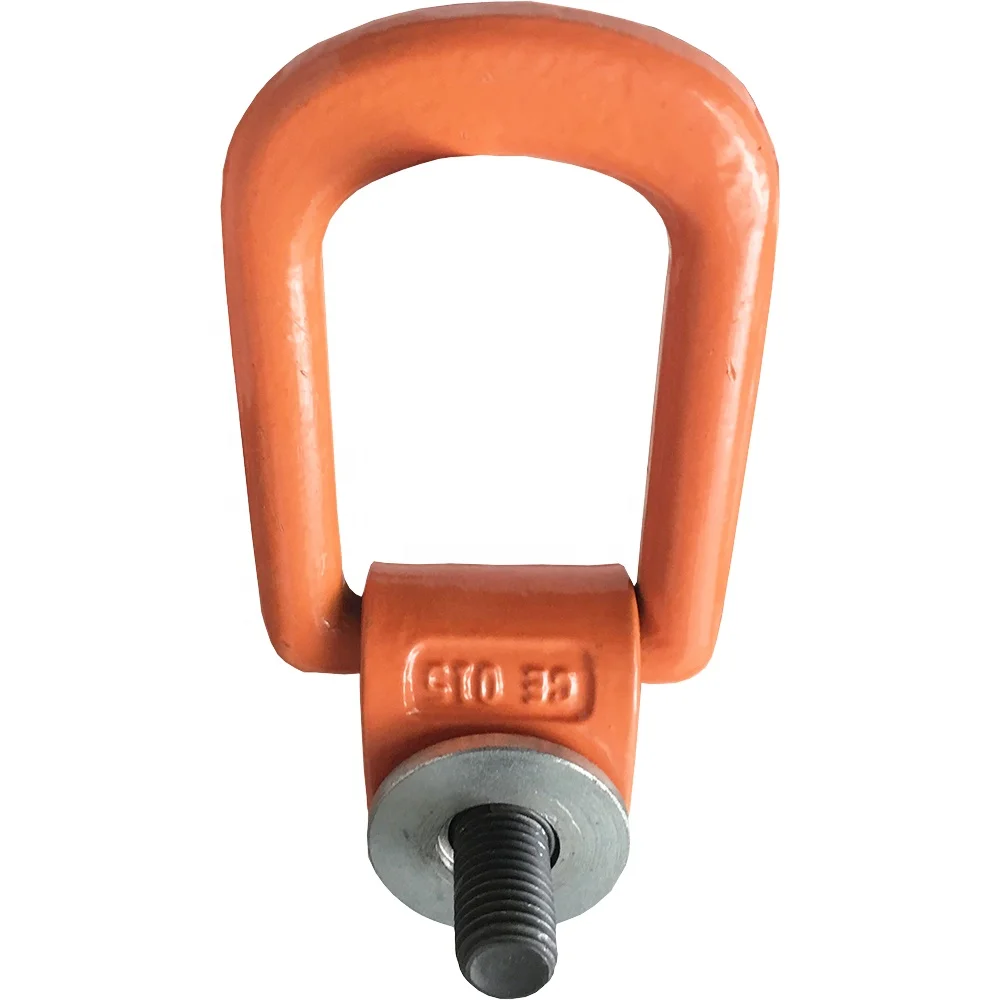

360 Degree Side Pull Rotation Hoist Ring,Lifting Ring for Swivel Shackle
- Place of Origin:China
- Brand Name:CHONGHONG
- Product Name: Side Pull Rotation Hoist Ring
- Material : Forged super alloy steel-Quenched Tempered
- Standard: EN1672

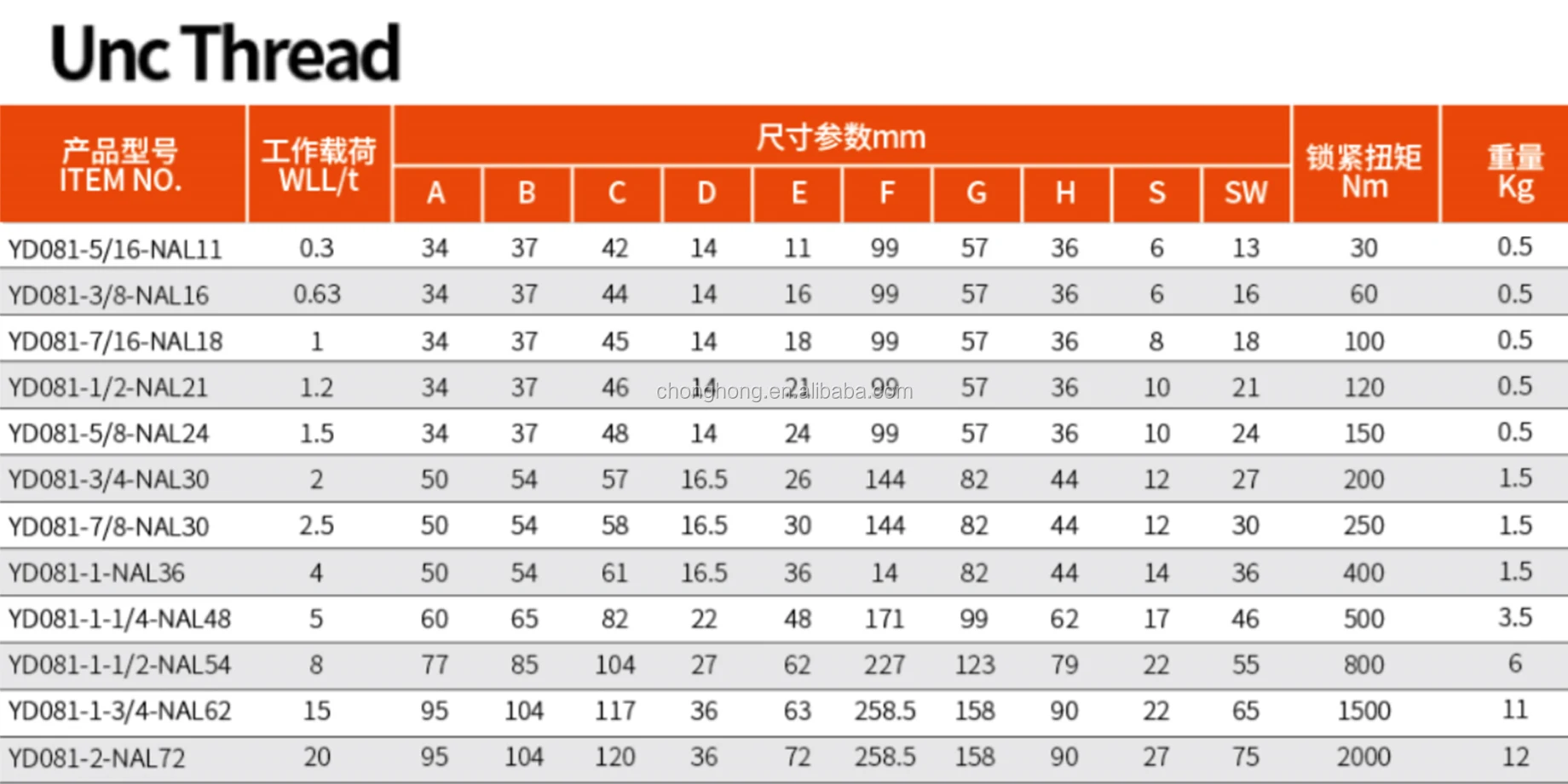

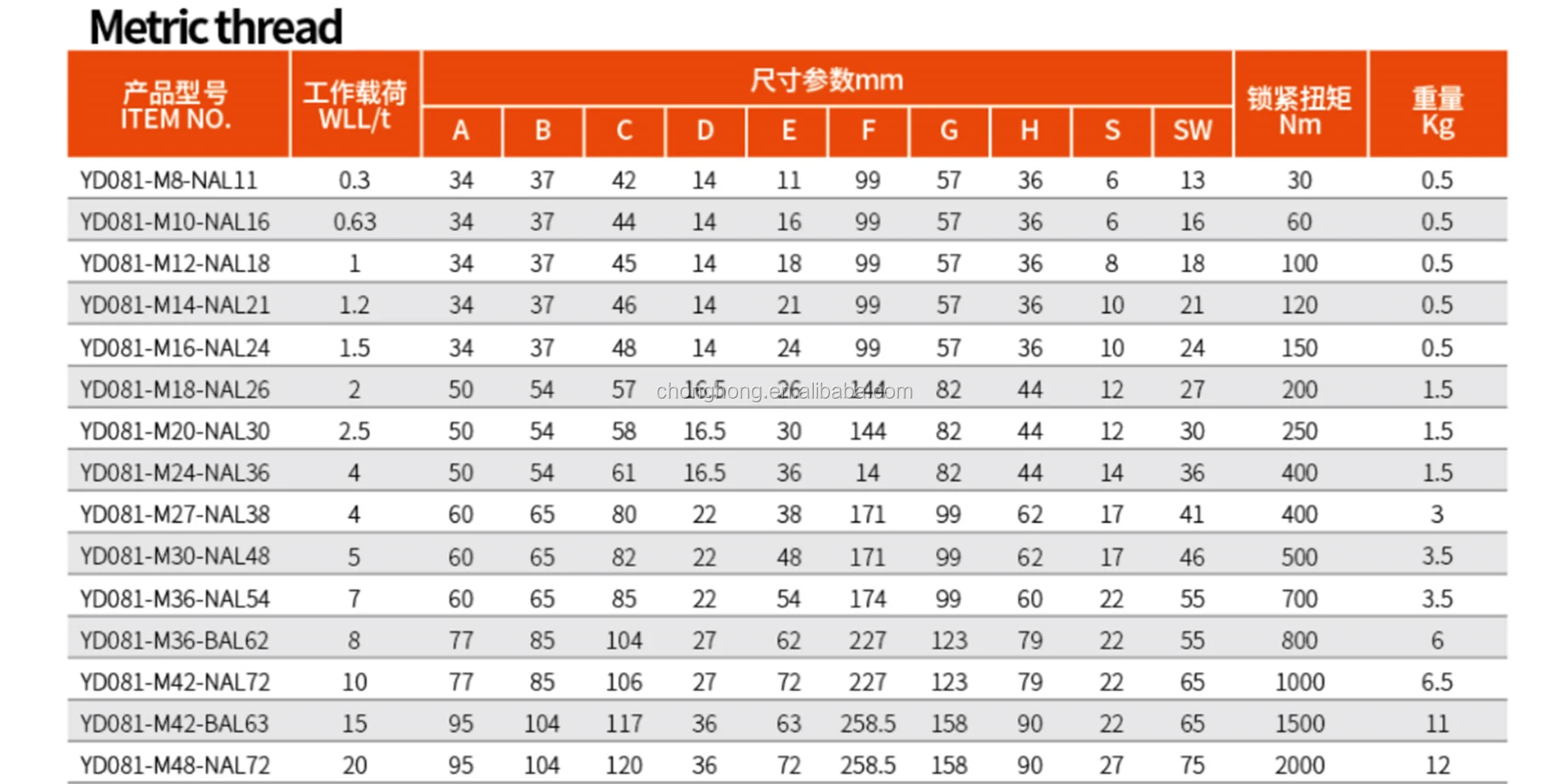

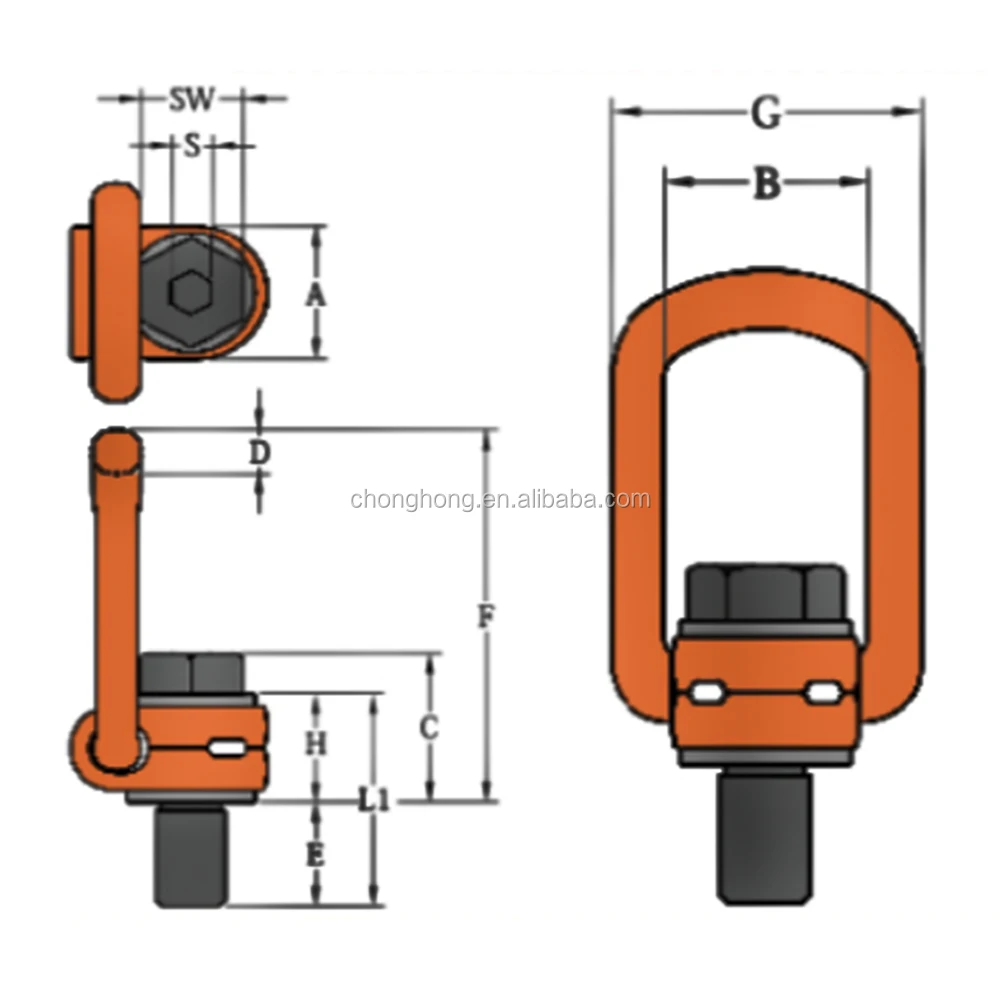

- Size: M8-M48

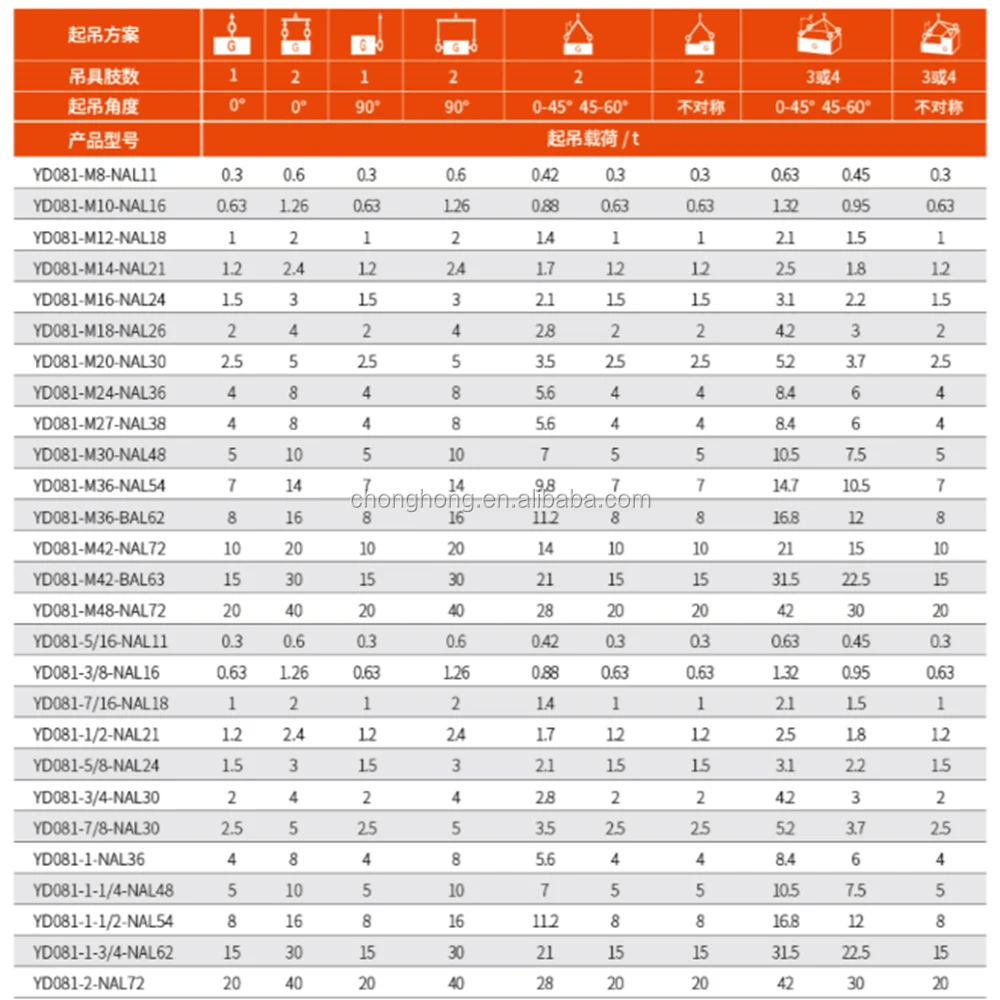

- WLL/T: 0.3-20
- Weight:0.5-11.6Kg
- Surface Treatment:Powder Coating
- Color:Orange or customized color
- Thread Material:42CrMo
- Thread Length: Customization
- Safety factor:4:1
- Application:Automotive, construction, entertainment, food processing, forestry, Heavy equipment manufacturing, mining, oil& gas, power/utilities, Towing, wind energy, transportation and Tool & Die Makers
- Packaging:Polybag, carton or as per customer's requirements
- Special specifications can also be produced according to drawing and sample.
Product advantage
- Individually Proof Test: 2.5times working Load Limit
- Fatigue Test: 1.5 times Working Load Limit for 20000 cycles
- Breakage test:Tested at 100 % Magnaflux crack detection

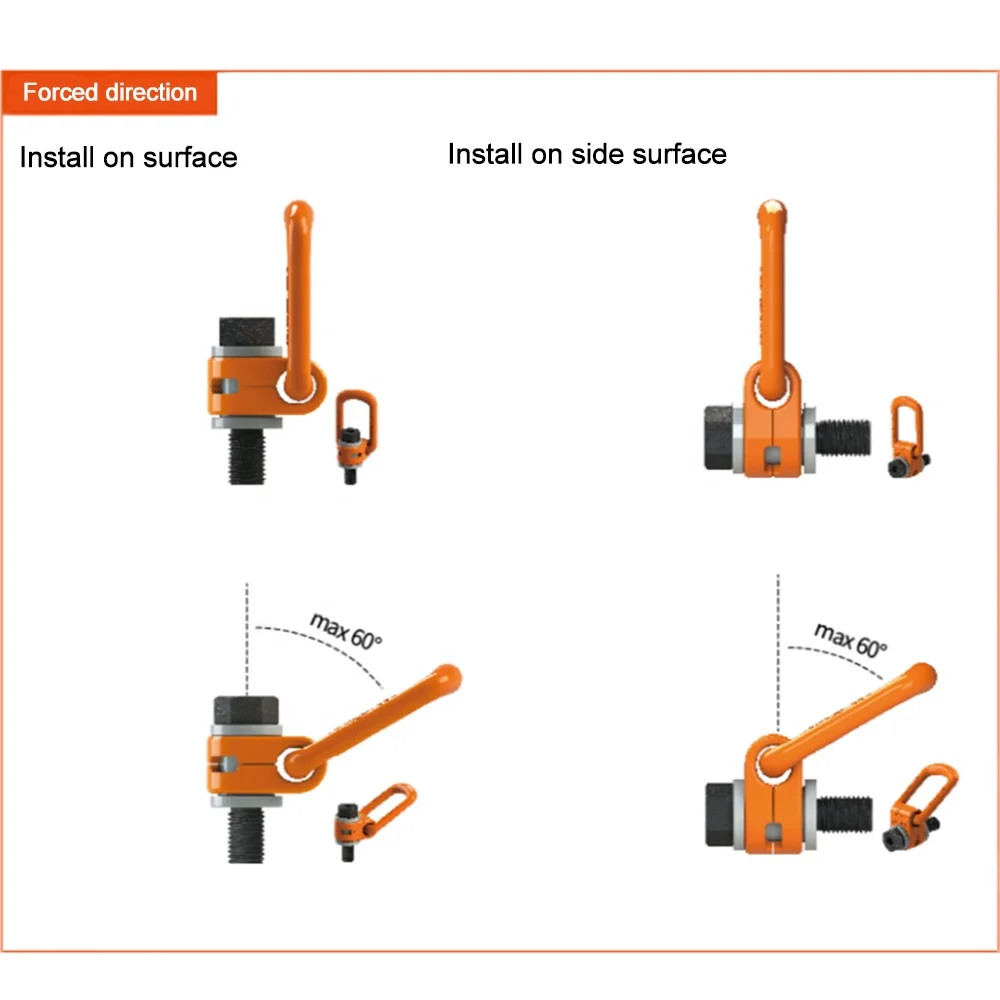

- Rated:100% at 90 degree angle,Ideal for fastening at 90°

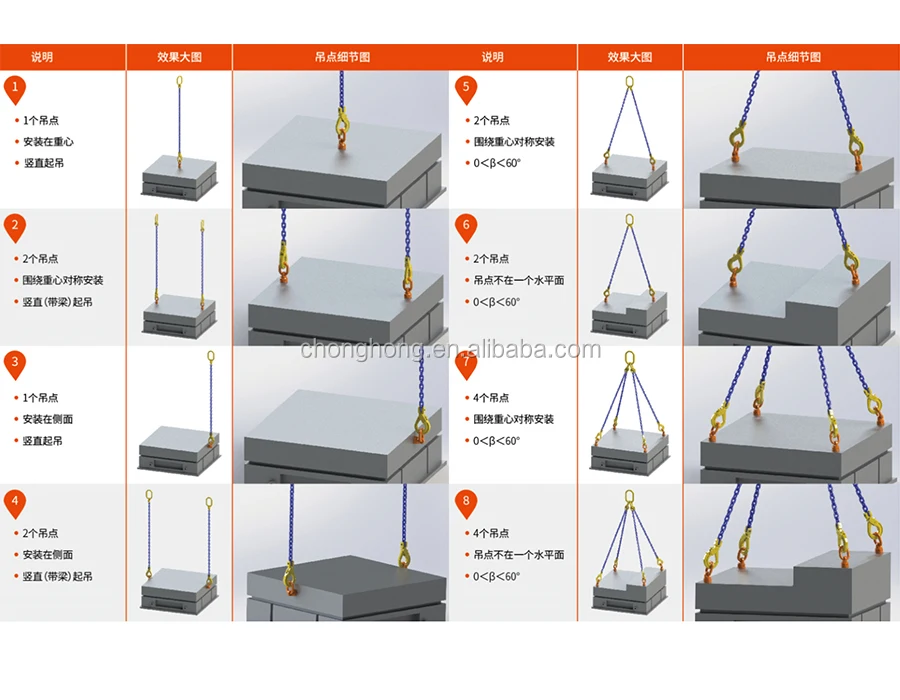

- Anchorage point for load lifting.
- Safety coefficient 4 in all loading directions

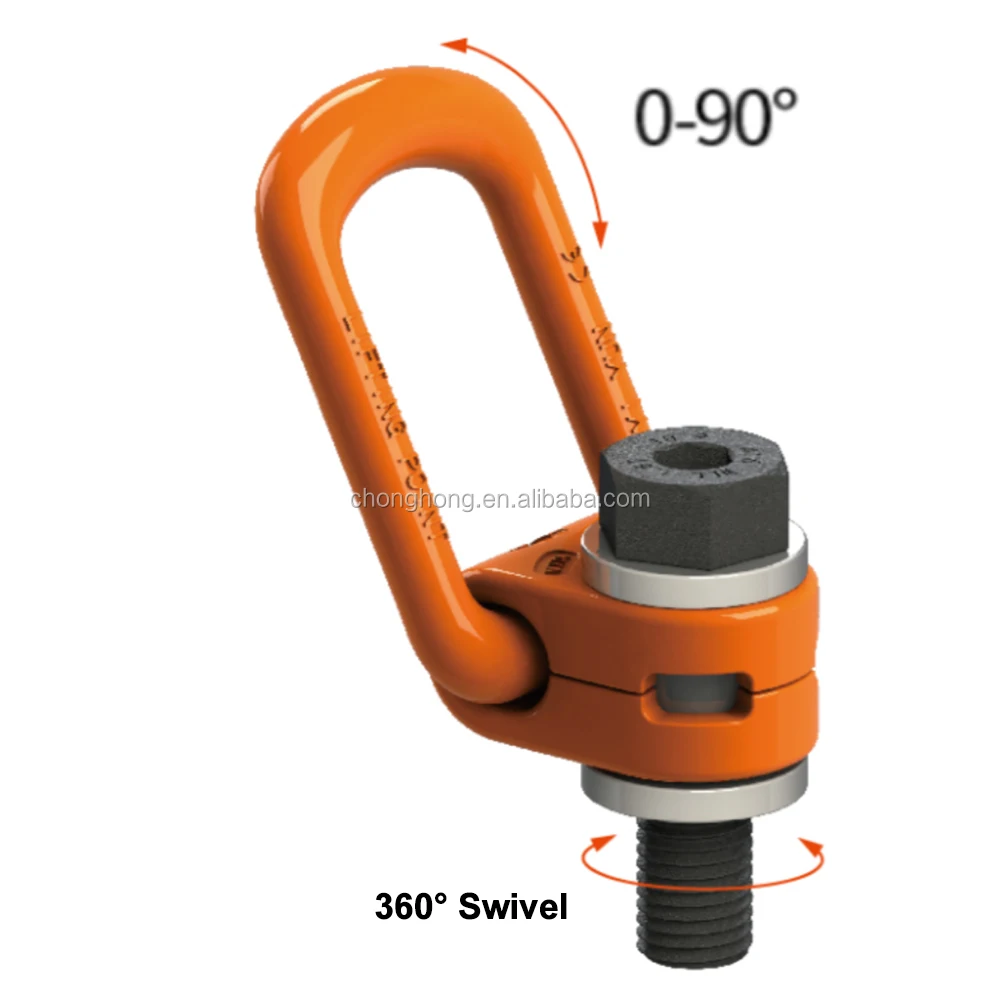

- Can be oriented at 360°
- Tested according to EN 1677
- Captive screws
- Suitable for safe lifting in compliance with the machinery directive 2006/42/EC

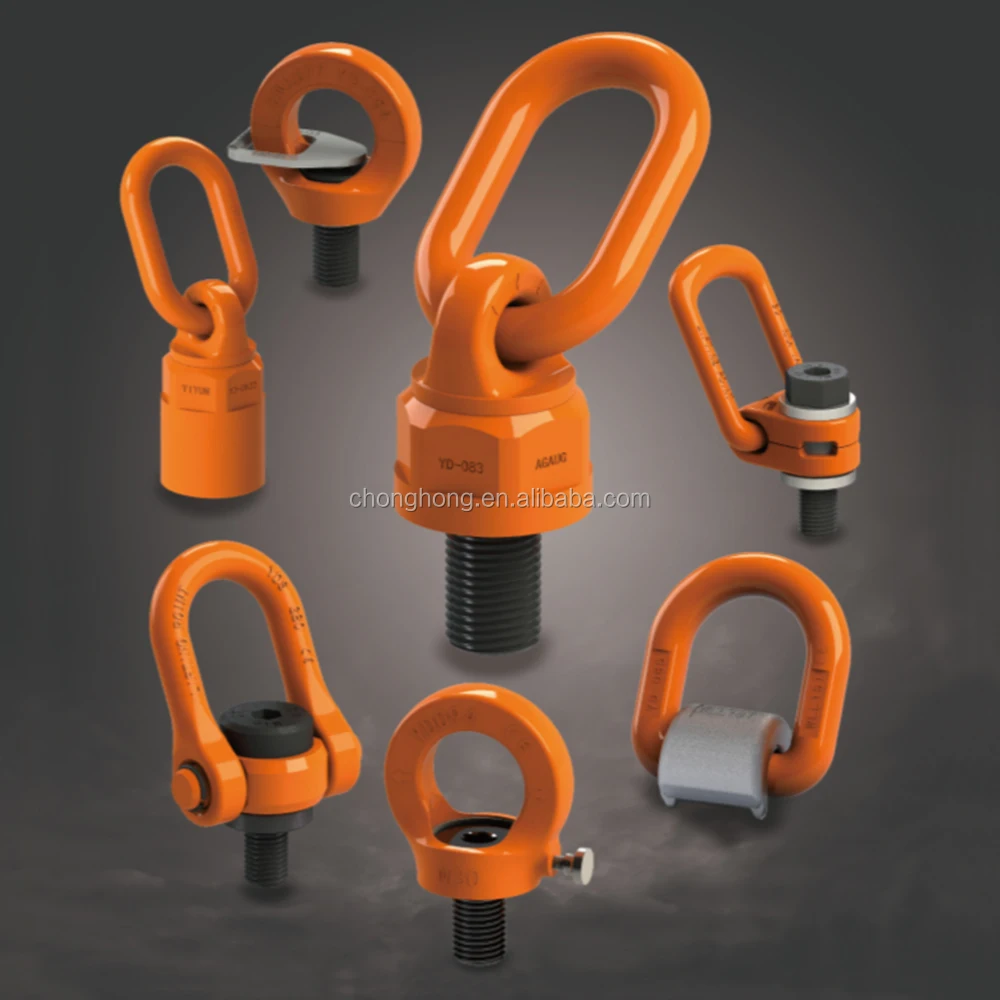

More Product
M.O.Q | 100PCS |
Delivery time | 10-20days after order confirmation |
Notes | Special specifications and marks can be made according to customers requirements; |
Other related products | Eye bolts ,Turnbuckles ,Wire Rope Clips ,Shackles ,Chain accessories ,Load binders ,Hooks ,Thimbles ,Connecting Links ,Master Links ,Anchors ,Lashing fittings ,Swivels and many other rigging hardwares . |
Company Information
Chonghong is specialized in producing, supplying, developing Anchors, Anchor Connectors, Marine Hardware Cleats, Hinges, Hold Down Clamps, Rigging Hardware like Snap Hooks, Quick Links, Spring Snaps, Spring Hooks, Turnbuckles, Shackles, Snap Shackles, Wire Rope Thimbles, Wire Rope Clips, Wire Ropes, Swivels, Pulleys, Tri-glides, Belt Buckles, Swage Sleeves, Eye Bolts, Eye Nuts, Eye Plates, S Hooks, O Rings, D Rings, Triangle Rings, Brass Hardware, Chains,Gas Spring, Gas Spring accessories and so on.
Chonghong also has ability to make the customized products for you. You are welcome to send us your drawings or samples for tooling with us. We are very, very happy to deal with everybody with the same level of good old fashioned service.
Please feel free to contact us if you need any information or have any comment.
