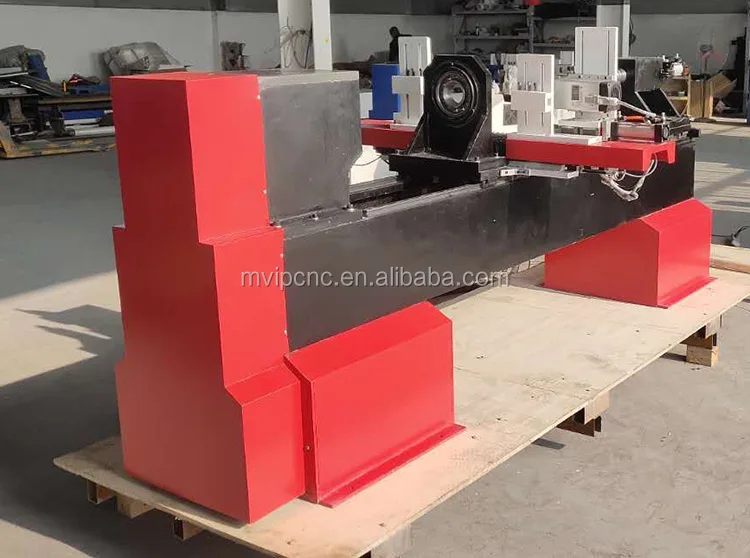

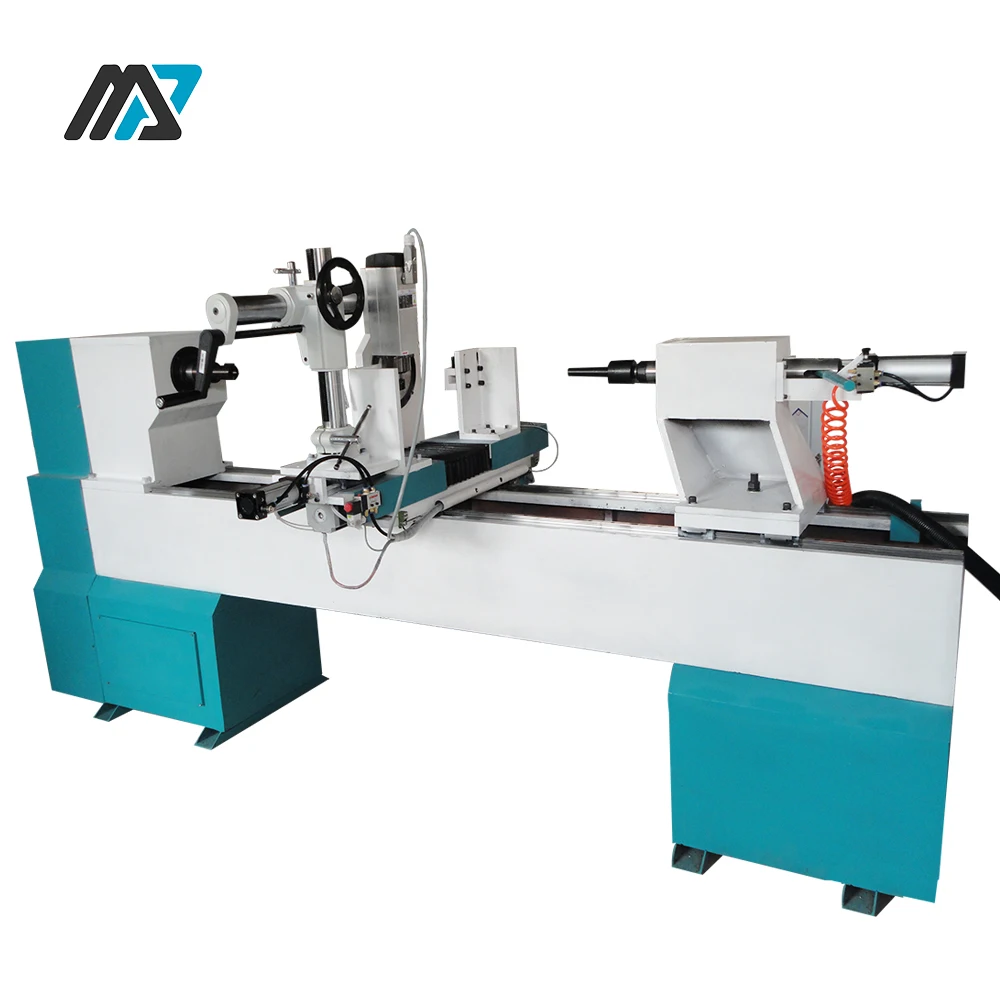

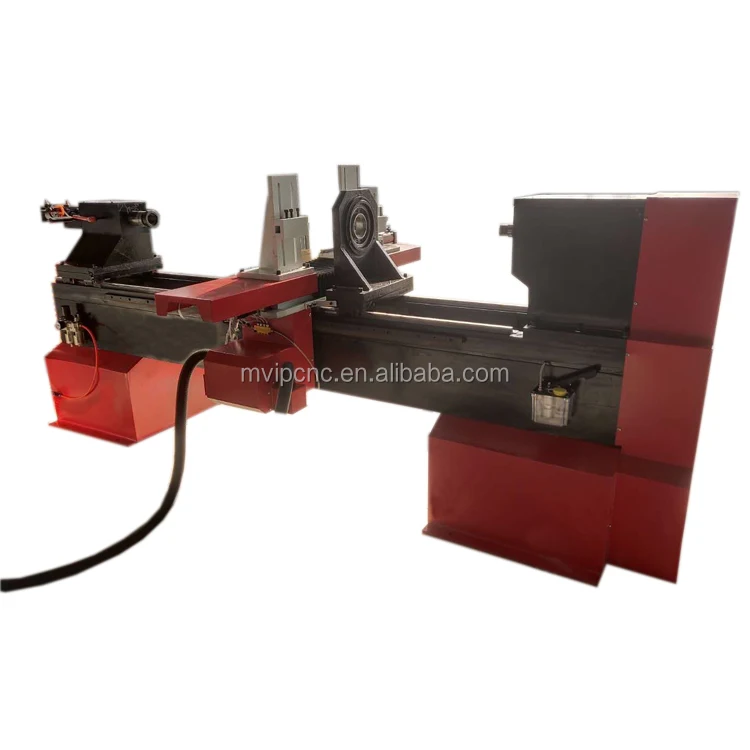

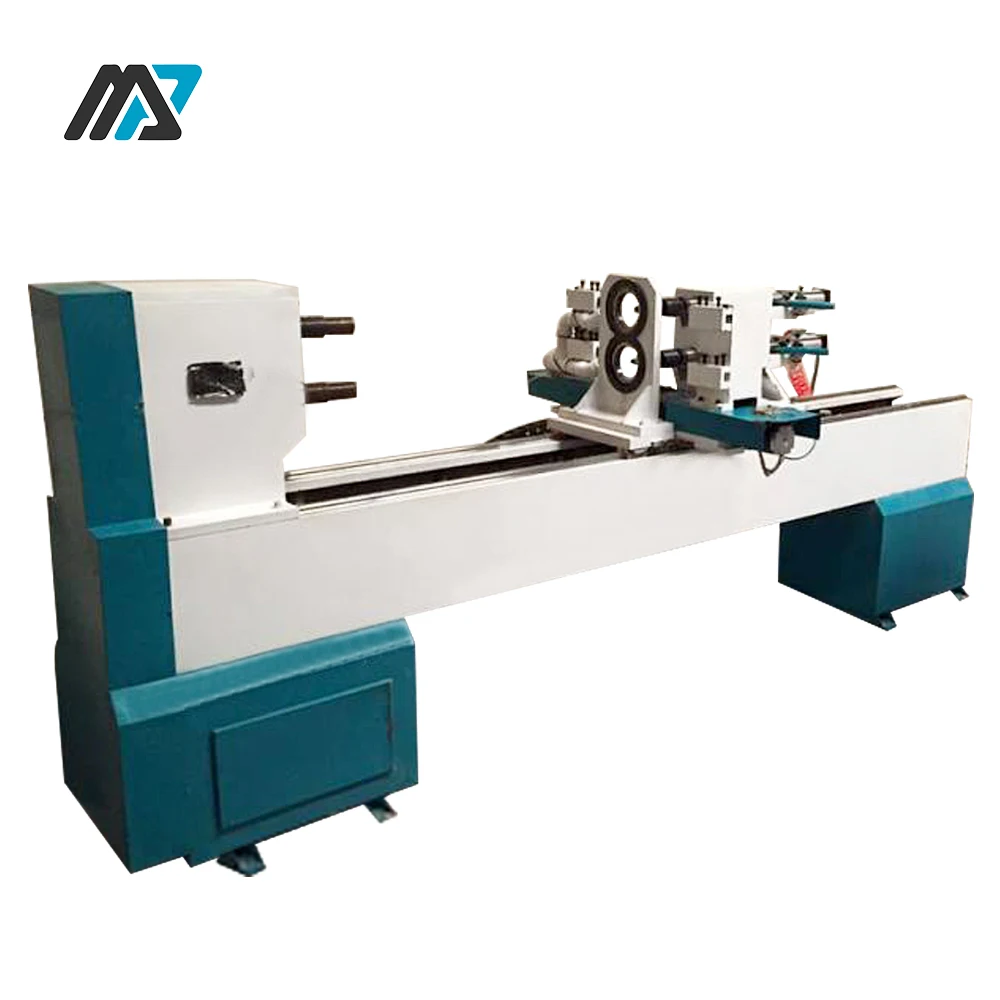

High accuracy cnc wood lathe machine with tools chisel set
- Category: >>>
- Supplier: Jinan Mingpu CNC Equipment Co. Ltd.
Share on (62244696781):
Product Overview
Description
Product Description
(1)Transimission model
The Automatic 3d Wood Turning Lathe adopts rack-gear transmission.Compared to ball screw transmission. Its advantage is that cutting and engraving quickly with more power and very small precision gap.Imported linear square guide rail(TAIWAN HIWIN,PMI,THK is optional ),x,y axis with grew gear tooth,and it is more precise,anti-friction and better load-bearing than straight gear.

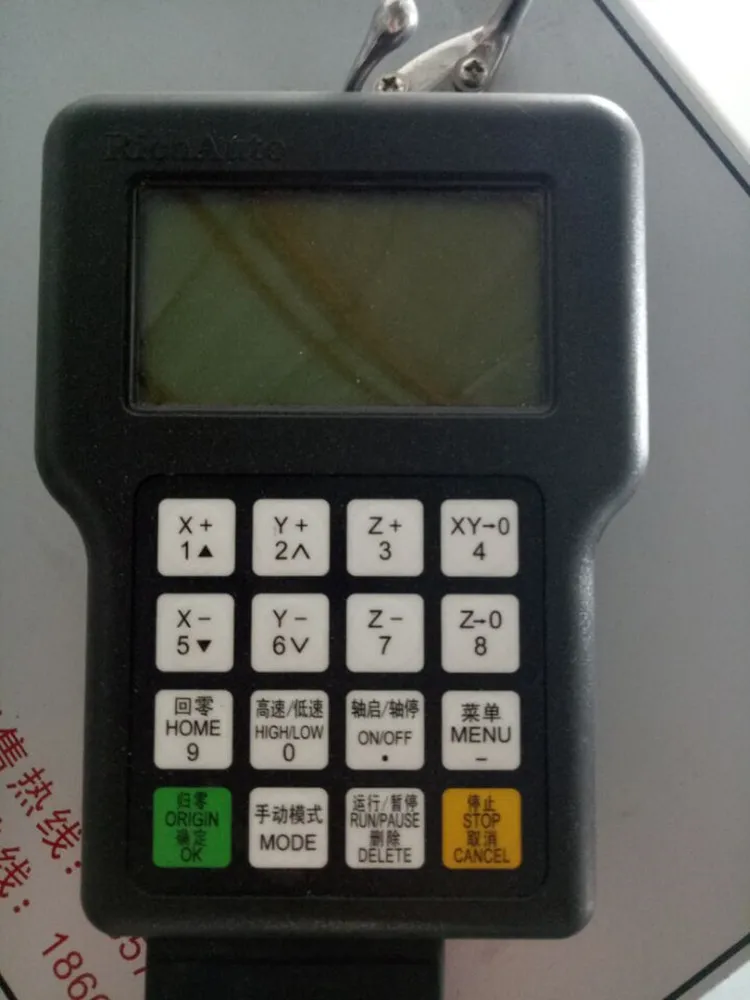

(2)DSP Control system
The excellent DSP control system can finish multilevel 3D processing, which makes the 3D engraving and cutting faster and smoother.
(3)Lathe bed
The Automatic 3d Wood Turning Lathe body casted by iron,the special heat-treatment ensures minimum distortion.The machine is very heavy-duty to avoid shaking when the rotary spindle run quickly.
(4)Electric power system
X,Y axis Adopt Stepper motors and drives, rotary axis adopts servo motor and dirves,Making the rotary axis turn Quickly and stably during the processing.
1.Magnetic Encoder;strong anti-interference
2.Low maintenance and repair requirements
3.Rapid heat dissipation
4.low noise ,low vibration and long service life.

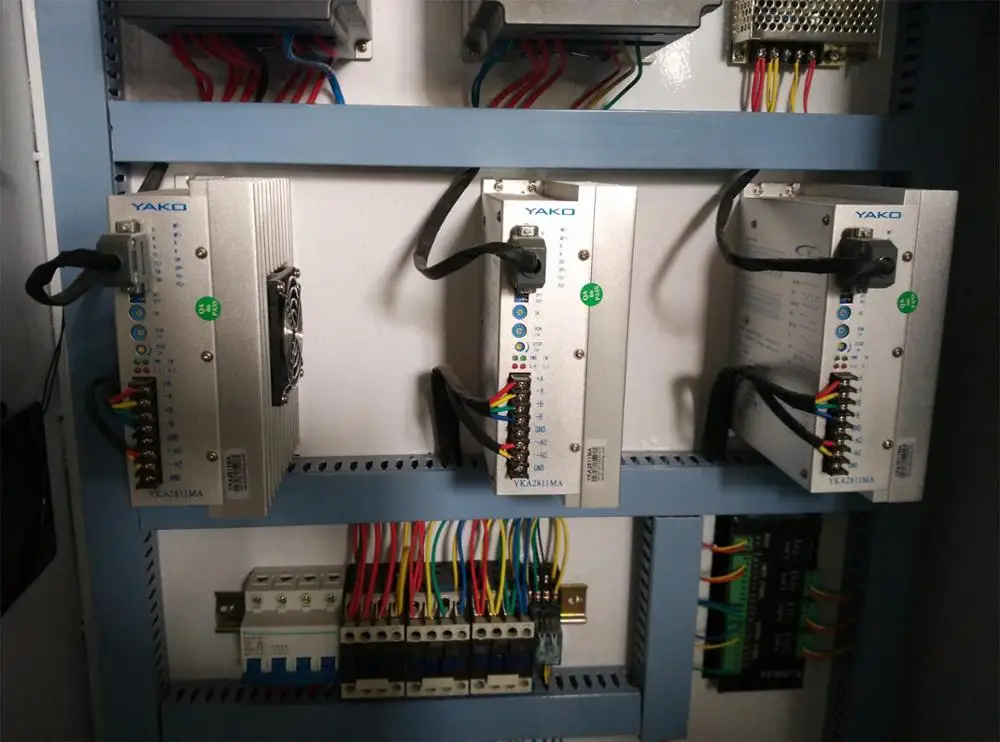

(5)Machine case
External independent case is connected to the machine.Case switch is not convex and it is convenient to operate.Equipped with Leakage protector, Mains filter,inverter, AC contactor, Voltage transformer,Drivers, Control panel.
Details Images
Product Paramenters
Certificate | CE |
Machine material | Cast iron |
Max diameter | 300mm(Custom model 400mm specifications) |
Max length | 1500mm(Custom model 2000mm specifications) |
Rotary spindle motor speed | 0-3000r/min |
Drive system | stepper motors 450C/450B and Yako 2811 drives |
Guide rail | Taiwan HIWIN linear square guide rail 25mm |
Transmission | Rack and pinion, Taiwan TBI rolling ball screw |
Air pressure | 0.6-0.8Mpa |
Control system | DSP system |
Software compatiliby | Type3/Artcam/Artcut/Ucancam/JDpaint etc. |
Command language | G-code |
Computer interface | USB |
Working voltage | 380V, 50/60HZ |
Maintainance | Oil lubricating system |
Environment temperature | 0-45 centigrade |
Relative humidity | 30%-75% |
Machine Weight | 1500kgs |

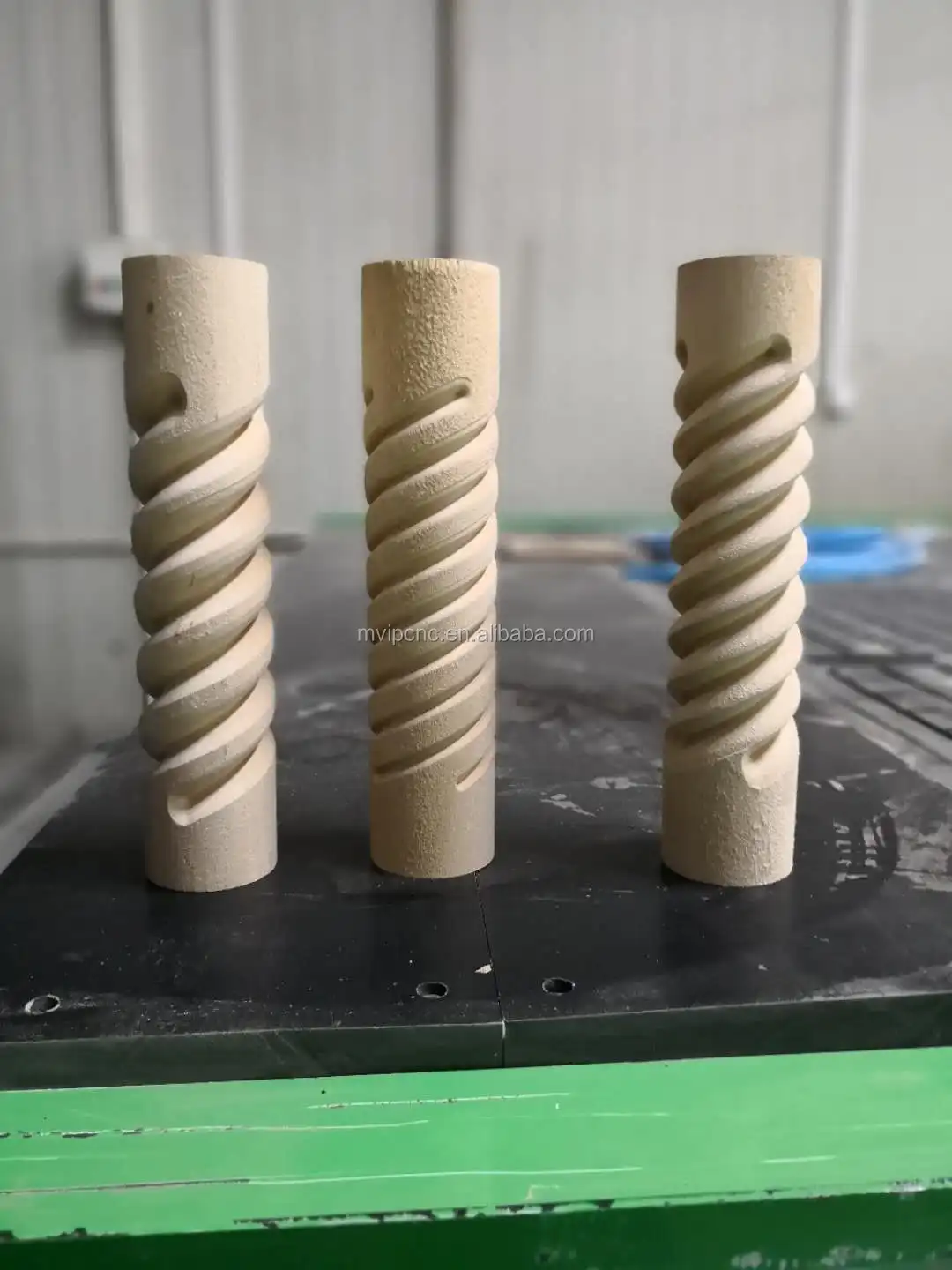

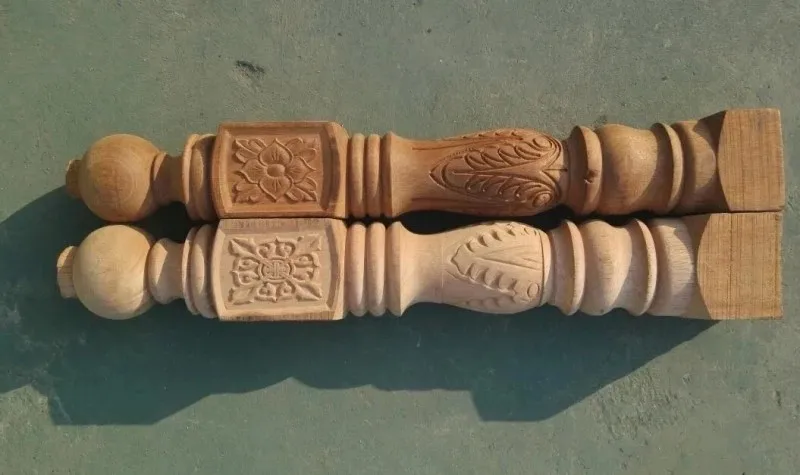

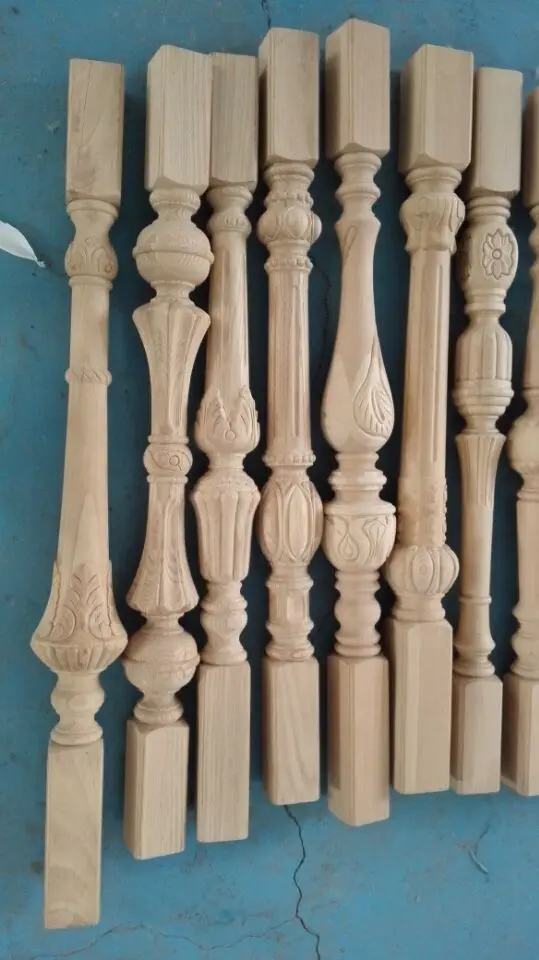

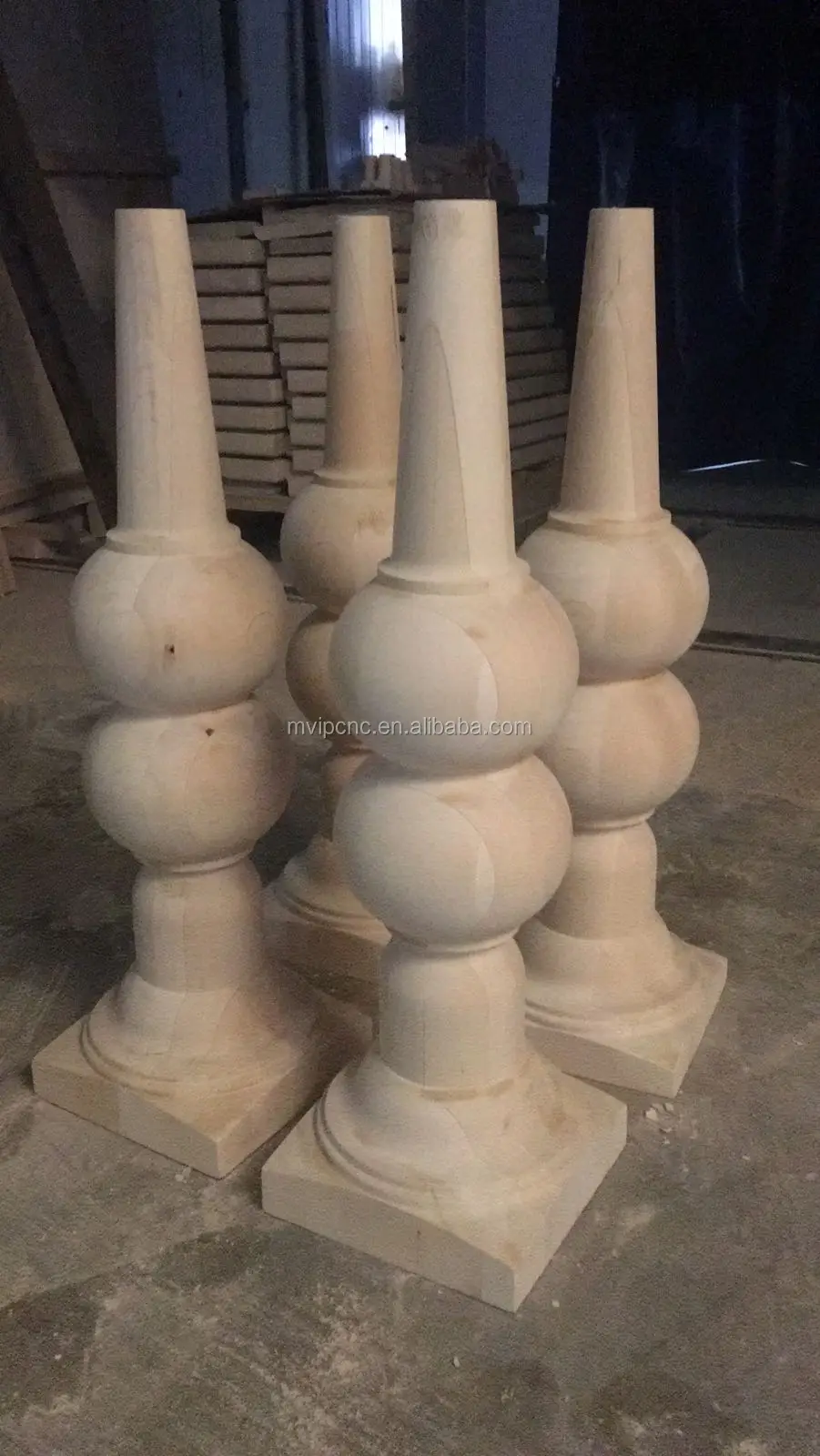

Application
Product packaging
1.The machine is packed by plastic sheet, water-proof and damp proof.
2.The foam are put on the important parts of the machine.
3.Then the machine is packed by the plywood case for export.
Certifications
FAQ
1. Q:How could I know if this machine is suitable for me?
A:Before your order, we will provided every details of the machine for your reference, or you could tell us your work piece, we will recommend suitable machine for you.
2. Q:Is the cnc router easy to learn if I never use this kind of machine before?
A: Yes, user-friendly English manual and operation video will be sent together with the machine. We can also solve your problems through phone or skype.
3. Q:Can you guarantee the qualtiy?
A: Yes, the stone cnc router is designed by professional engineers and manufactured by skilled workers.
4. Q:What should I do if there is something wrong with the machine?
A:Technical support will be online for 24 hours. Engineers will help you solve problems in time.
