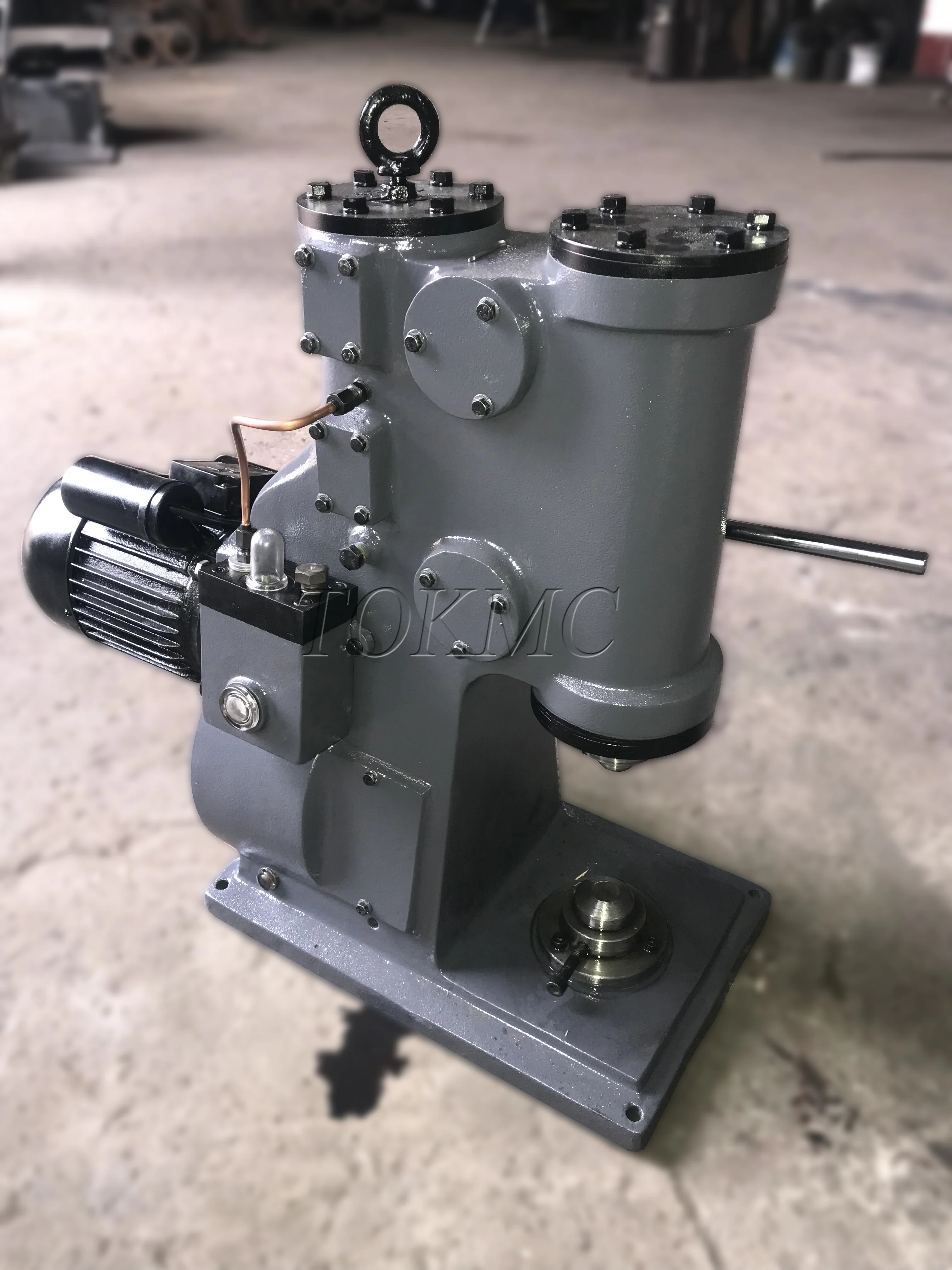

220V 60hz single phase power hammer 5kg

Specification

Forging hammer

Unit

C41-6KG

C41-55KG

Weight of falling parts

kg

6

55

Max. Hit energy

kj

0.066

0.7

Hit number

Min^-1

248

230

Distance from hammer guide bottom surface to bottom hammer die

mm

175

265

Distance from hammer ram centerline to hammer frame

mm

100

Rate power

kw

0.75 /3Phase

1.1 /single phase

5.5

Speeds of motor

r.p.m

1440

1440

Overall dimensions

mm

480x340x670

470x370x1060 (base part)

1320x670x1620 mm

Gross weight

kg

126 /166kg

1700
