MYT Shanghai Hvac Fire Resistant Insulated Pvc Flexible Aluminum Duct Making Forming Machine For Air Conditioning Ventilation

Product Overview

Description

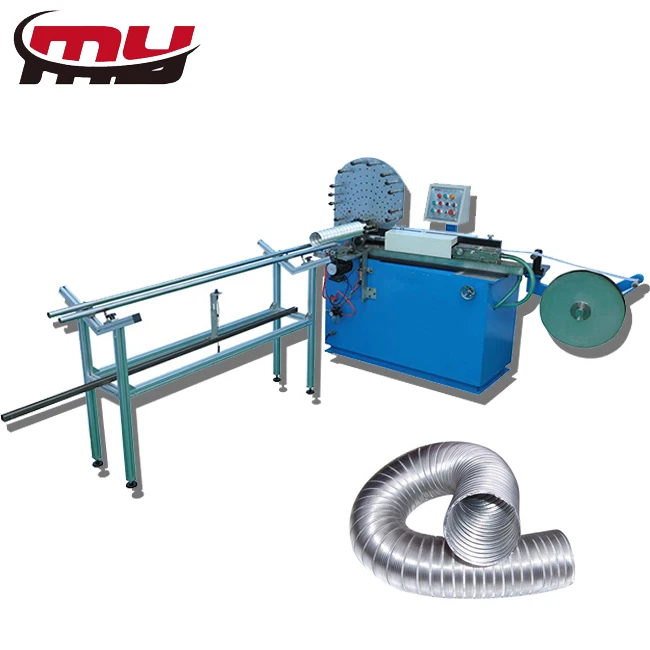

MYT Shanghai Flexible Aluminum Duct Making Forming Machine

• The Aluminum flexible duct forming machine makes the flexible working range from φ80 to φ500, thickness from 0.08 to 0.15mm. Ripple can be different by changing the mold. Speed is adjustable by computer to make sure the operation easier.
• The frame adopts full steel welding structure with enough hardness and rigidity. It also has been heated processed and highly frequently vibrated.
• Adopting floor boring-milling machine for guaranteeing the precision.

Descriptions	Unit	MF-500
Diameter range	mm	φ80-φ500
Thickness	mm	0.08-0.15
Strip width	mm	60
Ripple		4,5,6,7 Option 6 Standard
Feeding speed	m/min	0-46
Lock form		Double decked tabby locking
Power	kw	2
Weight	kg	440
Dimension	mm	2210X830X1530

Detailed pictures about Flexible Aluminum Duct Making Forming Machineer

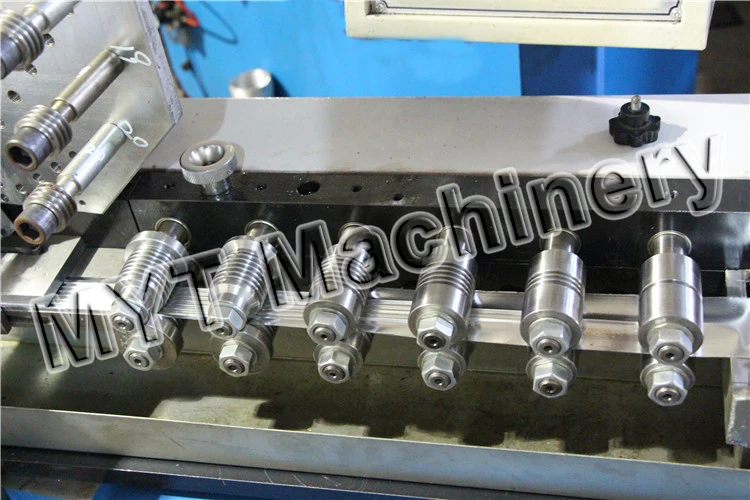

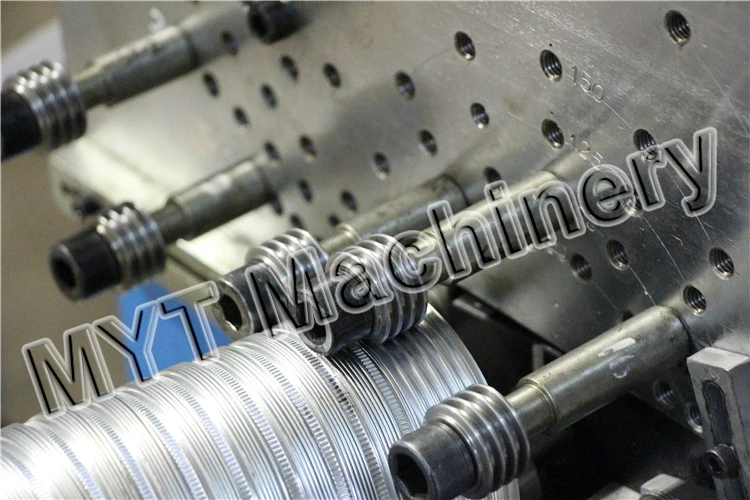

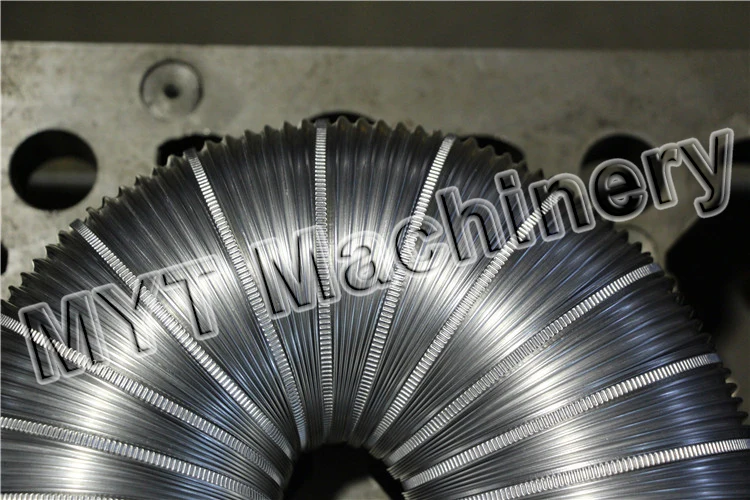

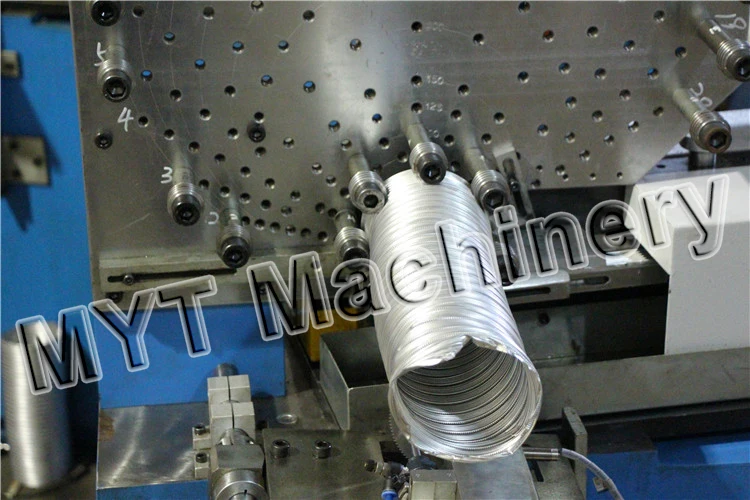

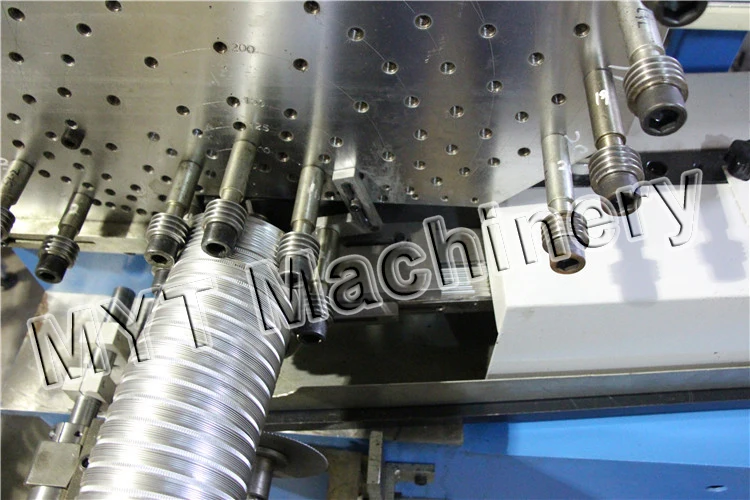

Flexible Aluminum Duct Making Forming Machine

Flexible Aluminum Duct Making Forming Machine

Flexible Aluminum Duct Making Forming Machine

Flexible Aluminum Duct Making Forming Machine
