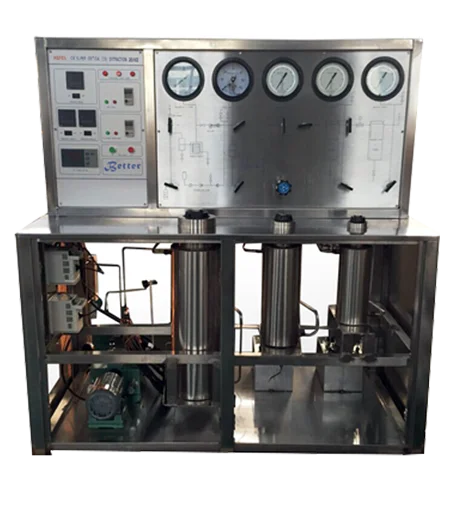

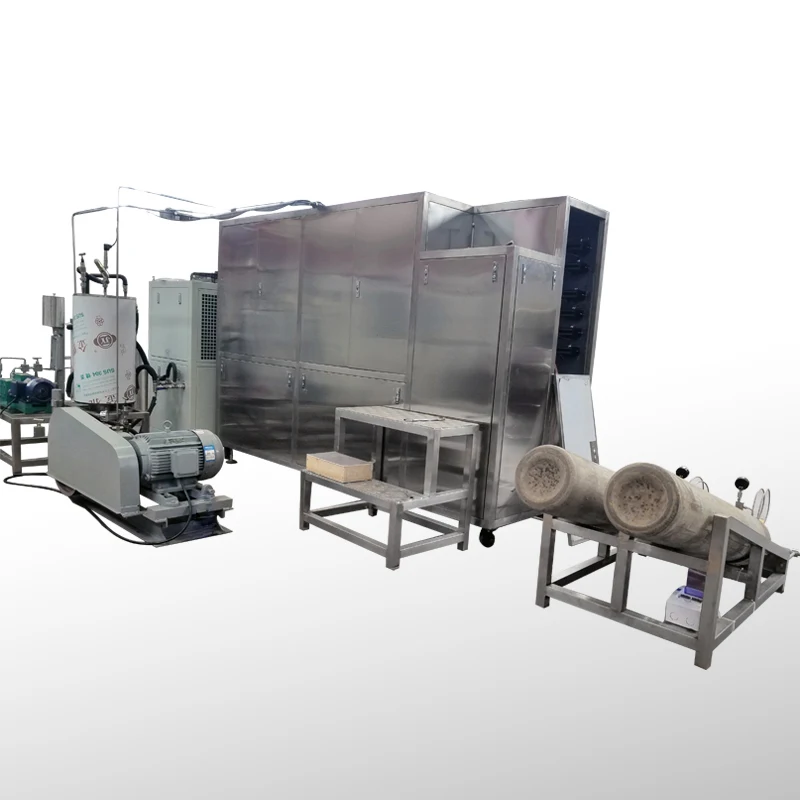

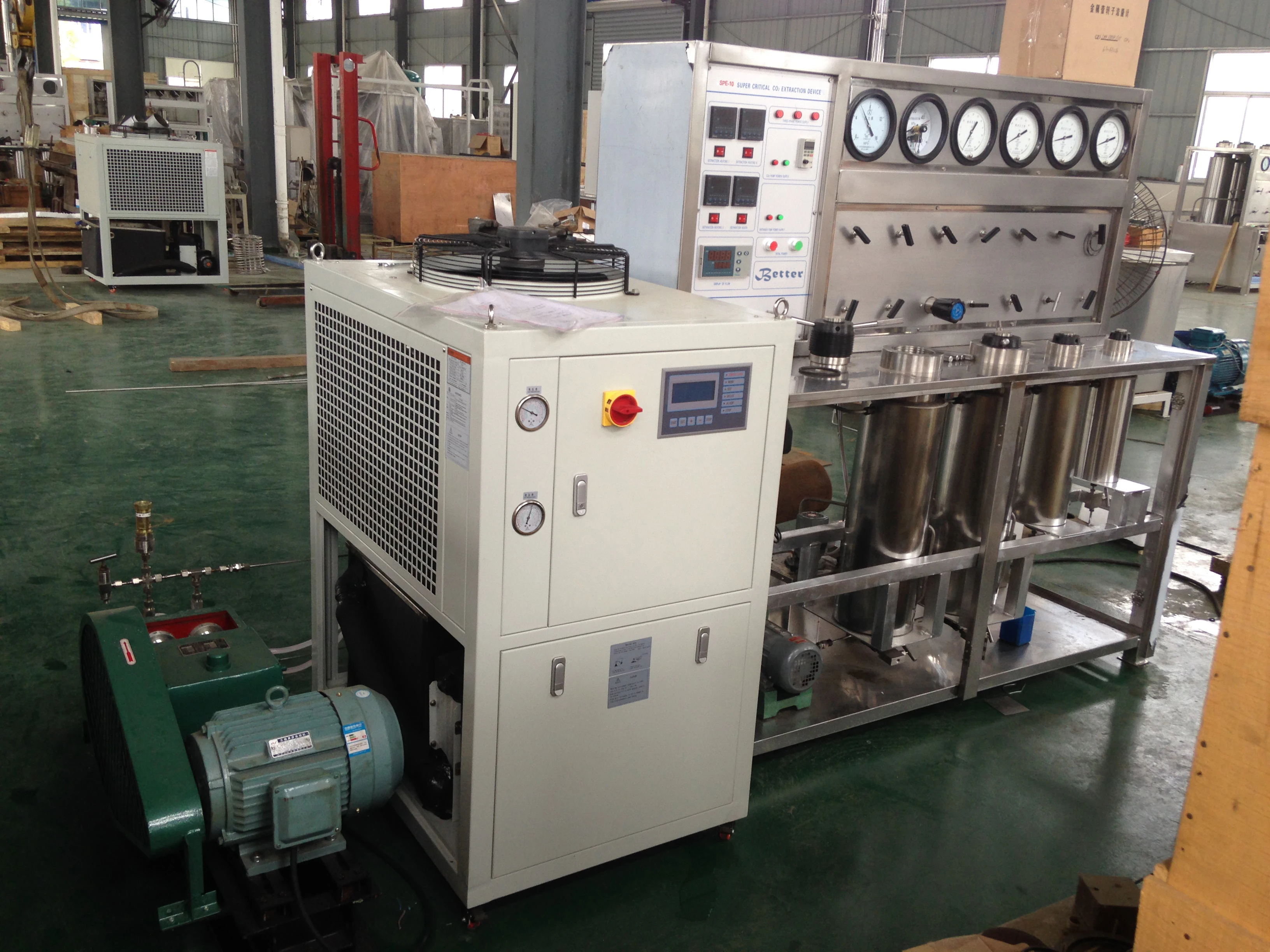

Small Scale Supercritical CO2 Extraction Machine

Supercritical CO2 extraction technology is the latest subject in modern chemical separation and it is an advanced separation technology rising in the world. The so-called supercritical fluid is the thermodynamic state liquid which is above the critical point and the critical point is the point at which the gas-liquid interface just disappears. The supercritical fluid has a very unique physical and chemical properties, its density close to the liquid, viscosity close to the gas. The big diffusion coefficient, low viscosity, big dielectric constant and other characteristics make its separation effect better, so it is a good solvent. Supercritical extraction, namely, under high pressure and appropriate temperature, solvent contact with the material in the extraction vessel, the solute diffuses into the solvent, and then in the separator change the operating conditions to separate out the dissolved substance in order to achieve separation purposes.

The Essence Extraction Machine is used for the extraction of material (solid or liquid)under high pressure and suitable temperature extraction.Changing conditions in the separation kettle, the dissolved substances will resolve in order to achieve the purpose of separation.Supercritical CO2 extraction equipment includes several parts: extraction kettle, separation kettle,commingle, CO2 high-pressure pump, entrainer pump, refrigeration system, heat exchange system, CO2 storage tank, CO2 level gauge,purification system, flow meter, temperature control system, safety protection system etc.The supercritical CO2 extraction is specially suitable for extraction of fat-soluble and heat sensitive substances with high boiling point.Take CO2 as the solvent to make extraction and purification upon a lot of products such as biological products, foodstuff and medicines.

Pre-Sales Service

* Inquiry and consulting support.
* Sample testing support.
* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.

1.What does Better need from me to quote a price?
a).Raw material
b).Production capacity per batch,we supply 0.5L~200L machine for you,big capacity of machine can be customized according to your request for your request.

2.What material can you process with this machine?
Our CO2 extract machine is widely used in extracting hemp oil, wheat embryo oil,fish oil,tobacco essential oil,Arteannuin,Sundrops oil,Gingerol,Pepper haematochrome,Hops extract etc.

3.What is the machine material you use?
Stainless steel.

4.What is the highest pressure does your machine can suffer?
50Mpa.Our standard design is 40Mpa..

5.Does the CO2 can be reused?
YES. CO2 can be used in circulation.

6.Does you machine can work under the conditions of supercritical and subcritical?
No,it can only work at supercritical state.

7.Can we do extraction test before purchasing?
Of course,we can do extraction test with your raw material and send you videos and pictures
for your reference.

8.Do you have machine in stock?
No,every machine is customized according to your order.

9.How long does it take to produce the machine once I place my order ?
The Supercritical CO2 extract machine' process flow is complex.Generally it takes about 60 workdays to Produce.We are responsible for the quality of machine our customers.Every procedure and details has to be inspected strictly.

10.How will my order be packed, can you provide the installation service?
Plywood case. And we will assemble and test the machine before packing.
