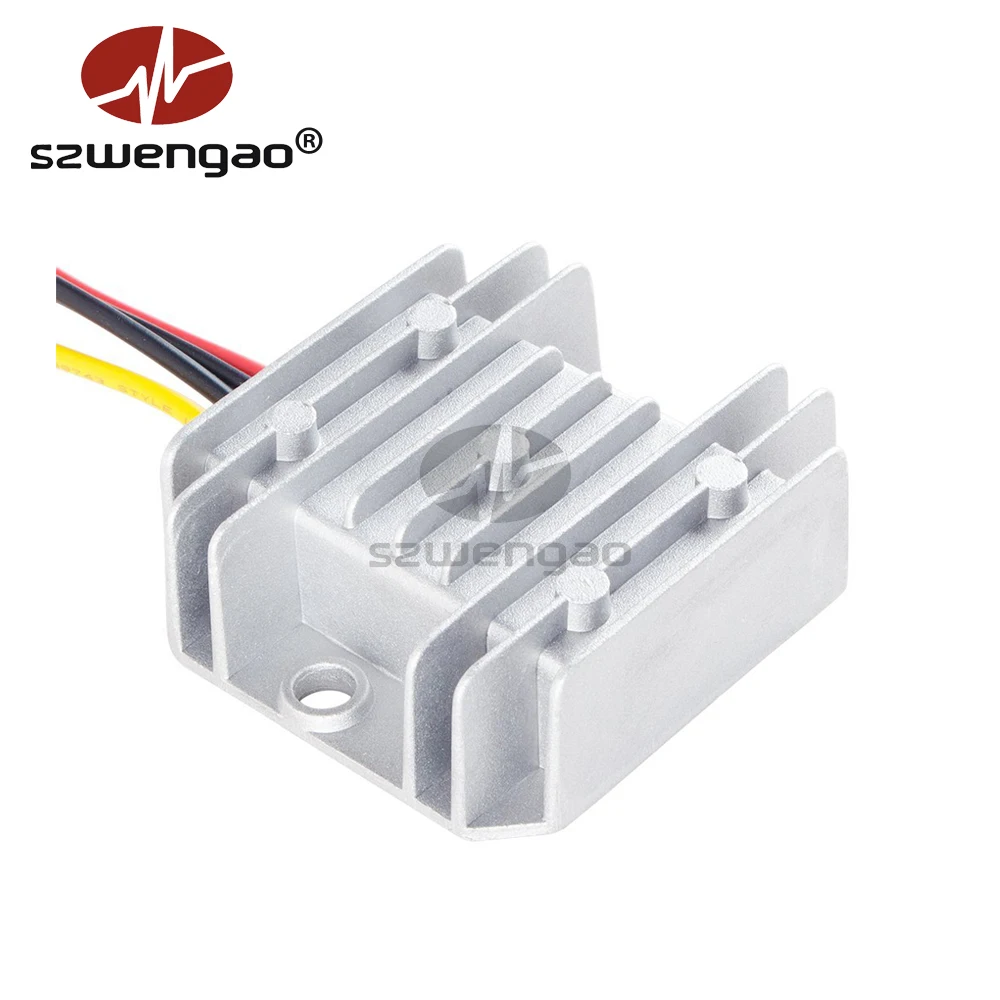

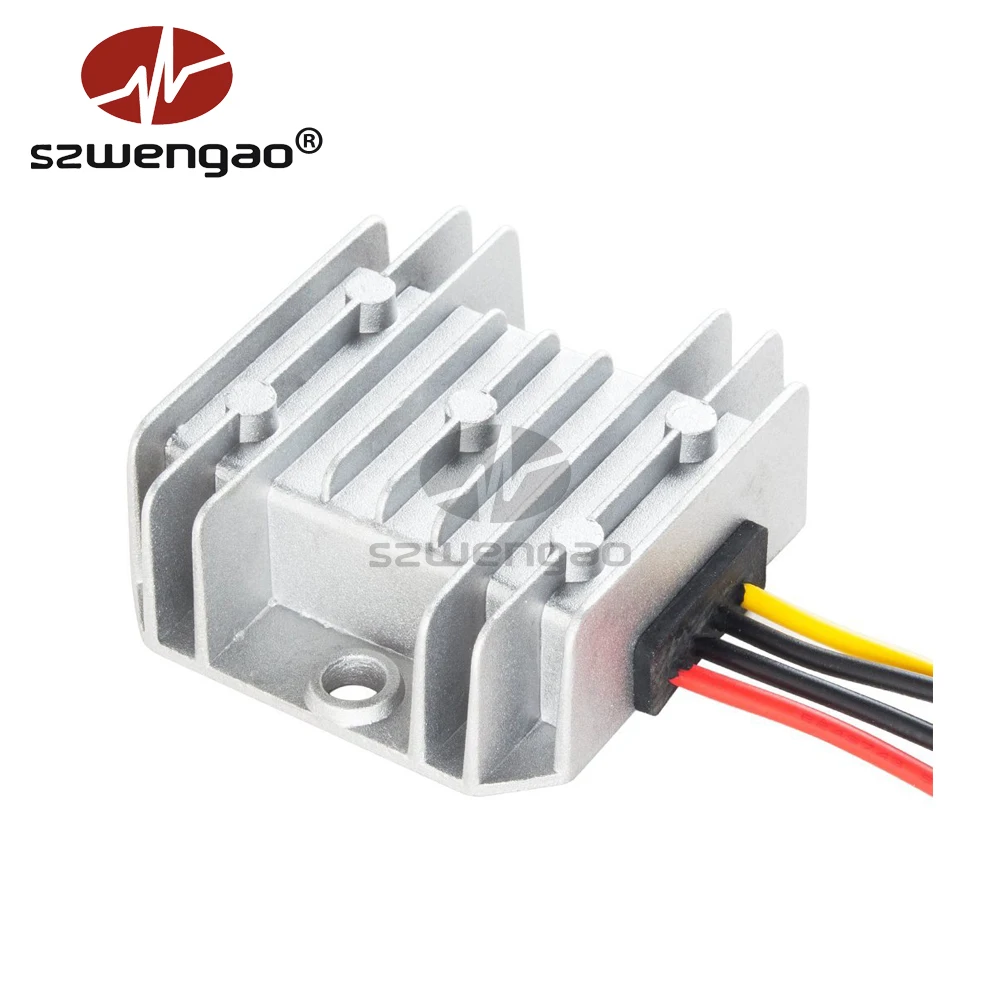

szwengao 50W Car Power Converters 12V 24V to 5V 5A 8A 10A Step Down DC DC Converter for LED Display
- Category: >>>
- Supplier: Shenzhen Wengao Electronic Co. Ltd.
Share on (62244912166):
Product Overview
Description
RECOMMEND
Model | Input voltage | Output voltage | Output power | Size |
8-40V DC | 13.8V DC | 0 - 138W | 74*74*32mm | |
8-36V DC | 13.8V DC | 0 - 207W | 100*80*39mm | |
8-36V DC | 13.8V DC | 0 - 345W | 100*80*39mm |
9-32V DC | 19V DC | 0 - 95W | 74*74*32mm | |
9-32V DC | 19V DC | 0 - 190W | 100*80*39mm | |
9-36V DC | 24V DC | 0 - 240W | 100*80*39mm | |
18-36V DC | 24V DC | 0 - 480W | 100*80*39mm |
ALUMINUM SHELL
Three-sided heat sinks, better heat conduction effect.
ORGANIC SILICA GEL POTTING
IP68 protection grade, waterproof, dustproof and anti-seismic.
SMT PROCESS
Products is smaller and lighter. High reliability and strong anti-vibration ability. Low solder joint defect rate.
IMPORTED COMPONENTS
Import of original industrial chips & capacitances ( such as TI, NCC, NICHICON and so on).

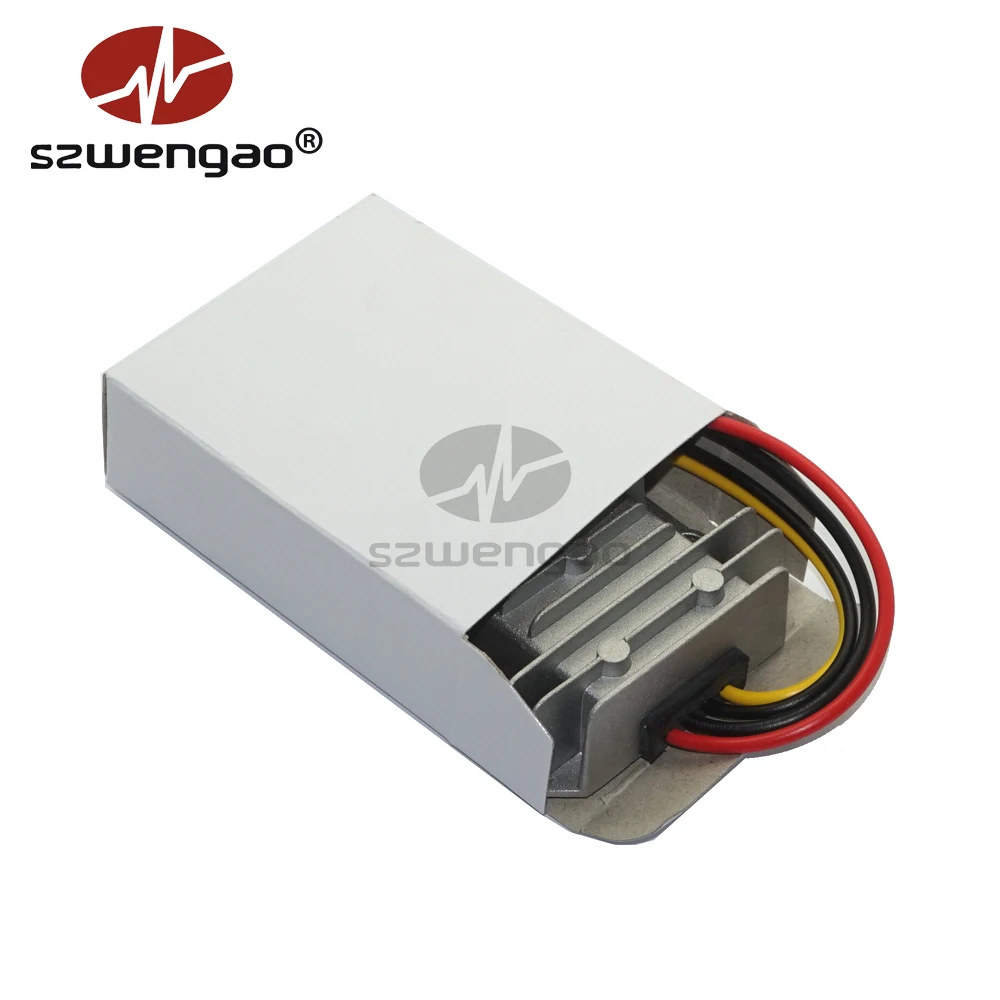

GIFT BOX
50PCS/6.7KGS/CTN/38*25*15CM
APPLICATIONS
Rail transit, communications, electrical equipment, ships, renewable energy, LED Marketplaces and so on..
NOTICE
A. Be sure to make the correct connection according to the product nameplate and the wire marking. The wrong connection will cause the damage of the product, and even result in the danger of fire and so on.
B. To ensure safety, a fuse should be connected to the input terminal to prevent the permanent damage caused by wrong connection of positive and negative pole and over-voltage. Some products have been installed the fuse before leaving the factory, and due to the current reason, you’d better match fuse for those products with no fuse.
