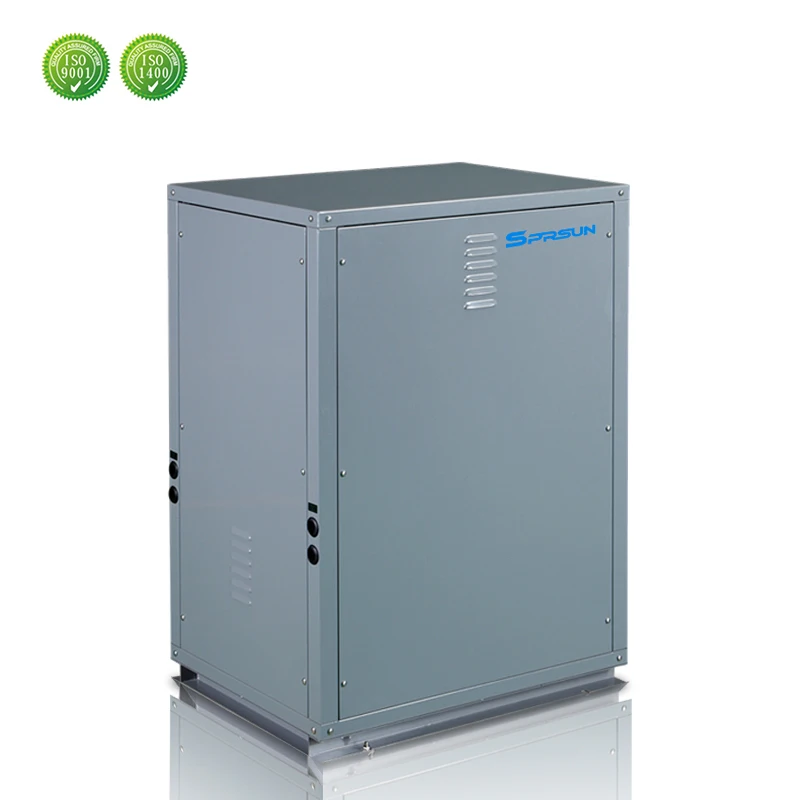

For Sale CE Approval 10kw Residential Small Heatpump Geothermal Heat pump Water to Water Air Conditioner

For Sale CE Approval 10kw Residential Small Heatpump Geothermal Heat pump Water to Water Air Conditioner

Model name :CGS-9(HC)

Working mode :Heating and cooling

Max outlet hot water :60C

Air ambient :-10C to 45C

Cop:5.2

Gross weight/pc  :93kg ,

CBM /pc :0.39

● Efficient and Energy-saving
Water to water heat pumps absorb hot energy from the water, while the electricity is only used to drive the compressor to pump up the heat from the water, so they consume just a quarter of power of traditional electric water heaters, saving a lot of electric cost for users.

● Green and Environmental Protection
By using water source energy and electric power,there is no harmful gas being discharged during the operattion of heat pumps. R410A refrigerant guarantees fluoride-free emission.

● All-weather Operation
Stable operation without being influenced by windy, rainy or snowy weather.

● Endurable
Copeland scroll compressor, Danfoss electronic expansion valve, Eaton AC contactor and thermal relay as well as other brand components of the heat pump guarantee high product quality and a long lifespan. All of our screws and clips (both external and internal) are stainless steel. The cabinet we are using is made of GALVANIZED STEEL, making the product more rust resistant and durable.

● Multiple Controller and Protection
High pressure, low pressure, overheating, overload anti-freezing, phase sequence, discharge temperature, suction temperature and so on. Controlled by multiple controllers or by computer (optional).

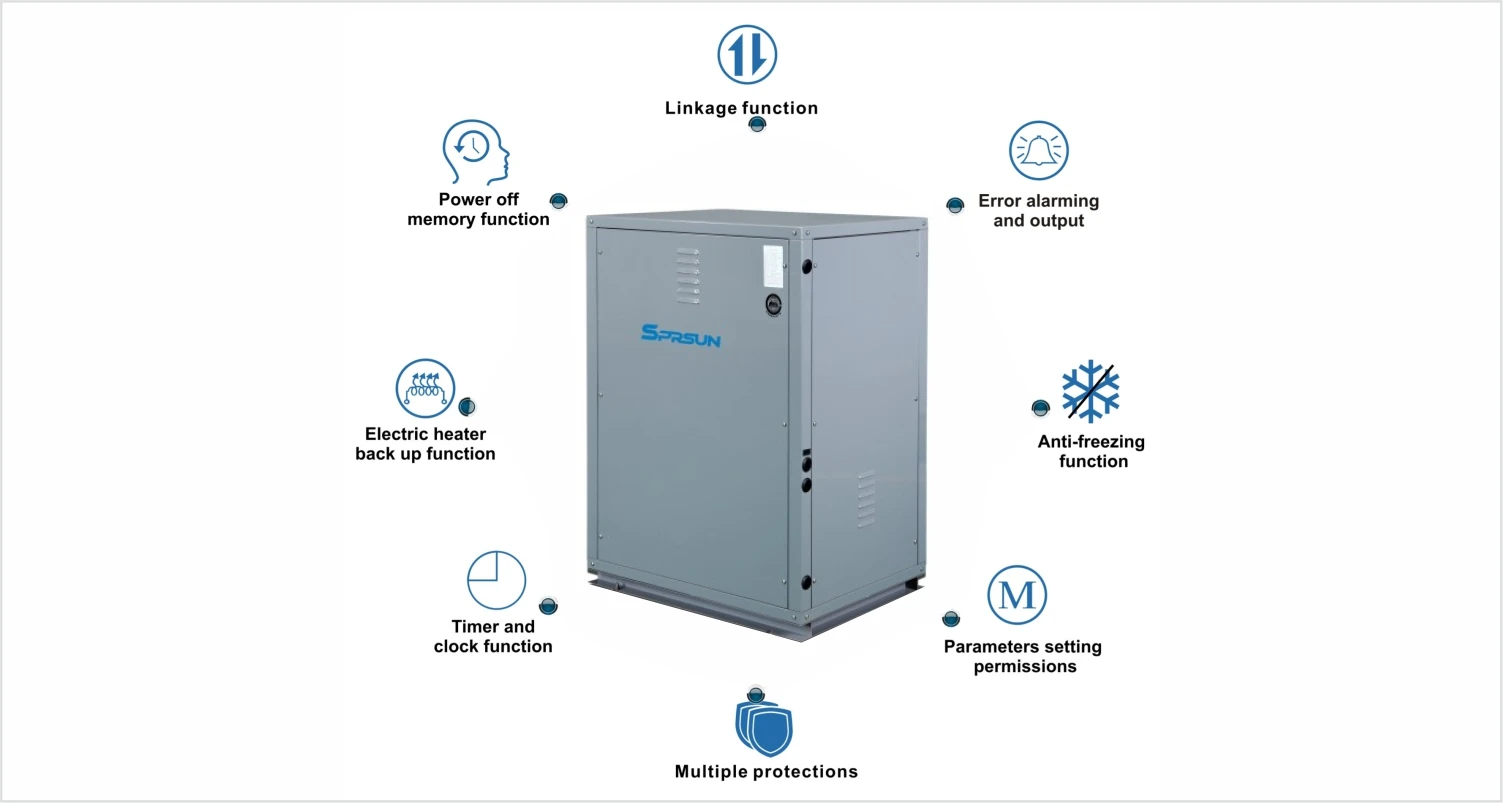

● Linkage Function
External signal on/off function

● Guaranteed Safety
Complete isolation of water and electricity avoids electric shock, explosion and poisoning.

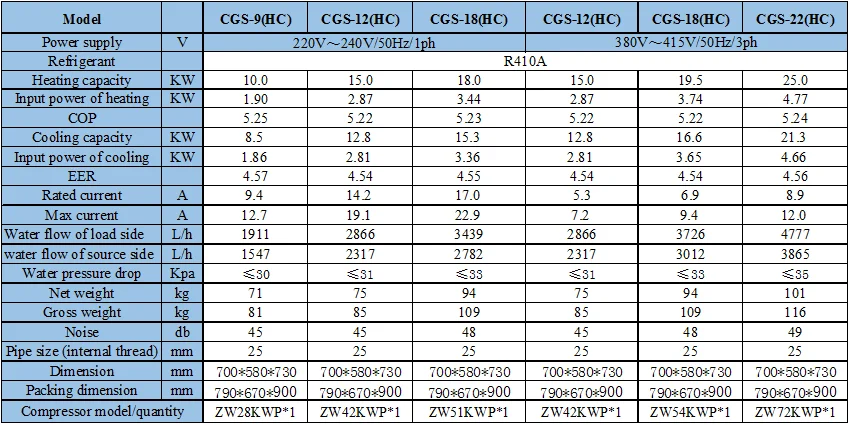

Specifications(10KW-25KW)

Rated Working Condition: dry bulb temp: 20℃, wet-bulb temp: 15℃, cool water temp: 15℃; hot water temp: 55℃.

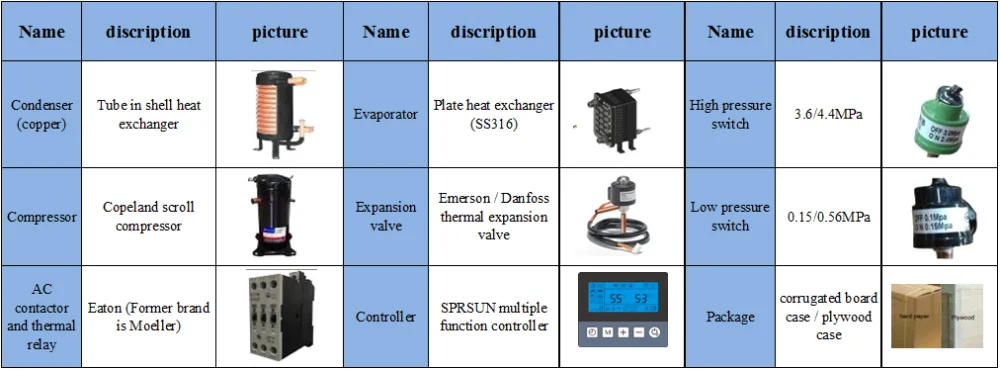

Key Components

                   Compressor :Copeland Stroll compressor

AC Contactor : Eaton brand

                          Expansion valve :Danfoss expansion valve

Installation Digragram

1.How to change from floor heating  to hot water ?

When the heating and hot water is in need , we suggest to put coils in the water tank, then the floor heating water wont mix with the shower water . Hot water will be priority , and after reaching the preset water temp , the heat pump will change to floor heating mode automatilly.

2.Heat pump also can be connected with solar collector , energy saving will up to 90% .

when the water temp cant reach the preset water temp, then the heat pump will start operating. Even in the winter, heat pump will be the mainly use in stead of the solar heater.

3.Installation components :

water tank, circulation water pump, three way valve, water flow switch , water pipes, filter , safe valve  and etc.

Our company can supply water tank, circulation water pump , three way valve, safe valve,  if you need, kindly let us know in advance.

Testing lab

100% test before shipment  and also testing for new models

Welding

Excellent welding guarantee no leakage

Copper covering

Circut connections for the mainboard

Compared with solar water heaters, gas water heaters and electric water weaters, the energy cost saved by SPRSUN heat pump water heaters is shocking.

Under 20℃ environment temperature and 15℃ water temperature condition, sample for heating 200L water to 55℃.

As one of the Top 10 brand in China's heat pump industry, SPRSUN has been in the heat pump industry for 20 years. With a strong R&D center and 6 production lines, we are specialized in producing air to water heat pumps ,high temp heat pump, EVI low temp heat pump , EVI inverter heat pump , DC inverter heat pump and swimming pool heat pump , getherrmal  ground source heat pump for the HVAC market, providing home heating and cooling system . Our products are welcome all over the world, such as Germany, Sweden, Serbia, Turkey, Czech, Russia, Vietnam, Australia, South Africa and so on.

Workshop

6 Production Lines & 1 National Standard Heat Pump Testing Lab

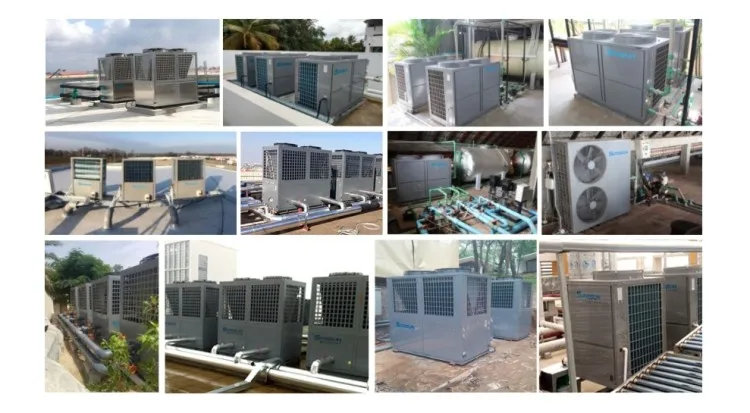

SPRSUN Heat Pump Projects Worldwide

Certifications

Focusing on hot water, heating and cooling, SPRSUN is built up to meet customers'special energy saving needs with advanced technology support from Germany while ISO9001 and ISO14001 have been obtained. Our heat pump products are produced based on EN14511 standard with CE, CB, SAA, ETL and ERP certificates.

A: Yes, we are a professional heat pump manufacturer since 1999, with experienced and improved R&D, production, sales and service supply.

A: Our main products include air source heat pumps, water/ground source heat pumps, swimming pool heat pumps, high temperature heat pumps, EVI heat pumps for cold area and so on.

A: Please send us an inquiry or contact us with online service; after receiving your inquiry, we will reply to you with our catalogue, quotation and other information you need.

A: Yes, we warmly welcome your heat pump OEM/ODM opportunities. We can produce Europe standard heat pumps under your brand and according to your special needs.

A: Yes, we are currently looking for more heat pump distributors/resellers across the globe, who can distribute our heat pump products in their local countries.

Our warranty is 18 months, but actually we provide lifelong maintenance service. Within 18 months since the delivery date, if the product has any failure under normal usage, SPRSUN will provide free assembly parts. After the warranty period, we will continue to provide lifelong maintenance service, with just a small amount of charges.
