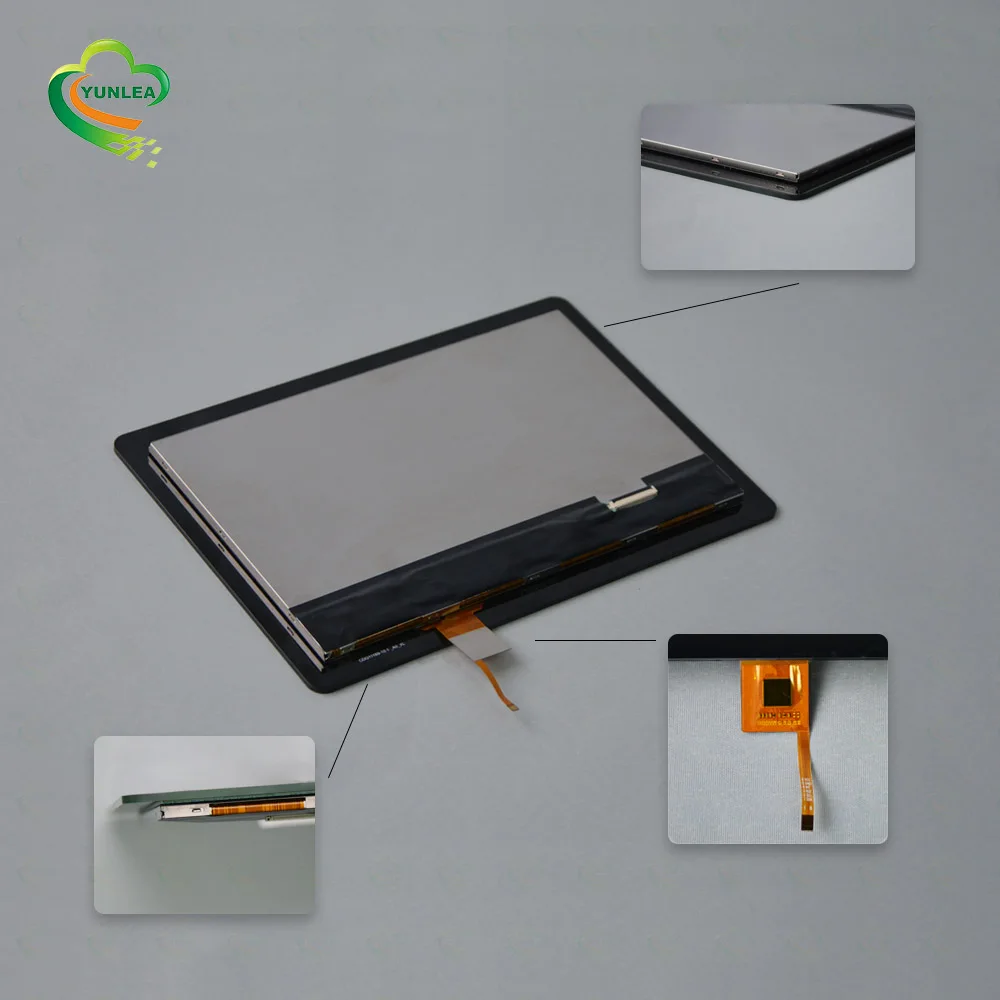

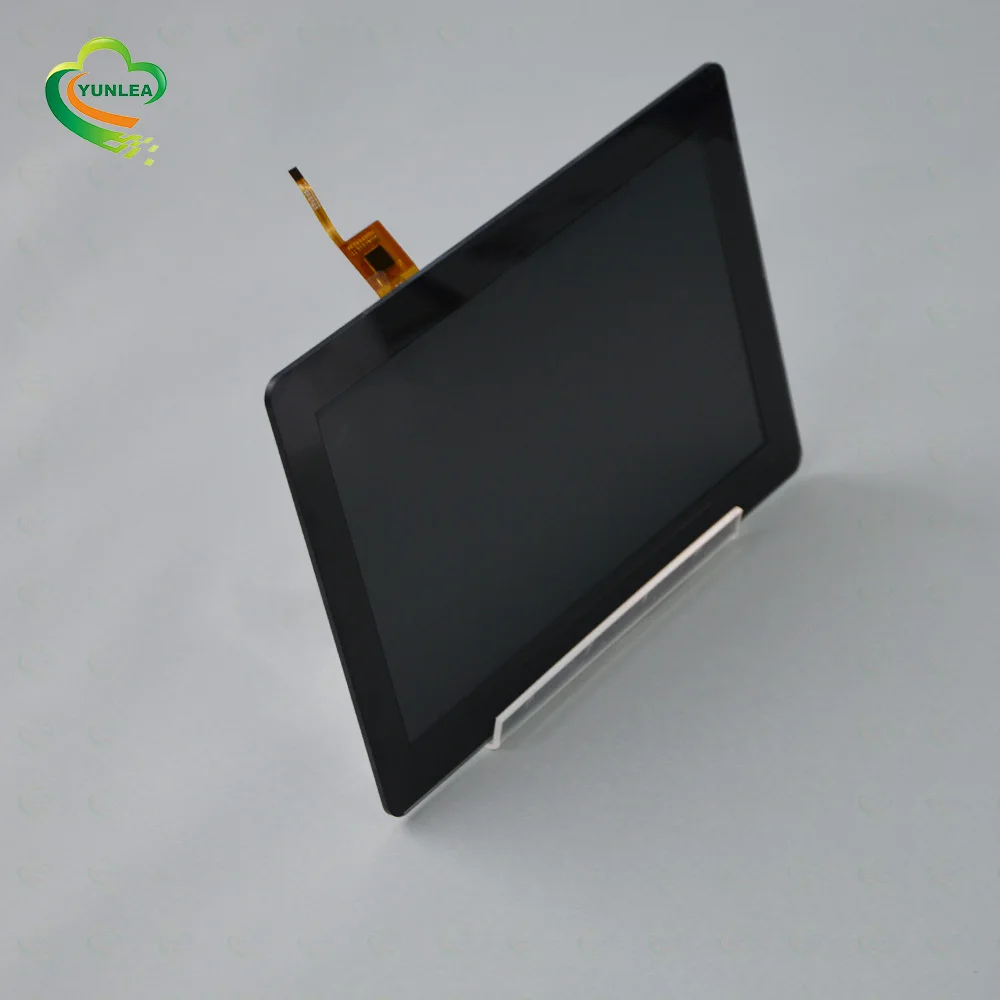

Flexible display touchscreen 10 10.1 inch tft lcd with capacitive touch panel display
- Category: >>>
- Supplier: Shenzhen Yunlea Electronics Co. Ltd.
Share on (62244921961):
Product Overview
Description
Product Description

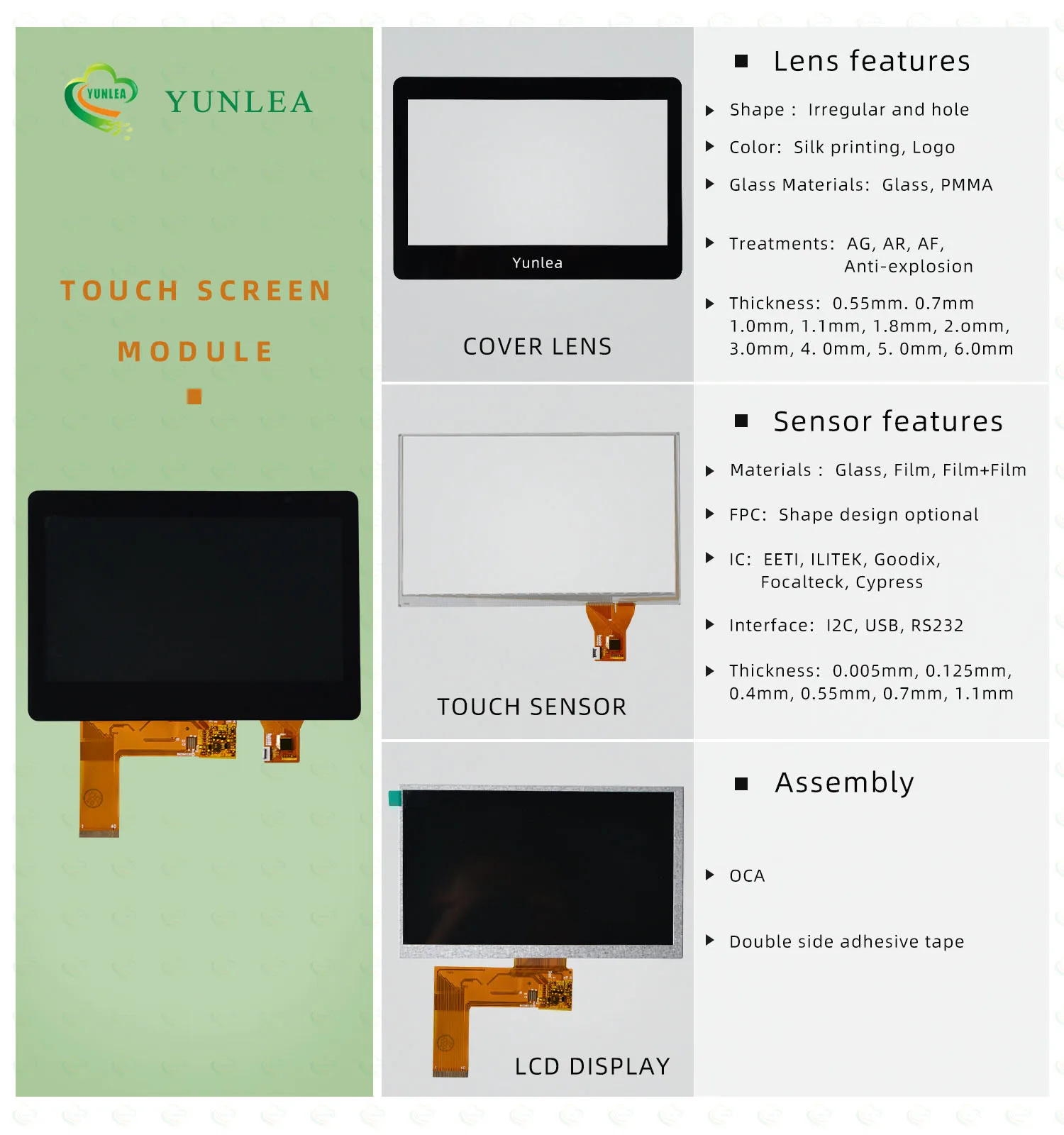

Yunlea Capacitive touch screen panel manufacturer
Customize CTP/CTP+ LCD DISPLAY from 1.44 - 65 inch
Full range of standard product up to 65 inch in stock (no need customization)
Full range of standard product up to 65 inch in stock (no need customization)
- 1. 5000 m2 factory area
- 2. 2-4 weeks for mass production
- 3. Individual customization of size, style, logo print, AG, AR, AF
- 4. Optical bonding of TFT and touch panel
- 5. Touch with water/glove
- 2. 2-4 weeks for mass production
- 3. Individual customization of size, style, logo print, AG, AR, AF
- 4. Optical bonding of TFT and touch panel
- 5. Touch with water/glove
Recommed product
|
|
LOGO printing Outline size Resolution Brightness Interface Customized Available!!
Water touch Glove touch Multi touch Anti-glare Anti-reflaction Customized Available!!
|
|
|
Specification
| Yunlea Capacitive touch screen display specification | |

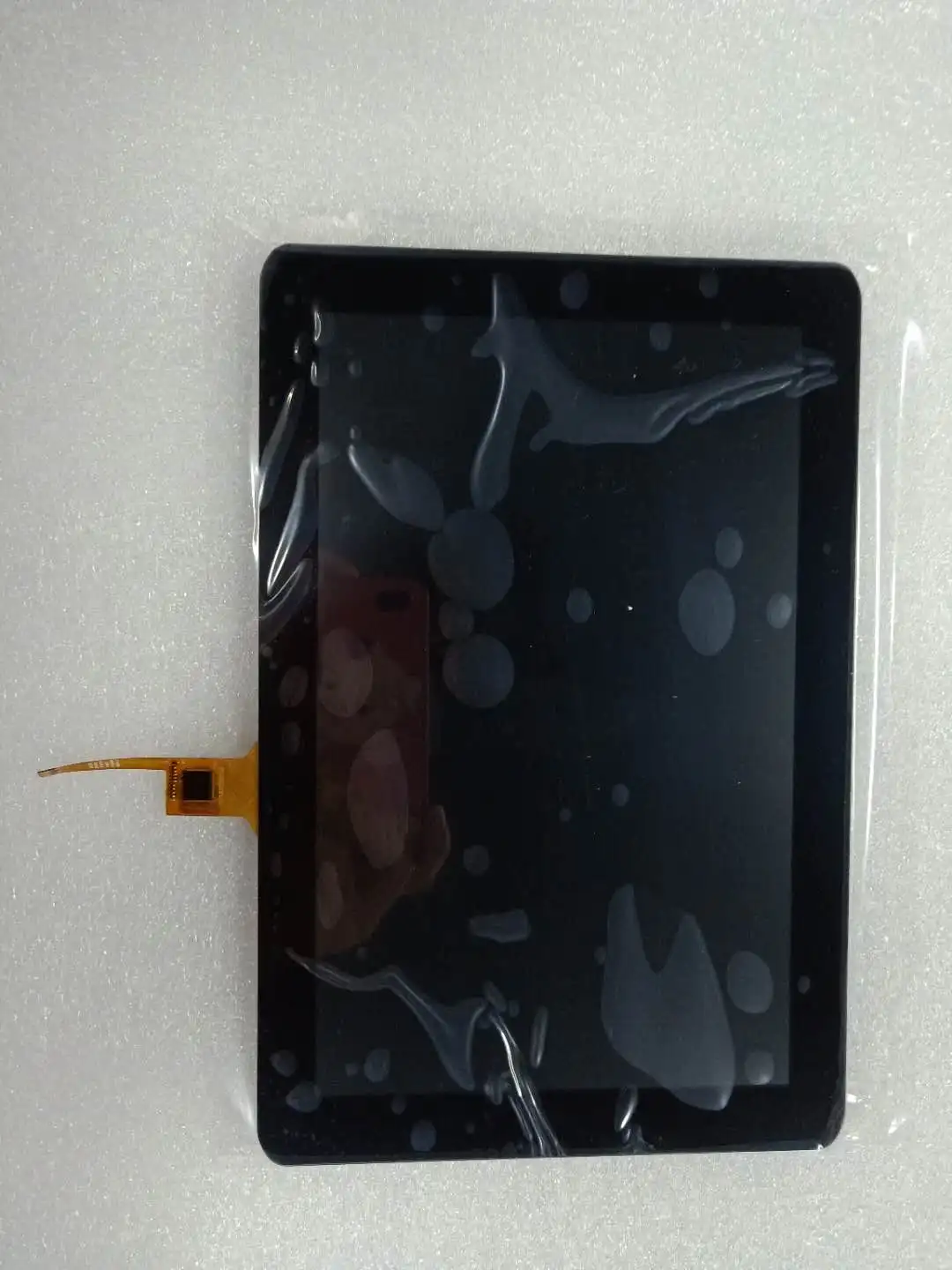

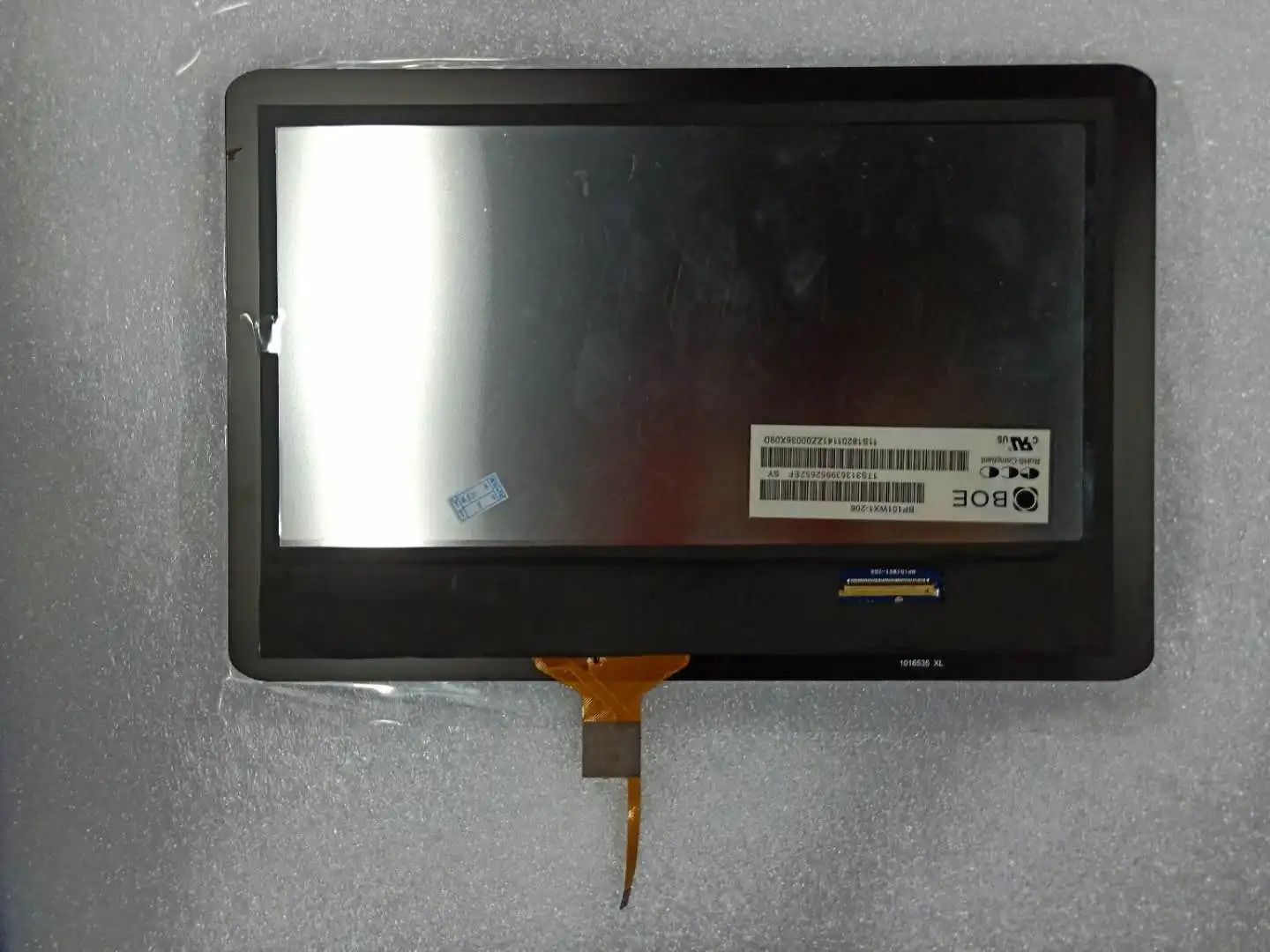

| Size | 10.1 inch (standard size up to 65 inch) |
| Outline Size | 235x143x6.5 mm |
| Window view area | 222.75*125.28 mm |
| Resolution | 1024x600 |
| Brightness | 350 cd/m2 |
| touch points | 5 points |
| Interafce | RGB for LCD, IIC for touch panel |
| Structure | TFT LCD + capacitive touch |
| Touch solution | Chip on FPC |
| Surface hardness | 6H |
| Operate system | Win7,win8,win10,Android, Linux, Mac, etc. |

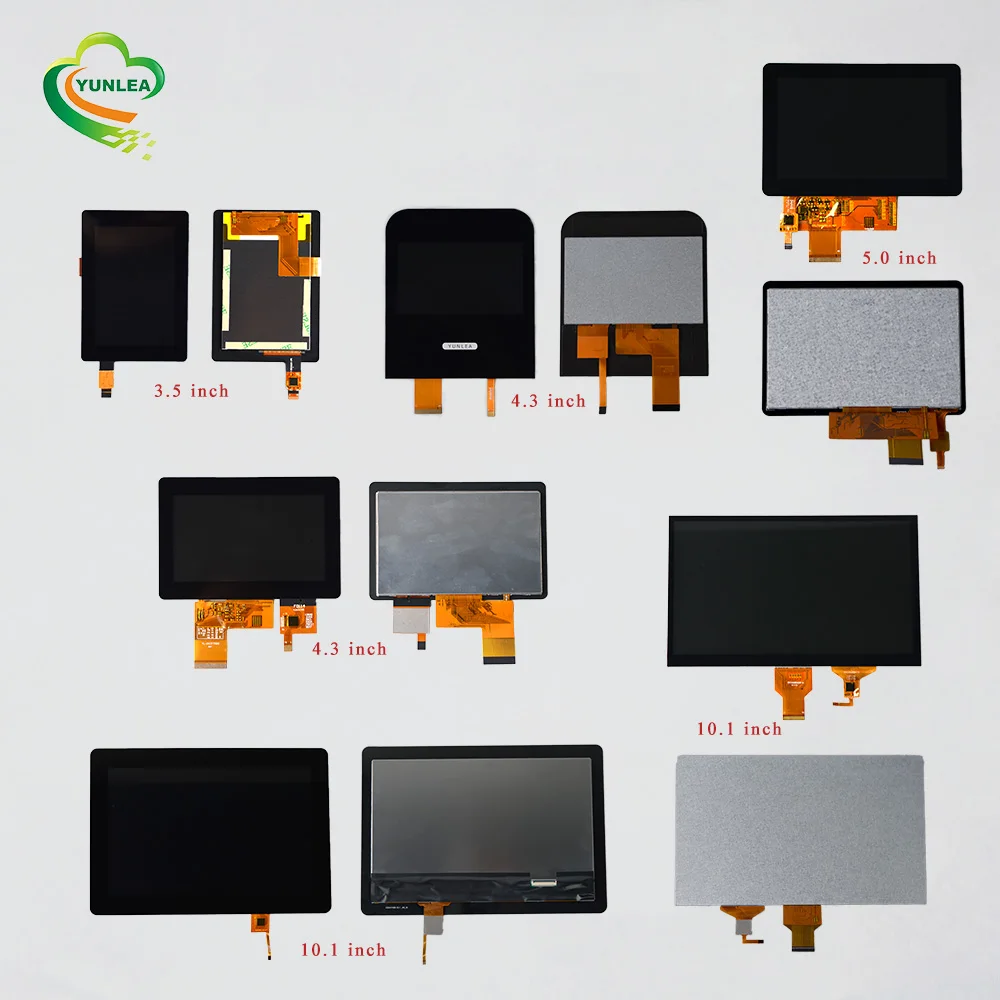

Product Catalog
| Size | Part No. | Sensor OD | Sensor (T) | Lens OD | Cover glass(T) | Window VA | Touchcontroller | |

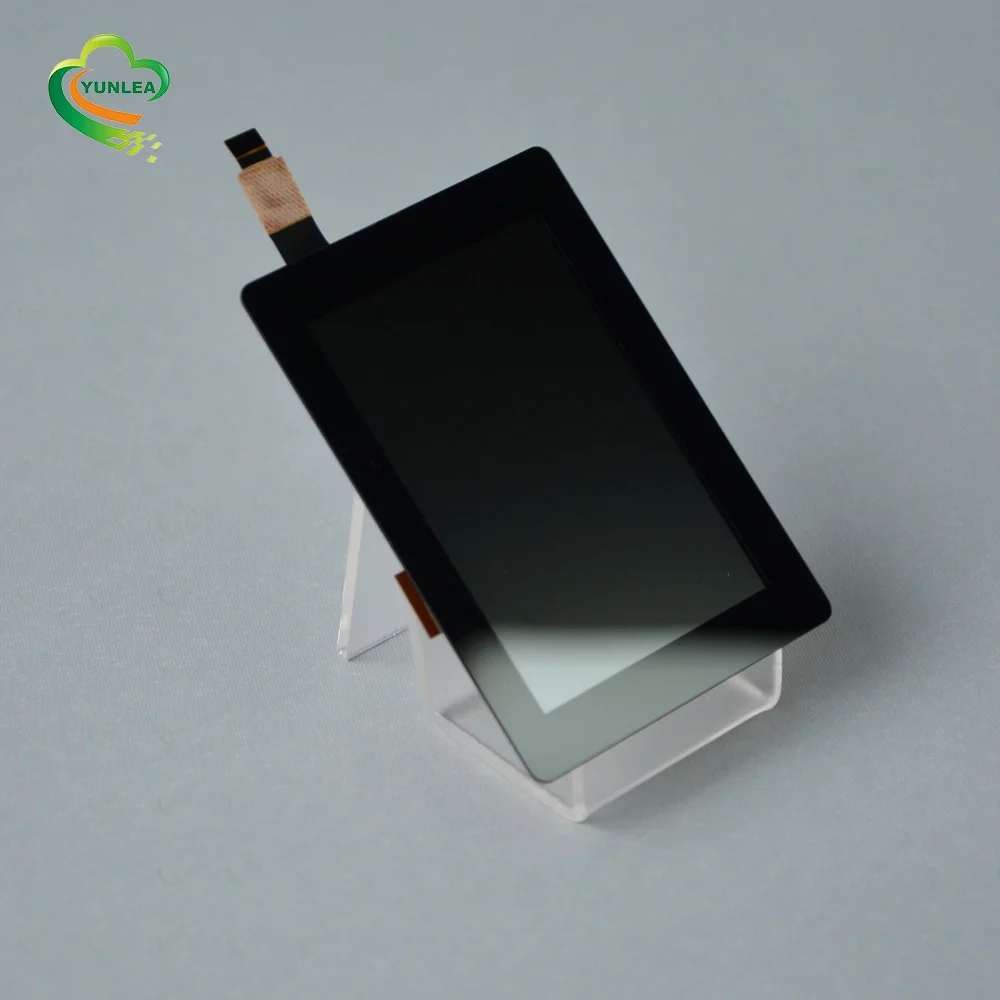

| 3.5 | YL035CY03 | 82.34X56.86 | 0.4 | 94.94X66.86 | 0.7 | 74.94X50.36 | Mstar 2133A | click |
| 4.3 | S82327H | 103.10x85.40 | 0.7 | 114x77 | 0.7 | 96.04x53.86 | FT5346 | click |

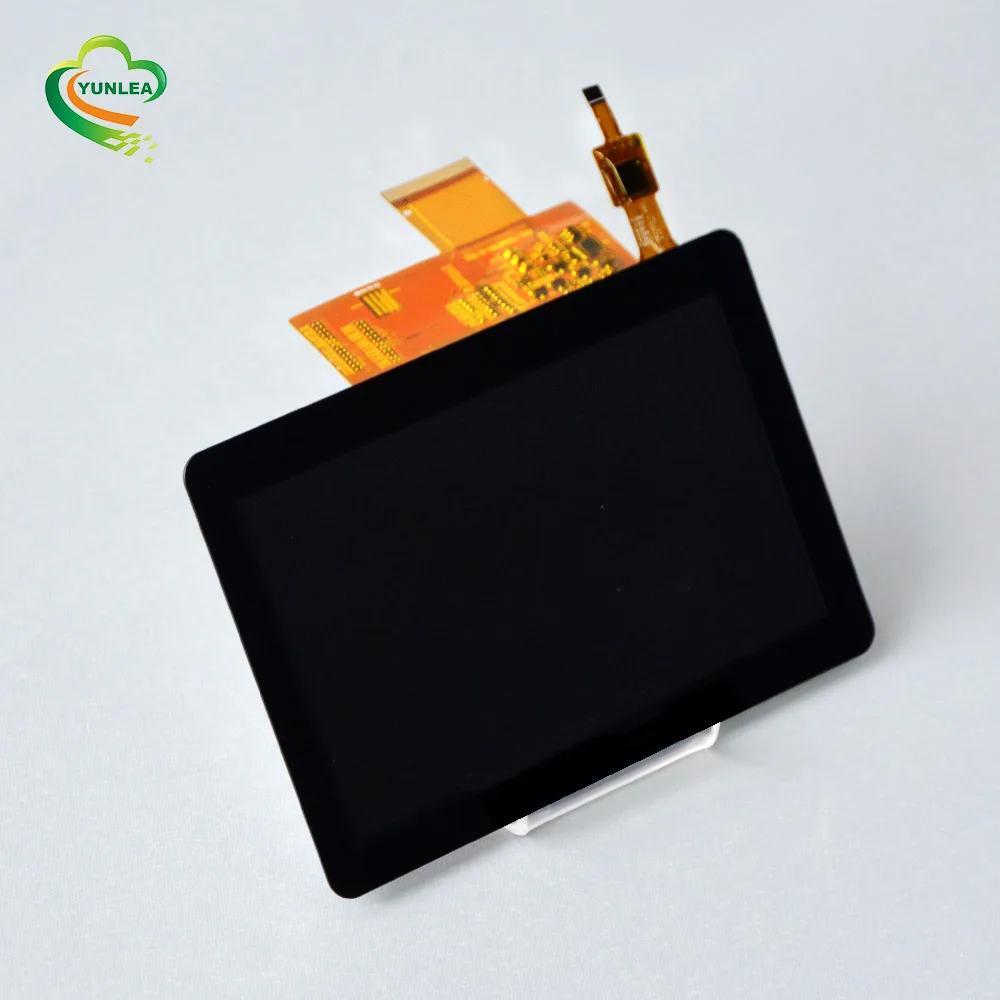

| 5 | YL050CY01 | 120.7X75.8 | 0.55 | 127X85.80 | 0.7 | 109x65.8 | FT5436 | click |

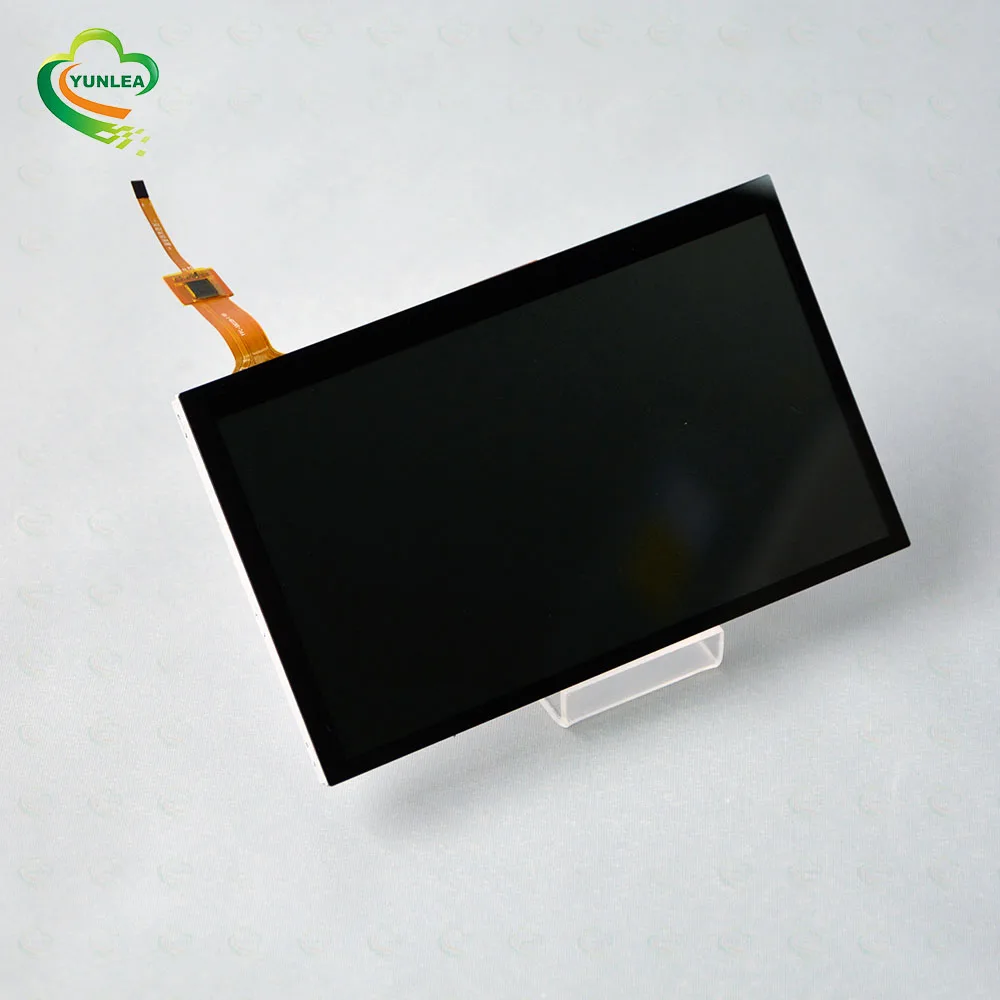

| 7 | YL070CY01 | 159.70X94.10 | 0.55 | 164.90X100 | 0.7 | 154.08X85.92 | FT5436 | click |
| 8.4 | 8333084V01 | 182X140.2 | 0.7 | 207X166 | 1.1 | 170.4x127.8 | EETI/ILITEK | click |
| 10.1 | 8154101V02 | 239.6x158.20 | 0.7 | 254.96x172.6 | 1.1 | 217.96X136.6 | EETI/ILITEK | click |
| PET+Glass | 248.1x151.5 | 1.1 | 257x159.5 | 0.25 | GT928 | click | ||
| 10.4 | 8334104V01 | 233.4X177.9 | 0.7 | 259.10X206.3 | 1.1 | 213.1X160.3 | EETI/ILITEK | click |
| 12.1 | 8335121V01 | 259.6X201.1 | 0.7 | 293X237 | 1.1 | 246X184.5 | EETI/ILITEK | click |
| 12.3 | 8424G123 | 306x127.5 | 0.7 | 322x139.5 | 1.1 | 292.03x109.51 | EXC80H83 | click |
| 13.3 | 1338500V03 | 310.52x183.57 | 0.7 | 330.92x215.89 | 1.1 | 294.92x166.46 | ILITEK | click |
| 15 | 8001150V03 | 319X244 | 0.7 | 339.9X263.9 | 3 | 304X228 | ILITEK | click |
| 8278150V02 | 329X245 | 0.7 | 339.9X263.9 | 3 | 304X228 | EETI/ILITEK | click | |
| 15.6 | 8002150V03 | 358X210 | 1.1 | 387X231 | 3 | 344X194 | ILITEK | click |
| 8156156V01 | 362X222 | 0.7 | 387X231 | 1.1 | 344X194 | EETI/ILITEK | click | |
| 1568825 | 360.9x212.2 | 0.55 | 379x225 | 3 | 343.8x192.5 | ILITEK | click | |
| 17 | 8003170V03 | 356.92x290.34 | 0.7 | 377x209 | 3 | 338.92x271.34 | ILITEK | click |
| 8273170V01 | 366.58X299 | 0.7 | 377X309 | 3 | 338.92X271.34 | EETI/ILITEK | click | |
| 17.3 | 8562173V01 | 399.7x235.9 | 0.7 | 402x239 | 1.1 | 383X216 | EETI | click |
| 18.5 | 8005185V03 | 429.8X249.9 | 0.7 | 458X283 | 3 | 410.8X231.4 | ILITEK | click |
| 8163185V01 | 430.8X261.4 | 0.7 | 440.8X271.4 | 1.1 | 410.80X231.4 | EETI/ILITEK | click | |
| 19 | 8006190V03 | 395.32x321.06 | 0.7 | 421X346 | 3 | 377.32X302.06 | ILITEK | click |
| 19.5 | 8007195V02 | 450.5X259.76 | 1.1 | 473.5X281.26 | 3 | 433.5X241.26 | ILITEK | click |
| 21.5 | 8888215V01 | 496.42X287.43 | 0.7 | 524X321.8 | 3 | 477.6X269.10 | ILITEK | click |
| 8160215V02 | 508X303.8 | 0.7 | 524X321.8 | 1.8 | 477.6X269.10 | EETI/ILITEK | click | |
| 23.6 | 9001236V01 | 544.03x315.5 | 0.7 | 537X349 | 3 | 525.5x297 | ILITEK | click |
| 23.8 | 9002238V01 | 544.03x315.5 | 1.1 | 573x349 | 3 | 525.5X297 | ILITEK | click |
| 27 | 8014270V02 | 618X355.7 | 1.1 | 646X384 | 3 | 598X336 | ILITEK | click |
| 8245270v01 | 619x362 | 1.1 | 646x384 | 3 | 598X336 | EETI/ILITEK | click | |
| 32 | 8016320V02 | 719.7X414.3 | 1.1 | 746.7X441.3 | 3 | 698.7X393.3 | ILITEK | click |
| 8246320V01 | 720.7X420.3 | 1.1 | 746.7X441.3 | 3 | 698.7X393.3 | EETI/ILITEK | click | |
| 43 | 8018430V02 | 973X561.5 | 1.1 | 994.2X587.3 | 4 | 943.2X531.4 | ILITEK | click |
| 55 | 8021550V01 | 1254.6X716.417 | 1.8 | 1287.6X758.4 | 4 | 1209.6X680.4 | ITLITEK |

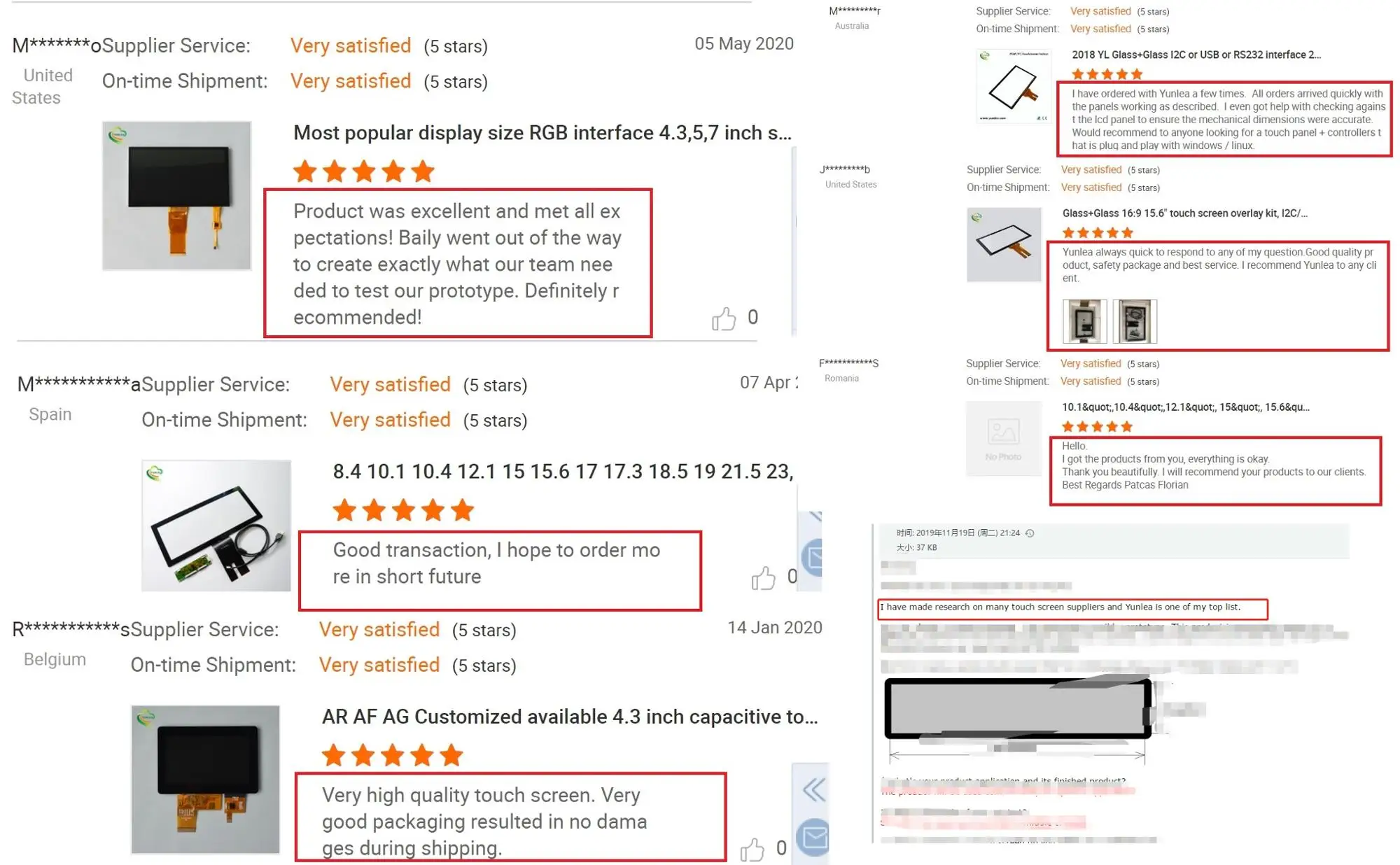

Customers Feedback
We got may positive feedbacks from our customers. It's really good for they to say YES.
Company Information
Shenzhen Yunlea Electronics Co., Ltd.
Specialized in this field for 10+ yrs industry experience with the strength of customize individual PCAP touch panel. Yunlea mainly export touch panel to foreign market and have full experience in customizing touch panel for heavy branded customers like Ge, Siemens, MELFAS etc...
We already passed the factory audit from Bureau Veritas.
Should you have any questions, pls click to contact me.
Sincerly invite you to come and visite our factory, if the schedule available.
FAQ
1.What is your delivery method?
DHL , UPS , FEDEX ,TNT
2. What is the lead time of the products?
Samples in stock will be sent within 3 days after payment.
Two to Four weeks for mass production
3. Payment methods?
T/T, Paypal and Western union etc.
For samples: payment in advance.
For mass production: 50% deposit and 50% balance before shipment.
4. How long is the warranty period?
Generally the warranty period is one year. It depends on different products.
5.What is the Product MOQ?
Different product has the different MOQ, please contact us sales for detailed information.
6.What is the products application?
Widely used in instrument, handheld devices, industrial control, medical, automotive, smart home and other fields.
