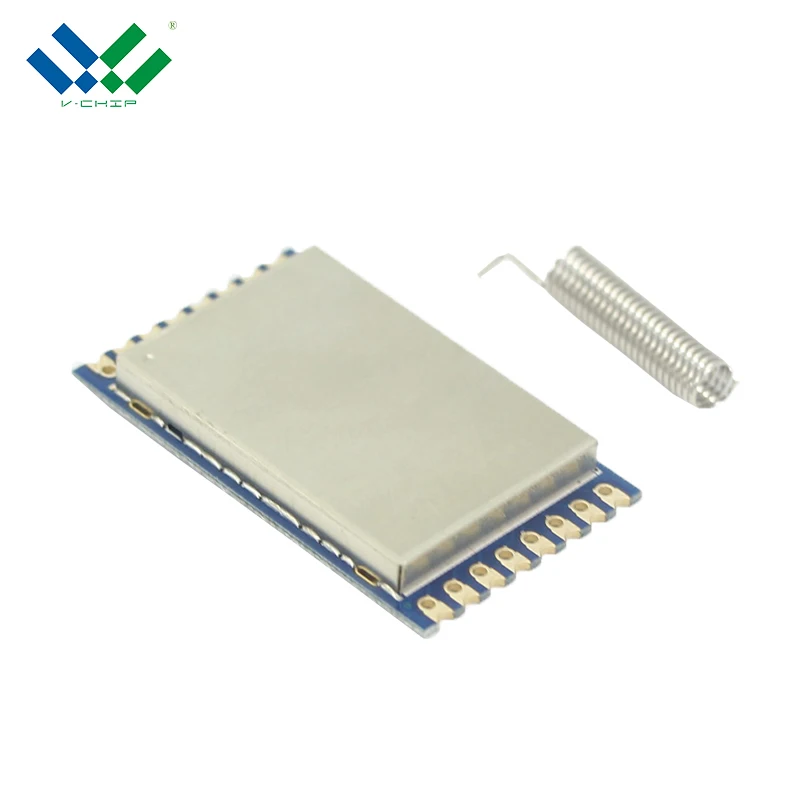

VCHIP CC1120 PA LNA High Power 868MHz 22dbm Transmitter 915 mhz rf tx serial uart module
VT-CC1120PL-868/915M is based on RF Transceiver CC1120 of TI Chipcon,CC1120 is fully integrated single-chip radio transceiver designed for high performance at very low power and low voltage operation in cost effective wireless systems. Added PA, LNA circuit, enhanced output power and sensitivity.The module integrated many RF functions thus you can use it conveniently and reducing your development time.
Detail Parameters
Test operating conditions:Ta=25°C,VCC=3.3V if nothing else stated.
Parameter
Type
Condition/Note
Operating supply voltage
DC 3.0~3.6V
Frequency range
820-960MHz
Programmable
Frequency accuracy
±10ppm
Modulation format
2-FSK/4-FSK/2-GFSK/4-FSK/MSK/OOK
Programmable
Transmit power
MAX:26dBm(3.3V)
Programmable
Receiver sensitivity
-125dBm
1.2kbps DEV=4KHz RX BW=25KHz
TX current consumption
≤250mA
RX current consumption
≤25mA
Sleep State current consumption
<1uA
Transmit distance
5000M
Antenna impedance
50ohm
Operating voltage
3.0~3.6V
Operating temperature
-40~+85 °C
Storage temperature range
-40~+125°C
Dimension
36.3×22.2mm×4.0 mm(With shield cover)
Note:
1. The module transmission data rate will affect Transmission distance ,the higher the data rate , the closer the distance, and the lower the receiving sensitivity.
2. The supply voltage to the module will affect TX power, in the operating supply voltage range, the lower the voltage, the lower the TX power.
3. The module central frequency will change as the operating temperature change, use it under suggest temperature, the module can work well.
4. The antenna will strongly affect the communication distance, please select matched antenna and connect it correctly.
5. The module mount will affect the communication distance.
Features
Related Product
Applications

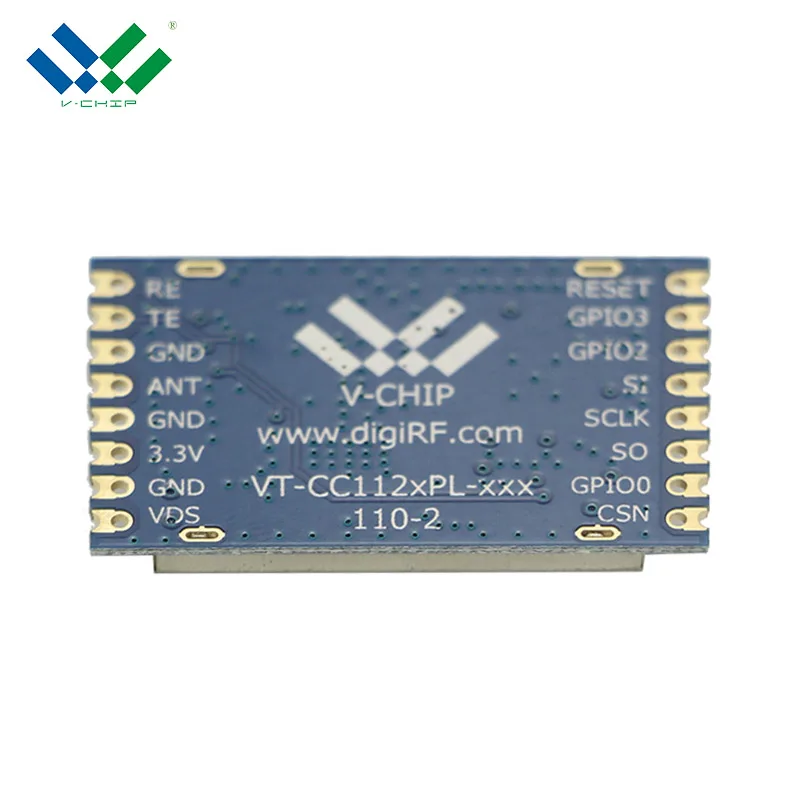

Pin name
Pin type
Description
RESET_N
Digital in
Reset; low level valid
GDIO3
Digital in/out
Digital I/O, register configuration
GDIO2
Digital in/out
Digital I/O, register configuration
SI
Digital In
Digital in (SPI)
SCLK
Digital In
Time input (SPI)
SO/GPIO1
Digital In/out
Digital output (SPI) or general digital In/out port
GDIO0
Digital In/out
Digital I/O, register configuration
CSN
Digital I/O
Module select (SPI), low level valid
RE
Status control
RX=0,TX=1,SLEEP=0
TE
Status control
RX=1,TX=0,SLEEP=0
GND
ground
ANT
Antenna port
Impedance 50 ohm
3.3V
Work power
DC 3.0-3.6V
VDS
Power amplifier
Power amplifier, default short circuit
Configuration Registers
The configuration of CC1120 can be done with software SmartRF Studio7. Complete descriptions of the registers are given in the CC1120 datasheet. We can provide evaluation board and demo code to the customer to develop and evaluate the module’s capability.
Company Information
Packaging & Shipping
FAQ
Description
Reason and Solution
Can’t communication
1.The power supply connect not well, check the module VCC whether it is out of maximum rating.
2.The signal line connect not well, check the module SPI interface.
3.The settings of the transmitter module and receiver module are not the same. Check these modules’ register configuration.
4.Signal block. If the transmitter work with a high TX power, and the receiver was put at a short distance(<0.5m), maybe there is a signal block to make no communication.
Communication distance is too short
1.The application environment is too bad or the antenna is shield. Put the antenna to a better place outside or higher throw a coaxial line , replace it with a higher gain antenna.
2.The work space contains a same frequency interference source, or a strong magnetic field interference,power source disturbance. Try to change the carrier frequency or get far away from the source of the disturbance.
3.The power supply is not strong. Check the voltage and the current whether it is enough.
High data error
1.The power supply ripple is too big, Change the power supply.
2.Check the module register configuration, it is recommended to set as the CC1120-datasheet.
3.There is a carrier frequency interference, change the channel.
4.The antenna unmatched to the module RF interface, change another matched antenna.
