1.5M length 26 AWG with 5.5*2.1*10mm DC(CUSTOMIZED)
Ripple and Noise
<120Mv at full road with 20MHz bandwidth
Input
Rated Voltage
100Vac~240Vac
Frequency Range
47Hz~63Hz
conversion efficieny
>85%
Protection
Over Voltage,Load& Current /Short Circuit /High Temp
Temperature
Operating Temperature
0°C----+60°C
Storage Temperature
-20°C----+85°C
Isolation test
Isolation voltage
Input/output terminal 3000VAC,5MA
Other
Type
Plug in

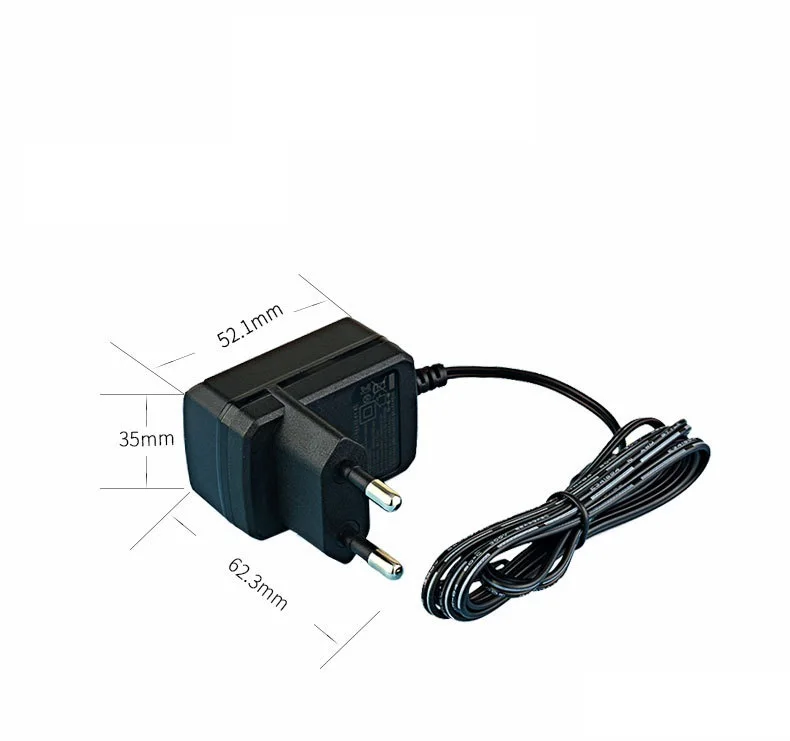

Size(mm)
35.4*52.1*46mm
Certification
ROHS ETL CE KC PSE CB FCC GS BIS SAAapproved
Shell color
Black/White
Shell materials
ABS or P
C
Workshop & Equipment :
Certifications
Our Services
Packaging & Shipping
Company Information
Afer several years development ever since 2006,Shenzhen Walon Technology CO.,LTD, has become a professional power manufacturer with important influence all over the world. Hengqing is a national hi-and new-tech enterprise and top well known brand in Chinese electronic industry.Integrating the R&D,manufacturing and sale of products together with services,we are leading in technology innovation of power supply. The range of our products' power is from 5W to 200W, the voltage is 3~56V, the electric current is 0.3A~15A, there are more than 200 kinds of products in our company, including the AC adaptor, DC-DC power supply, charger, open frame and LED power with programmable dimming function, etc.
