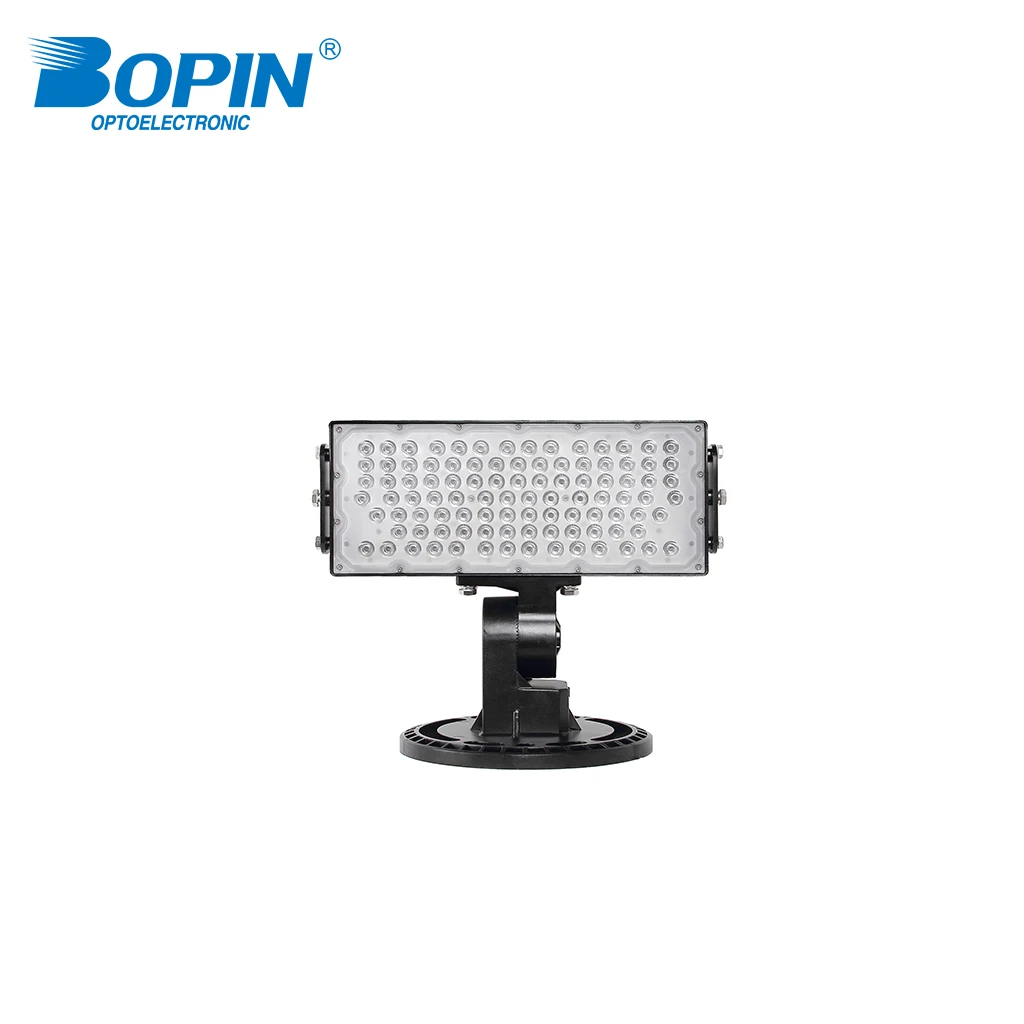

High power bridge light IP66 led flood light 300w 140lmw led high mast light
- Category: >>>
- Supplier: Zhejiang Boshang Optoelectronic Co. Ltd.
Share on (62245159529):
Product Overview
Description
Product Description
LED Chips
With high lumens chips to
maximum the lumen output,
system effect is 130~140lm/W,
lifespan is up to 50000 hours.
maximum the lumen output,
system effect is 130~140lm/W,
lifespan is up to 50000 hours.
PC Lens
Adopts high transparency
PC lenswith soft and well distributed light, the light transmittance >92%.

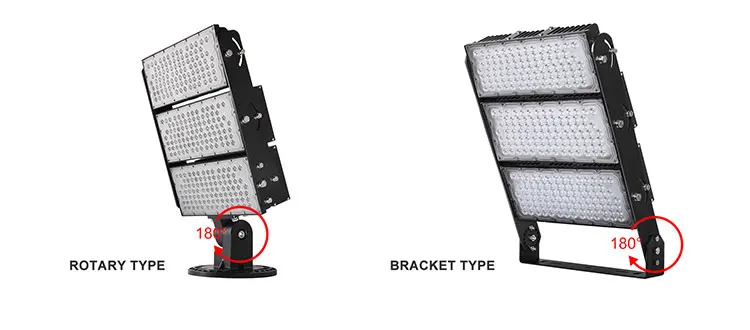

Adjustable Bracket
180°adjustable,
adjust as you want.

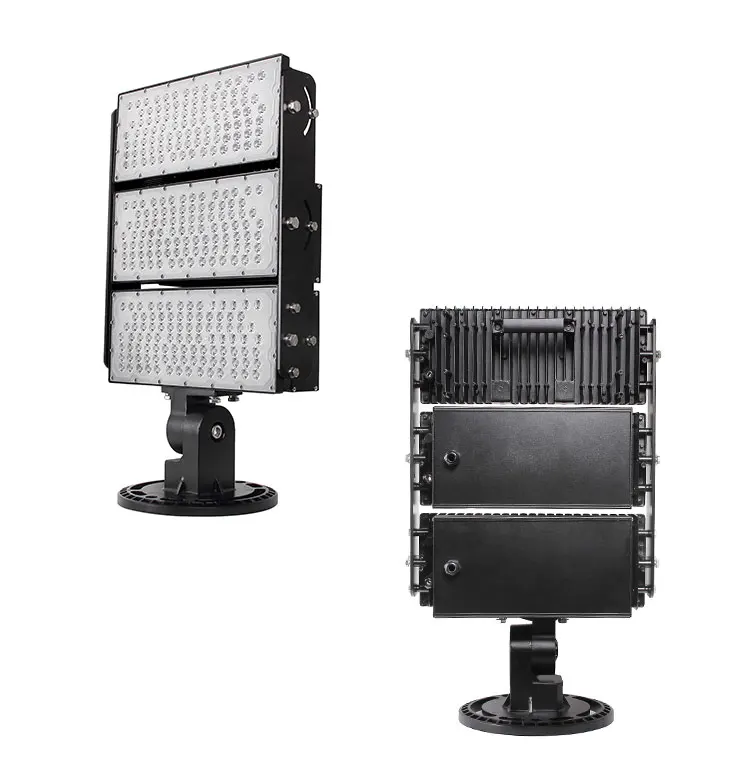

Heat Dissipation
Using high-quality thermal die-casting
aluminum material, along with fin&module
style heat dissipation structure, ensure
very fast heat-dissipation.
very fast heat-dissipation.

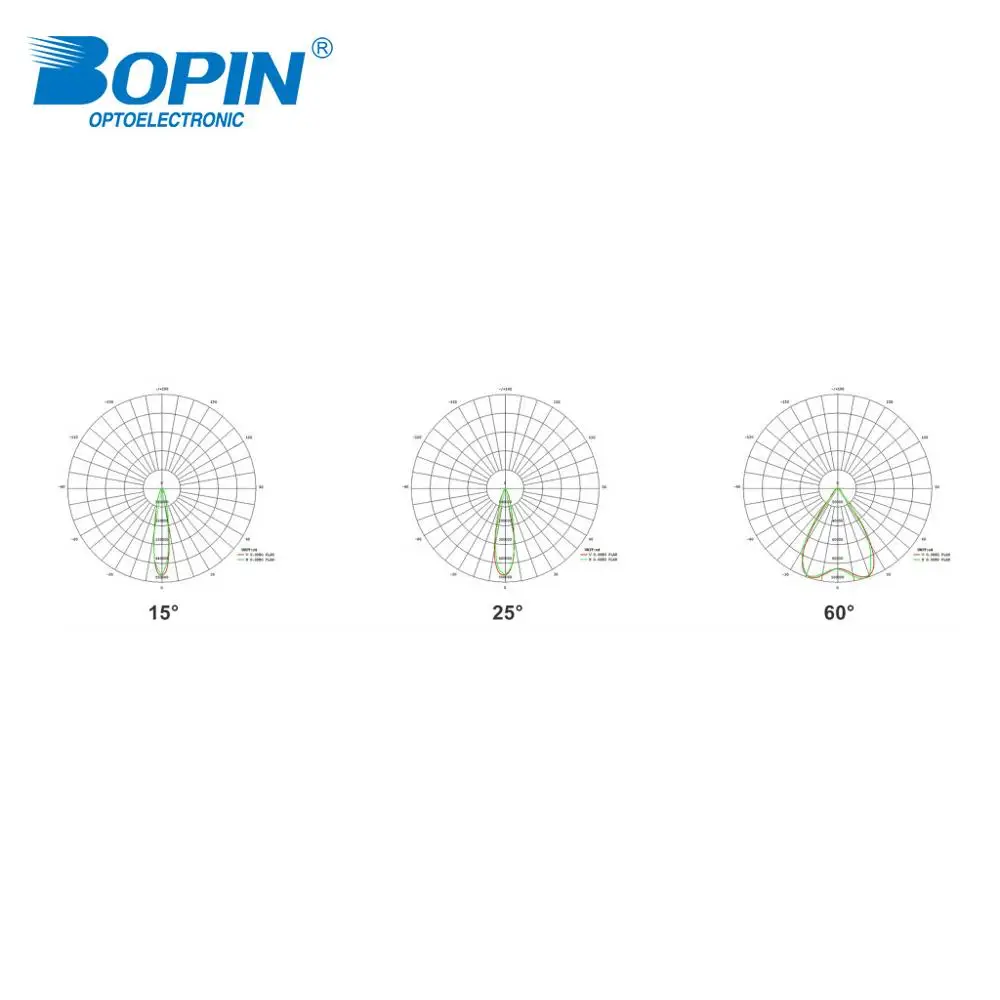

Multipled Beam Angle Options
Lens of 15°/ 25°/ 60° beam
angle available, can be applied
in different use occasions.
angle available, can be applied
in different use occasions.
Technical Parameters
Model No. | BSG300Z-F12B | BSG600Z-F12B | BSG900Z-F12B | BSG1200Z-F12B | |||
Nominal Wattage | 300W | 600W | 900W | 1200W | |||
Input Voltage | AC100-270V 50/60Hz | ||||||
CCT | 3000K / 4000K / 5000K / 5700K / 6500K | ||||||
CRI | 75±5 | 75±5 | 75±5 | 75±5 | |||
PF | >0.95 | >0.95 | >0.95 | >0.95 | |||
Operating Temperature | -40℃ ~ 50℃ | -40℃ ~ 50℃ | -40℃ ~ 50℃ | -40℃ ~ 50℃ | |||
Light Efficacy | 130~140lm/W | 130~140lm/W | 130~140lm/W | 130~140lm/W | |||
Warranty | 5 years warranty | 5 years warranty | 5 years warranty | 5 years warranty | |||

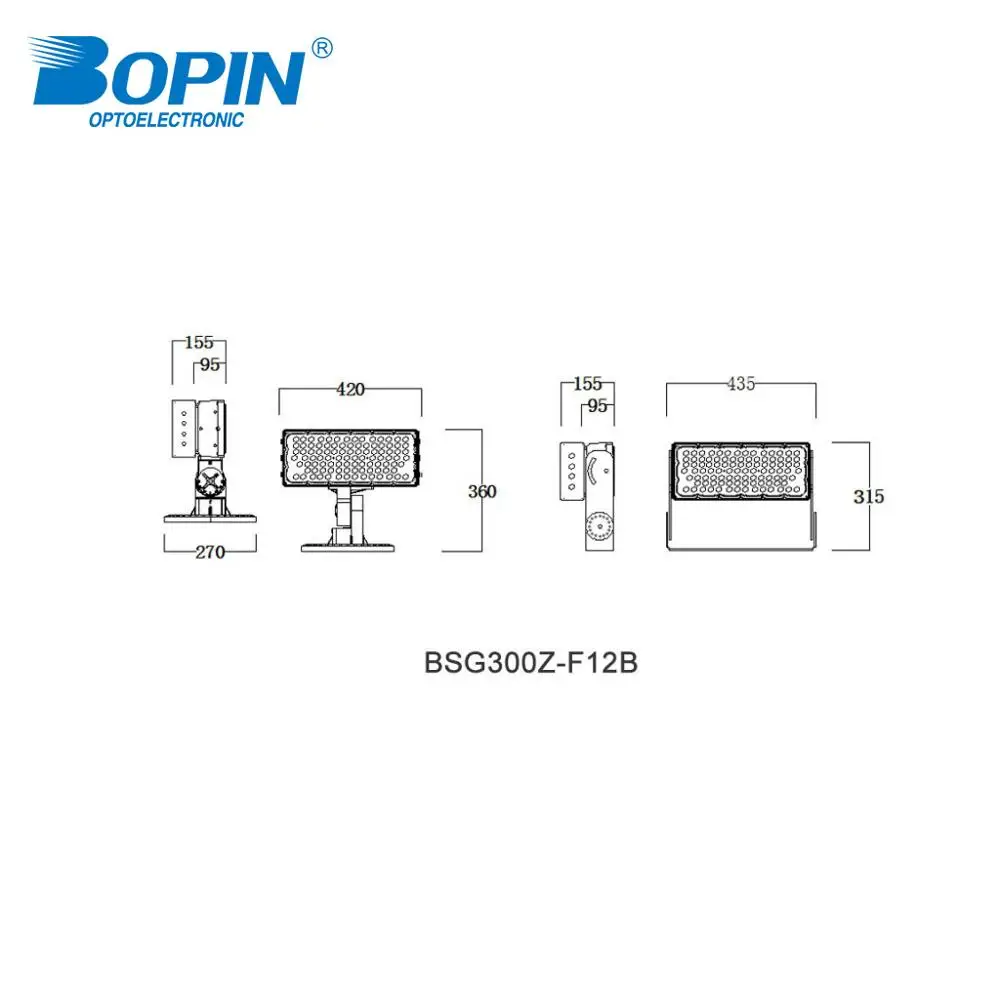

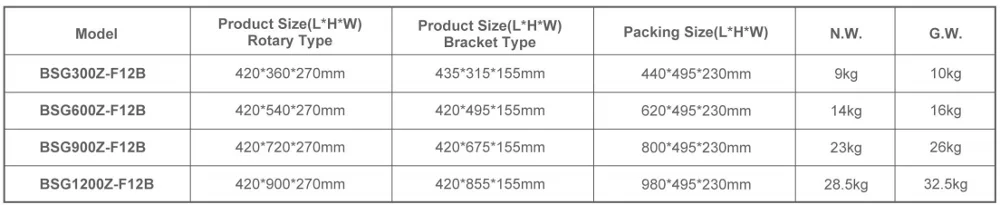

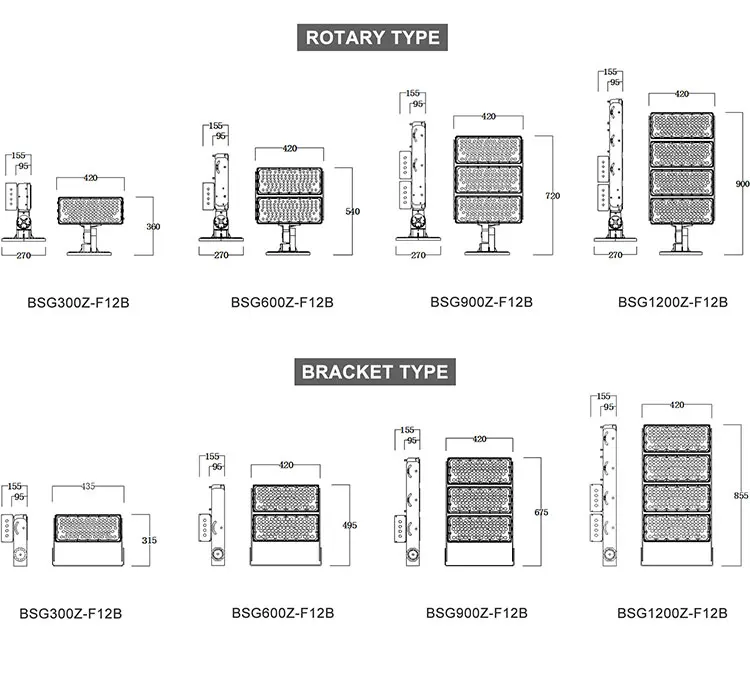

Model No. | Product Size (L*W*H) Rotary Type | Product Size (L*W*H) Bracket Type | Packing Size | N. W | G. W |
BSG300Z-F12B | 420*360*270mm | 435*315*155mm | 440*495*230mm | 9KG | 10KG |
BSG600Z-F12B | 420*540*270mm | 420*495*155mm | 620*495*230mm | 14KG | 16KG |
BSG900Z-F12B | 420*720*270mm | 420*675*155mm | 800*495*230mm | 23KG | 26KG |
BSG1200Z-F12B | 420*900*270mm | 420*855*155mm | 900*495*230mm | 28.5Kg | 32.5KG |
Applications

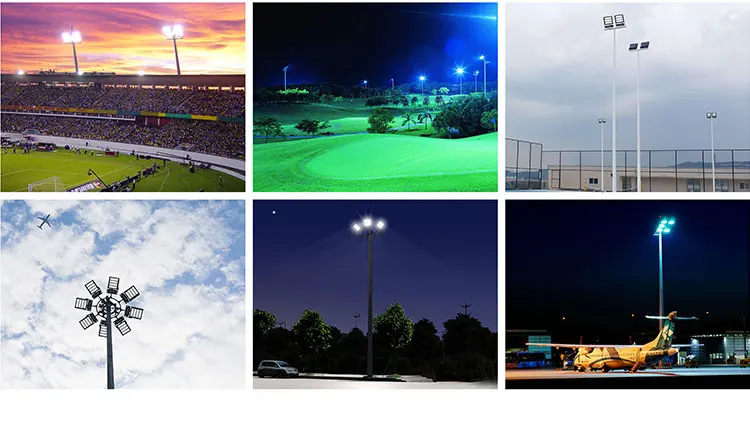

General lighting for football field, golf course, tennis court, park, square, road interchange, crossroad, airport, train station, bus station and other high pole lighting.
Our Company
Our Projects
FAQ
Q: How about MOQ?
A: 2pcs for MOQ for testing.
Q: Shipping & how long for sample?
A: Fedex/ UPS/ TNT/ EMS etc., 5-7 working days generally.
Q: What about the project beam angle?
A: Sir, according to your project application, we'd love to suggest you then.15°/ 25°/ 60°/ 82*95° is available currently.
Q: What's the warranty time of high mast light?
A: Usually 5 years (from goods received) , It depends on different driver, we have Inventornics/ MeanWell for optionals. We are responsible for the quality issues (except the man-made sabotage or other damages made by customer-self).
Q: What about Bopin Factory location ?
A: You are always welcomed to visit our factory in Hangzhou, China at you convenient time.
