Ask Hdmi Video Converter Audio Extractor Hdmi To Hdmi+audio+arc Converter Support 4k 60hz
HDR HDMI Audio Extractor
4K@60Hz/UHD/HDCP2.2/ARC/ EDID Setting
Model No: HDCN0022M1

Introduction:
The HDMI Audio extractor can support 3D,HDR,4K*2K/60Hz,ARC function. It can connect one HD Source to one HD Display and support one Toslink digital audio out+one Coaxial Audio Out+one LR Analog Audio out.
Our devices offer solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.
S
The HDMI Audio extractor can support 3D,HDR,4K*2K/60Hz,ARC function. It can connect one HD Source to one HD Display and support one Toslink digital audio out+one Coaxial Audio Out+one LR Analog Audio out.
Our devices offer solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.
FEATURES
l One HDMI input converter to one HDMI+ One Toslink Audio + One Coaxial Audio + One L/R Audio Out
l Output audio support: Toslink Audio +Coaxial Audio +L/R analog Audio Output
l Support HDR
l Support 4K*2K @60Hz resolution
l Video Format Support: 4Kx2K/60Hz 8Bit YcbCr4:4:4;
l Supports ARC ,TV audio will return and out by the Optical Port;
l HDMI to achieve the synchronization of audio signal separation. Support 2.0/ 5.1/ ADV three kinds of audio mode options
l Support SPDIF digital audio format: Dolby digital (AC3), DTS and LPCM2.0
l LED indication: when source or sink is working, LED related will go bright.
l Led Status Light allows the user to know the working status easily.
l No loss of quality
l Need DC5V/2A power supply
ShenZhen ASK HDSW0017M1 3 Port HDMI Switch With Audio Output HDMI 3x1 Switch Audio Extractor

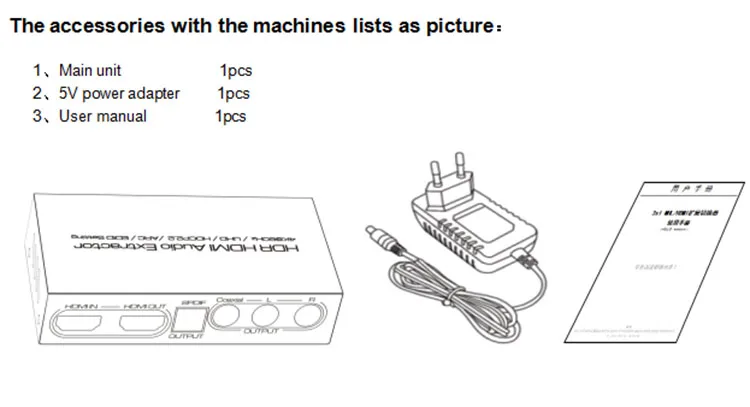

Showing Picture



1,Main unit 1pcs
2,5V power adapter 1pcs
3,User manual 1pcs
Business Terms
| Accepted Delivery Terms: | FOB, CIF, EXW |
| Accepted Payment Currency: | USD, EUR, HKD, GBP, CNY |
| Accepted Payment Type: | T/T, L/C, Western Union, Cash |
| Nearest Port: | Shenzhen |
Operation of remote:

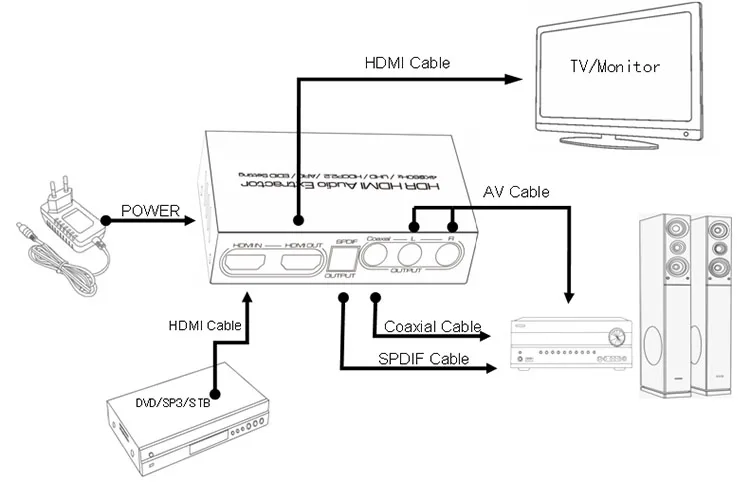

Operating and Connecting:
1.To use one HDMI cable to connect the HD Source with the HDMI Input port of the HDMI audio extractor.
2.To use one HDMI cable to connect the HD Display with the HDMI Output port of the HDMI Audio extractor.
3.To use one AV Cable to connect the LR Output port wit the Speaker.
4.To use one Toslink cable to connect the Toslink output port with the AV Receiver.
5.To use one Coaxial cable to connect the Coaxial output port with the AV Receiver.
6.To press the ARC switch key to on/off the ARC function.
7.To connect the extractor with 5V DC power adaptor.
Q1.What is your MOQ?
A: Our MOQ is not the same based on different items. Small orders are also welcome, but the unit price is also difference from wholesale price.
Q2.What package do your use for the product?
A:Usually we have professional neutral package for the products. Customized package are also available based on certain MOQ.
Q3.What is your main market?
A: Asia Australasia Central/South America Eastern Europe Mid East/Africa North America Western Europe
