1.The punch head can automatically move horizontally, with excellent operating visual field and safe and reliable operation.
2.Suitable for single-layer or multi-layer sheet or roll materials..
3.Stroke adjustment device, makes stroke simple and correct to adjust with cutting die, cutting board and materials.
4.Travel head frame structure is adopted, with high intensity and without deformation.
5.The movement of punch head is controlled by automatic speed variation to realize flexible movement with accurate positioning and without impact.
6.The lifting position of pressing board can be freely set to reduce idle travel and enhance work efficiency.
SAMPLE PICTURE
APPLICATION
Traveling head cutting machine is widely used for garment,shoemaking ,leather ,sponge ,luggage and baggage ,automobile decoration,hats ,woods ,plastic packing ,packing ,toys ,stationery ,plyurethane preocessing and air conditioner refrigeration etc

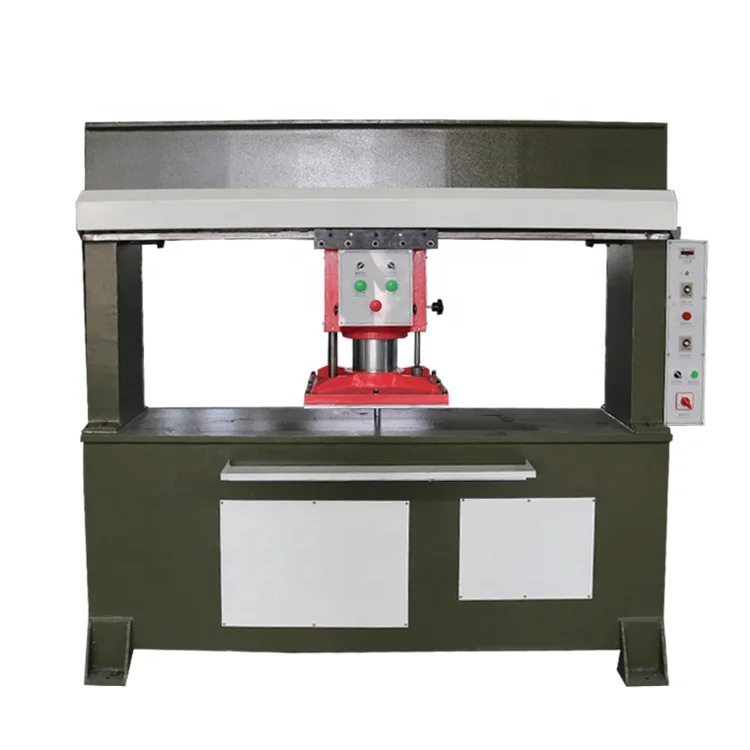

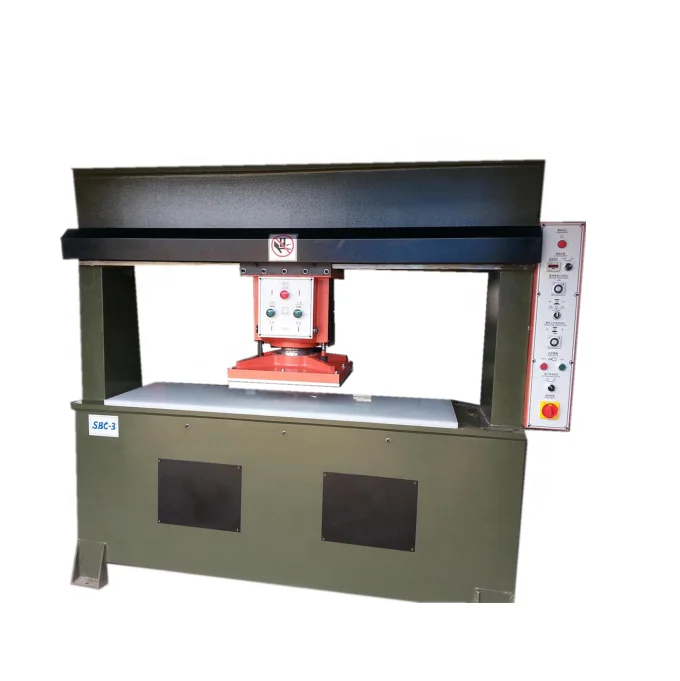

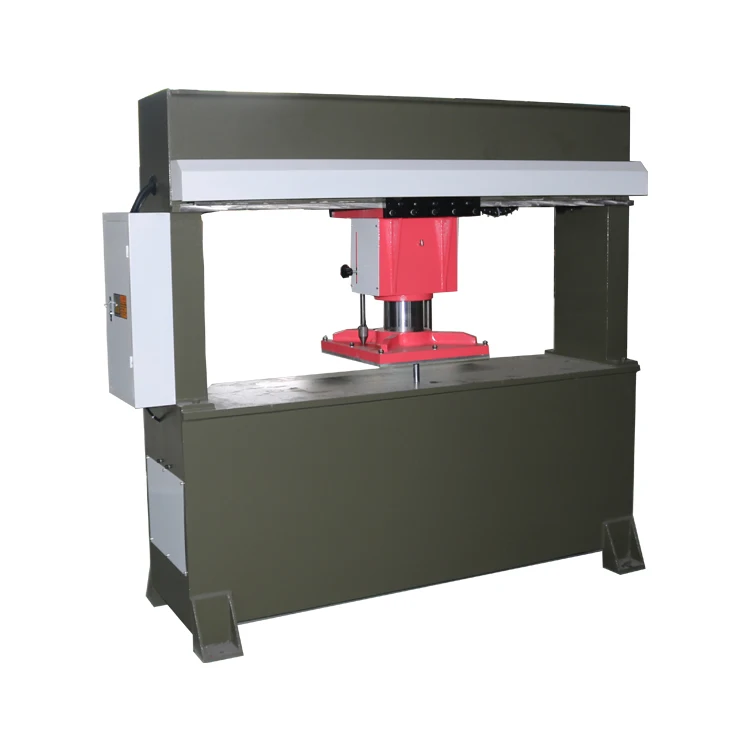

MACHINE PICTURE
DETAIL IMAGES
TRAVELLING HEAD
CONTROL PANEL
ELECTRIC CABINET
TECHNICAL PARAMETER
Model No.
JK-TH-25A
JK-TH-25B
JK-TH-35A
JK-TH-35B
Max cutting force
25Ton
25Ton
35Ton
35Ton
Traveling head size
500*500mm
500*500mm
500*500mm
500*500mm
Work table size
1600*500mm
1800*500mm
1800*500mm
1800*500mm
Stroke adjustment
0-140mm
0-140mm
0-140mm
0-140mm
Range from top to table
45-190mm
45-190mm
45-190mm
45-190mm
Motor pwer
2.2kw
2.2kw
3KW
3KW
Hydraulic oil capacity
70L
70L
90L
90L
Machine weight
1600kgs
1900kgs
1700kgs
2000kgs
Dimension size
2250*650*2050mm
2540*700*2250mm
2250*650*2050mm
2540*700*2250mm
HOT SALE PRODUCT
CUTTING MACHINE SERIES
SWING ARM CLICKER PRESS
FOUR COLUMN CUTTING PRESS
TRAVEL HEAD CUTTING PRESS
LAMINATING MACHINE SERIES
BRONZING MACHINE
FLAME LAMINATING MACHINE
GLUE LAMINATING MACHINE
FAQ
1.Q:Are you a factory or trading company?
A: Yes,we are a factory. you are most welcomed to visit us
2.Q:Where is your factory located?
A: Our factory is located in Yancheng City, Jiangsu Province, China, about 4 hours from Shanghai.All clients, are warmly welcome to visit us!
3.Q:What is the material of your products?
A: The material is mainly steel,Cast iron(Ductile cast iron) We can also choose material as customer`s requirements.
4.Q: What is your MOQ of this item?
A: 1 set per style
5.Q: What is the lead time?
A: It depends on your order quantity. Normal size laminating machine costs 20 days,and large sizes asks for 2 months.
6.Q: Is it all right to make customer's own brand name?
