Машина для обработки овощей/CHD200 промышленная машина для резки овощей для измельчителя Петрушки
- Category: Vegetable Cutter >>>
- Supplier: Jinan,Star,Bake,Machinery,Equipment,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
Instruction of Industrial vegetable cutting machine
>> CHD-200 industrial vegetable cutting machine is used to cut hard and soft root leafy vegetables (cabbage, spinach, lettuce etc) into shreds and cut stem vegetables (celery, lemon, grass etc) into sections.
>> Suitable for cutting, slicing and dicing root and stem vegetable, also suitable for cutting leafy vegetables into different
size length.it is an ideal equipment for the fresh and dehydrated vegetables processing industry.
size length.it is an ideal equipment for the fresh and dehydrated vegetables processing industry.
Model | CHD200 |
Power/Voltage | 3Kw/3-380V/50HZ or Customized |
Capacity | 200-3000Kg/H |
Weight | 168Kg |
Size | 1230*680*1280Mm |
Cutting Size (Length) | 1-30Mm(Adjustable) |
Cutting Size (Slices) | 1-20Mm(Adjustable) |
Cutting Size (Shreds) | 1-30Mm(Adjustable) |
Function | Leafy And Stem Vegetable Cutting Length, Root Vegetable Slicing and Shredding by Change Blade Molding. |
Details Images
Feature of industrial vegetable cutting machine
1) The whole machine is made of SS304 food grade material, cutter head and disc made of aluminium magnesium alloy.
2) Variable frequency control the cutting and belt moving speed.
3) Adopt a rotating cutter disc to cut vegetable into sections or slices, good quality cut surface, fresh and no damage to fibrous of cut product, the cutting thickness and size uniform.
4) The machine is high in efficiency, equals to 10 workers, easy to operate, low in energy consumption, hygienic and safety
2) Variable frequency control the cutting and belt moving speed.
3) Adopt a rotating cutter disc to cut vegetable into sections or slices, good quality cut surface, fresh and no damage to fibrous of cut product, the cutting thickness and size uniform.
4) The machine is high in efficiency, equals to 10 workers, easy to operate, low in energy consumption, hygienic and safety
Advanced Digital Control Box
Advanced digital adjustable system for easy operating;Dual Frequency converter for better speed regulation of both blade and belt;
Cutting size1-40mm can be finished by adjusting the blade and belt speed;
Input Cutting Belt Adjusting System
With height adjustor, more accurate and easier to adjust feeding port height.
Input belt height upto 10cm, increase capacity and efficiency;More convient to operate for the users.
Patent Juice Outlet Design
Patent design, no other suppliers with it; Juice and water during cutting flow out;
More clean and sanitation for cutted product;
Waterproof and protection of the machine.
Residue Cleaning Port Design
Patent designing;Humanized design;More easier and convenient to clean the belt.
SS304 Stainless Steel Bearing
SS304 Stainless steel bearing;Bearing waterproof design;
Prolong bearing lifetime.
High Precision Blade Disc
High precision and complex process for the blade disc;Final belt port front design;
More accurate for vegetable cutting.
Thicknen Stainless steel material
Whole machine SS304 stainless steel, ensure hygiene and durability;
copper clad aluminum four-wire cable
Adopt GB copper clad aluminum four-wire cable, with ground wire.

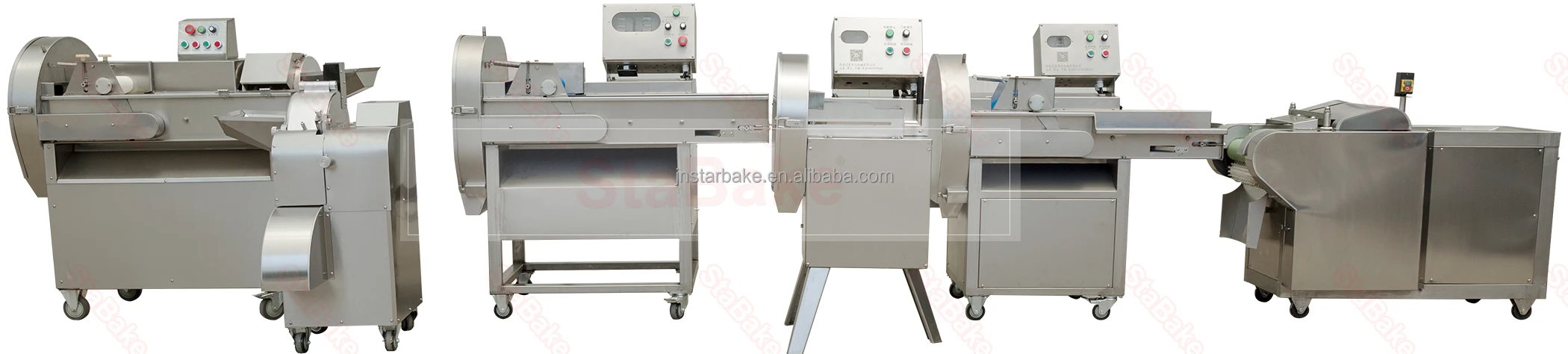

Recommend Products
Model | Power(Kw) | Capacity(Kg/h) | Weight(Kg) | Dimension(mm) | Cutting Size |
CHD20 | 0.55 | 120-350 | 55 | 715*455*580 | Length/Slices/Shreds:1-30mm |
CHD40 | 0.75 | 200-500 | 75 | 590*660*1150 | Slices/Shreds/Cubes: 2mm, 3mm or Customized |
CHD60 | 1.5 | 200-500 | 90 | 720*550*1100 | Length/Slices/Shreds: 1-20mm |
CHD80 | 2.2 | 500-3000 | 155 | 1200*660*1000 | Length/Slices/Shreds: 1-30mm |
CHD80II | 3.75 | 500-3000 | 230 | 1320*680*1200 | Length/Slices/Shreds: 1-30mm Cubes:5,10,15mm or customized |
CHD200 | 3 | 200-3000 | 168 | 1230*680*1280 | Length/Slices/Shreds:1-40mm |
Company Profile
Our Service and Strength
Pre-sales service:
♦ Inquiry and consulting support. ensure each inquiry quick response competitive offer within 24 hour.
♦ Project Design. Assist you to choose equipment, design project flow chart according to the actual production environment and production requirements.
♦ Sample testing support in our factory. And view our factory.
♦ Full document. all necessary document will be provide.
Service in ordering:.
♦ Provide machine’s details and video to help you use the machine more better
♦ Installation Training. Provide online guidance for equipment installation and debugging; or send technician to install and debug machine and train your workers if needed.
After-sale service
♦ One year warranty. Lifetime maintenance and technical support;
♦ 24 hours online for technical consulting service;
♦ Once Problems on equipment, provide phone or on-site troubleshooting fault response plan.
♦ Oversea service. Engineers available to service overseas.
♦ Large amount of spare part in-stock ensure that your machine in service in shortest time possible.
♦ Inquiry and consulting support. ensure each inquiry quick response competitive offer within 24 hour.
♦ Project Design. Assist you to choose equipment, design project flow chart according to the actual production environment and production requirements.
♦ Sample testing support in our factory. And view our factory.
♦ Full document. all necessary document will be provide.
Service in ordering:.
♦ Provide machine’s details and video to help you use the machine more better
♦ Installation Training. Provide online guidance for equipment installation and debugging; or send technician to install and debug machine and train your workers if needed.
After-sale service
♦ One year warranty. Lifetime maintenance and technical support;
♦ 24 hours online for technical consulting service;
♦ Once Problems on equipment, provide phone or on-site troubleshooting fault response plan.
♦ Oversea service. Engineers available to service overseas.
♦ Large amount of spare part in-stock ensure that your machine in service in shortest time possible.
FAQ
1. Q: Are you the factory? and the factory location? A: Yes. we are the original factory in Jinan of China. 2. Q: What is the warranty A: One year warranty, except of wear part. From the date when machine was received, any fault, not the reason of wrong operation during warranty period could be repaired freely. But the travel and hotel expenses should be paid by buyer. 3. Q: What is the after sale service A: We could offer full manual book and 24 hours on-line trouble shooting service if any operation problem or break down. 4. Q: What about the shipping methods Ocean freight, air freight, land freight and express. Delivery service to the port or to door available. 5. Q: How long is your delivery time? A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity. 6. Q: What is your terms of payment ? A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance ,balance before shippment. If you have another question, pls feel free to contact us as below: 7. Q: What kind of payment ways can you accept? T/T, L/C, Western Union. Trade Assurance Order on Alibaba. | ||||||
