80 ton Huayi TPV C frame injection press machine for TPE & TPV rubber seal profiles joints injection machine
- Category: >>>
- Supplier: HENGYANG HUAYI MACHINERY CO. LTD.
Share on (62245440690):
Product Overview
Description
Product Description

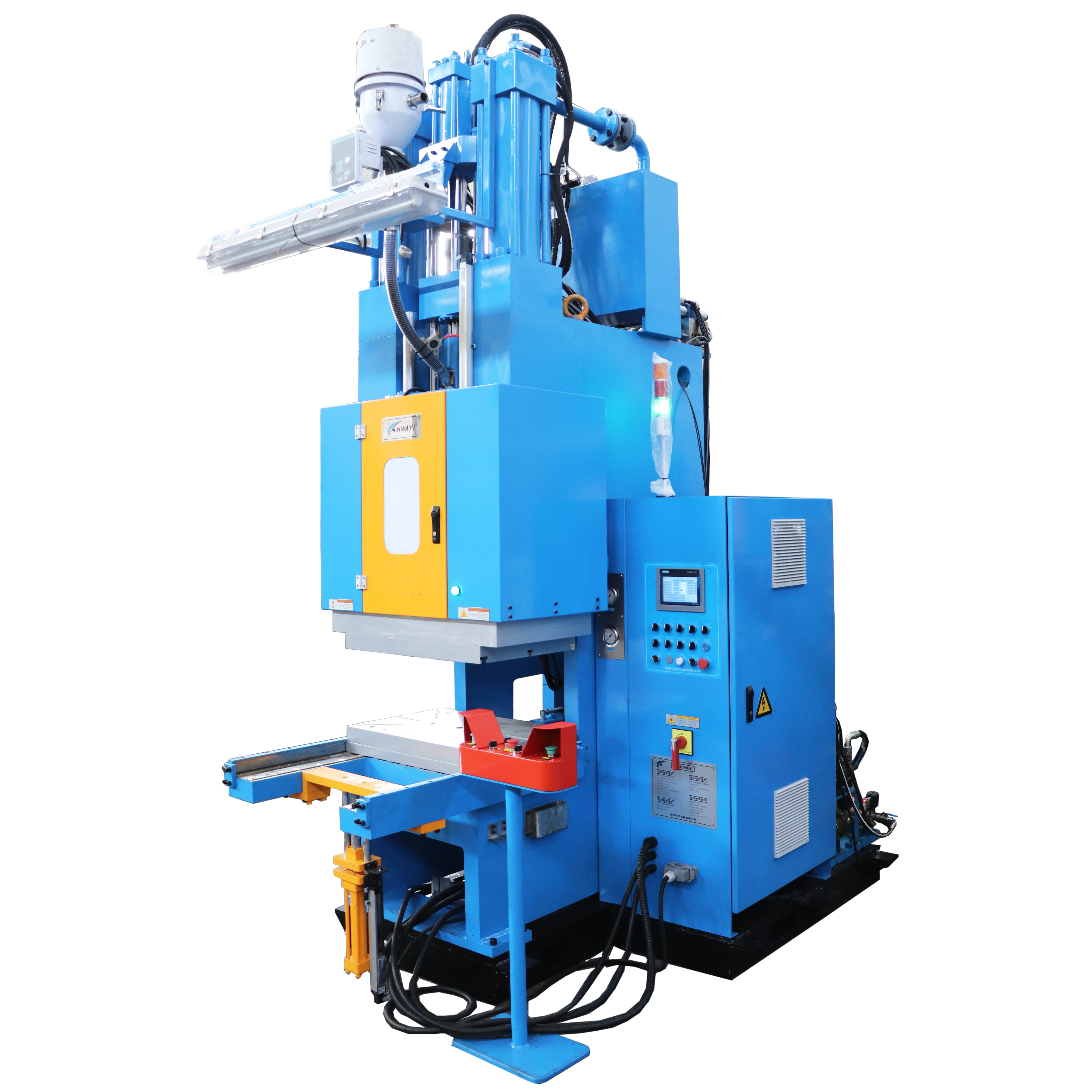

HYZ-80JT Rubber Injection Molding Machine uses C-frame structure with following virtues: Reasonable Layout, Great Clamping Force, High injection Speed, Equably Heating and Precise Feeding.
HYZ-J series machine features:
1,TPV/PTE sealing strips junctions molding machine.
2,C frame structure,complete open structure
3,No injection runner,all in all out injection system,top injecton or bottom injection is optional.
4,Injection accuracy is +-0.5%,CPK>=1.67.
5,Platens temperature tolerance within +-2 degree,PID temperature calibration,Germany imported insulation plates prevents heat loss efficiently.
6,No broken rubber in the feeding area.
7,Double working station is optional
8,Upper lifter,sliding,ejector,core pulling valves adopts for different molding requirements.
9,CE certificate option is available.

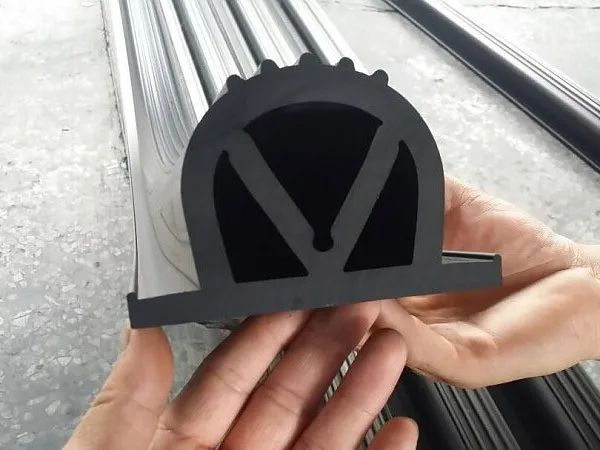

It widely used for mini type rubber products which produced by natural rubber, synthetic rubber and recycled rubber. Especially, it suitable for the production of sealing profiles junction and corner molding products.
Specifications | HYZ-80JT |
Injection Volume(cm3) | 300 |
Clamping Force(kN) | 210 |
Platen Size(mm)(Width*Length) | 750*500 |
Dimension btwn Tiebar(mm) | C-frame Structure |
Space of Platens(mm) | 645 |
Max. Clamping Stroke(mm) | 500 |
Min. Mold Thickness(mm) | 150 |
Nozzle Diameter(mm) | Φ25 |
Arc Radius of Nozzle(mm) | SR12.5 |
Heating Power(KW) | 8 |
Total Power(KW) | 25 |
Dimensions(m)(L*W*H) | 2.1*1.6*4 |
Reference Weight(Ton) | 8.5 |

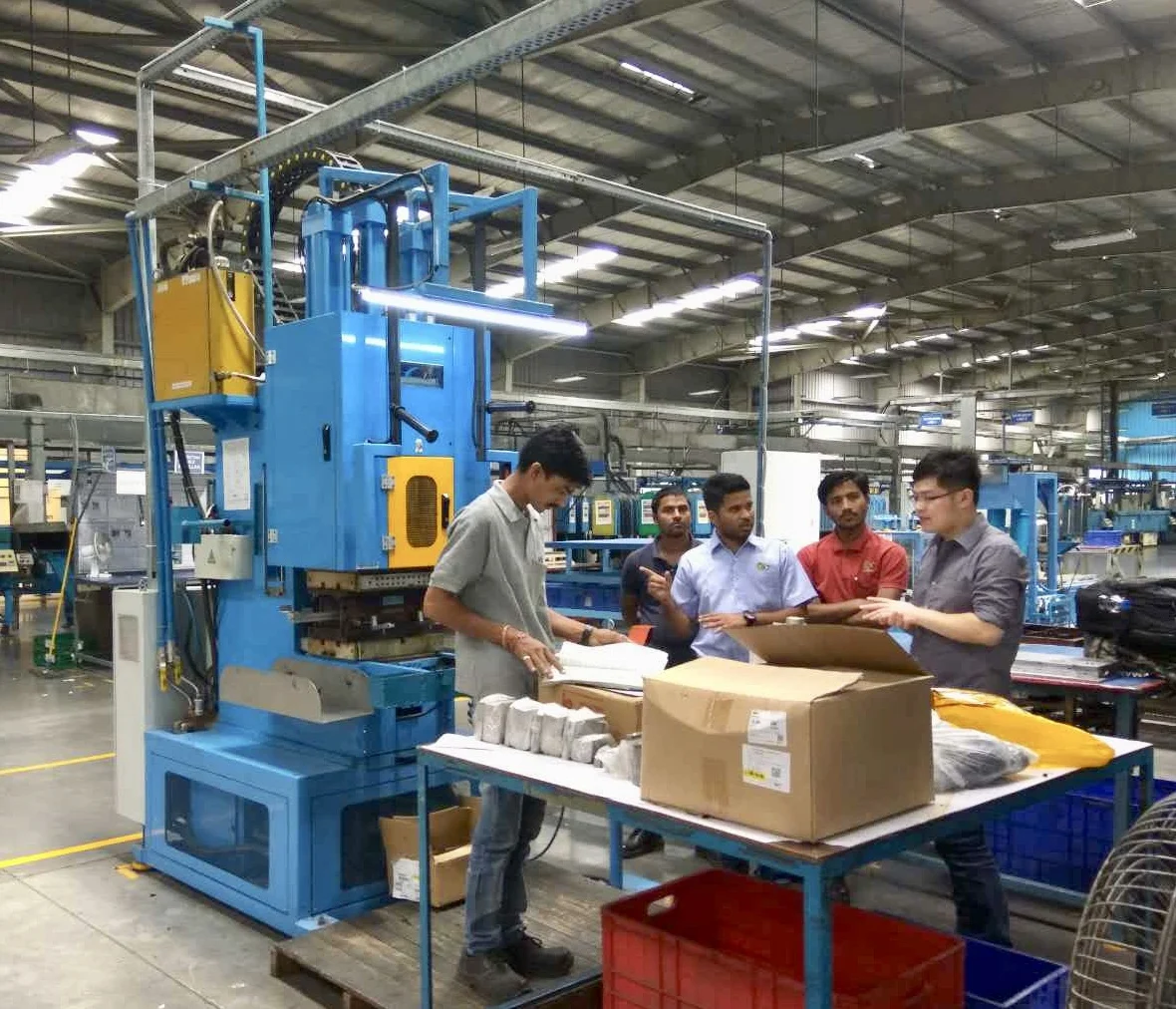

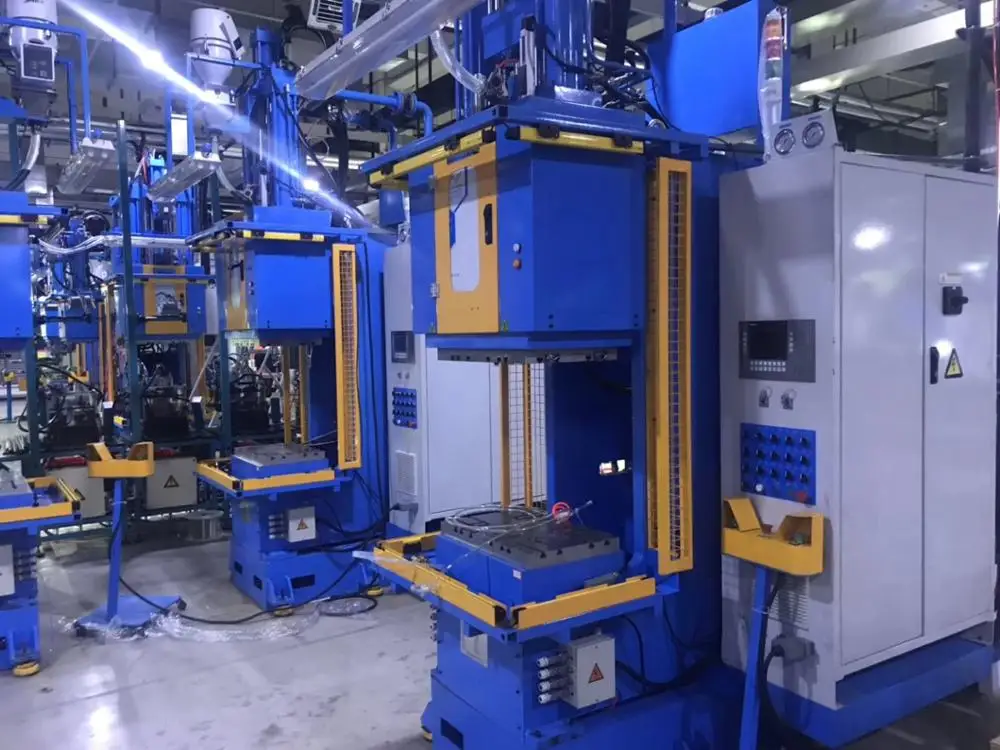

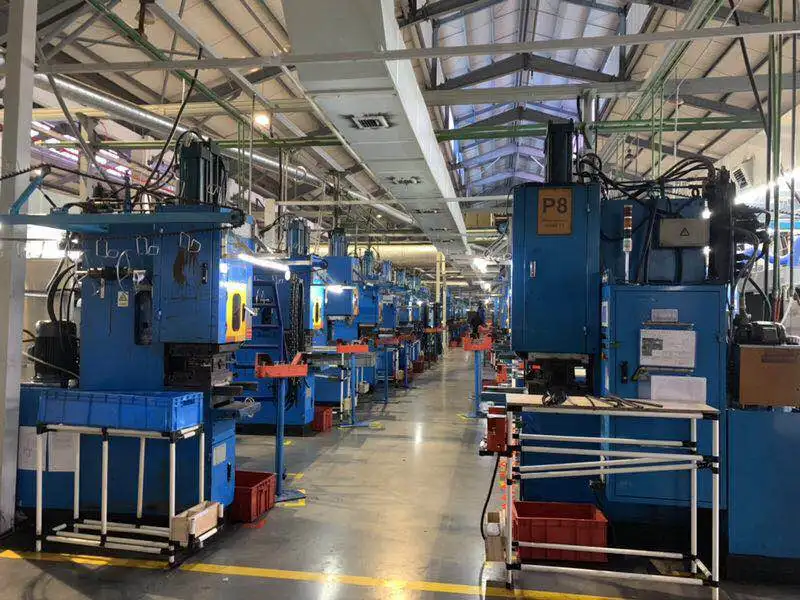

Detailed Images
Package & Shipping
Contact US
Thanks for your attention.
Should you have any further questions, please feel free to contact us at anytime.
Due to the time difference, we shall reply to you in less than 12 hours.
Hengyang Huayi Machinery Co., Ltd
M/P:0086 17700296990WhatsApp/Weichat/Facebook: 0086 15601796216
Tel:86 734 8323019
Fax:86 734 8323002
Add: NO.1 Miaopu Street, Xiangshan Village, Hengyang City, Hunan Province, China
