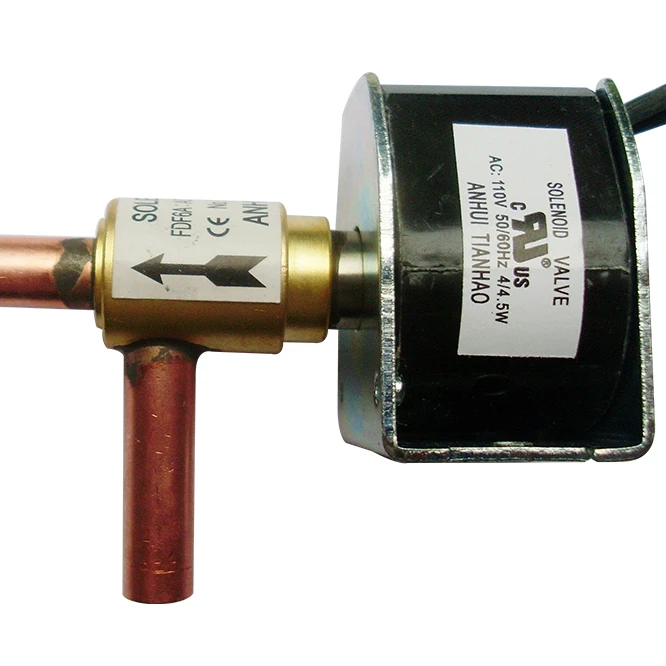

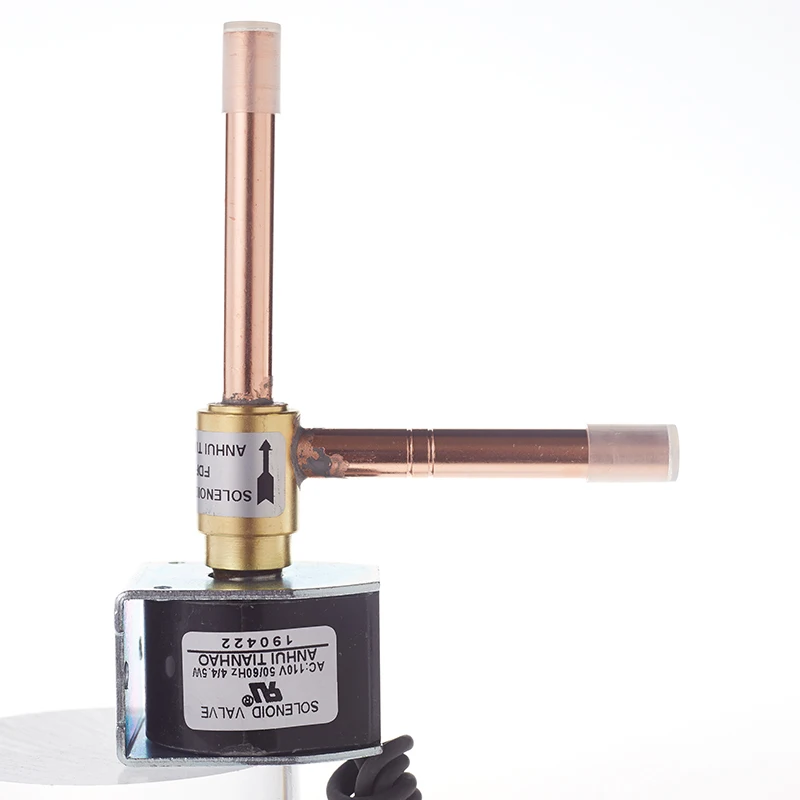

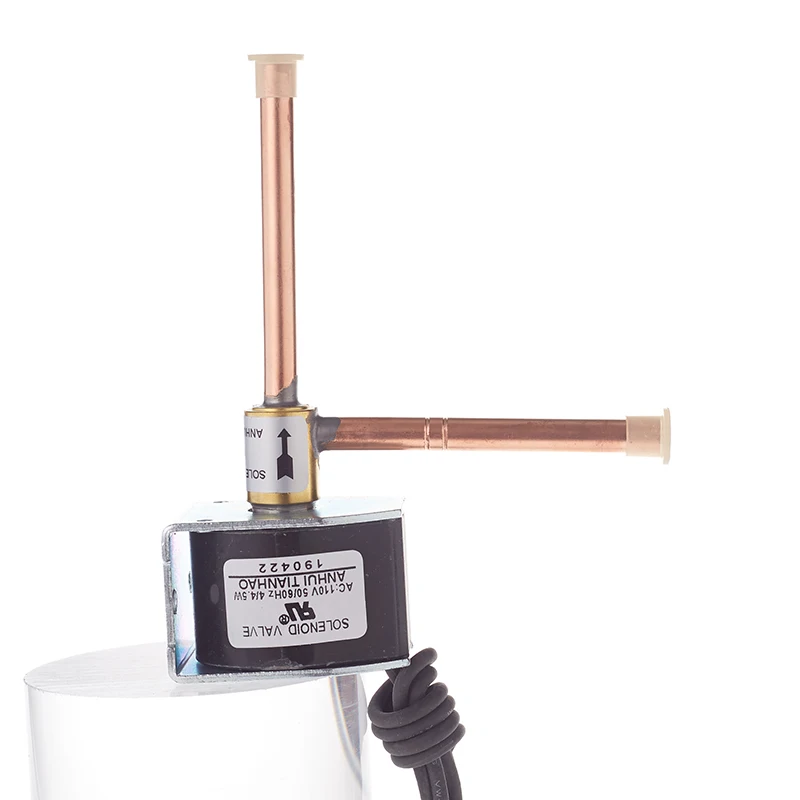

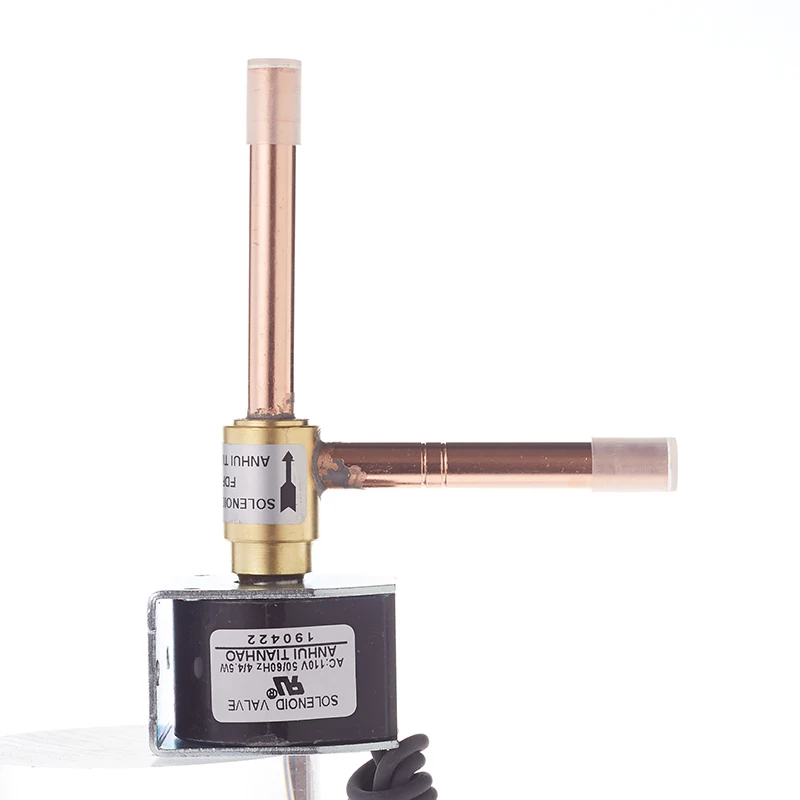

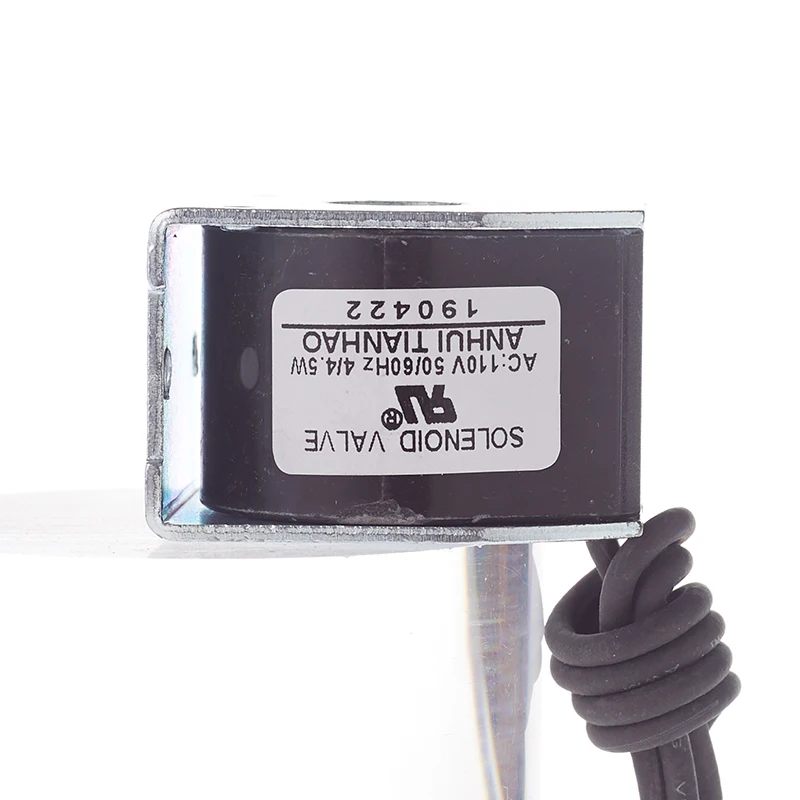

low price low voltage thermostatic control refrigeration solenoid valve
- Category: >>>
- Supplier: Anhui Bonway Imp & Co. Ltd.
Share on (62245637441):
Product Overview
Description

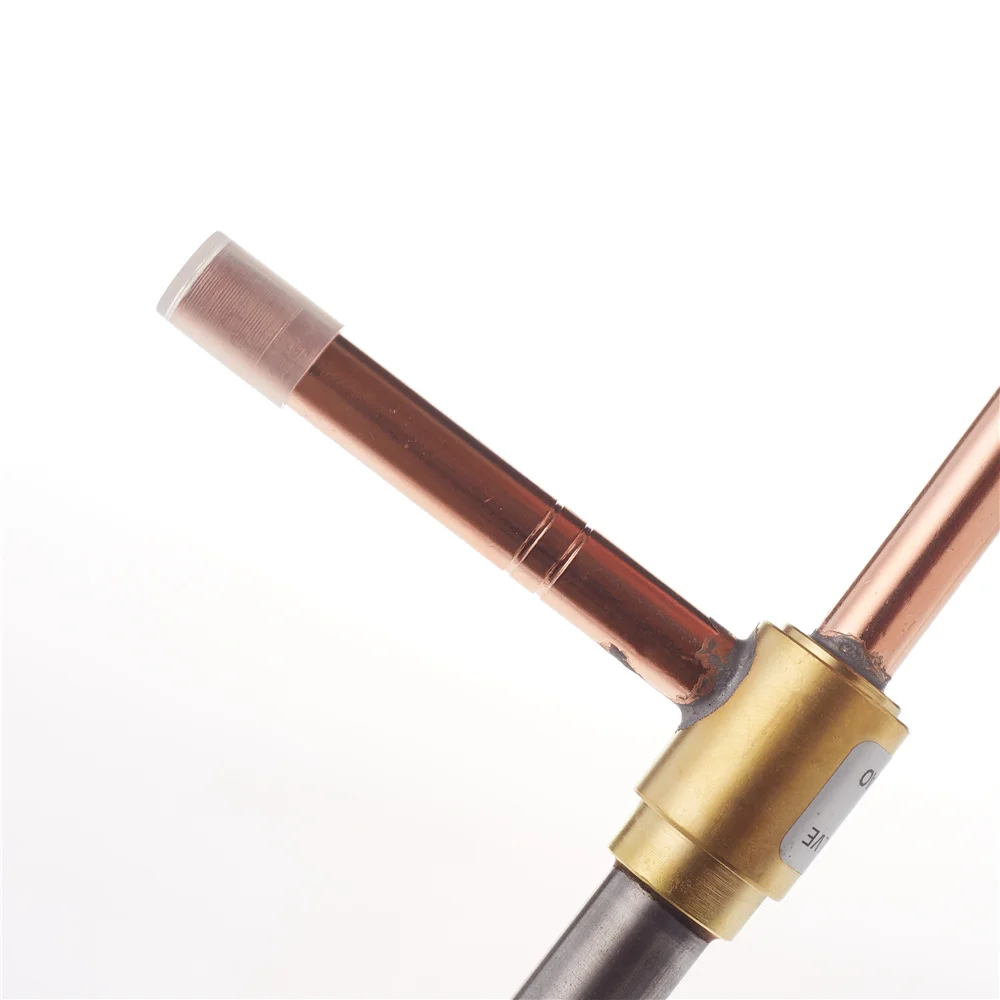

low price low voltage thermostatic control refrigeration solenoid valve
| Model | FDF-6A |
| Body material | Copper/Stainless steel |
| Port | SHANGHAI |
| MOQ | 500 |
| Port size | 5.8mm |
| Voltage of the coil | AC230V AC220V AC110V DC24V 50/60Hz |
| Temperature variation of the coil | ≤ 80K |
| Insulated class | B |
| Applicable ambient temperature | -30ºC (-22°F) ~ +50ºC (122°F) |
| Max working pressure | 3.0MPa 4.2 MPa |
| Actuating medium | R22 R407C R134A R410A |
| Applicable medium temperature | -30ºC (-22°F) ~ +120ºC (248°F) |
| Outer diameter of the connected pipe | 8.0mm |
| Max action pressure | 2.6 MPa |
| Inner leakage | ≤200 ml/min |
| Working life | ≥30Million times |
| Produce NO | Port size | Type | Max working pressure | Outer diameter of the connected pipe | Max action pressure |
| FDF-2A | Φ2.0mm | Normally Closed | 3.0MPa 4.2 MPa | Φ6.0mm | 2.6 MPa |
| FDF-4A | Φ4.0mm | Normally Closed | 3.0MPa 4.2 MPa | Φ6.0mm | 2.6 MPa |
| FDF-6A | Φ5.8mm | Normally Closed | 3.0MPa 4.2 MPa | Φ8.0mm | 2.6 MPa |
| FDF-8A | Φ7.8mm | Normally Closed | 3.0MPa 4.2 MPa | Φ9.52mm | 2.6 MPa |
Our Advantages
1. Annual sales quantity 3000, 000pcs, China biggest solenoid valves manufacturer for ice maker
2. Top quality in China
3. Highest cost performance
4. We have all needed certificates
5. KVP & PDCA
Q1. Is sample order acceptable?
A: Yes.It's ok.
Q2. How to place the order?
A: You can send us email or inquiry at alibaba directly.
Q3. How many days for delivery?
A: We have stock for standard products.
Q4. How to make the payment?
A: We accept BankT/T,Western Union,Paypal,or L/C.
Q5. How Will You Make the Shipment?
A.Sea Shipment by Pallet Packing.
B.Air.
C.Express Service.
Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
