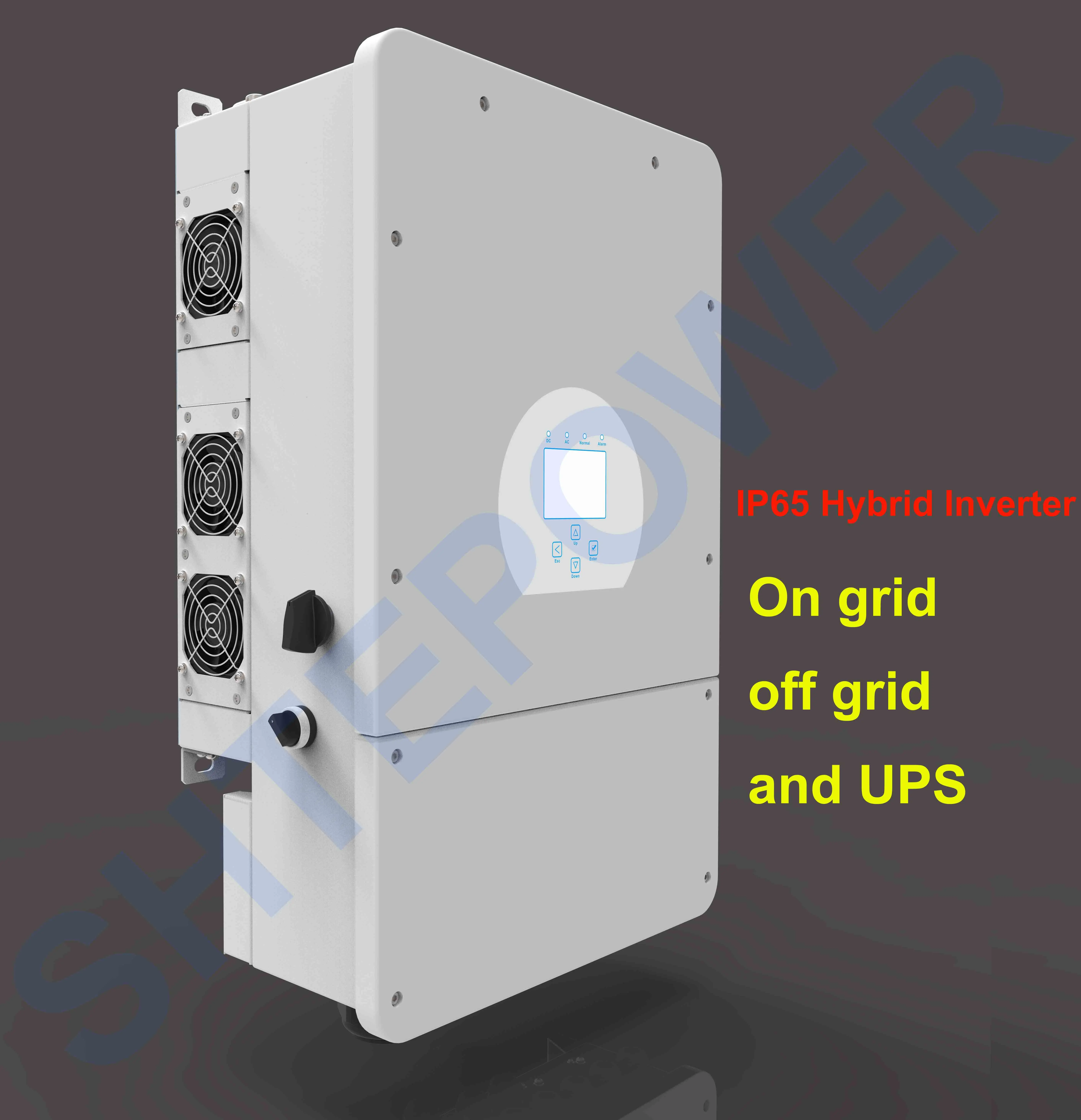

5KW 7.6/8KW on and off Grid Hybrid Energy Inverter with MPPT solar charger AC Charger UPS function dc 48v to ac 220v 230v 240v





Product Introduction:



This is a multifunctional inverter, combining functions of inverter, solar charger and AC to DC battery charger to offer uninterruptible power support with portable size.

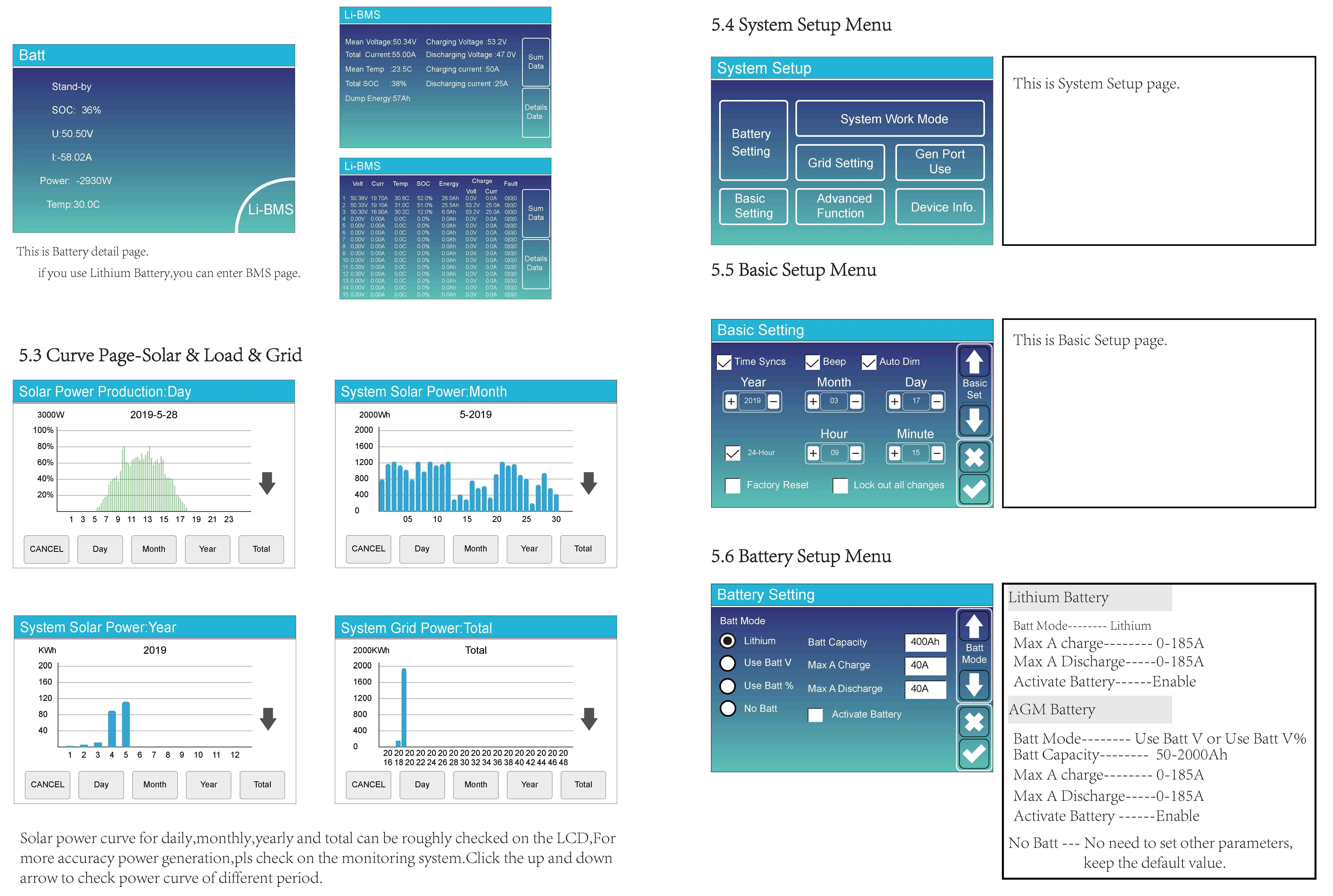

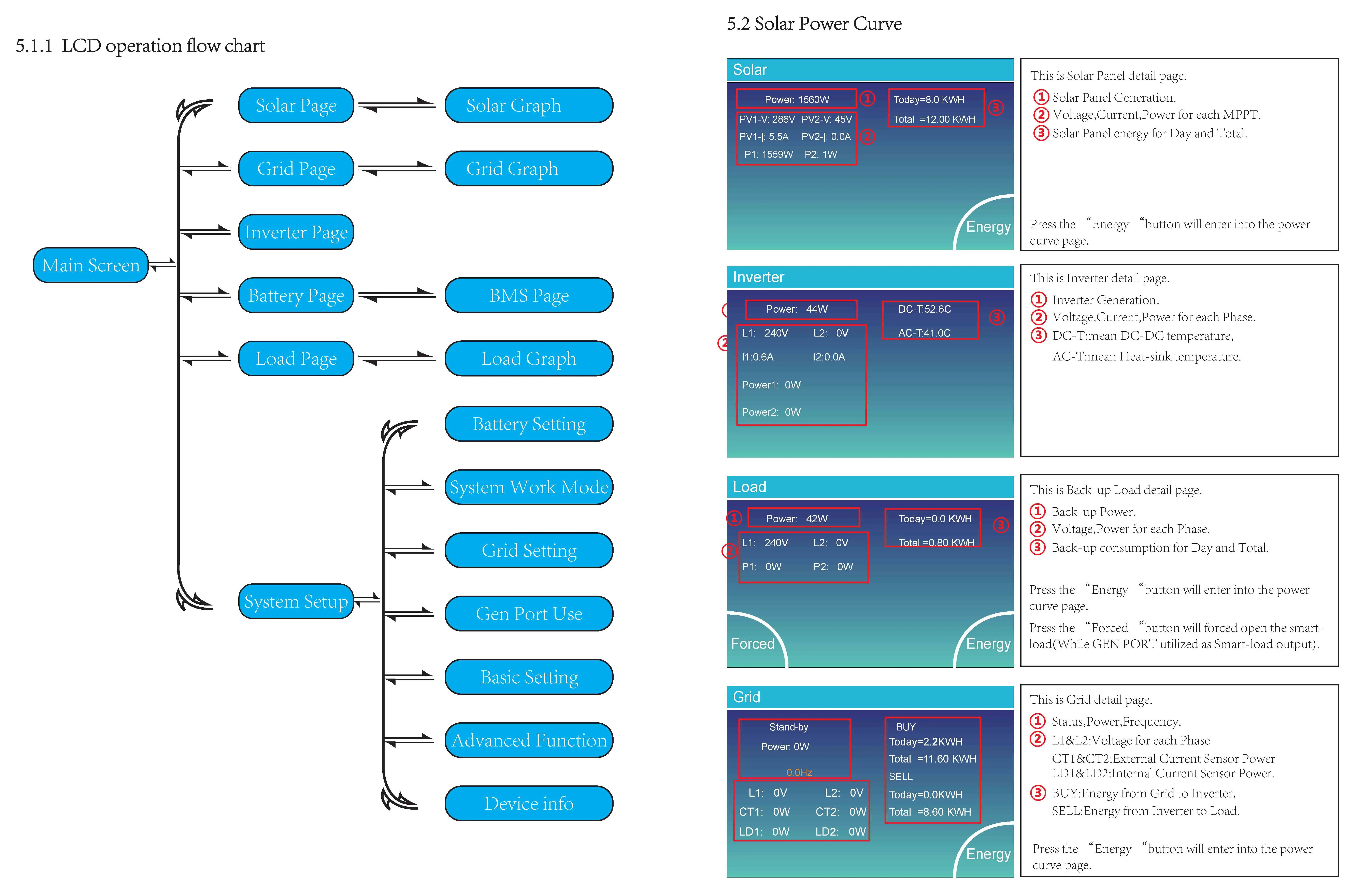

Its comprehensive LCD display offers user configurable and easy accessible button operation such as battery charging, AC/Solar charging and acceptable input voltage based on different applications.

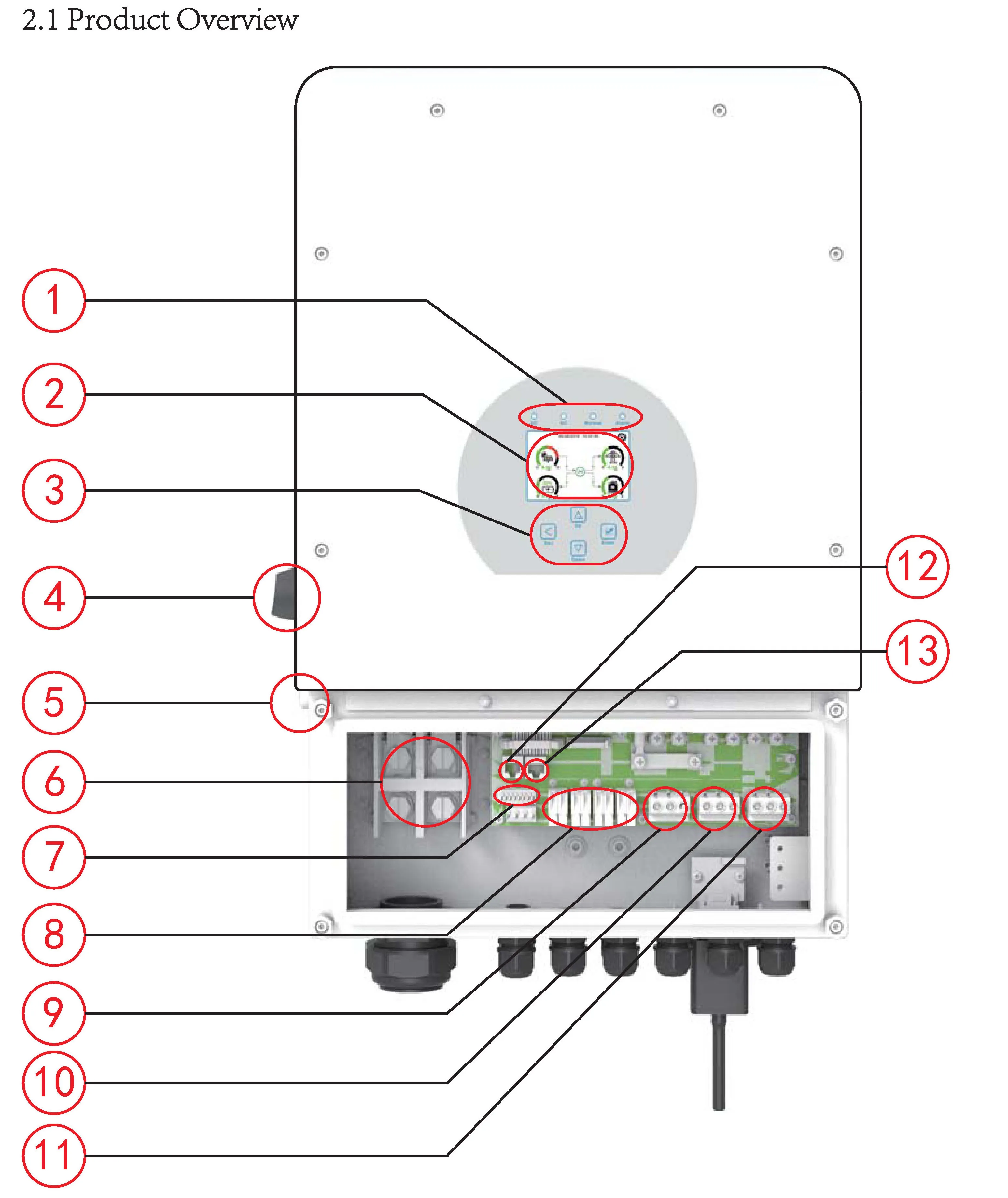

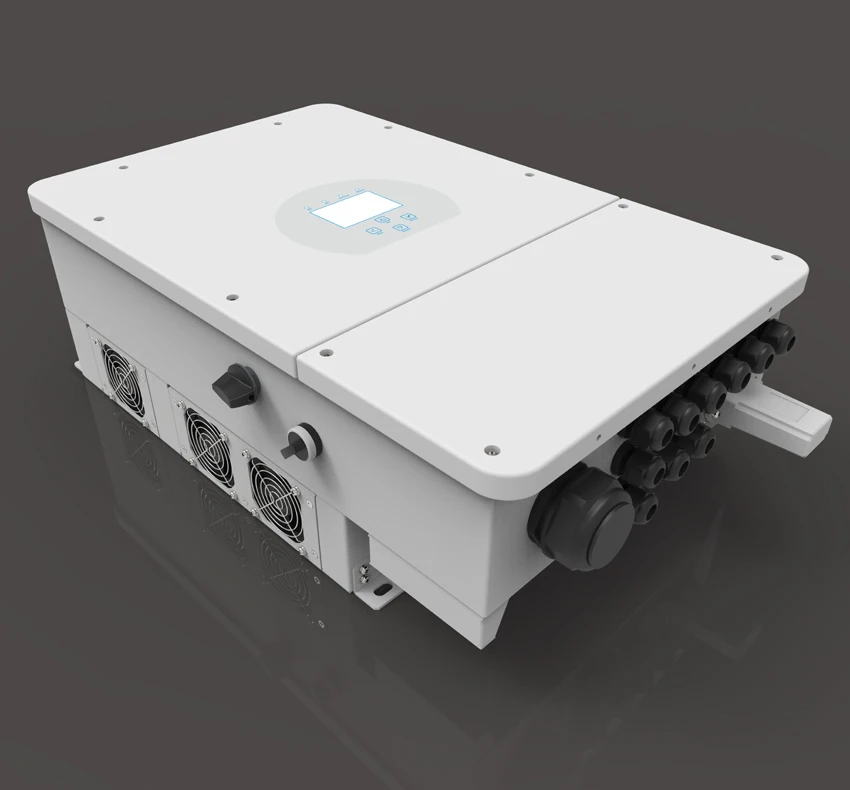

1. Inverter Indicators     5. Power on/off button              9. Grid                       13. CAN Port
2. LCD display              6. Battery input connectors     10.Generator input
3. Function Buttons      7.Function Port                        11. Load
4. DC Switch                8. PV input with two MPPT      12. RS 485 Port



Product Features



-220v Single phase, 120V/240V Split phase Pure Sine wave inverter;

-Self-consumption and feed-in to the grid

-Auto restart while AC is recovering;

-Programmable supply priority for battery or grid

-Programmable multiple operation modes: On grid, off grid and UPS;

-Configurable battery charging current/voltage based on applications by LCD setting;

-Configurable AC/Solar/Generator Charger priority by LCD setting;

-Compatible with mains voltage or generator power.

-Overload/over temperature/short circuit protection;

-Smart battery charger design for optimized battery performance

-With limit function, prevent excess power overflow to the grid;

-Supporting WIFI monitoring and build-in 2 strings of MPP trackers;

-Smart settable three stages MPPT charging for optimized battery performance;

-Time of use function;

-Smart Load Function.



Basic System Architecture

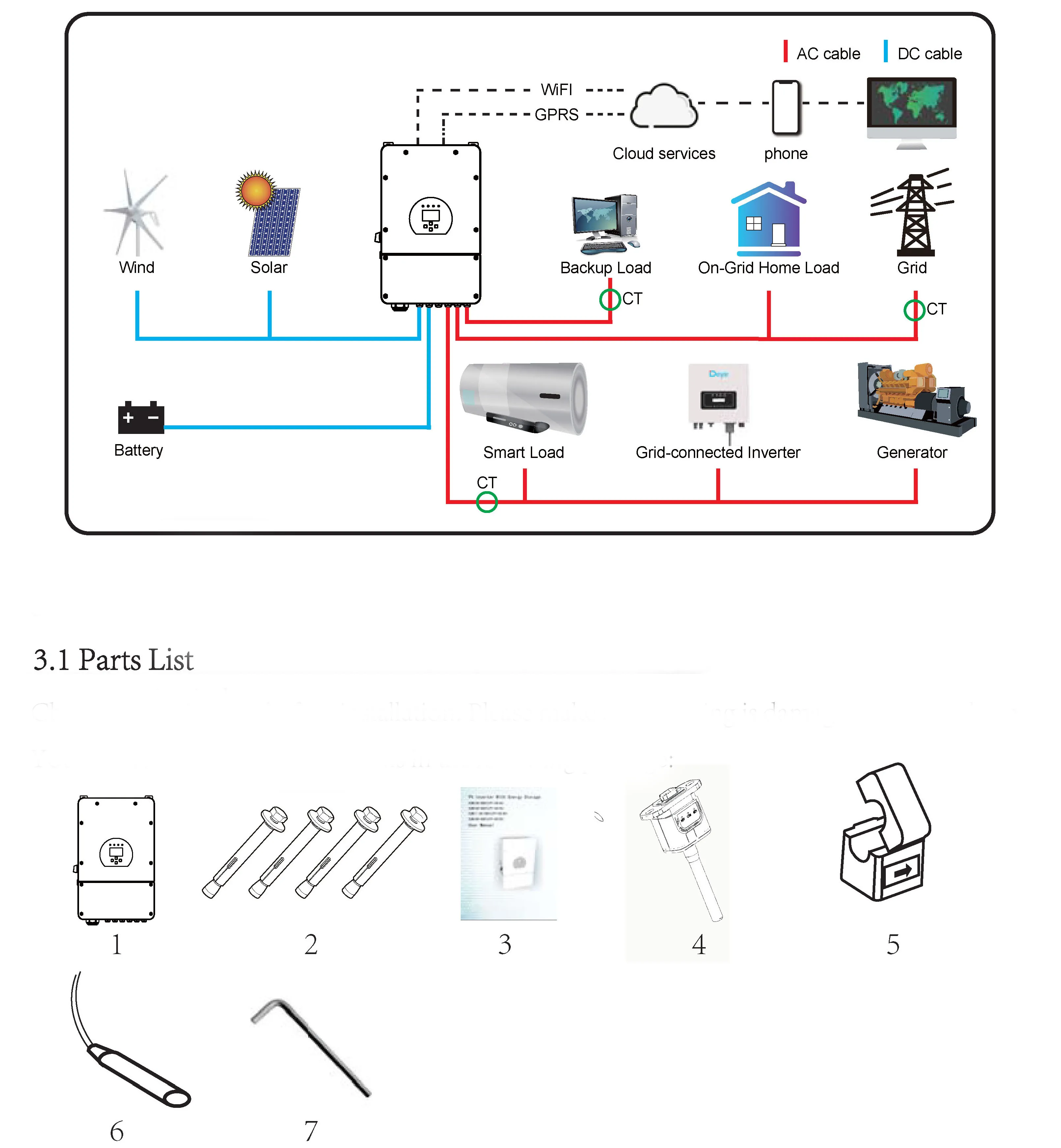

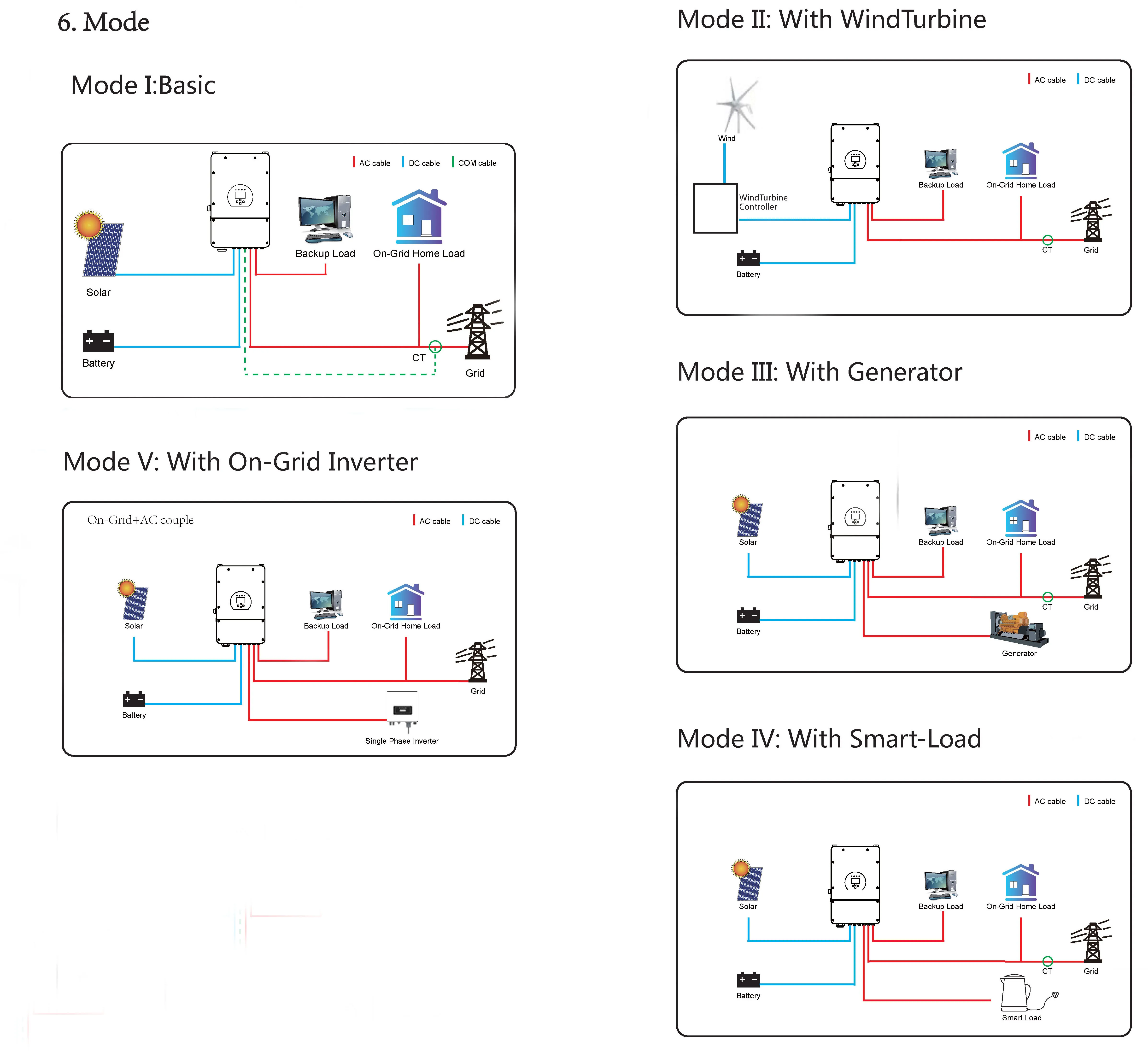

The following illustration shows basic application of this inverter;

It also includes following devices to have a Complete running system;

-Generator or Utility

-PV modules

Consult with your system integrator for other possible system architectures depending on your requirements;

This inverter can power all kinds of appliances in home or office environment, including motor type applicant such as refrigerator and air conditioner.





1. Hybrid inverter: 1pcs
2. Stainless steel expansion bolts M8*80: 4pcs;
3. User manual: 1pcs;
4. WIFI plug: 1pcs (optional)
5. Current transformer (Optional): 2pcs;
6. Battery sensor: 1pcs;
7. L-type Hexagon wrench: 1pcs





Limitation of Liability



In addition to the product warranty described above, the state and local laws and regulations provide financial compensation for the product’s power connection (including violation of implied terms and warranties). The company hereby declares that the terms and conditions of the product and the policy cannot and can only legally exclude all liability within a limited scope.



Datasheet



Technical Data	5KW	7.6/8KW
Battery input Data
Battery Type	Lead-acid or Li-Ion
Battery Voltage Range (V)	40V-60V
Max. Charging Current(A)	120A	185A
Max. Discharging Current(A)	120A	185A
Charging curve	3 Stages/equalization
External temperature sensor	Optional
Charging Strategy for Li-Ion Battery	Self-adaption to BMS
PV String Input Data
Max. DC Input Power (W)	6500W	8800W
Max. DC Input Voltage (V)	500V
MPPT Range (V)	125V-425V
Start-up Voltage (V)	150V
Max Input Current (A)	18A+9A	18A+18A
No. of MPP Tracker	2
No. of Strings per MPP Tracker	2+1	2+2
AC Output Data
Rated AC output and UPS Power (W)	5000W	8000W
Peak power (off grid)	1.5 times of rated power, 10S
Max. AC current (A)	20.8A	33A
Output frequency and voltage	50/60Hz; 120V ac &240V ac (Split phase), 230V ac (single phase)
Max AC current (A)	Split phase /Single Phase
Output frequency and voltage	THD<3% (Linear loading <1.5%)
Efficiency
Max. Efficiency	97.60%
Euro Efficiency	97%
MPPT Efficiency	99.90%
Protection
PV Arc Fault detection	Integrated
PV input lightning protection	Integrated
Anti-islanding protection	Integrated
PV String Input Reverse Polarity Protection.	Integrated
Insulation Resistor Detection	Integrated
Residual Current Monitoring Unit	Integrated
Output Over Current Protection	Integrated
Output Shorted Protection	Integrated
Output Over Voltage Protection	Integrated
Certifications and Standards
Grid Regulation	UL1741, IEEE1547, VDE-ARN 4105
Safety Regulation	IEC62109-1&2, IEC62040-1
EMC	EN61000-6-1, EN61000-6-3, FCC15 class B
General Data
Operating Temperature Range	-25~60C, >45C Derating
Cooking	Fan
Noise (dB)	<30
Communication with BMS	RS485, CAN
Weight (kg)	32KG
Size(W*H*D)	680*420*233mm
Protection Degree	IP65
Installation style	Wall-mounted
Warranty	5 Years
