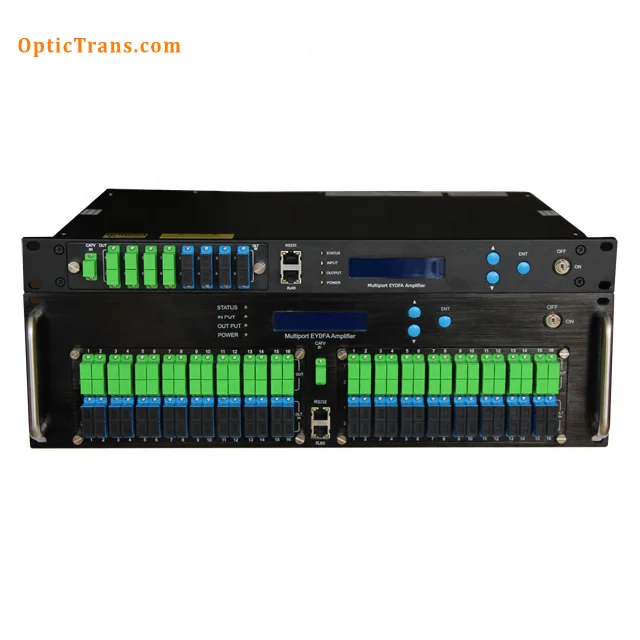

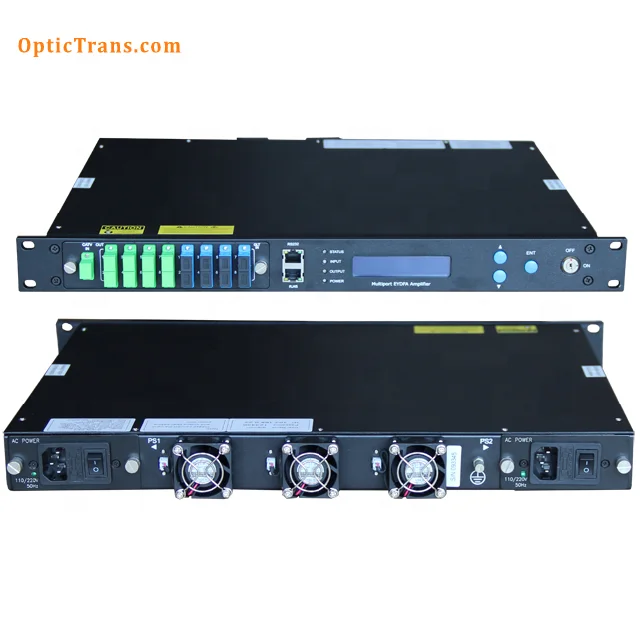

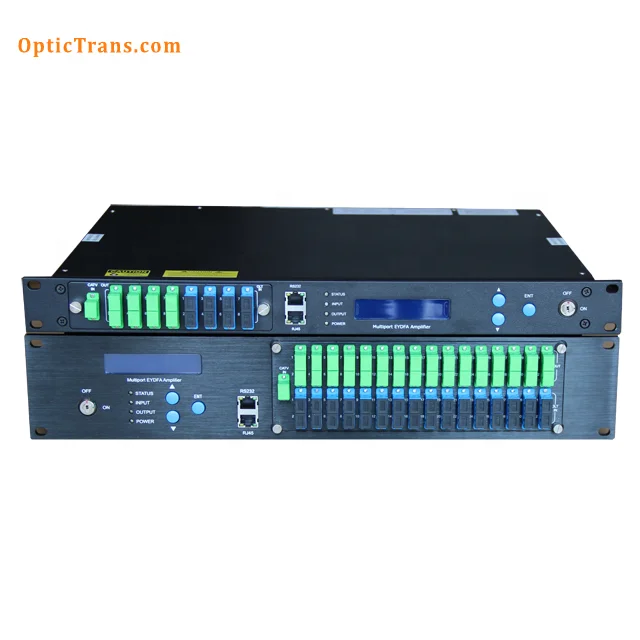

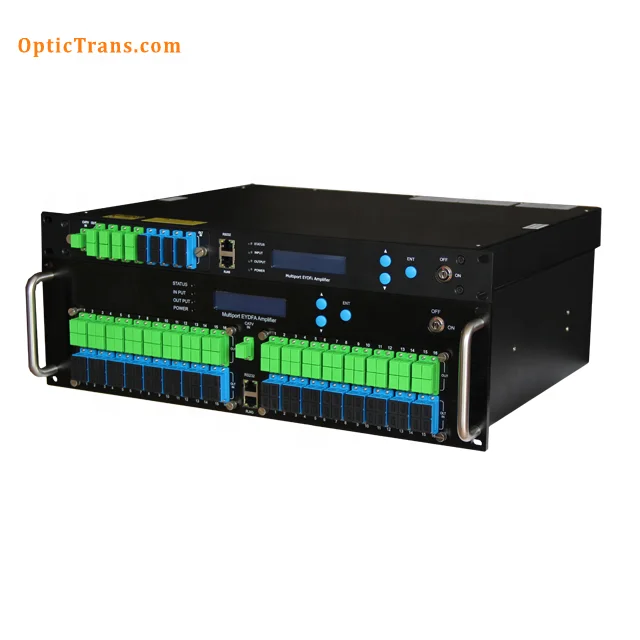

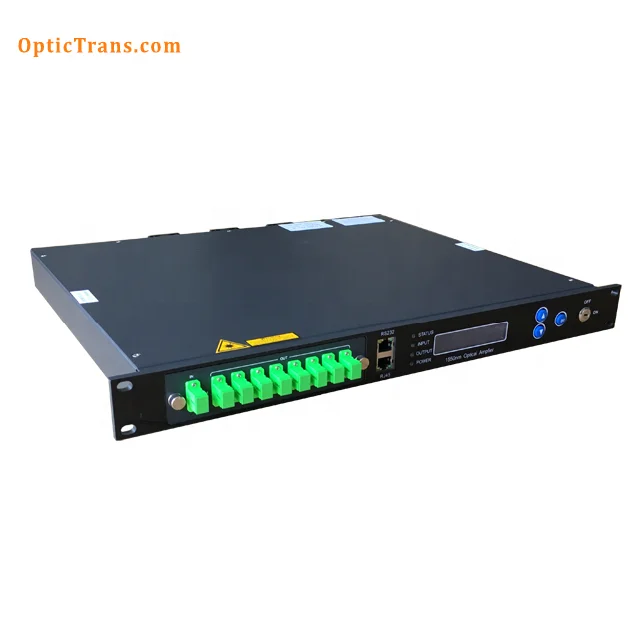

FTTH 1550nm Multi Output Optical Amplifier/High power CATV EYDFA

OPA-1550HA series high power single mode EYDFA is characterized with low noise, high linearity. It offers a flexible, low-cost solution for CATV large area coverage of metropolises and medium-sized cities.



OPA-1550HA series is equipped with completed APC, AGC, ATC control, excellent design for heat-dispersion which guarantees long time working and stable operation of the PUMP laser. RJ45 on the front panel offers RS232 and SNMP network interface. The wide LCD displays all the parameters of the whole unit and alarming. The laser will be automatically switched off if optical power is missing; it offers security protection for the laser. All of the optical outputs are located on the front panel.



OPA-1550HA series adopts single mode pump, EDF and multi-pumps integration technique. Optimized for low noise, allow for clear transmission of video, voice and data signals.

(1)  Max output power 37dBm (500~5000mW).

(2)  Max Output ports can be up to 32 (LC/APC).

(3)  Adopts single mode pump, EDF and multi-pumps integration technique

(4)  Low noise figure ≤5.5dB.

(5)  Dual optical signal input (Optional built-in 2x1 optical switch).

(6)  Dual power supply 1+1 backup.

(7)  Management interface RS232, SNMP.





Model OPA-1550HA-XX-XXX-X	Total output power		Number of output Ports	Each Port Output power	Connector
	≥dBm	≥mW		≥dBm
OPA-1550HA-27-008-1	27	500	8	16.5	SC/APC, LC/APC
OPA-1550HA-27-008-2
OPA-1550HA-28-008-1	28	630	8	17.5	SC/APC, LC/APC
OPA-1550HA-28-008-2
OPA-1550HA-29-008-1	29	800	8	18.5	SC/APC, LC/APC
OPA-1550HA-29-008-2
OPA-1550HA-29-016-1			16	15.0	SC/APC, LC/APC
OPA-1550HA-29-016-2
OPA-1550HA-30-008-1	30	1000	8	19.5	SC/APC, LC/APC
OPA-1550HA-30-008-2
OPA-1550HA-30-016-1			16	16.0	SC/APC, LC/APC
OPA-1550HA-30-016-2
OPA-1550HA-31-008-1	31	1260	8	20.5	SC/APC, LC/APC
OPA-1550HA-31-008-2
OPA-1550HA-31-016-1			16	17.0	SC/APC, LC/APC
OPA-1550HA-31-016-2
OPA-1550HA-32-008-1	32	1600	8	21.5	SC/APC, LC/APC
OPA-1550HA-32-008-2
OPA-1550HA-32-016-1			16	18.0	SC/APC, LC/APC
OPA-1550HA-32-016-2
OPA-1550HA-33-008-1	33	2000	16	19.0	SC/APC, LC/APC
OPA-1550HA-33-008-2
OPA-1550HA-33-016-1			32	15.5	LC/APC
OPA-1550HA-33-016-2
OPA-1550HA-34-016-1	34	2500	16	20.0	SC/APC, LC/APC
OPA-1550HA-34-016-2
OPA-1550HA-34-032-1			32	16.5	LC/APC
OPA-1550HA-34-032-2
OPA-1550HA-35-016-1	35	3200	16	21.0	SC/APC, LC/APC
OPA-1550HA-35-016-2
OPA-1550HA-35-032-1			32	17.5	LC/APC
OPA-1550HA-35-032-2
OPA-1550HA-36-016-1	36	4000	16	22.0	SC/APC, LC/APC
OPA-1550HA-36-016-2
OPA-1550HA-36-016-1			32	18.5	LC/APC
OPA-1550HA-36-016-2
OPA-1550HA-37-016-1	37	5000	32	19.5	LC/APC
OPA-1550HA-37-016-2

Remark: Above are the standard options, each port output power or output ports number can be customized.
