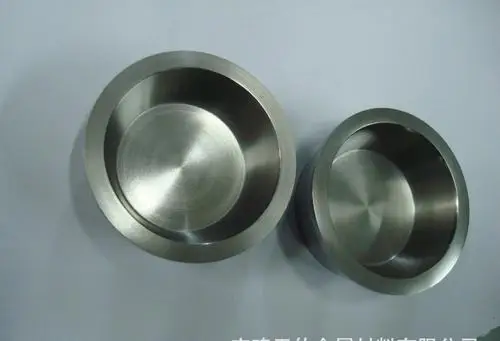

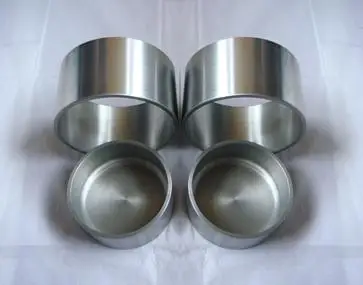

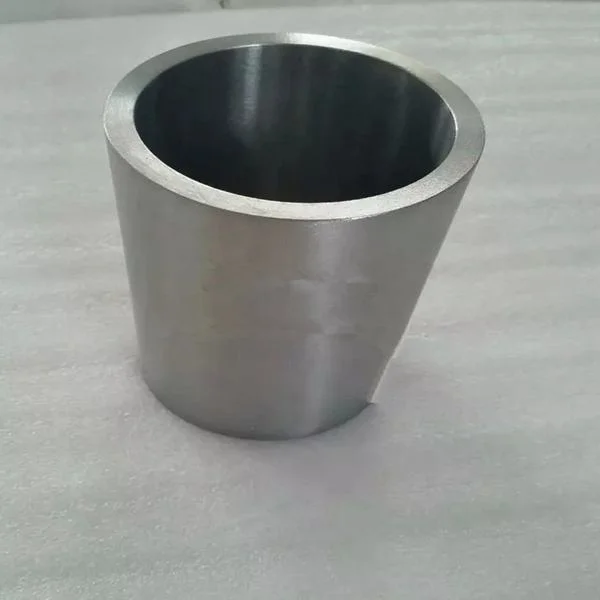

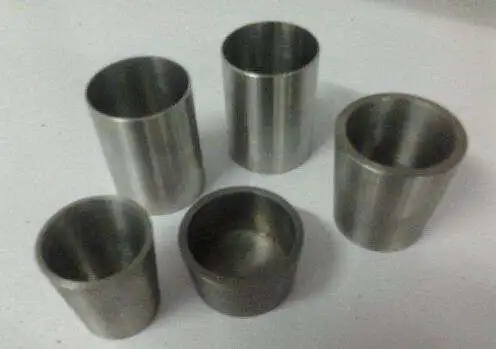

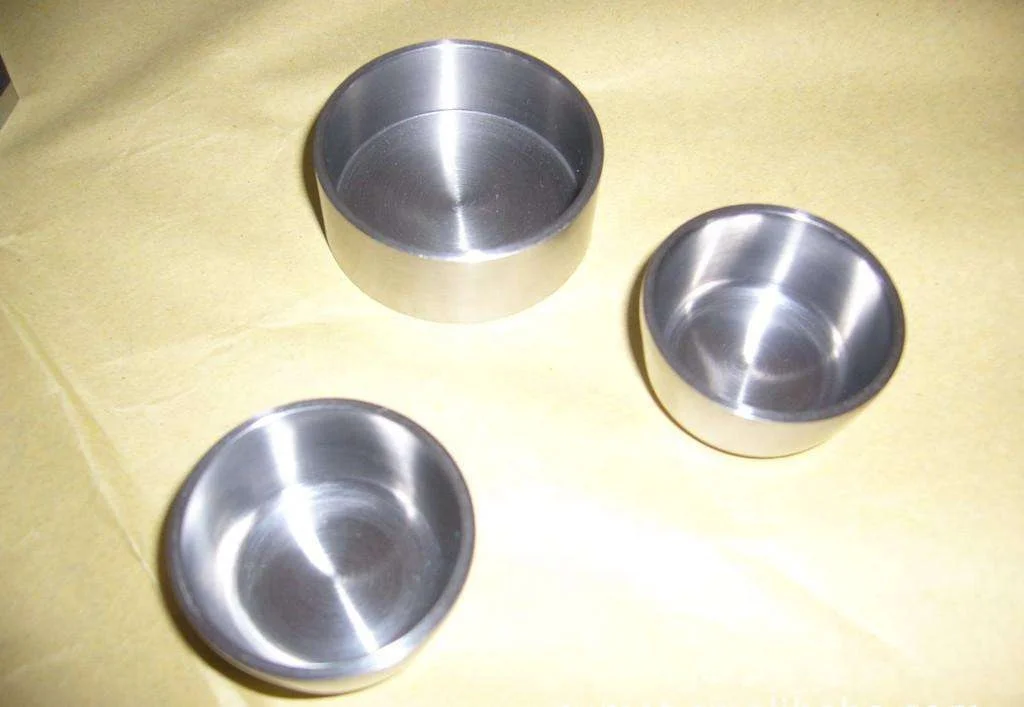

Mo 99.99% 4N High temperature molybdenum melting crucibles for jewelry

Product Overview

Description

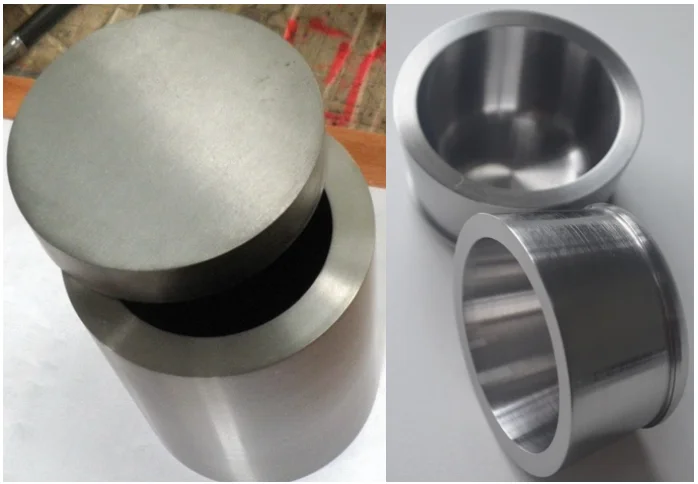

Molybdenum Crucible

Different Kinds: Spin crucible, machine crucible, stamping crucible, welding crucible

Purity:99.95%

Production process: molybdenum powder - sieving - batch - isostatic pressing - rough blank processing - intermediate frequency sintering - boutique car processing - packaging

 Material specifications:

product name	Density	Grade(mm)		Thickness	Surface roughness
		Diameter	high
Machine plus     crucible	≥10.2	10-500	10-750	8-20	Ra=1.6
Sintering crucible	≥9.8	10-500	10-750	8-20	Ra=1.6





Click Here For More Information

Applications:

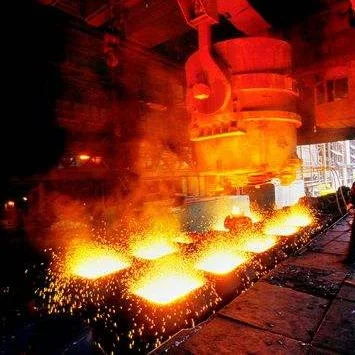

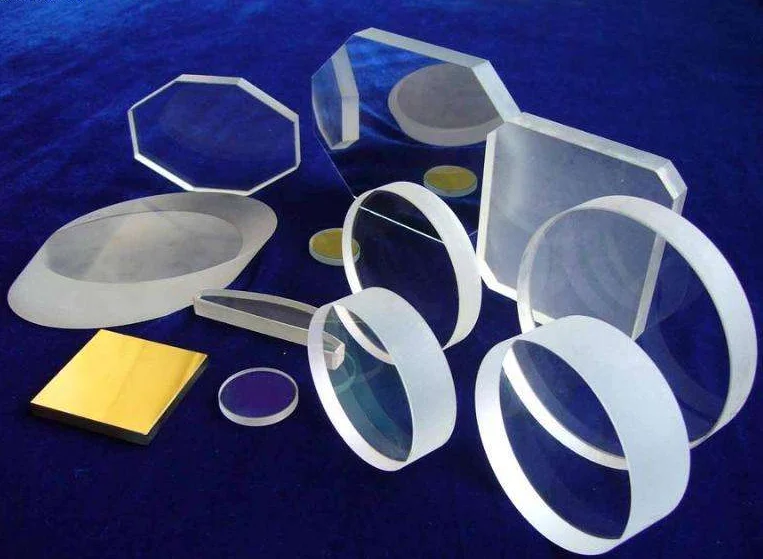

As the melting point of molybdenum up to 2610 ℃, molybdenum crucible is widely used in sapphire single crystal growth furnace, quartz glass melting furnace, rare earth smelting furnace and other industrial furnace core container, the use of the working temperature environment is generally above 2000 ℃. Especially for the sapphire single crystal growth furnace, with high purity, high density, no internal cracks, the size of precision, inside and outside the wall smooth, and other characteristics of the molybdenum crucible on the sapphire crystal growth process of seed crystal success rate, pull crystal quality control, Desalination pot and service life played a key role.

Click Here For More Information
