Online Selective Conformal Coating Machine

Product Overview

Description



The machine feature:



         1-Motion axis: X  Y  Z  U

          X Y Z axis is movement axis

          U-axis is a rotation axis that can rotate ±180 degrees



       2-Positioning accuracy:±0.02mm

          Repeat accuracy:±0.02mm

          Max moving speed:1000mm/s



       3-Rail height:900±20mm

          Rail top clearance height for coating object:80mm

          Rail low clearance height for coating object:80mm



       4-Coating area: L460*W460mm

          Equipped with a complete set of spray valves



       5-The machine with exhaust system



       6-Double-manufactured working mode (dual face coating)

          It can receive the PCB returned by the downstream machine( FLIP ) for back coating.



       7-Media supply

               Smema connect

               Compressed air:0.4-0.6Mpa

               Electrical power:3KW



       8-Machine size and weight

               L1100*W1110*H1800mm

               800kg

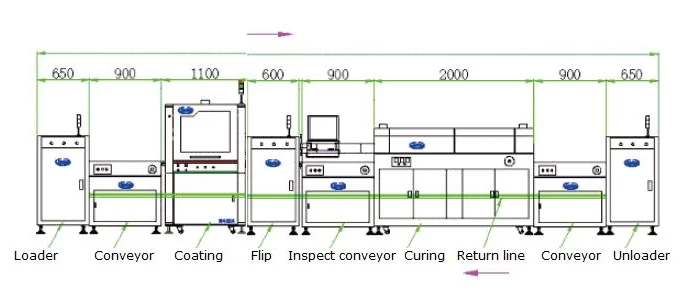

 A complete  solution for coating line





Loader ----> Coating<---->FLIP ---->Curing Oven---->Unloader----Return
