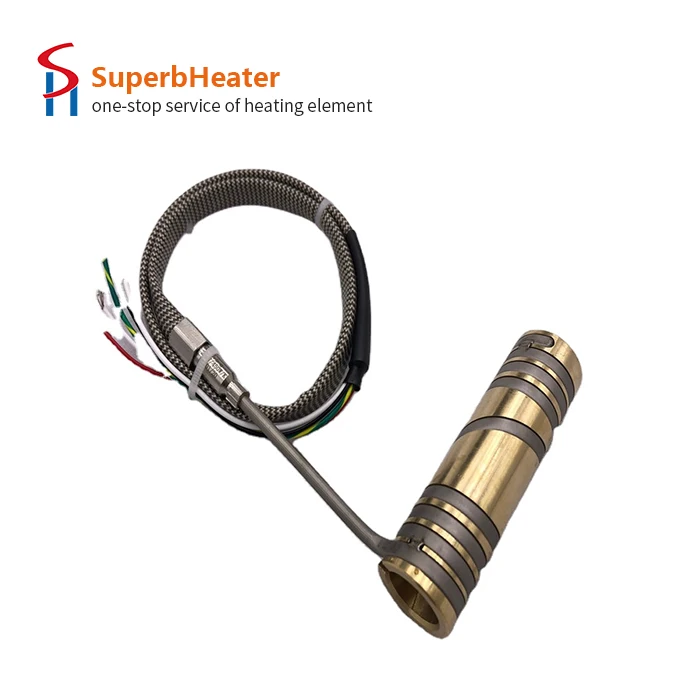

Brass Hot Runner Heater Nozzle Coil Heater with Thermocouple

Product Overview

Description

Brass Hot Runner Heater Nozzle Coil Heater With Thermocouple

Features of Product

Applications

· Plastic Injection Machine

· Hot runner mold

· Plastic Extruder Machine

· Pipe Forming Machine

· Tube Extrusion Machine

· Industrial - Packaging Equipment

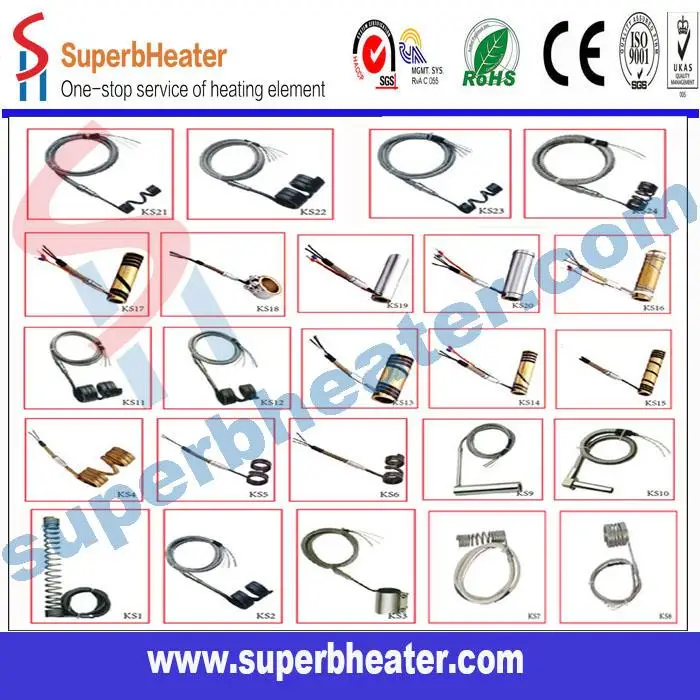

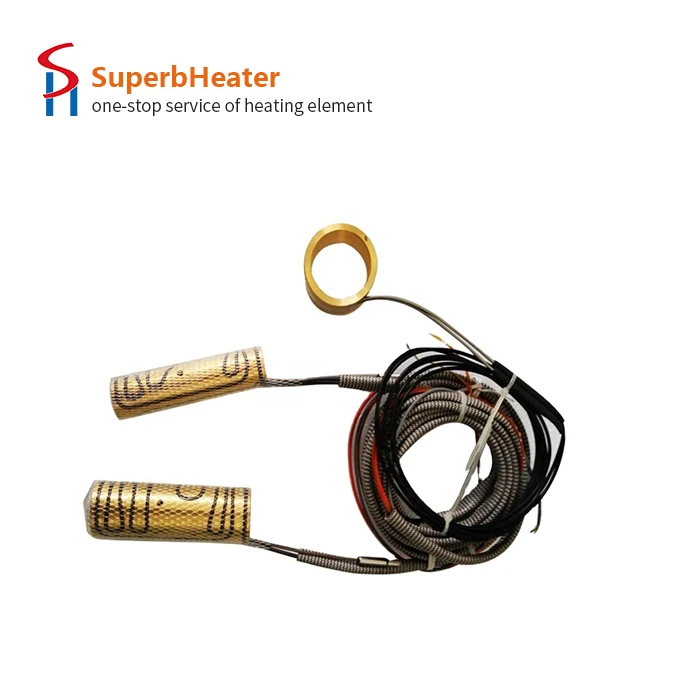

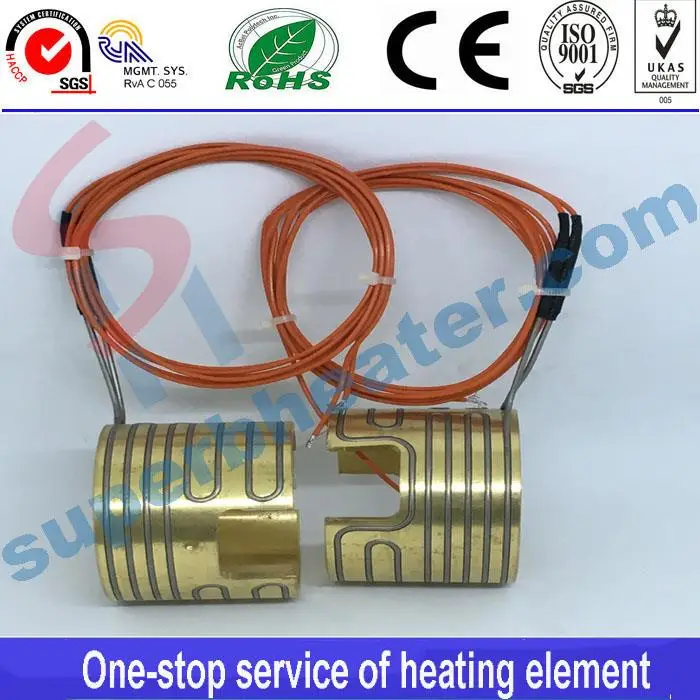

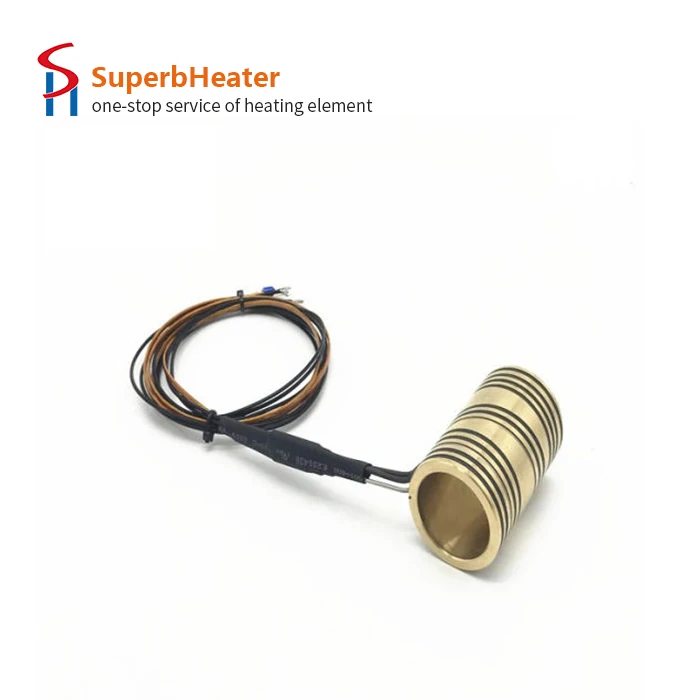

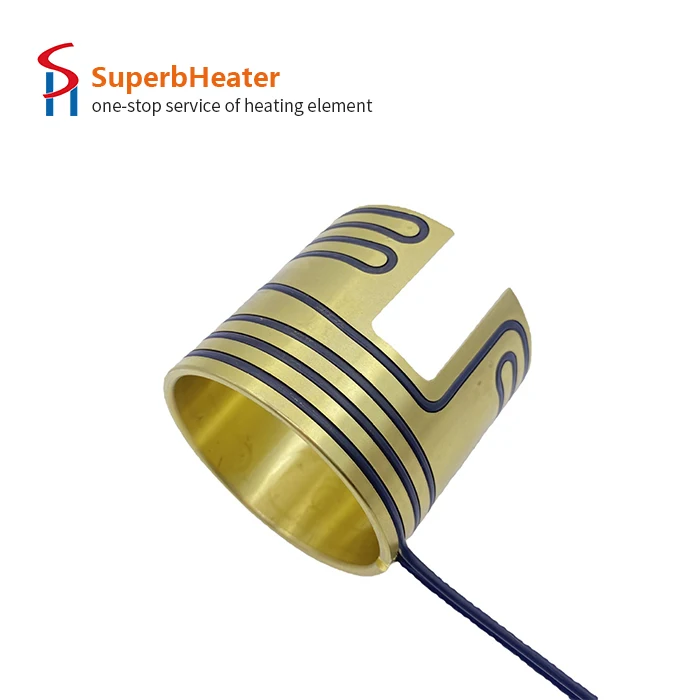

Product Shows

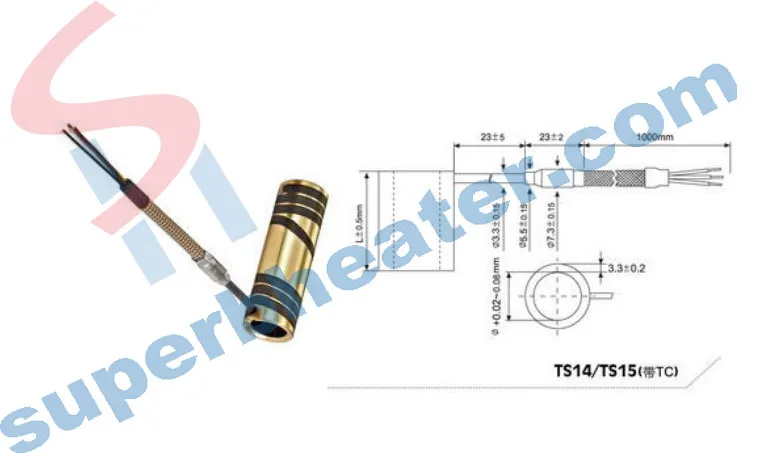

Technical Data

Sectional area	3X3, 4.2X2.2, 4X2, 4X2.7, 4X2.5, 3.3X3.3, 3.5X3.5, 4 X 4, 2.2X1.3
Minimum ID	8mm
Sheath Material	SS304, SS310, Brass
Insulation Material	High Pure MgO
Resistance Wire	NiCr8020
Maximum Sheath Temperature	700°C
Die Electrical Strength	800V A/C
Insulation	>5 M W
Dimensional Tolerance	Coil I.D+0.1 to 0.2mm//Coil Length+1mm
Wattage Tolerance	+10% (+5% Available Upon Request)
Voltage	12V~380V
Wattage	70W~1000W
Build-in thermocouple	without or with J/K type thermocouple
Sheath's length	500/1000/1200/1500/2000mm
Available sheath material	nylon, metal braided, fiberglass, silicone rubber, kevlar
Sheath's color	standard is black, other color is also available
Connector	without or with 5 pin xlr, 4 pin min xlr connector
Connector's color	silver or fully black

Packaging & Delivery

1. Packaging Details: Brass Hot Runner Heater Nozzle Coil Heater With Thermocouple
                                 Export packaging : wooden box;
2. Delivery Time: 5-7 days after getting payment (According to quantity).





Since 1985 years, Superb Heater Technology focused on the production of Brass Hot Runner Heater Nozzle Coil Heater With Thermocouple, which is well-known as one of the leading manufacturers and suppliers of Brass Hot Runner Heater Nozzle Coil Heater With Thermocouple. In the past years, we owned strong reputation for the high quality, reliable performance and strong durability of our products. Should you have interested, please feel free to contact us.
