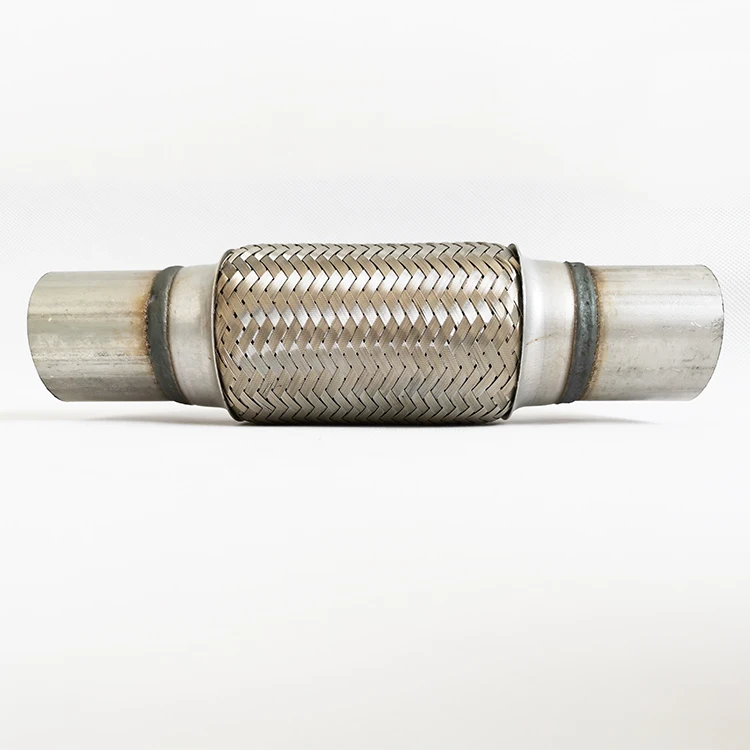

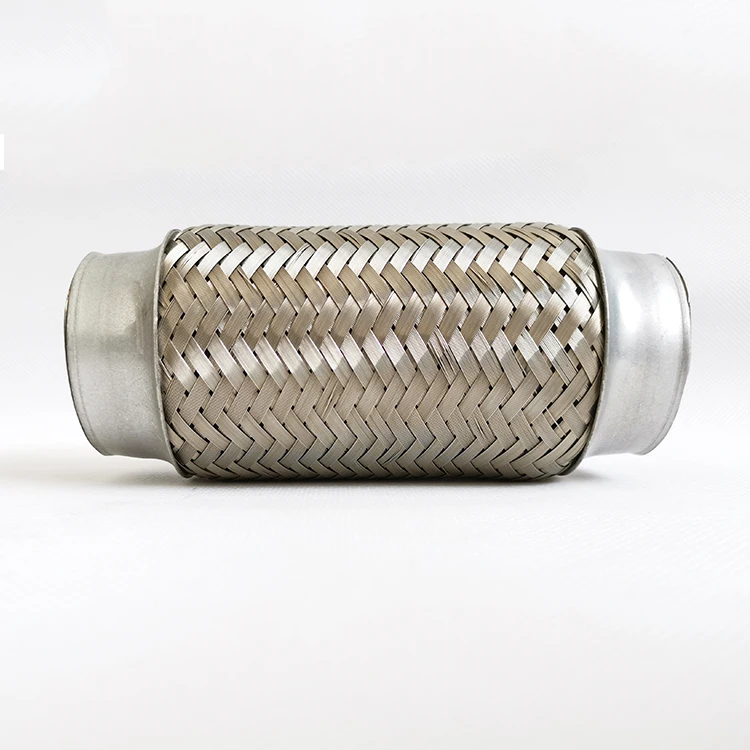

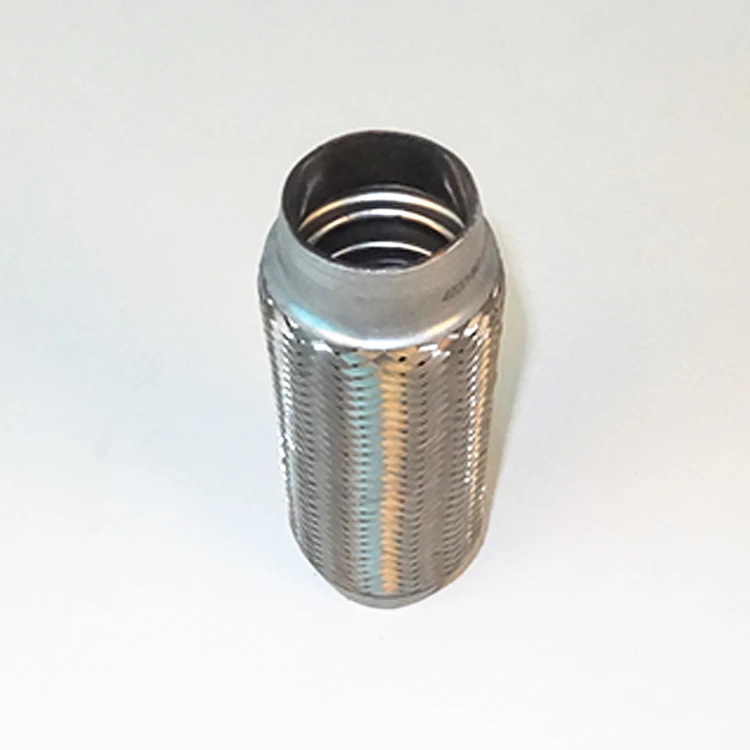

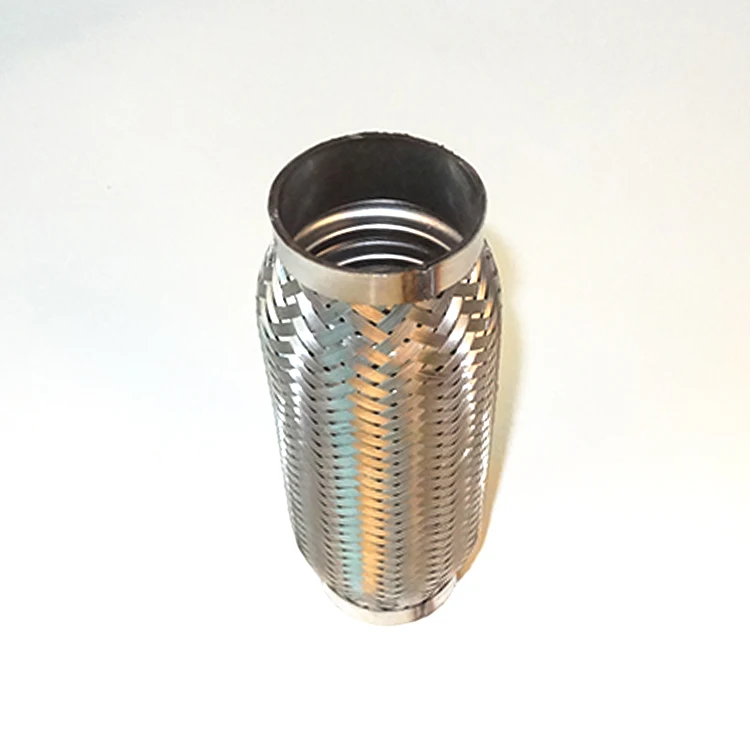

High Quality Exhaust Flexible Pipe Bellows






A flex pipe is flexible piece of pipe that allows the exhaust system some flexibility. Flex pipes are an essential part of any front wheel drive vehicle and on most all wheel drive vehicles. On front wheel cars, since the motor is mounted transversely, when you accelerate the motor rocks and the flex pipe protects your exhaust system from breakage. Without that extra flex the rocking motion would crack the exhaust system causing a loud leak.
Common sizes are as follows, customizable sizes:

Dlanmeter (I.D.) | Pipe Lenght | Overall Lenght (OAL) | Dlanmeter (I.D.) | Pipe Lenght | Overall Lenght (OAL) | Extensions |
| 1-3/4" | 4" | 4" | 1-3/4" | 4" | 8" | Yes |
| 1-3/4" | 6" | 6" | 1-3/4" | 6" | 10" | Yes |
| 1-3/4" | 8" | 8" | 1-3/4" | 8" | 12" | Yes |
| 1-3/4" | 10" | 10" | 1-3/4" | 10" | 14" | Yes |
| 1-3/4" | 12" | 12" | 1-3/4" | 12" | 16" | Yes |
| 2" | 4" | 4" | 2" | 4" | 8" | Yes |
| 2" | 6" | 6" | 2" | 6" | 10" | Yes |
| 2" | 8" | 8" | 2" | 8" | 12" | Yes |
| 2" | 10" | 10" | 2" | 10" | 14" | Yes |
| 2" | 12" | 12" | 2" | 12" | 16" | Yes |
| 2-1/4" | 4" | 4" | 2-1/4" | 4" | 8" | Yes |
| 2-1/4" | 6" | 6" | 2-1/4" | 6" | 10" | Yes |
| 2-1/4" | 8" | 8" | 2-1/4" | 8" | 12" | Yes |
| 2-1/4" | 10" | 10" | 2-1/4" | 10" | 14" | Yes |
| 2-1/4" | 12" | 12" | 2-1/4" | 12" | 16" | Yes |
| 2-1/2" | 4" | 4" | 2-1/2" | 4" | 8" | Yes |
| 2-1/2" | 6" | 6" | 2-1/2" | 6" | 10" | Yes |
| 2-1/2" | 8" | 8" | 2-1/2" | 8" | 12" | Yes |
| 2-1/2" | 10" | 10" | 2-1/2" | 10" | 14" | Yes |
| 2-1/2" | 12" | 12" | 2-1/2" | 12" | 16" | Yes |
| 3" | 4" | 4" | 3" | 4" | 8" | Yes |
| 3" | 6" | 6" | 3" | 6" | 10" | Yes |
| 3" | 8" | 8" | 3" | 8" | 12" | Yes |
| 3" | 10" | 10" | 3" | 10" | 14" | Yes |
| 3" | 12" | 12" | 3" | 12" | 16" | Yes |
Exhaust Flexible Bellows Types:
A. Bellows + Outer Braid
B. Bellows + Interlock + Outer Braid
C. Bellows + Inner Braid + Outer Braid

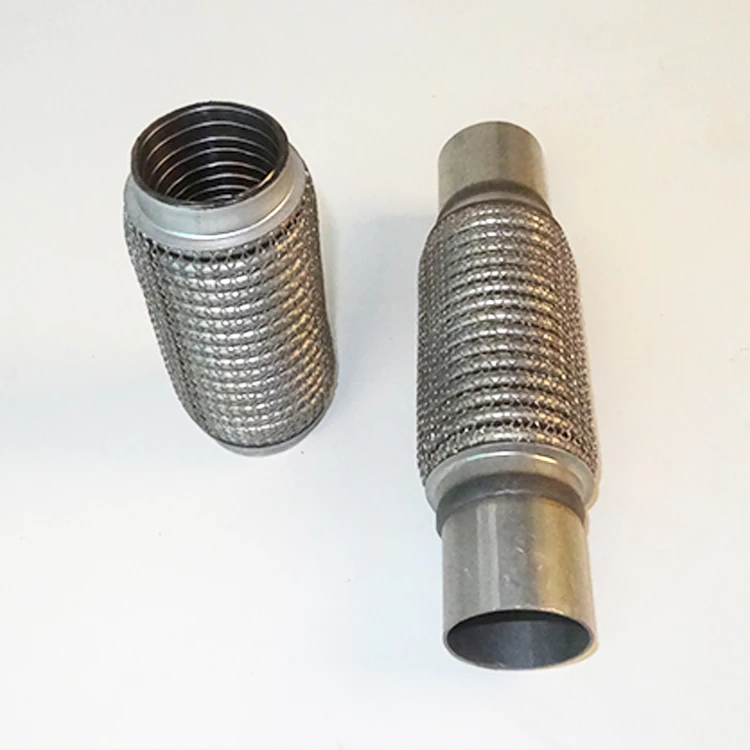

D. Bellows + Outer Mesh
E. Type A/B/C + Nipples
F. Type D + Nipples


Bellows can be used in the exhaust system of large vehicles such as trucks, buses, buses, etc., for the high temperature portion of the engine exhaust manifold.
The Exhaust Bellows is installed in the exhaust pipe between the engine exhaust manifold and the muffler, so that the entire exhaust system is flexibly coupled, thereby reducing vibration and noise, facilitating installation and extending the life of the exhaust muffler system.



Cangzhou Real International Trade Co., Ltd. founded in 2009 , we dedicated to pneumatic hose , Hose clamp , Oil filter , Exhaust Flexible Pipe , Air Brake Chamber for 10 years , one of biggest truck , auto spare parts exporter in China.
Companies adhering to the "quality is the first , cooperation and win-win" business philosophy , with first-class service , first-class technology and first-class products , comprehensively build the company's core competitiveness , to achieve the best industry brands , provide the most valuable industry services . To provide 100% quality products for customer.

Q: Can you produce the hose with my own brand ?
A: Yes, we can offer OEM service.
Q: Could we pay a visit to your factory ?
A: Yes, you are always welcome to visit our factory. If you come to our factory,you can fly to Beijing airport and we can pick you up.
Q: Can we get the goods without your company name to export ?
A: Yes, we can. We are allowed to use your designated agent's name if you have one.
Q: Can you send us a sample to test quality before ordering ?
A: Yes, we can provide sample by free but the freight and other charges is payed by the customers.
Q: Can you help us do the custom clearance ?
A: Yes, we can. We can help you find a professional custom clearance company to do it.
Q: Can you produce goods with special specification ?
A: First of all, we need to know the specification in details, and then we need to check with our technology department.
