XYJ12B9225H 80000 hours warranty cooling fans 12 volt industrial machine cooler fan 9225 oil bearing dc fan with grill
- Category: >>>
- Supplier: Shenzhen Xinyujie Technology Co. Ltd.
Share on (62246393145):
Product Overview
Description
XYJ12B9225H 80000 hours warranty cooling fans 12 volt industrial machine cooler fan 9225 oil bearing dc fan with grill
Product Description
| Size | Model | Rated Voltage (V) | Startup Voltage (V) | Current Amp (A) | Speed (RPM) | Air flow (CFM) | Static Pressure (mmH20) | Noise Level (dB-A) | Weight (g) |
| 92*92*25mm | XYJ05B9225L | 5 | 3.5 | 0.12 | 2000 | 31.49 | 1.94 | 28.30 | 76 |
| XYJ05B9225M | 5 | 3.5 | 0.36 | 2800 | 46.11 | 3.65 | 36.90 | 76 | |
| XYJ12B9225L | 12 | 6 | 0.07 | 2000 | 31.49 | 1.94 | 28.30 | 76 | |
| XYJ12B9225M | 12 | 6 | 0.15 | 2800 | 46.11 | 3.65 | 36.90 | 76 | |
| XYJ12B9225H | 12 | 6 | 0.30 | 3700 | 59.45 | 5.93 | 42.50 | 76 | |
| XYJ24B9225L | 24 | 12 | 0.04 | 2000 | 31.49 | 1.94 | 28.30 | 76 | |
| XYJ24B9225M | 24 | 12 | 0.08 | 2800 | 46.11 | 3.65 | 36.90 | 76 | |
| XYJ24B9225H | 24 | 12 | 0.20 | 3700 | 59.45 | 5.93 | 42.50 | 76 |
Fan Guard
Different between ball bearing and sleeve bearing
| ball bearing | sleeve bearing | |
| Price | higher | lower |
| Brand | NSK from Japan | Made in China |
| Advantage | stable performance, low noise, 5-8 years lifetime | low cost, 2-3 years lifetimes |
| Material | stainless | copper sleeve |
| Warranty | 30000 hours | 10000 hours |

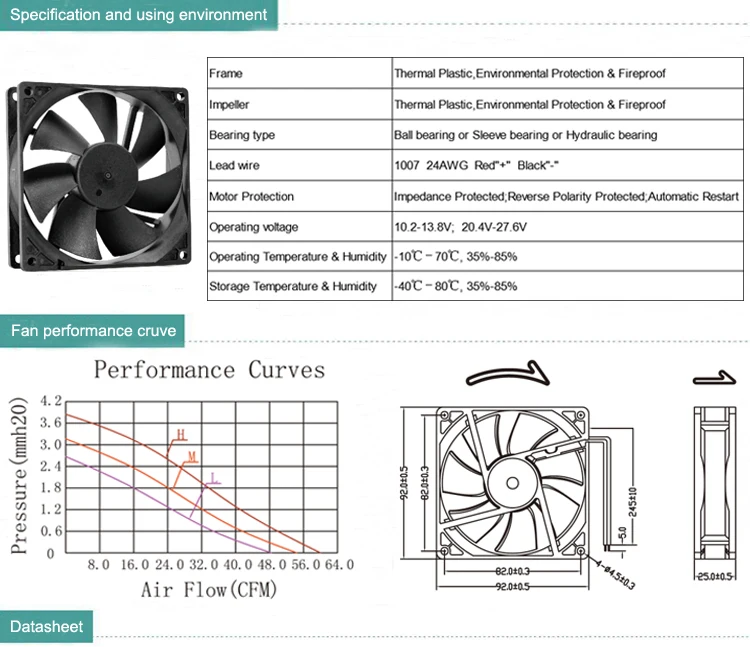

Use Environment
| Operating Voltage | 10.2V~13.8V / 20.4V~27.6V |
| Operating Temperature / Humidity | -10°C~70°C 35%~85% |
| Stotage Temperature / Humidity | -40°C~80°C 35%~85% |
Option Function
1. Waterproof Level: IP55~IP67, fans could be work in wet environment, outdoor or under water with waterproof protection.
2. Wire leading: 2/3/4 wires
3. Additional function: Auto-restart, FG(speed detection), RD(stoppage alarm), PWM(speed control),Waterproof etc.
4. Default wire length is 200mm without connector, also can be customized as request. Please show us a picture to confirm connector and rank of wires.
Guarantee
-3 years warranty for ball bearing fans.
-2 years warranty for hydraulic bearing fans.
-1 year warranty for sleeve bearing fans.
Service
-OEM service based on MOQ1000pcs;
-100% test before shipping;
-UL material and waterproof material optional;
-The defective rate is less than 5%;
-Provision of engineering services;
-Customized service can be provided.
Our advantage
Certifications
Company Information
Packaging & Shipping
FAQ
1. What kinds of products supplied by your factory?
We provide DC cooling fan,DC blower fan,AC cooling fan and EC cooling fan.
2. What kind of function can we choose for fan?
Auto-restart ,Speed detection,Stppage Alarm,Waterproof(IP55-IP67 optional), PWM function etc.
3. How long can your wire length be ?
- The wire length and terminal could be customized as your request.
- Show the picture of connector and rank of wires for confirm.(Default wire length is 200mm)
4. What’s your MOQ and delivery date ?
- MOQ 200PCS
- Sample lead time:5 working days
- Mass production:15 working days
- Waterproof fans need 1 more week
5. What’s your payment terms ?
- We accept Payment by T/T,Western Union, Paypal ,L/C and advocate Credit Insurance Payment on Alibaba
- 100% payment for sample orders ,30% prepayment and Balance before shipment.
6.What kind of transportation can we choose ?
- Express:DHL,EMS,Fedex,UPS,IATA,TNT,China AIR Express,Iceland express etc.
- Sea transportation as you request.
7. What’s your packaging?
- Knife card packing,carton package
- normal carton size 43X28X43CM,different model will lead to carton size different.
8. What information should be provided before place an order?
- Fan dimension
- Rated voltage , such as 5v/12v/24v
- Speed or current amp
- Sleeve or ball bearing
- Leading wire length(default 200mm)
- 2 wire leading or 3/4 wire leading
- With terminal or not
