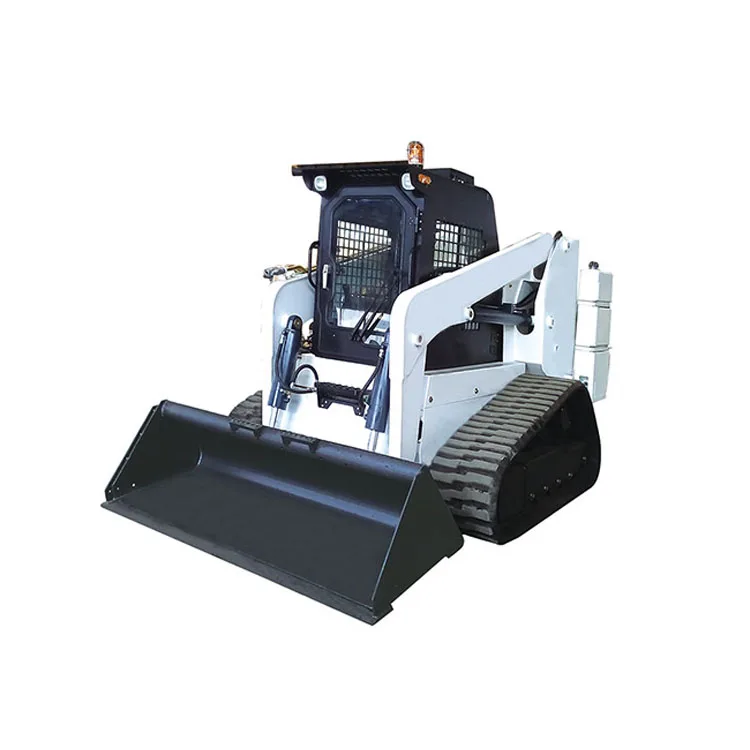

TS125 High Power Loader Crawler Skid Steer Loader With 0.6m3 Bucket
- Category: >>>
- Supplier: Changzhou Raymond International Trading Co. Ltd.
Share on (62246532150):
Product Overview
Description
TS125 Loader Crawler Skid Steer Loader With 0.6m3 Bucket
Product Description
| Model | TS50 | TS65 | TS75 | TS100 | TS125 |
| Operating load (kg) | 700 | 1000 | 1050 | 1200 | 1500 |
| Max Speed(km/h) | 10/15 | 12/18 | 12/18 | 12/18 | 12/18 |
| Rated flux (L/min) | 60 | 75 | 80 | 88 | 88 |
| High Flow Flux(L/min) | 120 | 140 | 140 | ||
| Tire(track) model | 300*52.5 | 320*84 | 320*84 | 320*84 | 450*86 |
| Rated power (Kw) | 36 | 55 | 55 | 74 | 103 |
| Fuel tank capacity (L) | 50 | 80 | 90 | 90 | 90 |
| Self weight bucket (kg) | 2800 | 3800 | 3800 | 4500 | 4800 |
| Bucket capacity (m 3 ) | 0.3 | 0.5 | 0.5 | 0.55 | 0.6 |
| Model | TS50 | TS65 | TS75 | TS100 | TS125 | |
| A | Overall operating height (mm) | 3350 | 3480 | 3480 | 4070 | 4070 |
| B | Height to bucket hinge pin (mm) | 2770 | 2900 | 2900 | 3150 | 3150 |
| C | height to top of cab (mm) | 2050 | 2150 | 2150 | 2160 | 2160 |
| D | Height to bottom of level bucket(mm) | 2603 | 2730 | 2730 | 2983 | 2983 |
| E | Overall length without bucket(mm) | 2300 | 2750 | 2750 | 3000 | 3000 |
| F | Overall length with bucket(mm) | 2950 | 3500 | 3500 | 3700 | 3700 |
| G | Dumping angle at maximum height(° ) | 40 | 40 | 40 | 40 | 40 |
| H | Dumping height(mm) | 2100 | 2230 | 2230 | 2450 | 2450 |
| I | Dumping reach(mm) | 790 | 715 | 715 | 700 | 700 |
| J | Rollback o bucket on ground(° ) | 30 | 30 | 30 | 30 | 30 |
| K | Rollback of bucket at full height(° ) | 104 | 104 | 104 | 104 | 104 |
| L | Wheelbase(mm) | 1240 | 1500 | 1500 | 1500 | 1500 |
| M | Ground clearance(mm) | 140 | 200 | 200 | 200 | 200 |
| N | Angleof departure(° ) | 20 | 20 | 20 | 20 | 20 |
| O | Front turning radins without bucket(mm) | 1064 | 1298 | 1298 | 1365 | 1365 |
| P | Front tuning radius(mm) | 1825 | 2010 | 2010 | 2200 | 2200 |
| Q | Rear tuning radius(mm) | 1264 | 1714 | 1714 | 1742 | 1742 |
| R | Rear axle to bumper (mm) | 594 | 890 | 890 | 938 | 938 |
| S | Tread width,enterline to centerline (mm) | 1102 | 1462 | 1462 | 1654 | 1654 |
| T | Width (mm) | 1402 | 1782 | 1782 | 1994 | 2124 |
| U | Bucket width (mm) | 1500 | 1930 | 1830 | 2030 | 2160 |

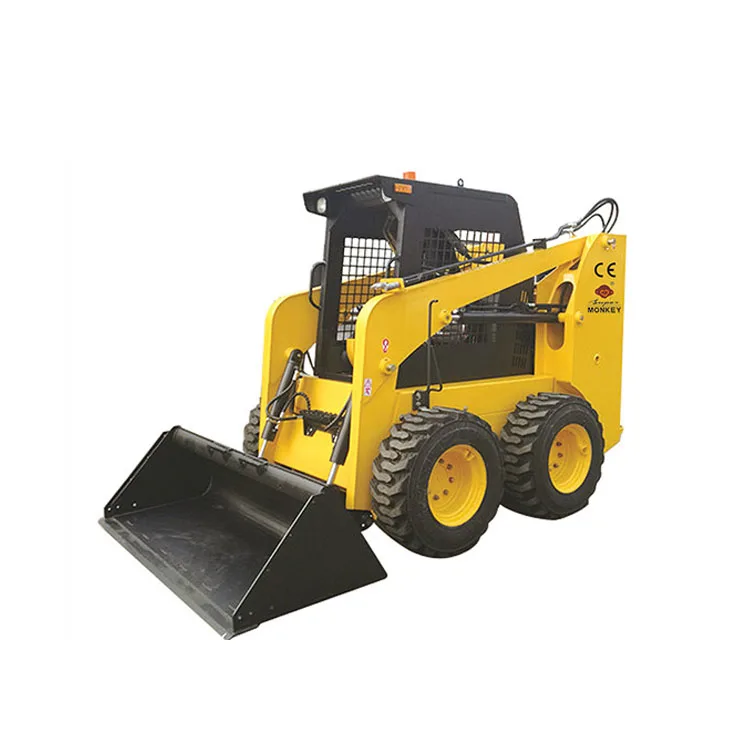

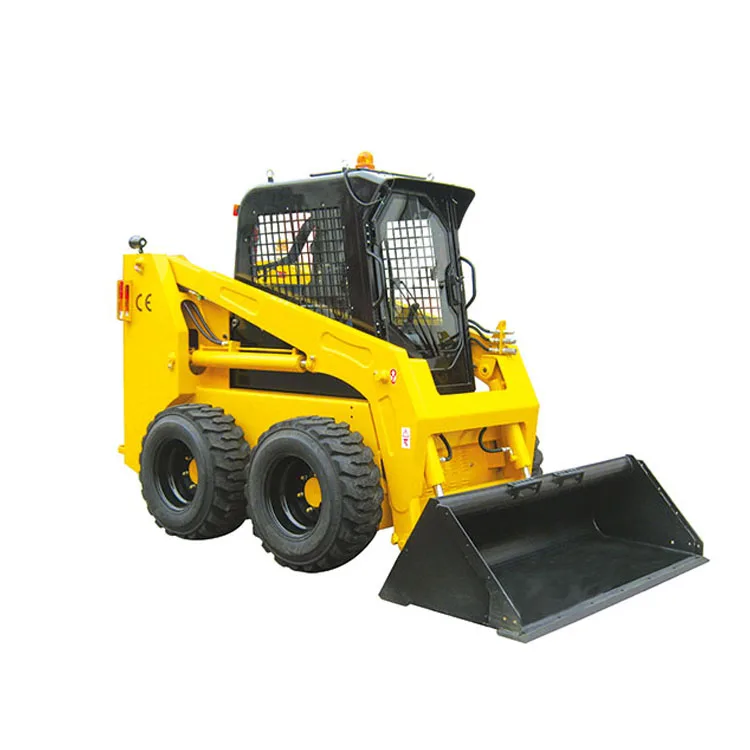

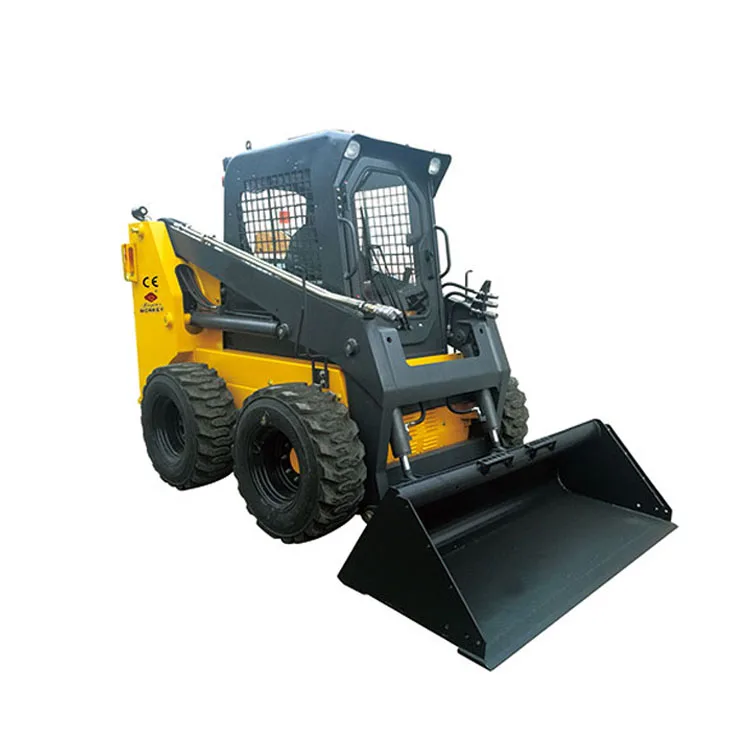

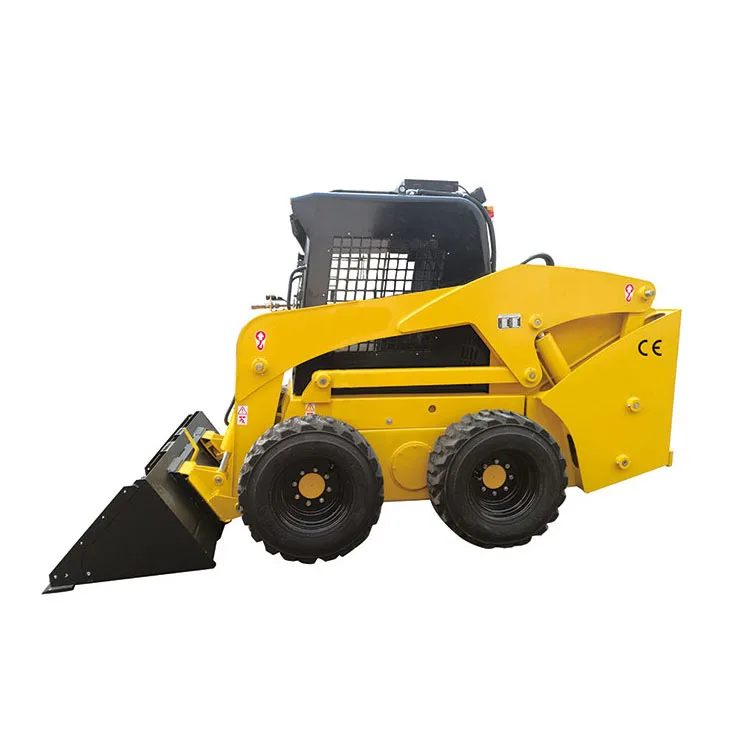

We also have other series skid steer loader for sale. Please feel free to consult us.
Product Details
Application
About Us
Changzhou Raymond International Co., Ltd is a professional manufacturer which was found in 2002 has a lot of experience in construction machinery attachments producing and serving.Our factory is located in Changzhou City, Jiangsu Province, Near to Shanghai City. Which has large capacity to supply various kinds products like skid steer loader, mini excavator, hydraulic breaker, earth auger, quick hitch, Vibro ripper,pile breaker and other construction machinery attachments.We are always researching to improve our products’ performance and innovate designing to meet more and more clients’ demands.
