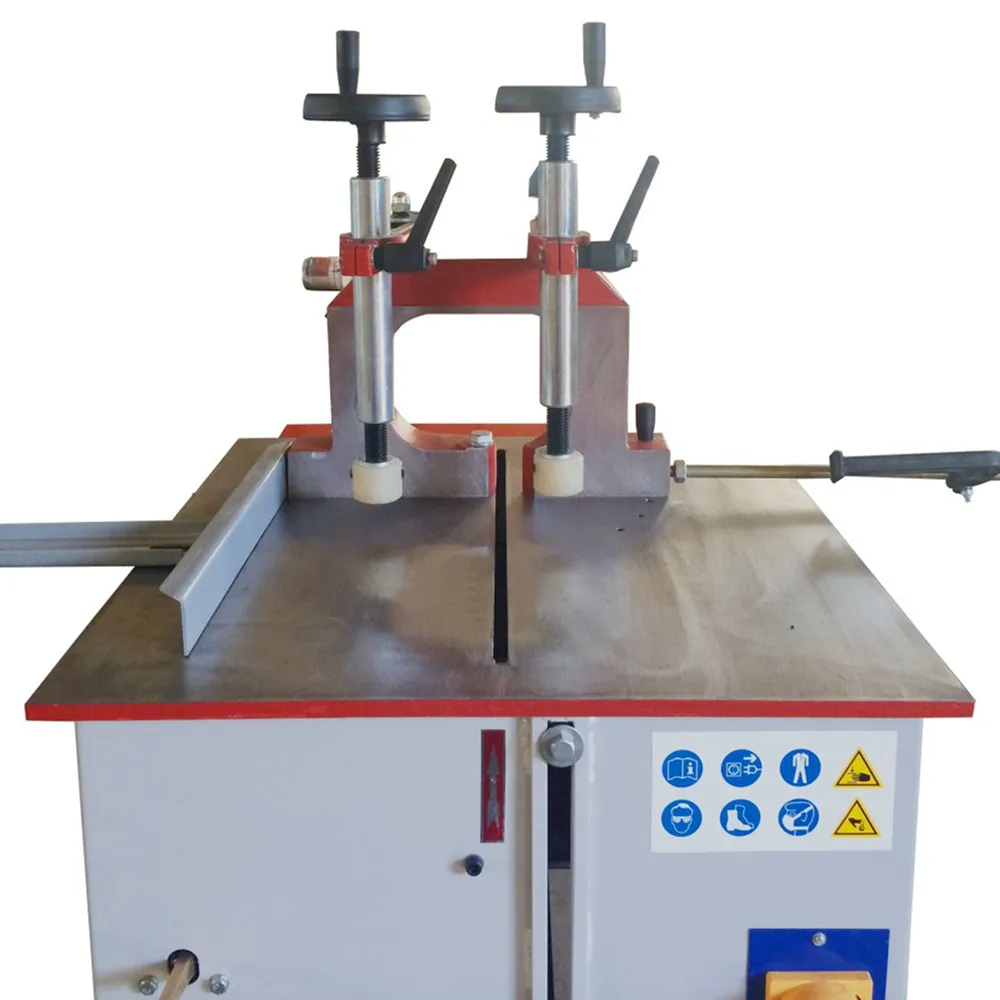

AC400 Aluminum profile Cut Saw
- Category: Cut Off Machine >>>
- Supplier: Laizhou Beite Machinery Co. Ltd.
Share on (62246662069):
Product Overview
Description
Aluminum window & door processing machine
Semi-Automatic not CNC aluminum profile cut machine is one portable , easy operating cut saw . With fixed or rotable stand .
Vice revolving to the right and left from 0-45 degree .
Motor guard
Device for parallel cut
Optional Equipment :

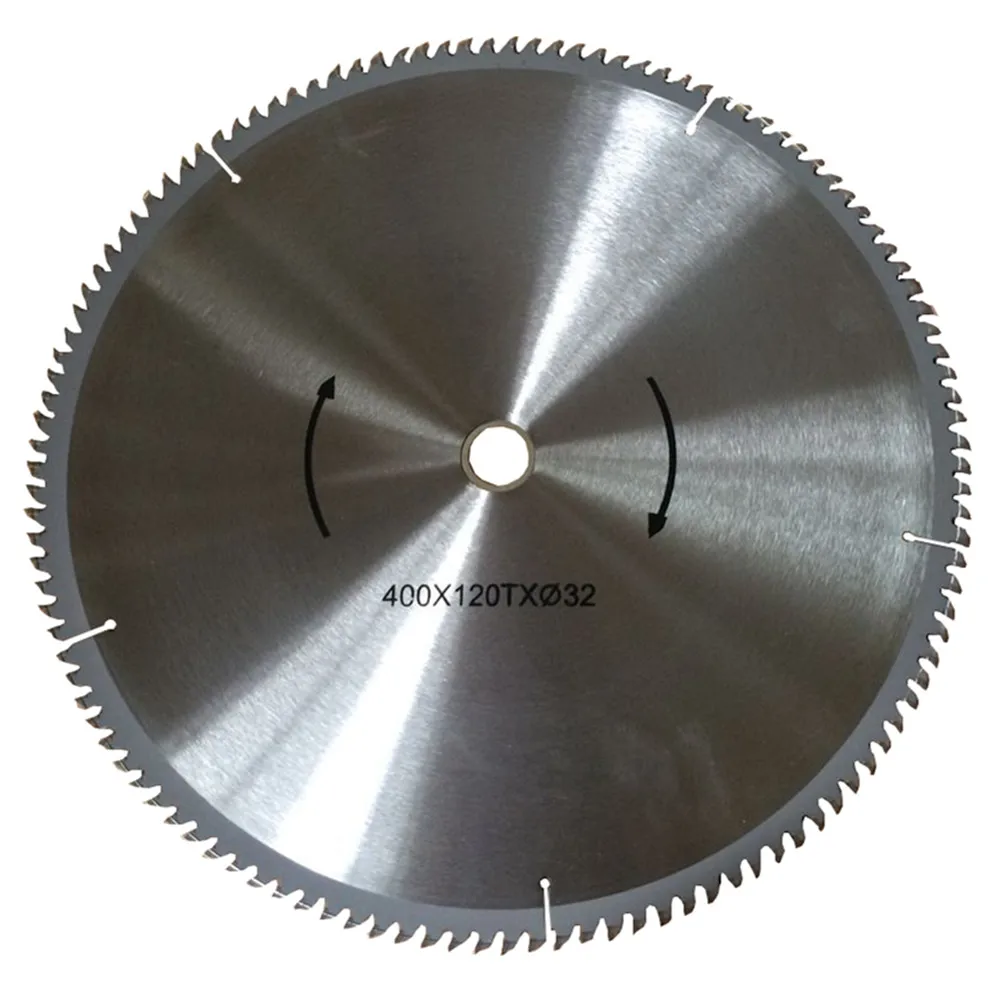

carbide blade diameter 350-400mm
pedestal in steel plate
Technical Specification
model | AC-350 | AC-400 | AC-450 |
Volatage | 380/220V | 380/220V | 380V/220V |
power | 1.5/2.2KW | 1.5/2.2KW | 2.2KW |
frequency | 50/60HZ | 50/60HZ | 50/60hz |
blade diameter | 350mm | 400mm | 450mm |
blade shaft revolutions | 2800rpm | 2800rpm | 2800rpm |
cutting thickness 0° | 160*90mm | 200*100mm | 220*100mm |
100mm | 120mm | 140mm | |
cutting thickness 45° | 140*70mm | 180*70mm | 200*80mm |
70mm | 80mm | 120mm | |
weight | 120KG | 129KG | 136KG |
Dimensions | 840*440*1600mm | 850*440*1500mm | 900*480*1500mm |
