6 button 12V DC RS485 Modbus Protocol smart Hotel light touch switch

Product Overview

Description

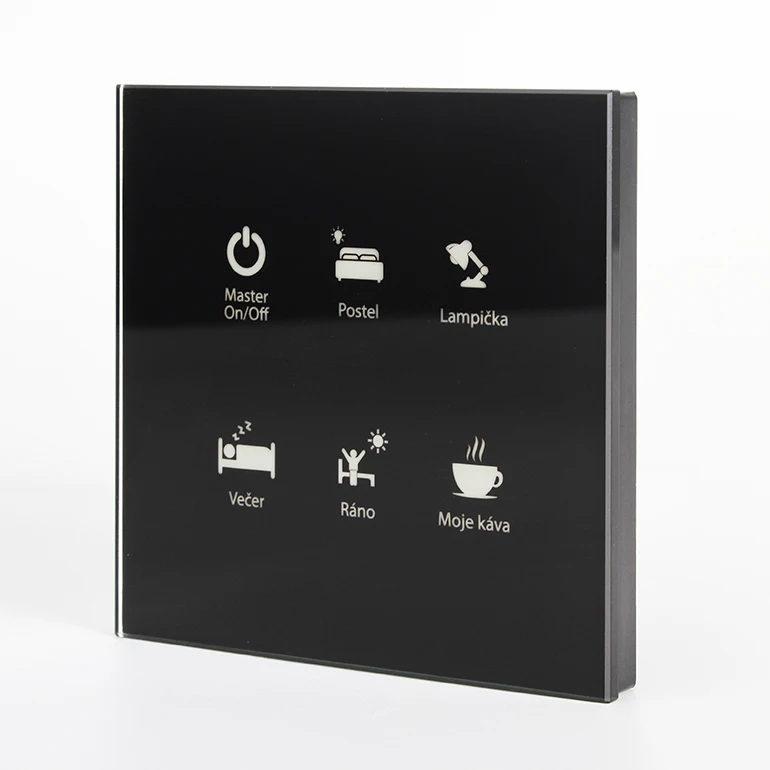

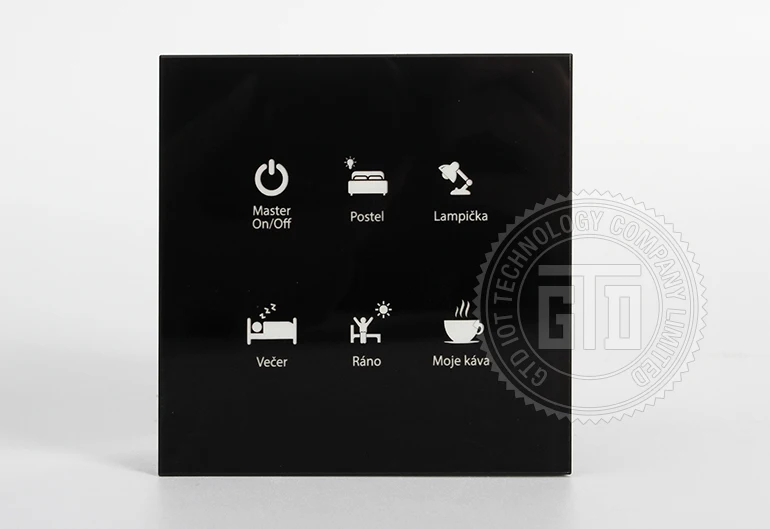

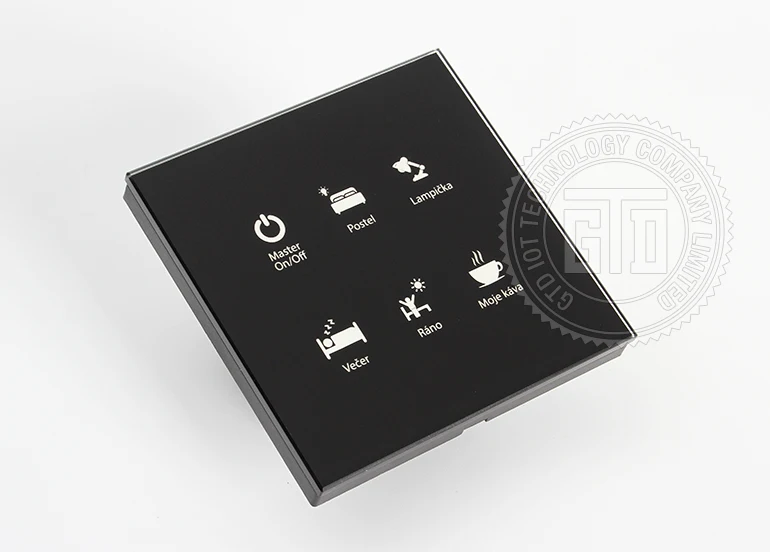

6 button 12V DC touch switch RS485 Modbus Protocol smart Hotel light touch switch

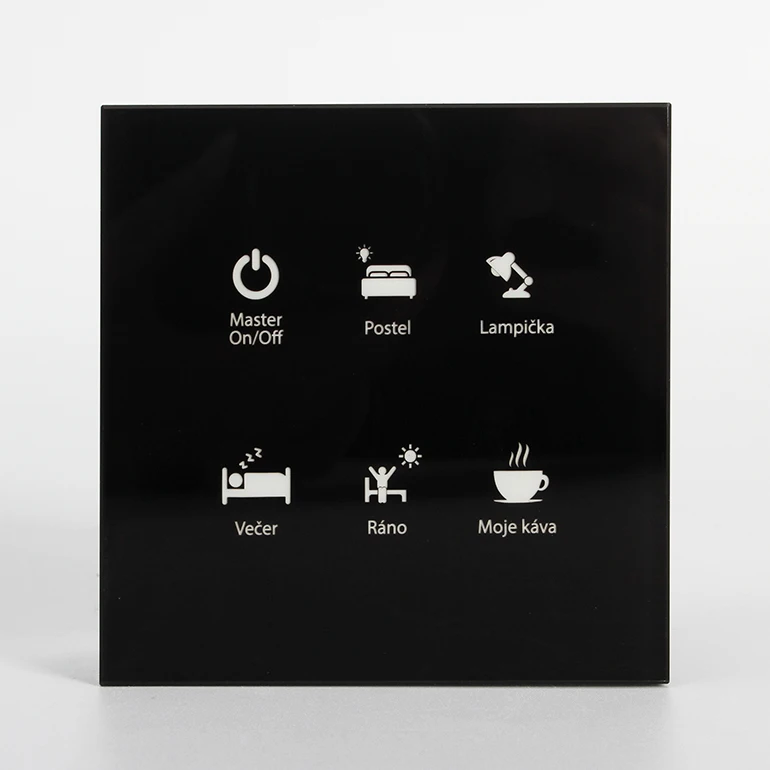

4-mm thick luxury glass panel

Crystal luxury glass panel, anti-scratch, waterproof, leak-proof, easy to clean. Founder's design makes the appearance more beautiful, and the chamfering around the panel is safer to use.



Flame retardant base

High quality PC (polycarbonate), impact resistance, heat resistance, flame retardant, mechanical properties meet with international fire safety standards.



Stable structure

The high-quality cold-rolled steel plate bracket is treated by an insulating coating, which has the characteristics of high strength, non-deformation and convenient installation.



Color, pattern can be customized

A variety of colors (magnetic white, silver, champagne, gold) for choice, function keys can be customized according to different requirements of a unique icon.



Modular design

Standardized and modular design, unified design, implementation of the functional combination of freedom, and convenience to the installation.

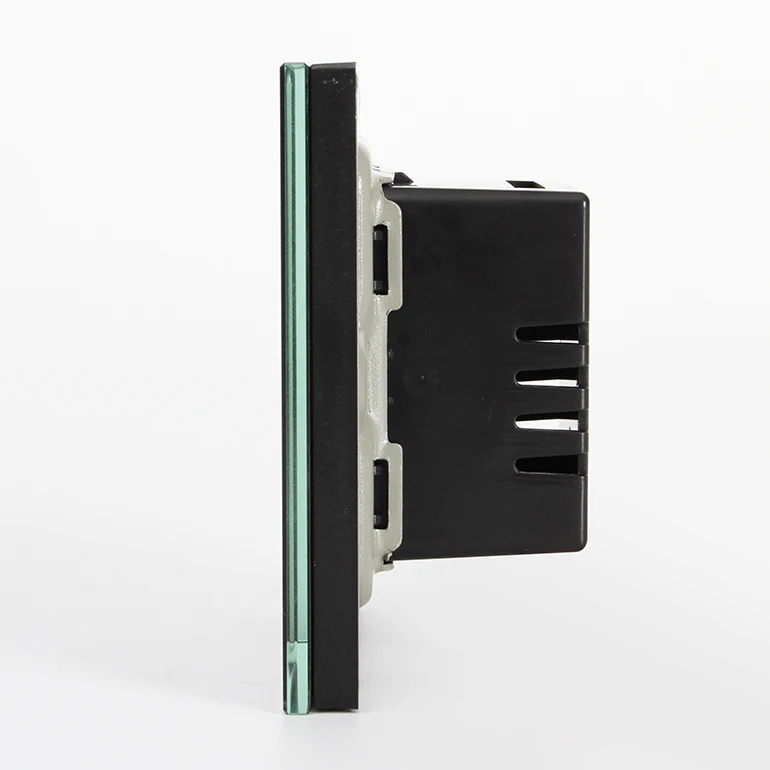

Good heat dissipation design

Switch bottom box adopts straddle design and switch circuit design for open space, sufficient heat, thus extending the service life of the switch.

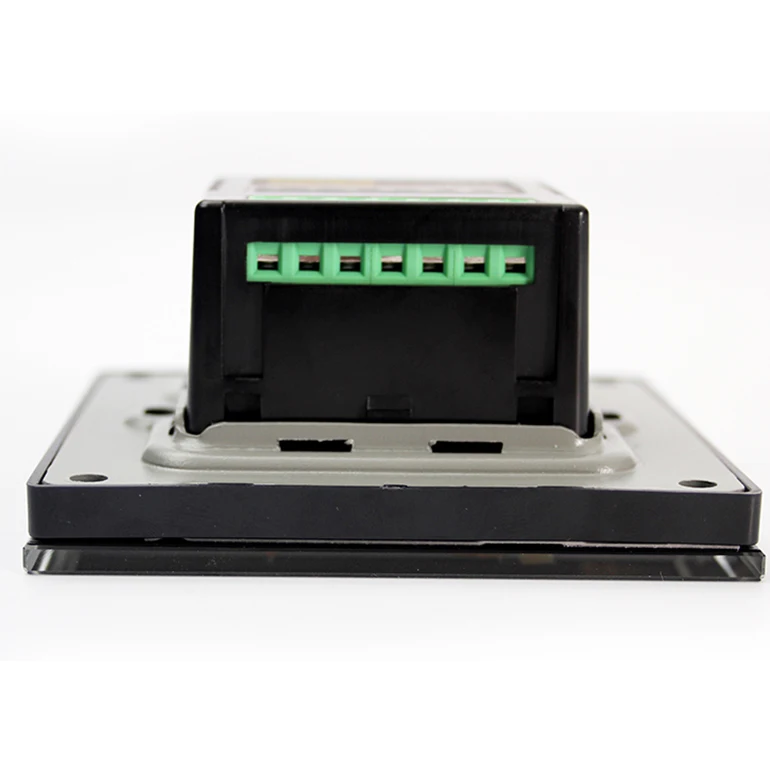

Press type connection mode

Connection mode of the column pressing connection, so the utility model has the advantages of convenient connection, also can make the line better convergence, use rise more convenient.



Power off memory function

After power off, the product will still retain the original settings, not because of power failure and need to re set, the operation is more simple.

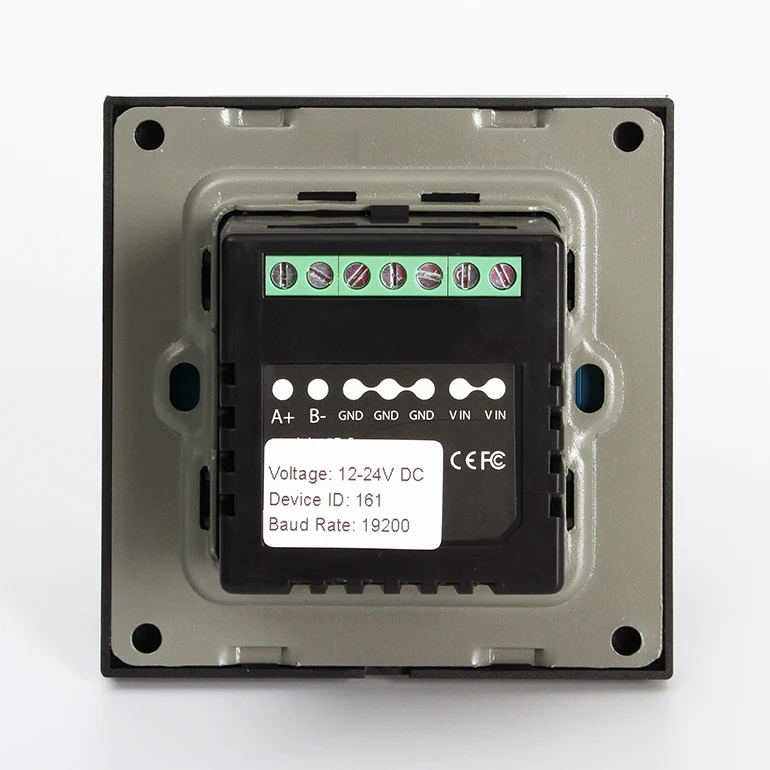

Technical data

Input voltage: 12V

Communication protocol: Modbus

Baud rate: 9600/19200, 8 data bits, no parity, 1 stop bit

Product size: 86*86*42mm

Fixed screw center distance: 60mm (86mm button box)

Operating temperature: -10℃--60℃

Working humidity: 0 - 95%
