Product Overview
Description
"Great Wall Make Great Machine"
Trituradora de Cono, Chancadora de Cono, Trituradoras Conica
Product Description
| Usage and Application Trituradora de Cono, Chancadora de Cono, Trituradoras Conica |
Como fabricante de trituradoras, producimos todo tipo de trituradoras. Mientras tanto, la trituradora de cono es nuestros productos emplumados y de gran venta. Las trituradoras de cono no solo son venta caliente para clientes individuales y empresas comerciales, sino también para algunos fabricantes de trituradoras cuando a veces no pueden producir las trituradoras.
La trituradora de cono incluye principalmente: trituradora de cono CZS symons, trituradora de cono de resorte PY, trituradora de cono hidráulica HPC y trituradora de cono hidráulica HCC. Es digno de notar que PYB900, PYZ1200, PYB1200, trituradora de cono Symons 3 pies (modelo CZS36), trituradora de cono Symons 4 1/4 pies (modelo CZS51) y HPC200 son los modelos más vendidos.
Technical Parameters
Parámetros técnicos principales de la trituradora de cono de alta eficiencia CZS
| Model | Chamber Size | Max Feeding Sizes(mm) | Adjustable Range of Discharge Opening(mm) | Capacity (t/h) | Motor Power(kW) | Weight (t) | Overall Dimension (mm) | |
| CZS36 | 3’ | Fine | 35 | 3~13 | 27~90 | 75 | 15 | 2656×1746×2410 |
| Medium | 65 | 5~16 | 36~100 | |||||
| Coarse | 85 | 6~19 | 59~129 | |||||
| CZS51 | 4 1/4’ | Fine | 54 | 3~16 | 36~163 | 160 | 27 | 2958×2354×3156 |
| Medium | 76 | 6~16 | 82~163 | |||||
| Coarse | 89 | 8~25 | 109~227 | |||||
| Extra Coarse | 113 | 16~25 | 209~236 | |||||
| CZS66 | 5 1/2’ | Fine | 60 | 5~13 | 90~209 | 220 | 52 | 3941×2954×3771 |
| Medium | 76 | 6~19 | 136~281 | |||||
| Coarse | 113 | 10~25 | 190~336 | |||||
| Extra Coarse | 125 | 13~25 | 253~336 | |||||
| CZS84 | 7’ | Fine | 89 | 5~16 | 190~408 | 315 | 92 | 4613×3251×4732 |
| Medium | 113 | 10~19 | 354~508 | |||||
| Coarse | 151 | 13~25 | 454~599 | |||||
| Extra Coarse | 172 | 16~25 | 508~653 |
Model | Max. Feeding Size (mm) | Adjustable Range of Discharge Opening (mm) | Capacity (t/h) | Motor Power (kW) | Weight (t) | Overall Dimension (mm) |
| PYB600 | 65 | 12-25 | 20-40 | 30 | 5 | 2234×1370×1675 |
| PYD600 | 35 | 3-13 | 12-23 | 30 | 5.5 | 2234×1370×1675 |
| PYB900 | 115 | 15-50 | 50-90 | 55 | 11.2 | 2692×1640×2350 |
| PYZ900 | 60 | 5-20 | 20-65 | 55 | 11.2 | 2692×1640×2350 |
| PYD900 | 45 | 3-13 | 15-50 | 55 | 11.3 | 2692×1640×2350 |
| PYB1200 | 145 | 20-50 | 110-168 | 110 | 24.7 | 2790×1878×2844 |
| PYZ1200 | 100 | 8-25 | 42-135 | 110 | 25 | 2790×1878×2844 |
| PYD1200 | 50 | 3-15 | 18-105 | 110 | 25.6 | 2790×1878×2844 |
| PYB1750 | 215 | 25-60 | 280-480 | 160 | 50.3 | 3910×2894×3809 |
| Item Model | Cavity Type | Max Feeding Size (mm) | Minimum Output Size (mm) | Capacity (t/h) | Motor Power (kW) | Weight (t) |
| HPC200 | F(Fine) | 95 | 13 | 120-200 | 160 | 13.4 |
| M(Medium) | 120 | 16 | 140-220 | |||
| C(Coarse) | 190 | 19 | 150-250 | |||
| HPC300 | F(Extra Fine) | 80 | 10 | 100-240 | 250 | 18.1 |
| F(Fine) | 105 | 13 | 110-260 | |||
| M(Medium) | 150 | 16 | 175-320 | |||
| C(Coarse) | 210 | 20 | 190-380 | |||
| EC(Extra Coarse) | 230 | 25 | 220-440 | |||
| HPC400 | F(Fine) | 110 | 14 | 185-345 | 315 | 26 |
| M(Medium) | 196 | 20 | 255-430 | |||
| C(Coarse) | 251 | 25 | 295-560 | |||
| EC(Extra Coarse) | 295 | 30 | 325-630 |
Contact Supplier for More Information!!

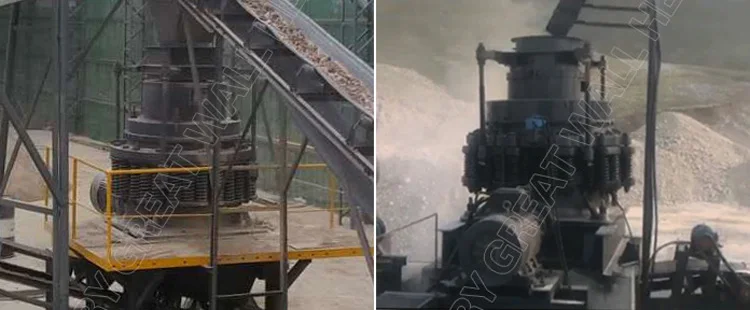

Successful Case
