355 semi auto cold saw tube cutting machine pipe cutting machine
- Category: >>>
- Supplier: Foshan Longxin Laser Technology Co. Ltd.
Share on (62246981350):
Product Overview
Description
Product Description
355 semi auto cold saw tube cutting machine pipe cuting machine
Product Application

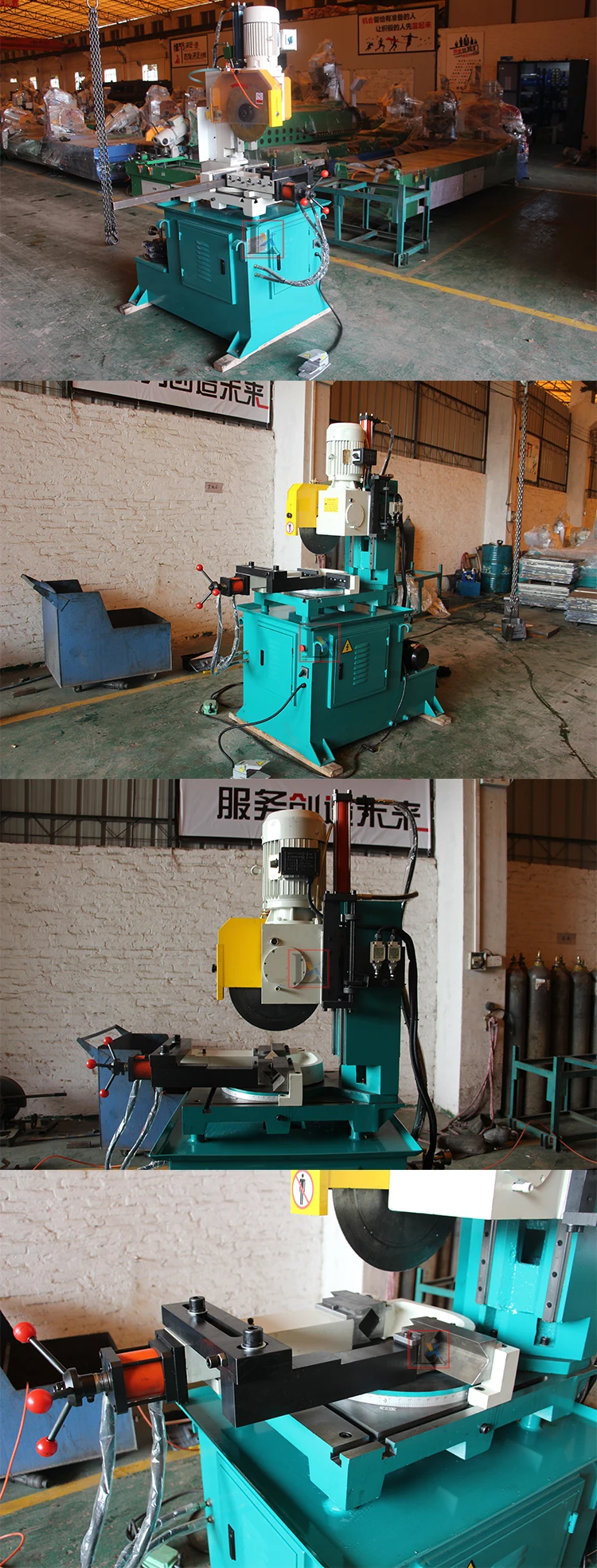

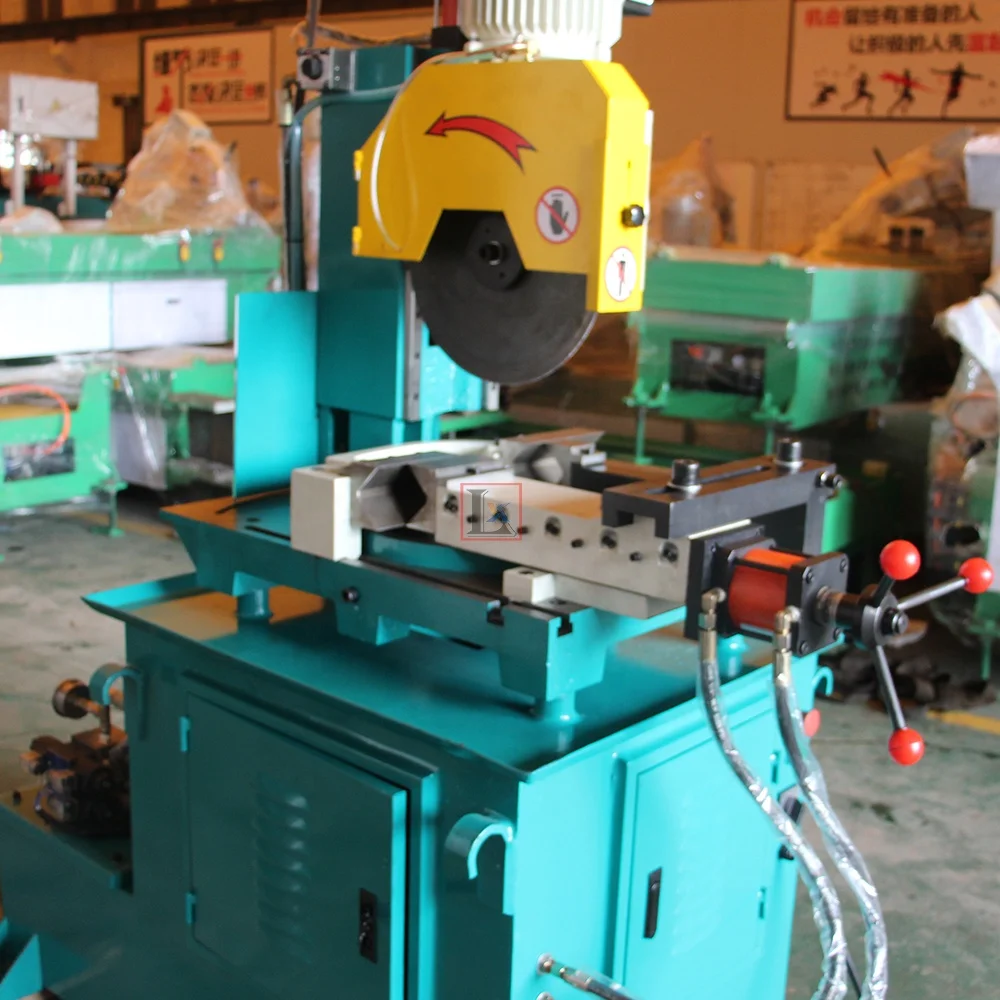

CS-355-H metal circular saw machine is a hydraulic semi-automatic heavy sawing machine .The machine independent hydraulic system ,feeding,clamping is driven by hydraulic pressure.Hydraulic pressure according to different materials processing precision adjustment,can greatly improve the cutting time of the single saw blade.Sawing except by hand according to the required length of feeding ,the rest of the workpiece clamping,sawing,cutting knife feed back,clamp release is controlled automatically.
This machine is a very ideal multipurpose heavy sawing machine .Its large cutting machine range ,can be cut under phi 110 tubes and the same standard rectangular tube ,for small and medium-sized pipe can be a sawing multi branch ,greatly improve the production efficiency. Cutting ability and can meet the various thickness of pipe on the market,such as less than or equal to 3mm stainless steel pipe ,seamless steel pipe and other than 7mm.Convenient operation,low noise,no dust,no burr,incision inside and outside and oblique various angle.

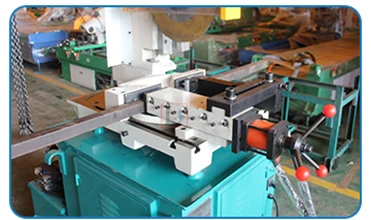

Bilateral clamp, workpiece is firmly clamped, the vibration is small, low noise, no pollution.

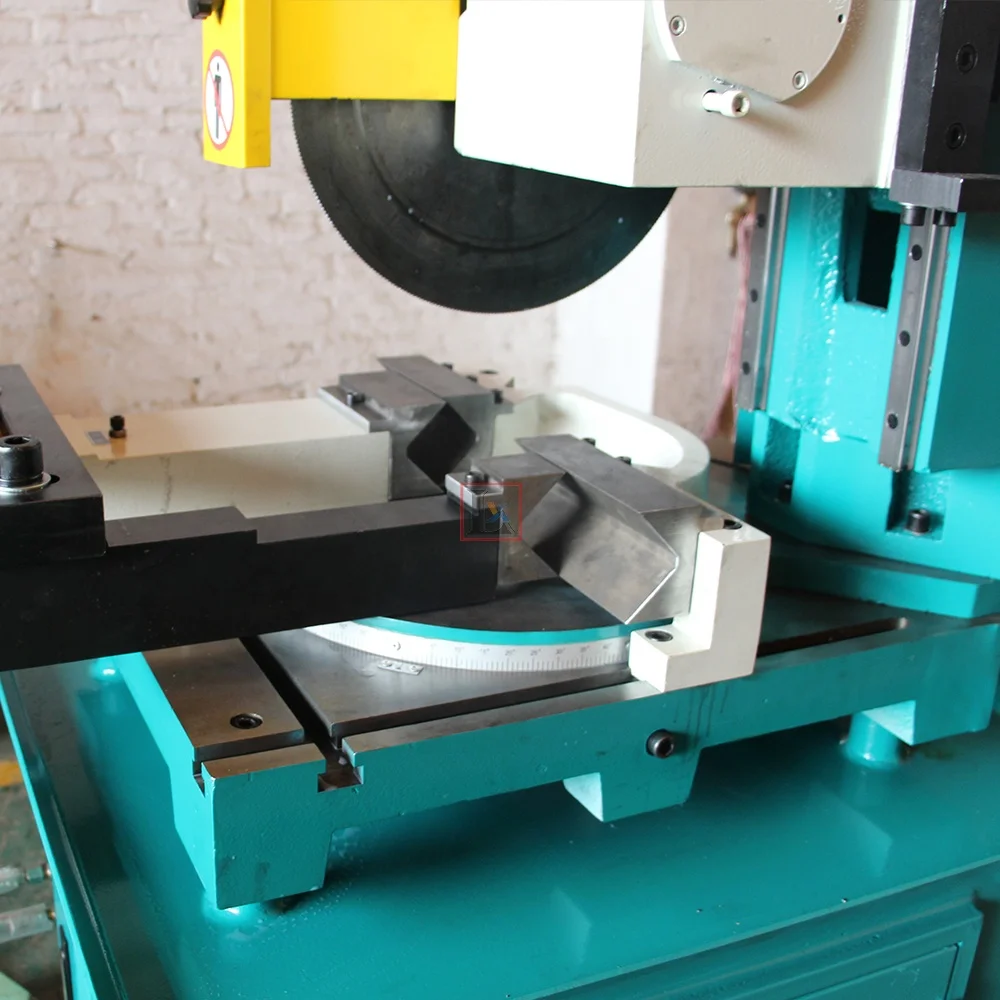

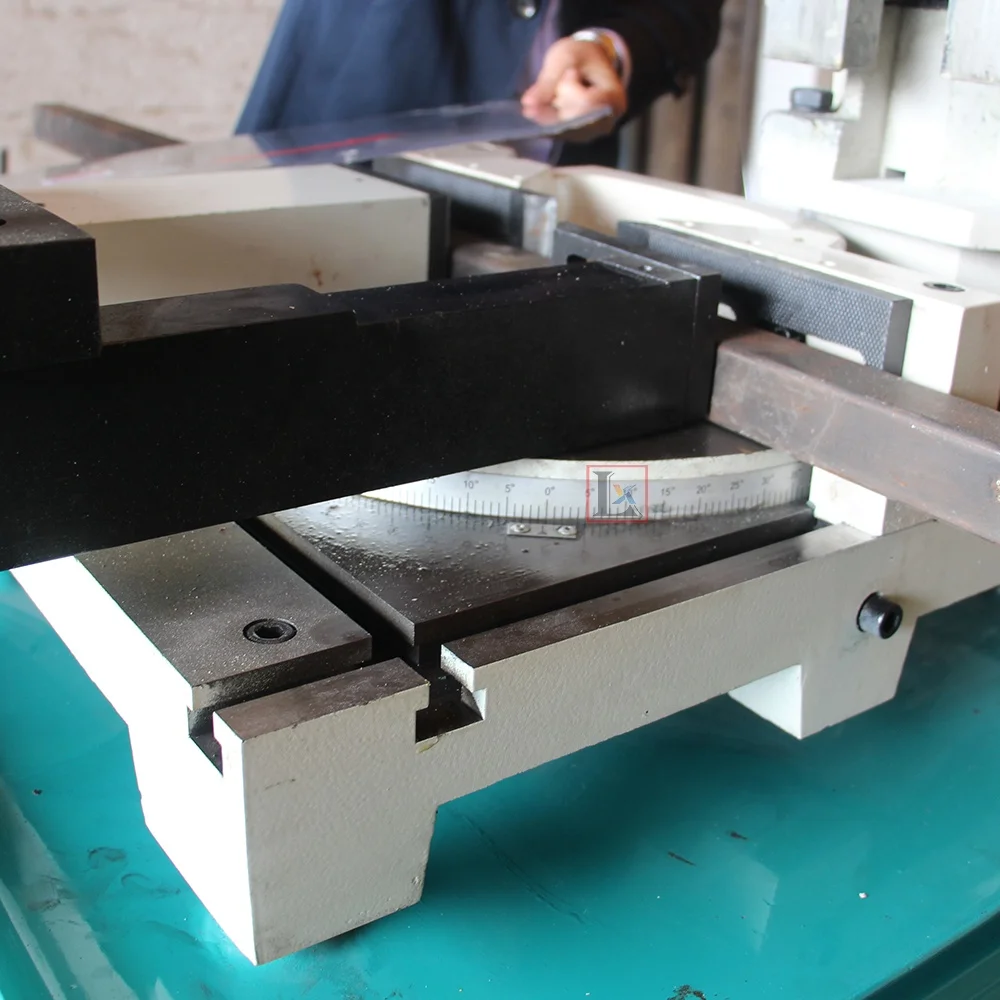

Angle cutting available, just rotate machine head to the required angle (with an angle scale).
Saw feeding and clamp all use hydraulic drive, stable and powerful. Except that material is manually feeding, the rest of work such as clamped, sawing, withdraw after sawing, release of the clamp is all automatically controlled.
Main Features
1.Using low speed rotation HSS saw blades cut metal tubing, cut inside and outside without Burr.

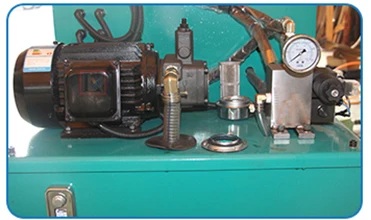

2.Feeding, clamping is driven by hydraulic system ,feeding is smooth, powerful.
3.Cutting speed can be adjusted according to the different materials precision,can greatly improve the cutting time of feeding.
4.Sawing except by Artificial feed,the rest of the clamping, sawing ,cutting knife feed back ,clamp release is controlled automatically.
5.Small volume,convenient operation,low noise ,no dust.

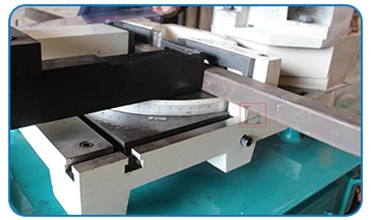

6. Can oblique angle beveled,only needs to rotate the head to a needed angle (with an angle scale )
Model | CS-315-H | CS-355-H | CS-400-H |
Main Drive Motor(KM) | YD100L-4/2 380v 2.4/3.OKW 50HZ(Frequency) | YD100L-4/2 380v 3.3/4.0KW 50HZ(Frequency) | YD100L-4/2 380v 2.4/3.7KW 50HZ(Frequency) |
Blade Speeds(RPM) | 25/50(Stainless steel) 52/100(Standard) | 25/50(Stainless steel) 52/100(Standard) | 25/50(Stainless steel) 52/100(Standard) |
Blade Diameter(mm) | HSSφ250-φ300 φ325(special) | HSSφ250-φ350 φ400(special) | HSSφ275-φ400 φ450(special) |
Saw Blade Pin Holes(mm) | 2×φ11×PCD63 | 2×φ11×PCD63 | 2×φ11×PCD63 |
Oil pressure(kg/cm2) | 25-35 | 25-35 | 25-35 |
Hyd.Oil storage capacity(L) | 40 | 40 | 40 |
Net Weight(KG) | 320 | 530 | 520 |
Machine Dimensions(L×W×H)(mm) | 680*1350*1400 | 850*1300*1850 | 800*1250*1950 |
Model | CS-315-H | CS-355-H | CS-400-H | |||||||||
Head Swivel | 90° | 45° | 90° | 45° | 90° | 45° | ||||||
Round tube○ | 90 | 80 | 110 | 110 | 125 | 125 | ||||||
Square Tube□ | 80*80 | 60*60 | 100*100 | 95*95 | 125*125 | 100*100 | ||||||
Determined by the thickness of pipe cutting | ||||||||||||
Hydraulic semi automatic inox pipes cutting machine Below diameter 115mm with Angle cutting

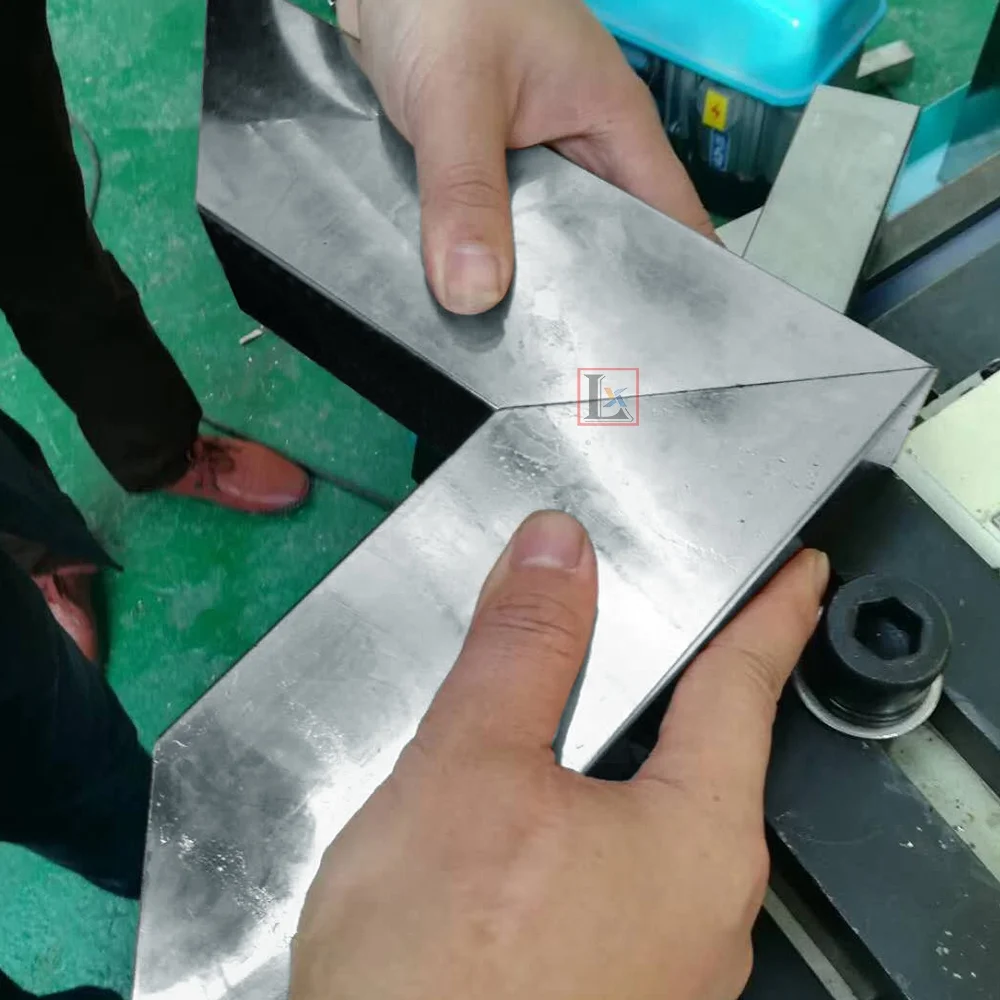

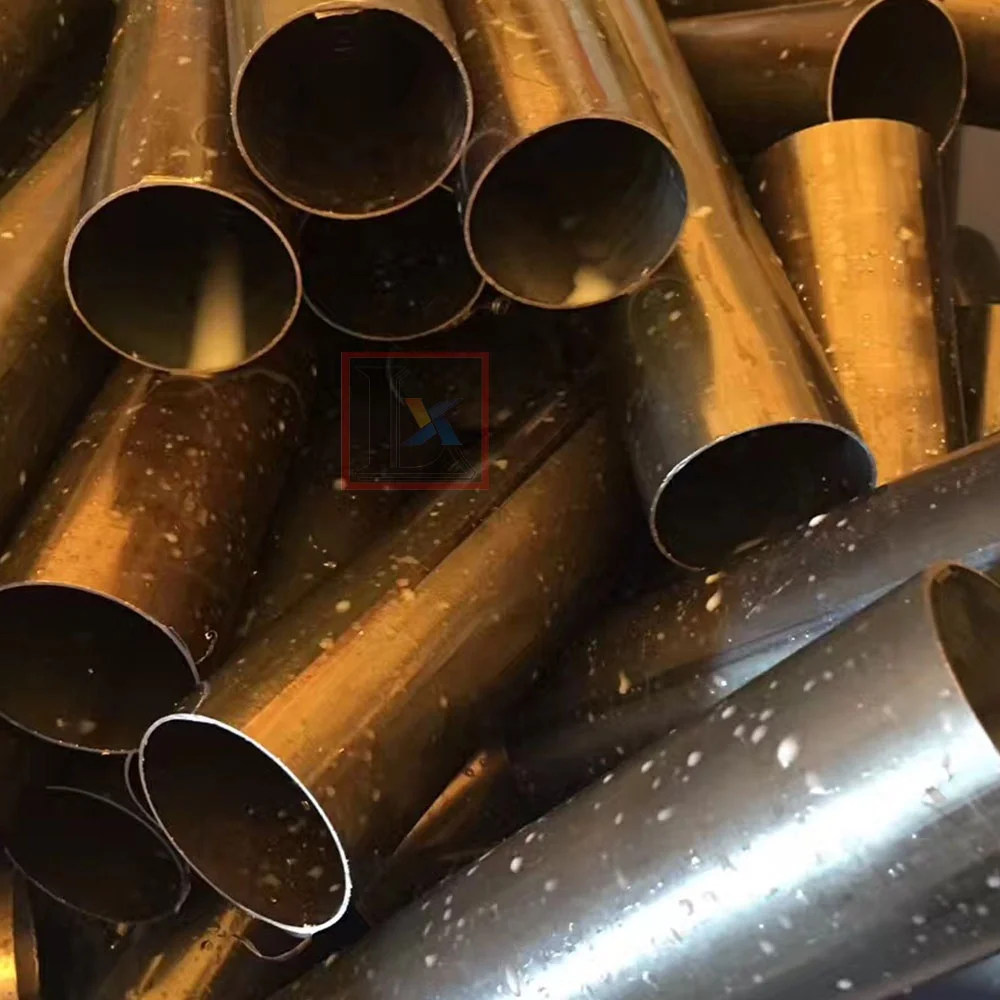

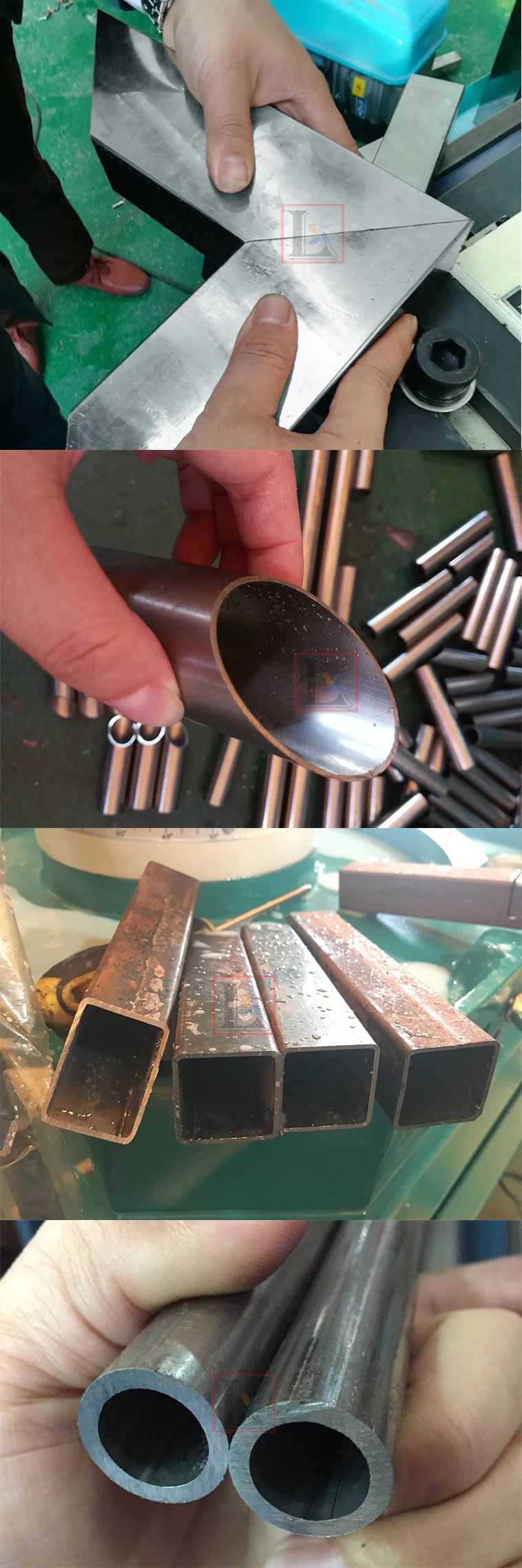

Samples
Hydraulic semi automatic inox pipes cutting machine Below diameter 115mm with Angle cutting
Related Products
Certifications
Company information
Foshan Longxin Laser Technology Co.,Ltd. was founded in 2003. We are specialized in pipe processing machines designing and manufacture.
We have our own R&D department and we focus on technology and product innovation .we not only produce machines, but also provide pipe processing solutions including customized design and modification. We also have a professional after-sales team to provide the machine installation, debugging and comprehensive technical support.
We have CE certification and many technology patents. Our machines have been exported to more than 50 countries.
Our products have been exported to more than 50 countries have through the CE certification and many technology patents
FAQ
1. How long is the warranty time of the machine?
We offer 13 months warranty, And we offer lifetime technical supports.
2. How can I use the machine?
We offer on-site free operation training for customer in our factory. User manual, installation and operation videos are available. If you still have doubts, welcome to contact us anytime.
3.What should I do if this machine has a problem during the warranty?
Our engineers offer 24 hours online service and free technical support.
4. How strong is your company?
We are a professional pipe processing equipment manufacturer with 16 years experience. We have professional R&D department and after-sales department to offer you the best solution and technical support.
