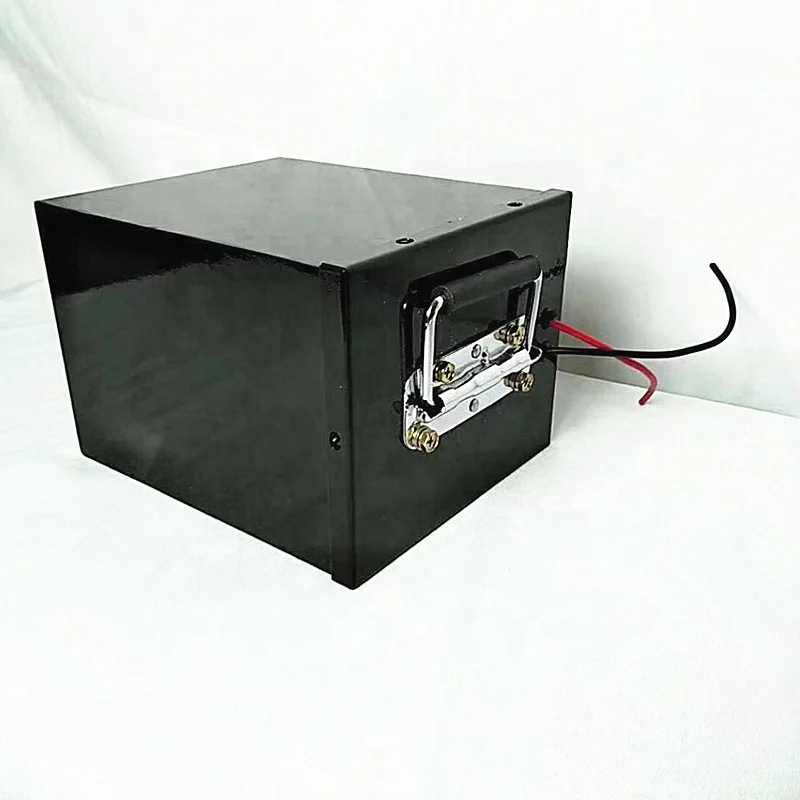

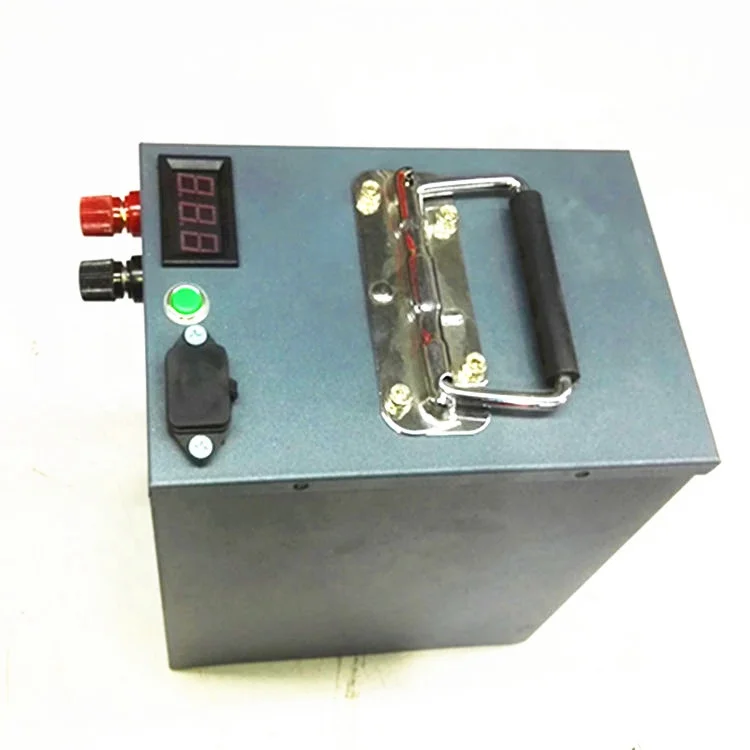

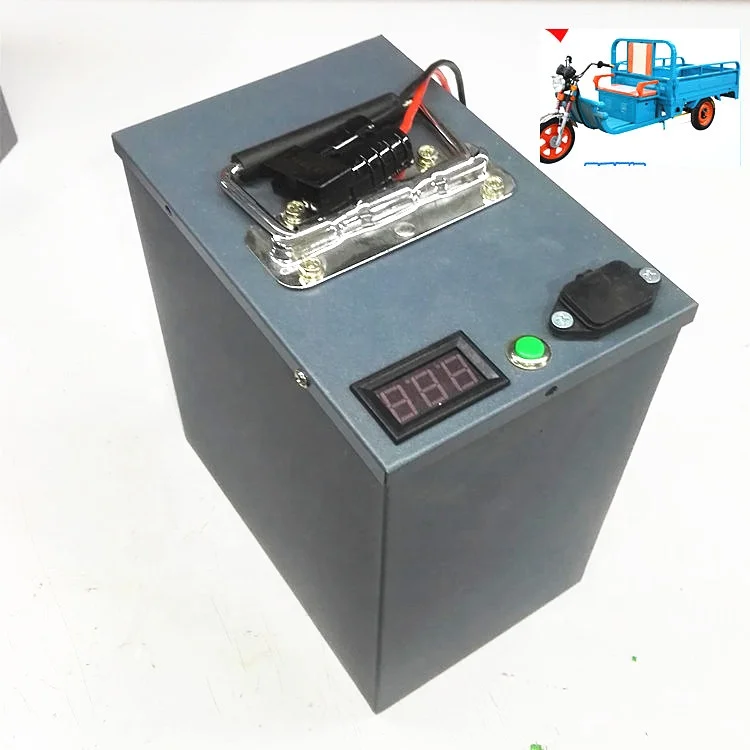

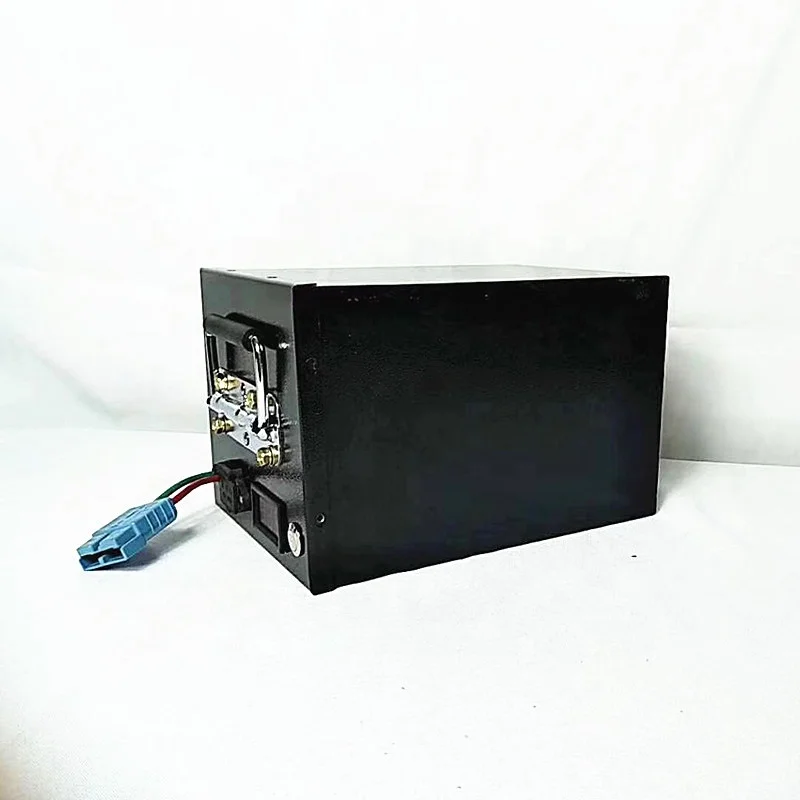

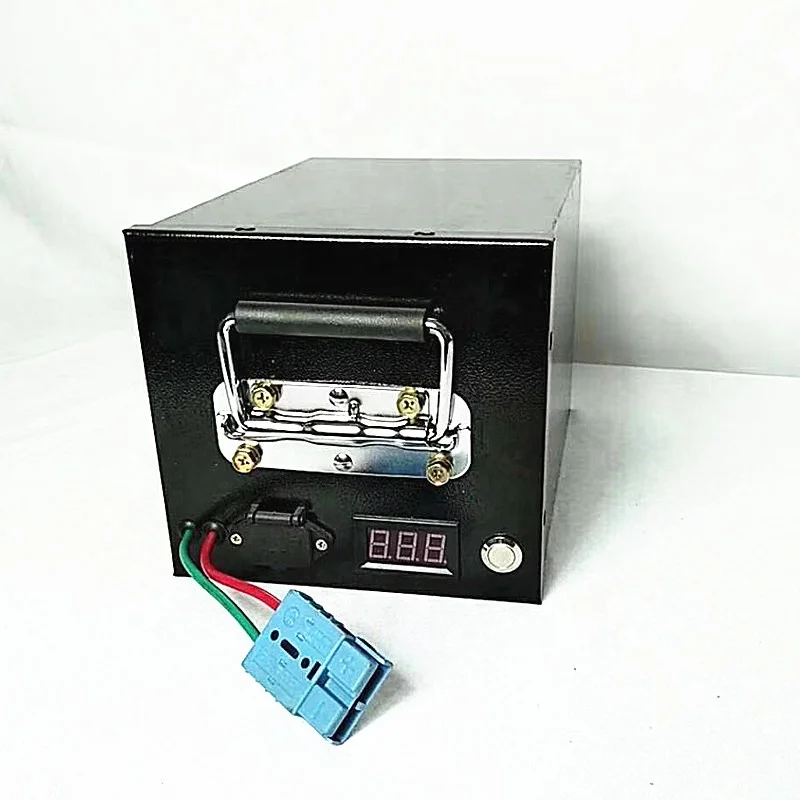

72 V Lifepo4 Lithium Battery Pack 72V 20Ah 30Ah 40Ah ebike scooter motorcycle tricycle battery

Share on (62247396500):


Price:$250.00 - $390.00

Quantity:


Product Overview

Description


72 Volt Lifepo4 Battery Pack 72V 20Ah 30Ah 40Ah Electric Bicycle Lithium Ion Battery ebike scooter motorcycle battery pack




Notice:

This battery can use for 72V 500W---3000W ebike motorcycle e-tricycle motor,



Parts included:

1. 72V20ah Lithium Battery

2. 40A Maximum Continuous Discharge Current Built-in BMS board

3 .one discharge wire

4.One 84V 5A charger



Battery specification:

Battery Model:72V20Ah
Nominal Capacity (AH) :20AH
Nominal Voltage (V):72V

72V 20Ah Lithium Battery for 1200W motor
Output power: 30A contiune,50A peak
Battery dimension&weight : seald Iron shell case
max H75*W205*H350(mm) 12kgs/unit,2 handles
BMS:protect battery from over heat/over
current/over recharge/over discharge/short circuit,
with 65temperature protection,
Cycle life:500times remain more than 80% capacity
Accessories : 5A charger, one connection
cable,4.5hs recharge this battery .

48v60v72v  (16)

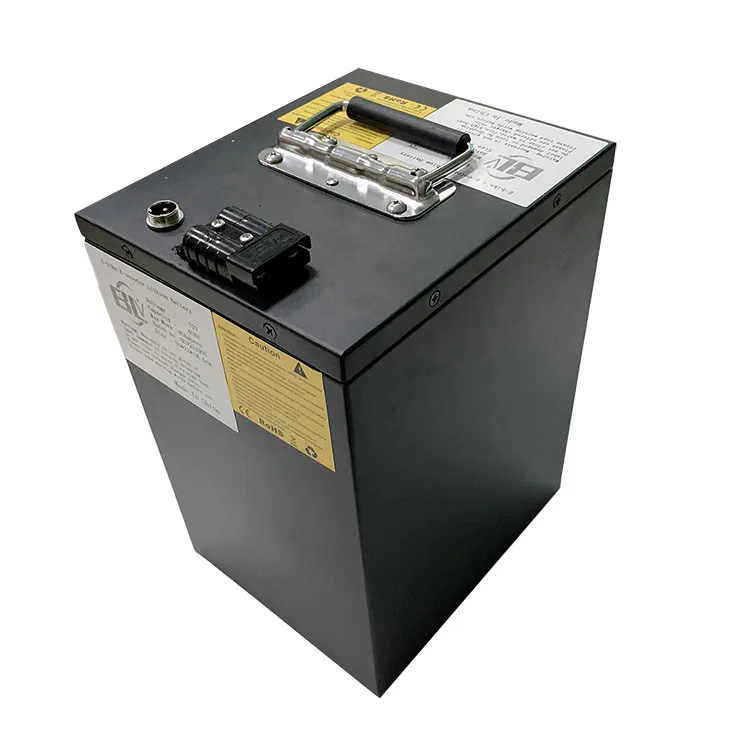

48v60v72v  (20)

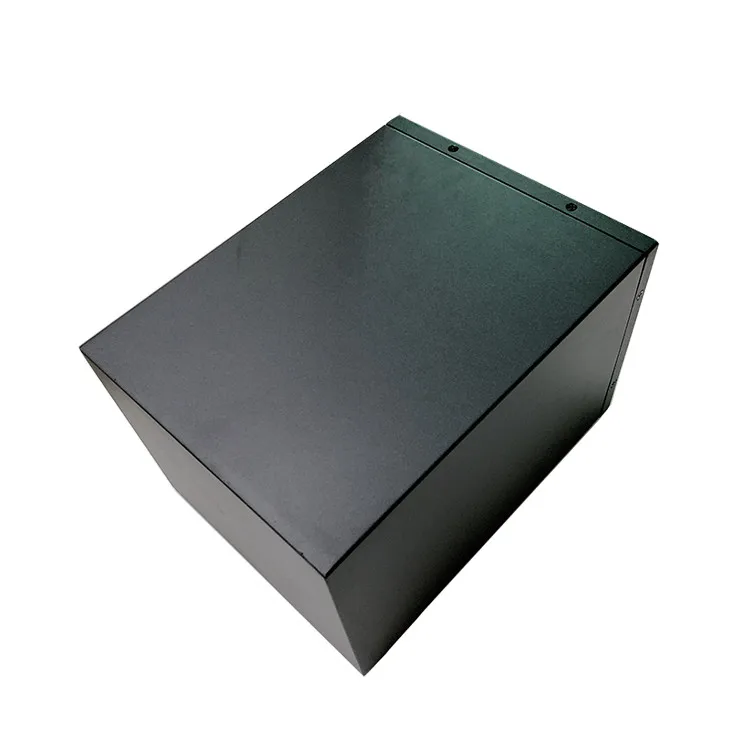

48v60v72v  (22)

charger plug  which one .jpg

Lithium Ion Charger Specification:

1. AC Input Voltage: 100-240V.
2. Charge Voltage:84Volts.
3. Charge Current: 2Amps -5Amps
4. AC Charger Plug: European/American /UK /Australia Standard you can choose.





Advantage:

1.Fast speed:It can support most 2000W Power motor kits

2.High voltage:Use 20 series cells, it can reach to 84V when full charged.

3.Long life cycle:It is the double life cycle of lead-acid battery life normally it can use 3-5 years.

4.With BMS protection:Prevent:Over charge,over discharge,over hot over voltage ,over voltage,short circuit

5.Easy Install:Easily install into many kinds ofequipments.



Warnings
Do not immerse the battery in water or seawater, and keep the battery in a cool dry surrounding if it stands by.

Do not use or leave the battery near a heat source as fire or heater.

Use the battery charger specifically for that purpose when recharging..

Do not reverse the position and negative terminals.

Do not connect the battery to an electrical outlet.

Do not discard the battery in fire or a heater.

Do not short-circuit the battery by directly connecting the positive and negative terminals with metal objects.

Do not transport or store the battery together with metal objects such as hairpins, necklaces, etc.

Do not strike, trample or throw the battery.

Do not directly solder the battery and pierce the battery with a nail or other sharp objects.






FAQ: Any questions, contract us freely, respond within 12h
Q1: Can't charge the battery?
A1: First we nee to connect the battery charger, second we have to turn this switch on, and then can be charged.
Q2: Is it the capacity of your battery real?
A2: All of our batteries are real full capacity with top quantity, competitive price& long life cycle.
Q3: How about the lead time?
A3: Delivery time for production will depend on your quantity. Usually it will take 7-15 working days, the sample will be shipped out within 4 working days.
Q4: Which certificates do you have?
A4: We have CE/ROHS/UN38.3/MSDS for lithium-ion cell used,
Q5: How about warranty?
A5: 1 year warranty
Q6: Payment and samples
A6: We accept paypal for samples order, larger order with T/T
Q7: Charging temperature
A7: The cell shall be charged within 0°C~40°C range in the Product Specification datasheet, for all samples&orders offer test report& tech specification data sheet
Q8: Operating temperature
A8: -20°C~60°C
Q9: Company production capacity:
A9: 200k pcs per months


Shenzhen Believe Technology Co., Ltd: Advanced power solution for the green world



72 Volt Lifepo4 Battery Pack 72V 20Ah 30Ah 40Ah Electric Bicycle Lithium Ion Battery ebike scooter motorcycle battery pack
