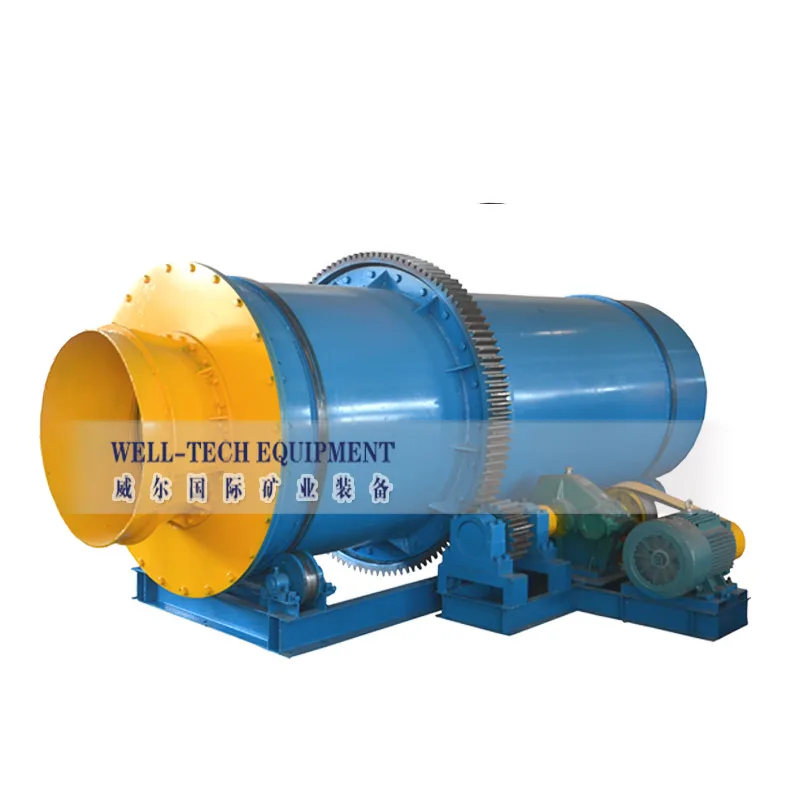

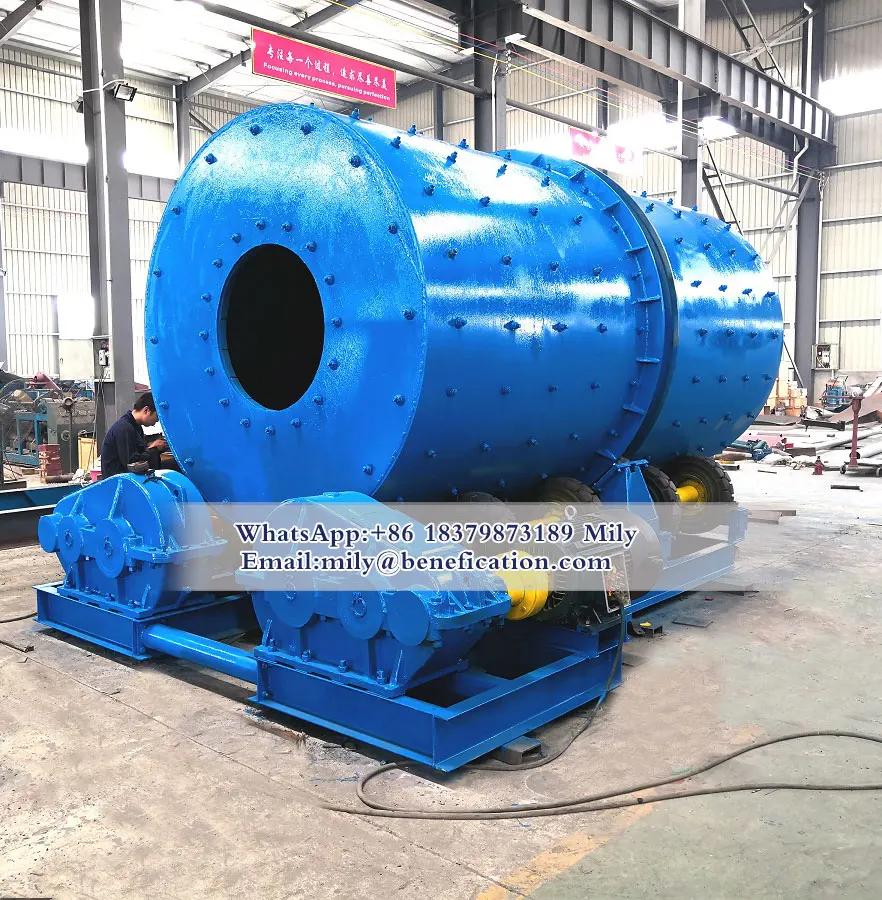

Drum scrubber washing machine for cleaning gypsum stone
- Category: >>>
- Supplier: Jiangxi Well-Tech International Mining Equipment Co. Ltd.
Share on (62247748925):
Product Overview
Description

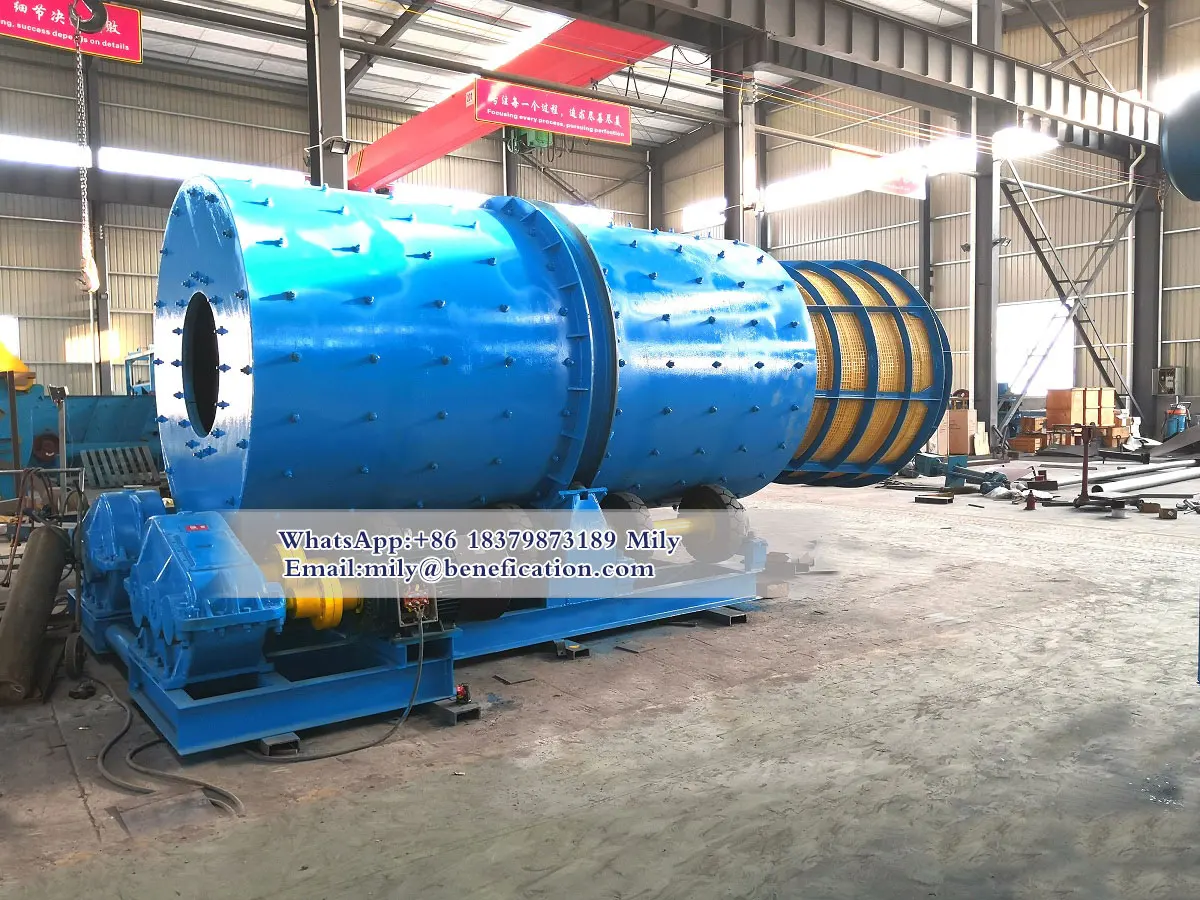

Alluvial Gold Washing Plant Rotary Scrubber
Product Description
Gold Washing Rotary Scrubber washing machine is a main washing equipment in mining industrial, widely used for washing alluvial type/sand type ores and stones, that with much sticky clay, with much good washing effect for clay.
Technical Specifications Contact us
Model | Drum Size (m) | Screen size (mm) | Feeding size (mm) | Water pressure (Mpa) | Every ton of ore water required (M3/t) | Capacity (T/h) | Rotation speed (r/min) | Power (Kw) | Weight (T) |
RXT1030 | Φ1.0×3.0 | ≥5 | ≤100 | 0.4~0.5 | 1.5~4 | 20-30 | 25~28 | 15 | 4800 |
RXT1230 | Φ1.2×3.0 | ≥5 | ≤100 | 0.4~0.5 | 1.5~4 | 30-50 | 23~25 | 18.5 | 5800 |
RXT1530 | Φ1.5×3.0 | ≥5 | ≤150 | 0.4~0.5 | 1.5~4 | 70~90 | 18~22 | 22 | 6200 |
RXT1545 | Φ1.5×4.5 | ≥5 | ≤150 | 0.4~0.5 | 1.5~4 | 80~120 | 18~22 | 30 | 6900 |
RXT1560 | Φ1.5×6.0 | ≥5 | ≤150 | 0.4~0.5 | 1.5~4 | 90~130 | 18~22 | 37 | 8300 |
RXT1845 | Φ1.8×4.5 | ≥5 | ≤170 | 0.4~0.5 | 1.5~4 | 100~130 | 20~21 | 45 | 11800 |
RXT1860 | Φ1.8×6.0 | ≥5 | ≤170 | 0.4~0.5 | 1.5~4 | 110~140 | 20~21 | 45 | 12800 |
RXT2060 | Φ2.0×6.0 | ≥5 | ≤210 | 0.4~0.5 | 1.5~4 | 120~160 | 19~20 | 55 | 14800 |
RXT2265 | Φ2.2×6.5 | ≥5 | ≤230 | 0.4~0.5 | 1.5~4 | 160~180 | 19~20 | 55 | 16500 |

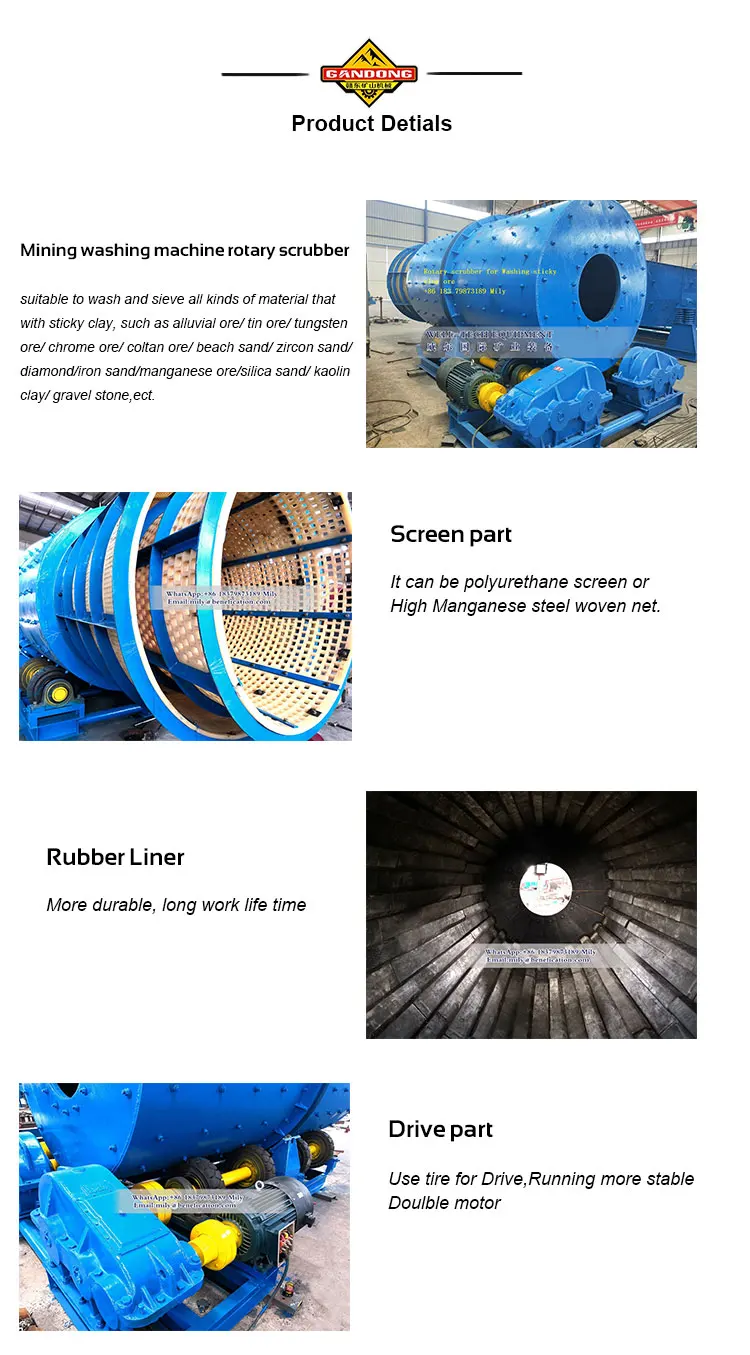

Product Details Contact us
Features:
1.Good function of washing clay, screening ores.
2.High production capacity ( can be from 1T/H to 200 T/H) & efficiency.
3.Low operating cost, easy maintenance and low noise.
4.The length &diameter of drum, screen mesh, layer quantity of screen can be customized.
5.Can Operating with other mining machines.

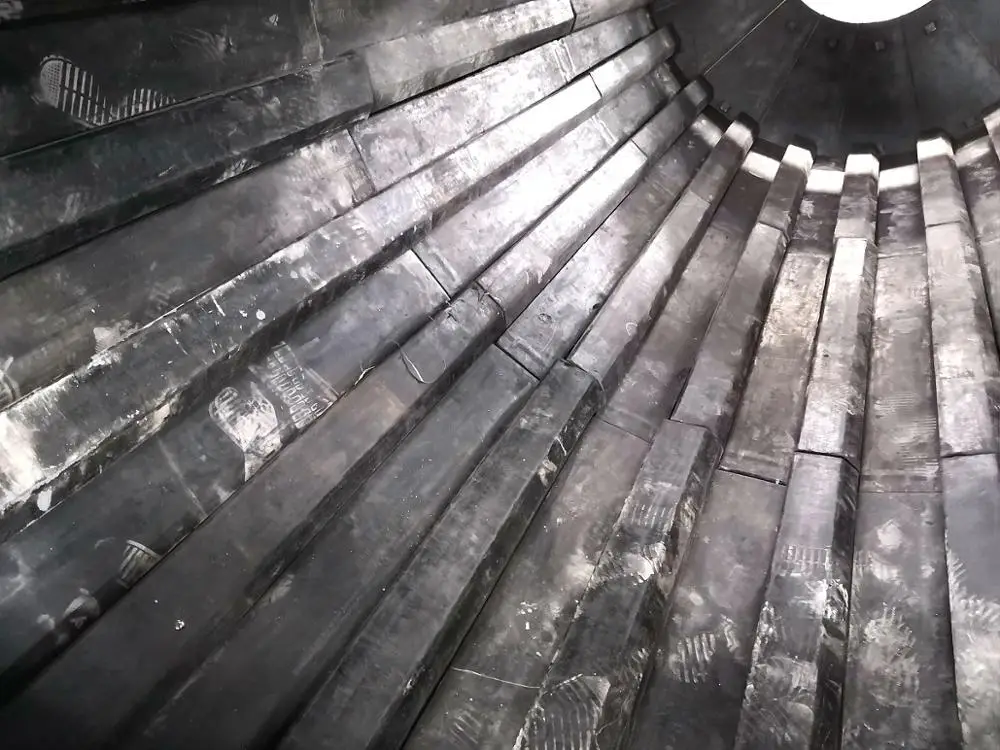

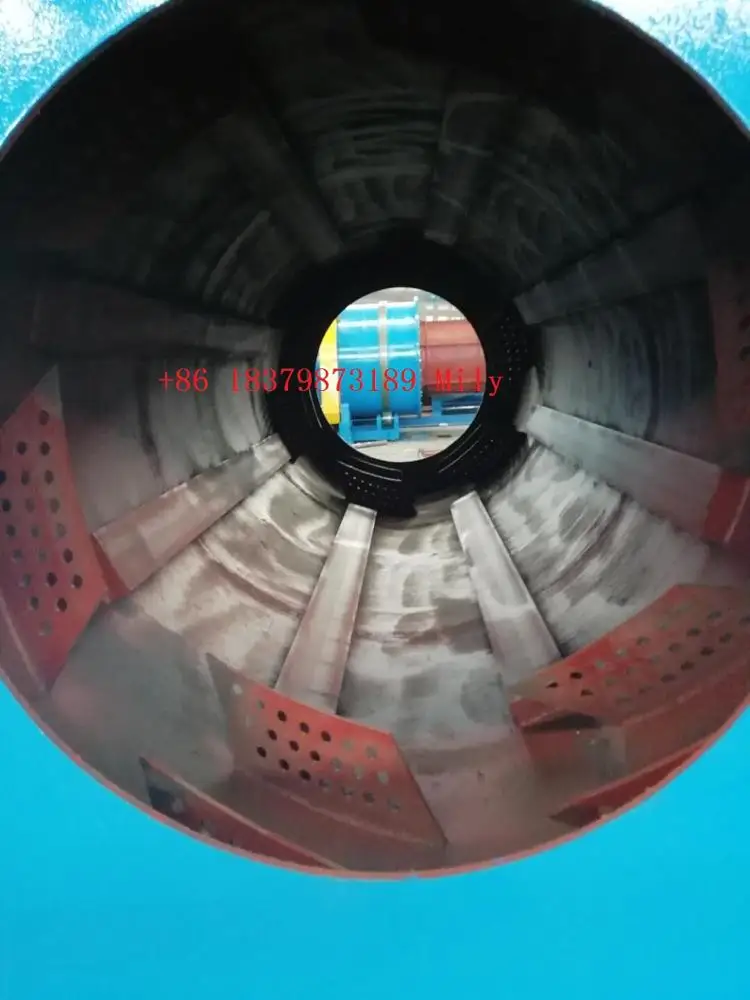

6.Inside drum can lined with rubber plates or welded with steel material spiral plates.
7.Screen materail can be PU or mangansese or stainless steel

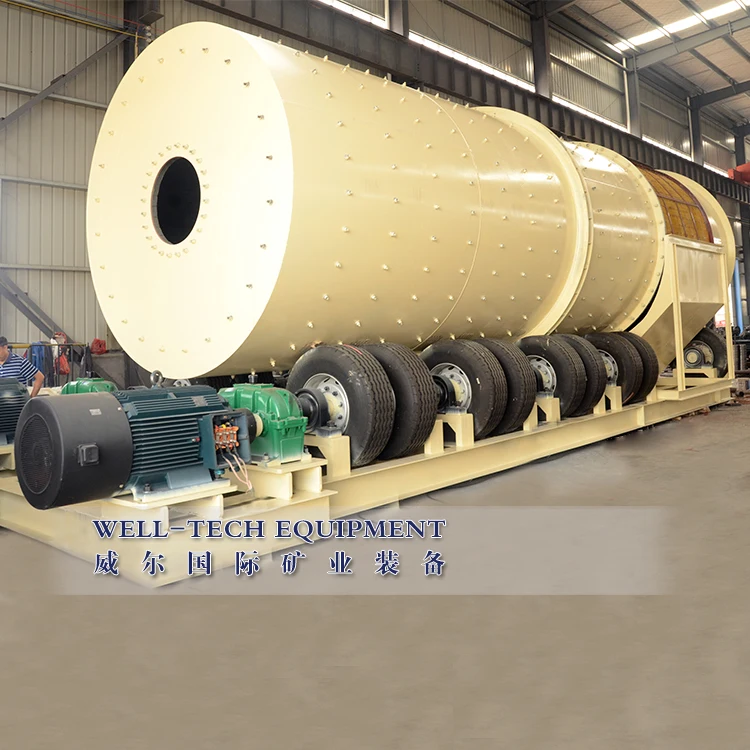

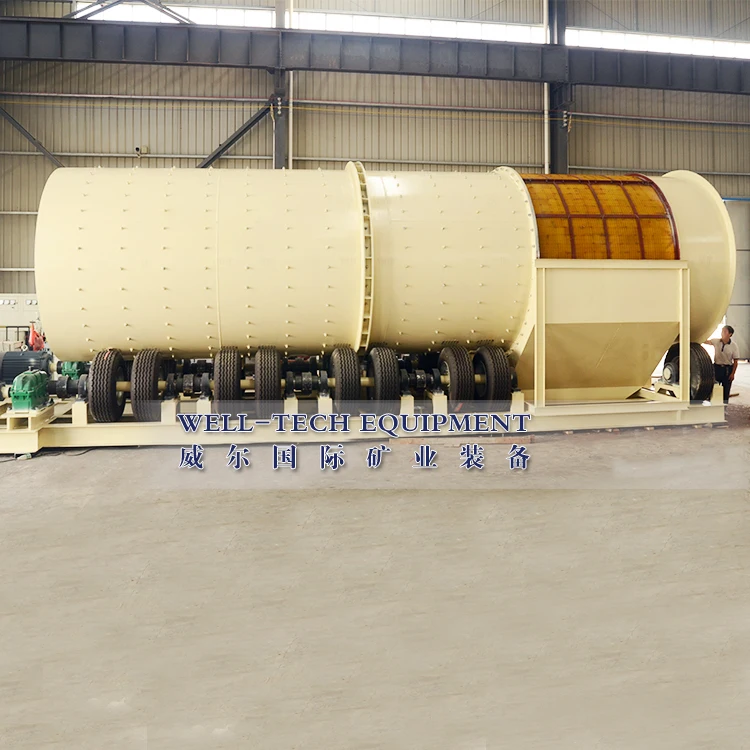

8.With Rubber tires driving , water spray pipes in side screen.
9.Can be with electic motor or diesel generator.
Related Products Contact us
Click Now for Catalogs & Factory Price!

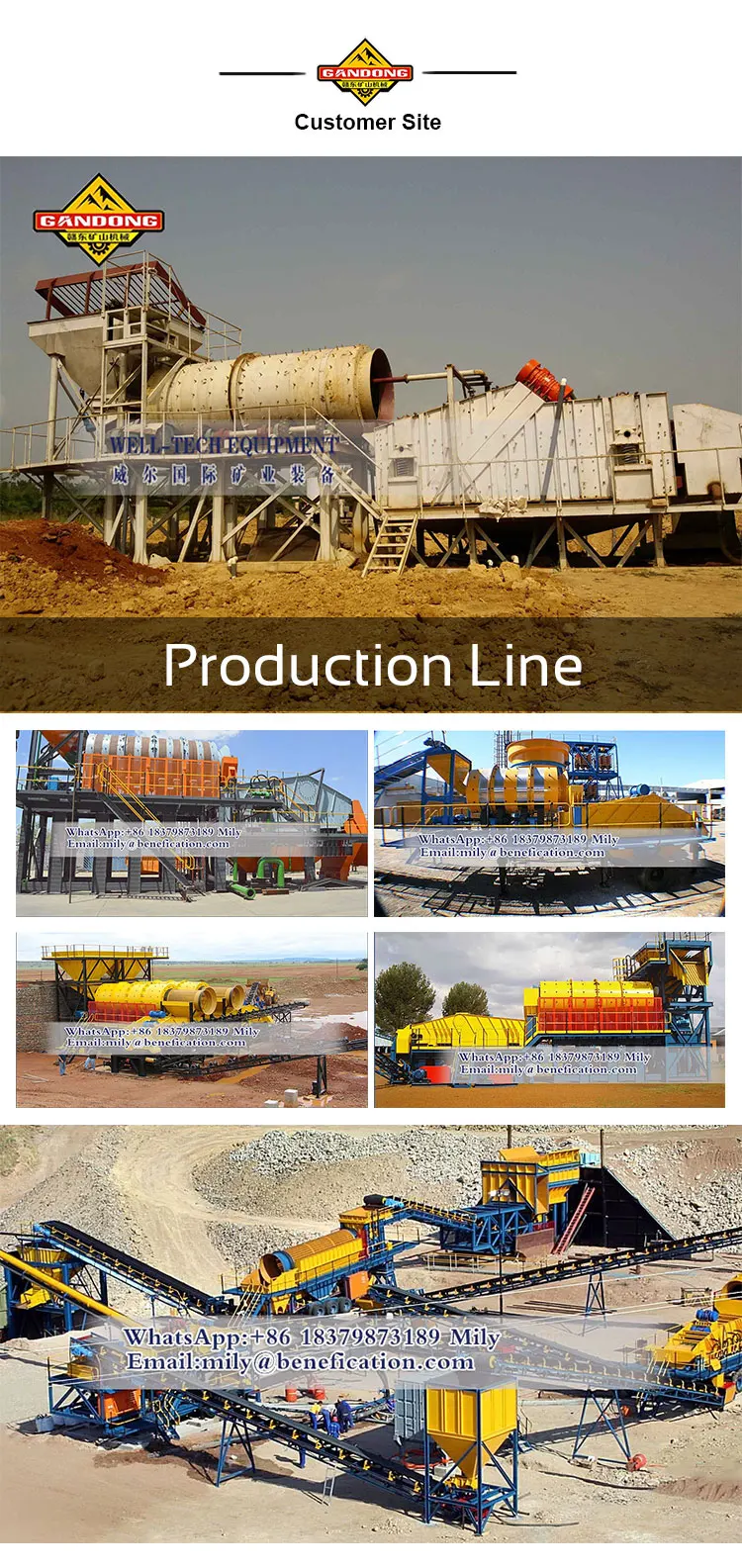

Mineral Processing Line Case Show Contact us
Our goal is to provide customers with one stop service in the field of mining, including the minerals in the mineral analysis, mineral processing test, engineering design, equipment production, equipment installation, equipment debugging and of technical training etc integrated services, through the provision of our perfect services to solve all customer's problem from his investment to his return.
Why Choose Us
Jiangxi Well-tech International Mining Equipment Co.,Ltd. (Gandong Mining Equipment) is a large mineral processing service company specialized in designing, manufacturing, installing and debugging of mining equipment as well as providing flow sheet design and course training of mineral processing.
Our company covers an area of 48,000 square meters, the workshop covers 20,000 square meters, we have various large modernized machinery process facilities, professional engineering team and installation team.
Now our company is the largest manufacturer and exporter of gravity dressing equipment in China.
Pre-Sales Service
Inquiry and consulting support.
Sample testing support.View our Factory.
After-Sales Service
Training how to instal the machine, training how to use the machine.
Engineers available to service machinery overseas.
